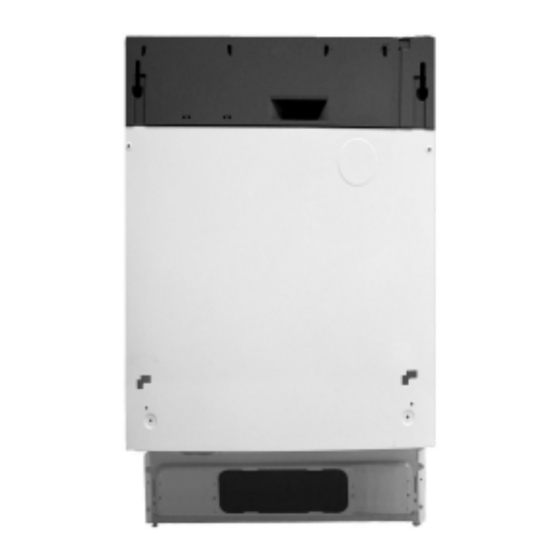

Caple deluxe 45cm integrated dishwasher
Hide thumbs Also See for DI455DL:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI455DL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caple DI455DL

Summary of Contents for Caple DI455DL

  • Page 4 Dishwasher Model:Di455DL Parts List Name of part Part Specialized code QTY. Remark Upper rear crosspiece 0120103082 Main screw for self threading screw 3.5 0120200057 Upper front crosspiece 0120103079 Right upright assembly 0120105717 Painted right side pannel 0120106819 Upper basket 0120201766...
  • Page 5 Dishwasher Model:Di455DL Parts List Name of part Part Specialized code QTY. Remark O-Ring 012G4050158 Drain hose assembly 012G2140061 Pressure switch tube 012G2140067 Coupling (colunm / heating element) 0120200225 Heater assembly 0120800355 0120200220 Water intake hose（heating element) Water softener 012G9380537 Washing pump assembly...
  • Page 6 Dishwasher Model:Di455DL Parts List Name of part Part Specialized code QTY. Remark Power Key-press 0120200226 Power supply switch 012G9370091 Springs adjusting small block 0120100042 Spring adjusting screw 0120600197 Block hooking bracket 0120100052 Outer door 0120103089 Rubber 0120300014 Left hinge articulation...

  • Page 8: Table Of Contents

    Contents 1. Product Code illumination and Series introduction …………………….………...3 2. Features………………………………………………… ……………………………….4 3. Net Dimension…………………………………………………………………………….5 4. Installation and Accessory Parts…………………… ………………………………….5 5. Parts and Functions………………………………… ………….. ………………...…...6-11 6. Function Schedule……………………………………………………………………….12 7. Program Diagram………………………………………………………………………..13 8. Maintenances Service and Trouble Shooting……… ………………………………..14-19 9.

  • Page 9: Product Code Illumination And Series Introduction

    Product Code illumination and Series Introduction 1.Product Code Illumination and Series Introduction Model Identification 9 ─ □ □ □ □ A: Abbreviation of dishwasher B: Code name of Nominal capacity C: Series of factory design D: Freestanding/built –in/semi-built-in E: Mechanical/Electronic F: The second series of factory design code name described/outer side material Examples: DW9-CBE0...

  • Page 10: Features

    Features 2.Features 2.1Prewashing It may avild the peak of using electricty effctively,saving electricity consumption. 2.2Half load washing Half loading fashtion which the upper-rack only mode is available get saving electricity and water consumption,if the dishwares is not too much.

  • Page 11: Net Dimension

    Net dimension 3.Net dimension 4.Installation and Accessory Parts...
  • Page 12 Installation and Accessory Parts 5.1 Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned on the right or the left to facilitate proper installation.
  • Page 13 Installation and Accessory Parts a proper connection, the hose must be replaced with one which is long enough. This hose is available upon request from specialised retailers and service centers. 5.6 Drain Hose Connection Insert the drain hose into a drain pipe with a minimum diameter of 4cm,or let it run into the sink, making sure to avoid bending or crimping it.

  • Page 14: Parts And Functions

    Parts and Functions...
  • Page 15 Parts and Functions Salt The hardness of the water varies from place to place. If hard water is used in the shwasher,deposits will form on the dishes utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.
  • Page 16 Parts and Functions direction from the "-" setting towards the "+" sign,based on the hardness of the water being used. It is recommended that adjustments be made in accordance with the following scheme: Detergent Detergent specifically intended for use with dishwashers must be used.The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table."...
  • Page 17 Parts and functions results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they be allowed to soak before they are washed. This will eliminate the need for extra wash cycles.

  • Page 18: Function Schedule

    Function Schedule 6. Function Schedule wash 1、Heavy Pre-wash Cold rinse 70℃Main-wash Hot rinse Drying Normal wash 2、 Pre-wash 55℃Main-wash Cold rinse Hot rinse Drying Light wash 3、 Pre-wash 55℃Main-wash Hot rinse Drying Glasses wash 4、 55℃Main-wash Hot rinse Drying rinse with warm water Rapid wash 5、...

  • Page 19: Program Diagram

    Program Diagram 7. Program Diagram...

  • Page 20: Maintenances Service And Trouble Shooting

    Maintenances Services and Trouble shooting 8.1Maintenances Services It may occur that the dishwasher does not function or does not function properly Before calling for assistance,Iet us see what can be done first :have you forgotten to press one of the buttons or to perfom an essential operation? 8.2 Trouble Shooting analysis of the common breakdowns Door switch trouble...
  • Page 21 Maintenances Services and Trouble Shooting analysis of the common breakdowns water supply trouble Whether water is flowing in the hose Turn on the stopcock Whether the stopcock is turned on Whether solenoid valve measure whether solenoid valve is working is electrified Change the solenoid valve Check whether...
  • Page 22 Maintenances Services and Trouble Shooting analysis of the common breakdowns Water discharge trouble Whether the pipe work is in good condition Repair it whether discharge The pump is possibly damaged pump works properly Whether the water level switch is damaged Replace the water level switch position discharge pipe is probably...
  • Page 23 Maintenances Services and Trouble Shooting analysis of the common breakdowns Heating trouble Check: Whether socket connector is connected well Connect it well Check resistance Replace the heater between the heater resistor Check whether the circuit Replace the temperature limiting between the two teminals device is open The cable or the controller...
  • Page 24 Maintenances Services and Trouble Shooting analysis of the common breakdowns Overflow trouble Whether there is water in the bottom of the A water leakage has machine developed Whether the overflow Replace it switch works properly The controller board or the cable should be suspected damaged...
  • Page 25 Maintenances Services and Trouble Shooting analysis of the common breakdowns power trouble check whether the power connector Connect it properly check whether the power connector is in position is in position check whether the circuit the cable or the controller board between the two terminals should be suspected is open...

  • Page 26: Circuit Diagram

    Circuit Diagram 9. Circuit Diagram...
