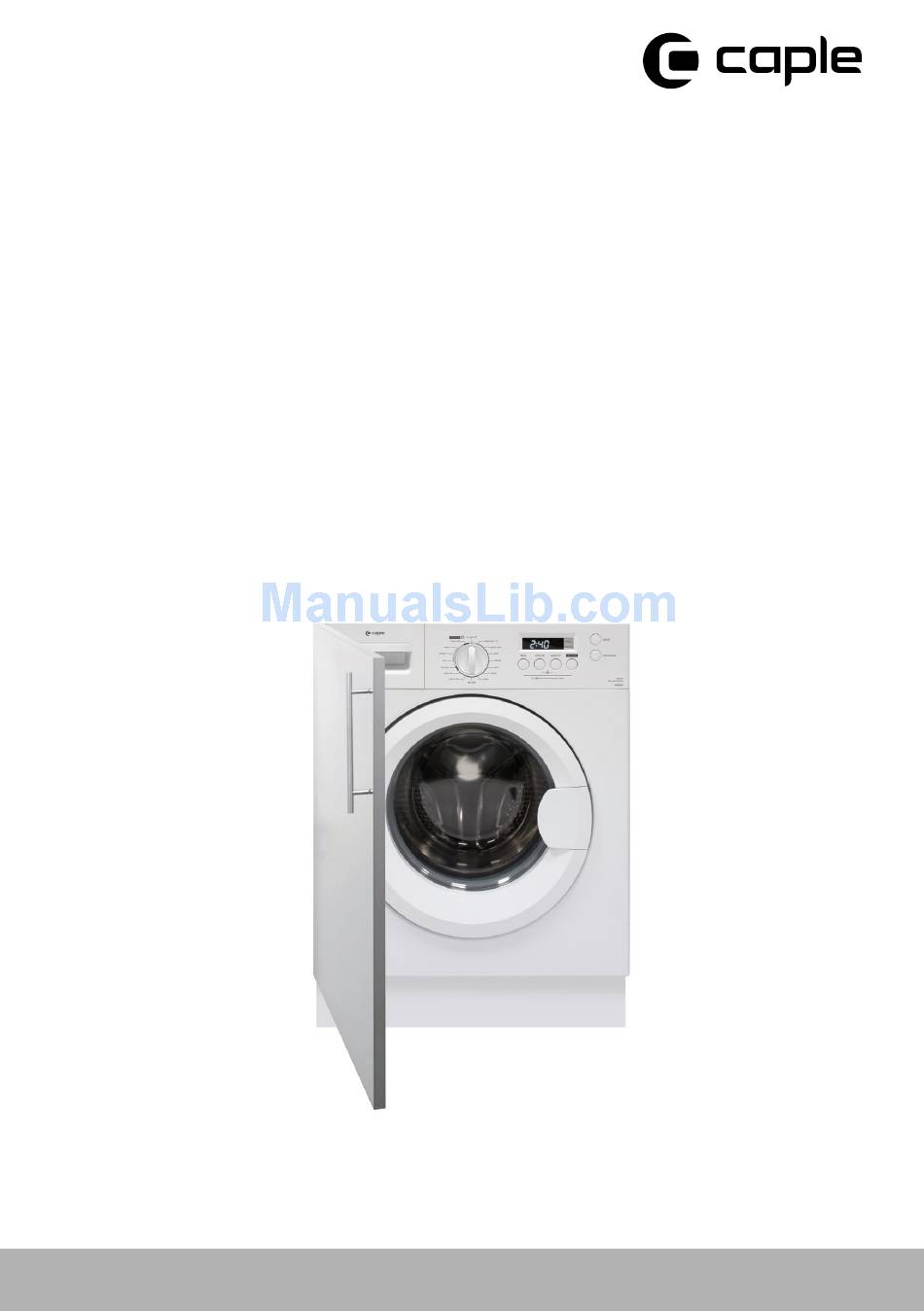

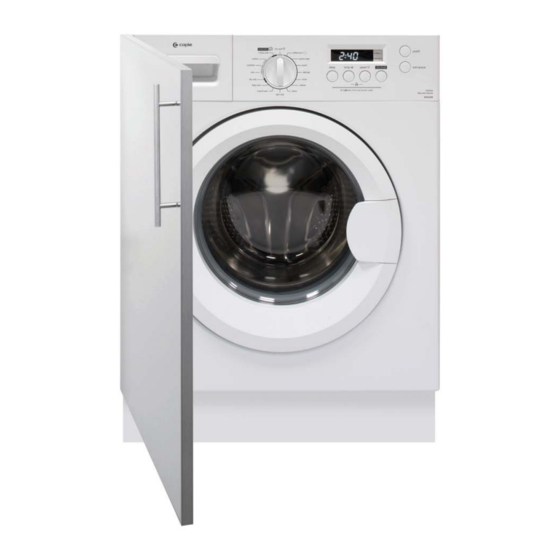

- Page 1 Integrated Washer Dryer instruction manual WDI3300 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
PLACE OUTLET HOSE ELECTRICAL CONNECTION OPERATION QUICK START DETERGENT DISPENSER CONTROL PANEL OPTION OTHER FUNCTIONS PROGRAMMES WASHING PROGRAMMES TABLE CLEANING AND CARE TROUBLESHOOTING TECHNICAL SPECIFICATIONS PRODUCT FICHE BUILT-IN INSTALLATION Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 3: Warnings
- The new hose-sets supplied with the appliance are to be used and old hose-sets must not be reused. - Before any maintenance is performed, unplug the appliance from the mains. Please keep this instruction manual for future reference Instruction manual WDI3300... - Page 4 Cleaning and user maintenance shall not be made by children without supervision. - Children of less than 3 years should be supervised to ensure that they do not play with appliance. Please keep this instruction manual for future reference Instruction manual WDI3300...
- Page 5 - The exhaust air must not be discharged into a flue which is for exhausting fumes from appliances burning gas or other fuels. - Beforehand, thoroughly rinse heavily soiled items of washing by hand. Please keep this instruction manual for future reference Instruction manual WDI3300...
-
Page 6: Installation Warnings
- The appliance shall not be installed in a humid place. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 7: Risk Of Damaging Appliance
- Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well. - It is forbidden to wash carpets. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 8: Safety Instructions
- WARNING: Never stop a washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. Please keep this instruction manual for future reference Instruction manual WDI3300... - Page 9 - Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the appliance. Please keep this instruction manual for future reference Instruction manual WDI3300...
-
Page 10: Environmental Protection
CE DECLARATIONS OF CONFORMITY This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 11: Installation
Please dispose the related packing materials according to the relevant local regulations. Please do no throw the packing materials away together with the other daily living disposals. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 12: Remove Transport Bolts
- Keep far away from heat resources. - Make sure that the washer dryer does not stand on the power cord. - Make sure that the washer dryer does not stand on the power cord. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 13: Adjust Legs
Instruction manual WDI3300 pipe. The most common type of tap shall be with hose, then repeat the steps to connect inlet shall be changed. -
Page 14: Hole Plug
Position outlet hose properly so that the floor will not be damaged by water so that the floor will not be damaged by water leakage. leakage. e support, please i all it like following pictures Sink Please keep this instruction manual for future reference Hose Retainer Instruction manual WDI3300... - Page 15 Max.100cm cause abnormal noises. Min.60cm If the outlet hose is too long, do not force it into the washer dryer as it will cause abnormal noises. Please keep this instruction manual for future reference Instruction manual WDI3300...
-
Page 16: Electrical Connection
This machine is equipped with power cord, which includes plug, earthing wire at earthing terminal. The washer dryer shall be operated in a circuit separate from other electrical appliances. Otherwise, power protector may be tripped or fuse may be burned out. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 17: Operation
(e.g. buttons) are protected from cleaning agent. Chemical (solvent-based) cleaning agents can cause severe damage to the washer dryer. Do not use solvent-based cleaning agents in the machine. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 18: Quick Start
- After washing, the washer dryer will make a sound to signify the end of a cycle. - Close the water tap. - Press the On/Off and pull out the power plug. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 19: Detergent Dispenser
Programme Programme Cotton Dry Only Cotton Eco Spin Only 1 Hour W/D Delicate Jeans Quick Colours Sports Wear Baby Care Wool Synthetic Rinse&Spin Required Optional Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 20: Control Panel
The display will remain on through the cycle. A Wash Time Delay Time Speed Error End Door Lock C Dry level (Gentle -Normal-Extra ) Child Lock Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 21: Option
If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, press the [On/Off]button the program will continue. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 22: Other Functions
- The “Child Lock” will lock all buttons except [On/Off]. - The child lock will remain effective when the power is resumed. Speed Speed Press this button to change the spin speed. Please keep this instruction manual for future reference Instruction manual WDI3300... - Page 23 The buzzer will be turned off. To turn the buzzer back on, press the [Temp.] button again for 3 seconds. CAUTION! After Muting the buzzer function, the sounds will not be activated any more. Please keep this instruction manual for future reference Instruction manual WDI3300...
- Page 24 - Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours. Please keep this instruction manual for future reference Instruction manual WDI3300...
-
Page 25: Programmes
Time duration is only 1 hour including wash and dry. Remark: Big towels or jeans is not suitable for this program, they will enlarge the time duration and affect the moisture content. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 26: Washing Programmes Table
The actual water temperature may differ from the declared cycle temperature. Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 27: Cleaning And Care
Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks. Remove any coins, buttons and other objects from the seal after each wash. Please keep this instruction manual for future reference Instruction manual WDI3300... - Page 28 • Do not use alcohol, solvents or chemical products to clean the machine. • Do not use alcohol, solvents or chemical products to clean the machine. NOTE Do not use alcohol, solvents or chemical products to clean the machine. Please keep this instruction manual for future reference Instruction manual WDI3300...
- Page 29 Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened. Please keep this instruction manual for future reference Instruction manual WDI3300...
-
Page 30: Troubleshooting
NOTE After the checks have been made, activate the appliance. If the problem still occurs or the display shows other alarm codes again, contact Caple service E - service@caple.co.uk T - 0117 938 7420 Please keep this instruction manual for future reference... -
Page 31: Technical Specifications
TECHNICAL SPECIFICATIONS Model WDI3300 Power Supply 220-240V~,50Hz Washing Capacity 8.0kg Drying Capacity 6.0kg Weight 64kg Rated Power 1900W Drying Power 1300W Standard Water Pressure 0.05MPa~1MPa MAX.Current Please keep this instruction manual for future reference Instruction manual WDI3300... -
Page 32: Product Fiche
Power consumption of off - mode 0.5W Power consumption of Left on -mode 1.0W Noise level of washing 54dB (A) Noise level of spinning 78dB (A) Noise level of drying 62dB (A) Please keep this instruction manual for future reference Instruction manual WDI3300... - Page 33 The door is open from left to right The door is open from right to left Preparation and assembly of the door Preparation and assembly of the door Please keep this instruction manual for future reference Preparation and assembly of the door Instruction manual WDI3300...
- Page 34 Fix door template paper onto the door. 35mm 35mm 35mm Drill hole on the door. Drill hole on the door Drill hole on the door Drill hole on the door Please keep this instruction manual for future reference Instruction manual WDI3300...
- Page 35 This will help to becoming kinked or trapped. becoming kinked or trapped. becoming kinked or trapped. prevent the hoses from becoming kinked or trapped. Please keep this instruction manual for future reference Instruction manual WDI3300...
- Page 36 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual WDI3300...
