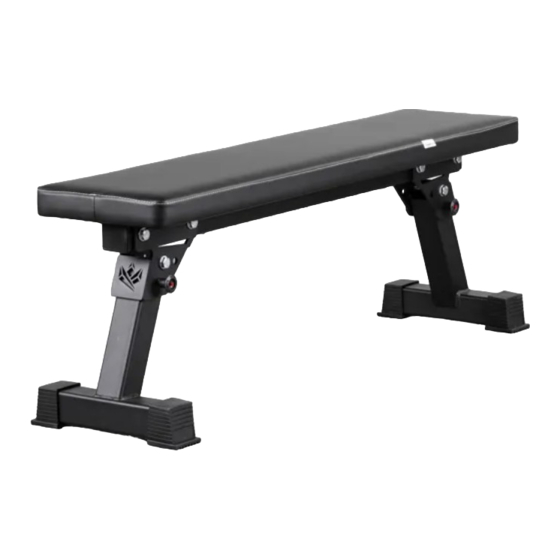

- Page 1 Royal Flat Bench...
- Page 2 ATTENZIONE! Se la struttura non viene fissata a terra e/o al muro, puo’ rib-altarsi e/o provocare danni a persone o oggetti in immediata vicinnanza. I bulloni per il fissaggio del rig a muro e/o al pavimento non sono inclusi nel pacco, in quanto per diversi tipi di muro 7 pavi- men-tazione bisogna utilizzare diversi tipi di bulloni d’ancoraggio.
- Page 3 Assembly elements: SAMPLE picture position position: 1 position: 2 QTY. part name Bench Profile l. Bench Leg position: 3 position: 4 position: 5 Bench Bracket Bench Pillow Bolt M12 x 90 position: 7 position: 8 position: 6 Washer M12 Bolt M10 x 85 Nut M12...
- Page 4 Assembly elements: position: 9 Washer M10 Assembly instruction: STEP: 1...
- Page 5 Assembly instruction: STEP: 2 STEP: 3...
