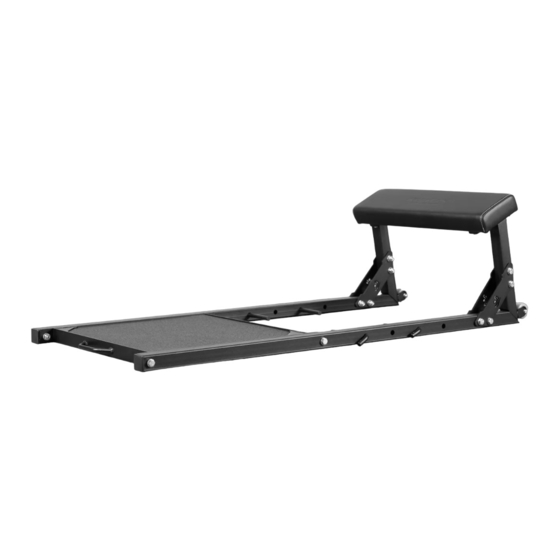

- Page 1 Royal Hip Thruster...
- Page 2 ATTENZIONE! Se la struttura non viene fissata a terra e/o al muro, puo’ rib-altarsi e/o provocare danni a persone o oggetti in immediata vicinnanza. I bulloni per il fissaggio del rig a muro e/o al pavimento non sono inclusi nel pacco, in quanto per diversi tipi di muro 7 pavi- men-tazione bisogna utilizzare diversi tipi di bulloni d’ancoraggio.
- Page 3 Assembly elements: Position 1 Position 2 Position 3 Hip Thruster Verical Hip Thruster Leg Hip Thruster Frame Leg R Position 4 Position 5 Position 6 Hip Thruster Verical Hip Thruster KB Hip Thruster Link Leg L Plate Position 7 Position 8 Position 9 Rubber 50x50x3 Hip Thruster Pillow...
- Page 4 Assembly elements: Position 10 Position 11 Position 12 M10x60 M10 Washer M10 Nuts Position 13 Position 14 Position 15 M6x50 M6 Washer M6 Nuts Position 16 Position 17 Position 18 M8 Washer M8x25 Hip Thruster Pin...
- Page 5 Assembly elements: Position 19 M10x60...
- Page 6 Assembly instruction: STEP: 1 STEP: 2...
- Page 7 Assembly instruction: STEP: 3 STEP: 4...
