SYSTEM 2200+3M/S QUICK REFERENCE

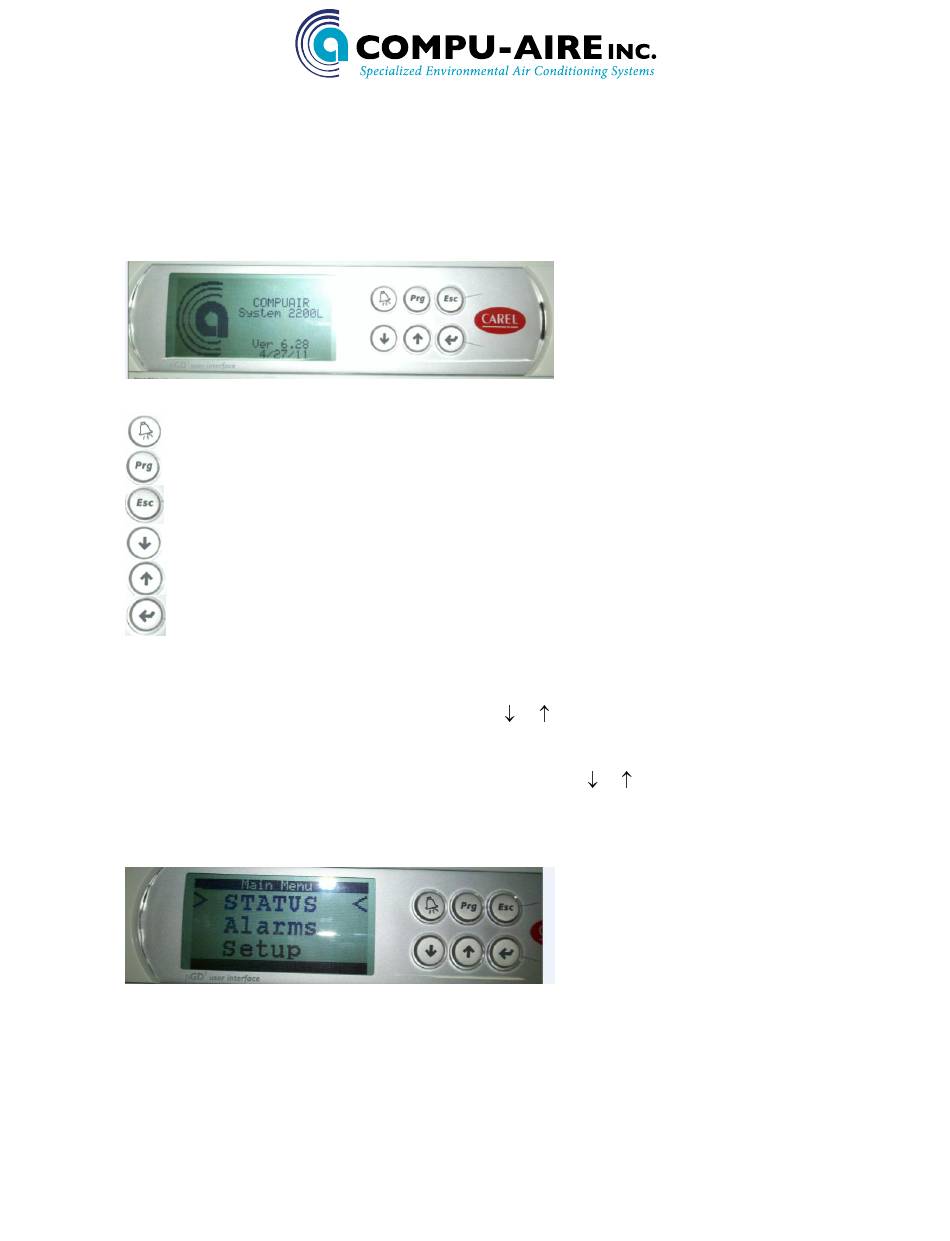

1. Controller Layout

Figure 1 - Controller Layout

View current / active alarms

Open programming menu

Return to the previous screen / exit current screen

Navigate to previous menu / decrease value

Navigate to next menu / increase value

Enter / Move between field

Press the Prg key to access the main menu. Use the

the Enter button to gain access to sub menu.

The location of the blinking cursor dictates the operation of the

a. Blink cursor at upper left: Navigate between menu

b. Blink cursor at a value/setting: Toggle option or amend that value

Figure 2 - Main Menu

(WITH BUILT IN DISPLAY)

or key to navigate between fields. Press

or function.

Page 1 of 4

Table of Contents

Do you have a question about the SYSTEM 2200+3M and is the answer not in the manual?

Page 1 SYSTEM 2200+3M/S QUICK REFERENCE (WITH BUILT IN DISPLAY) 1. Controller Layout Figure 1 - Controller Layout View current / active alarms Open programming menu Return to the previous screen / exit current screen Navigate to previous menu / decrease value...
Page 2 3. Programming Menu A summary of each menu layout is shown below. Not all menus has sub menu. Main Menu Status  System Status  24 Hour Min-Max Alarms  Active Alarms  Alarm Reset Setup  Setpoints System ON/OFF Room Return Temperature/Humidity Room High/Low alarm setpoints ...
Page 3 Status: displays current room return temperature/humidity level and units operations. Figure 3 - Temperature/Humidity reading and unit function Figure 4 - Room vital in the last 24 hours Alarm: Display current active alarm. Figure 5 - Active Alarm Figure 6 - Reset active alarm SETUP There are 3 different levels of accessing password.
Page 4 Setpoint Use the Enter button to navigate between fields and arrows buttons to toggle the settings. To turn the unit on 1. Press Enter key unit the blinking cursor is on the “System Enable” 2. Toggle the setting to show ON with the arrow keys Page 4 of 4...
