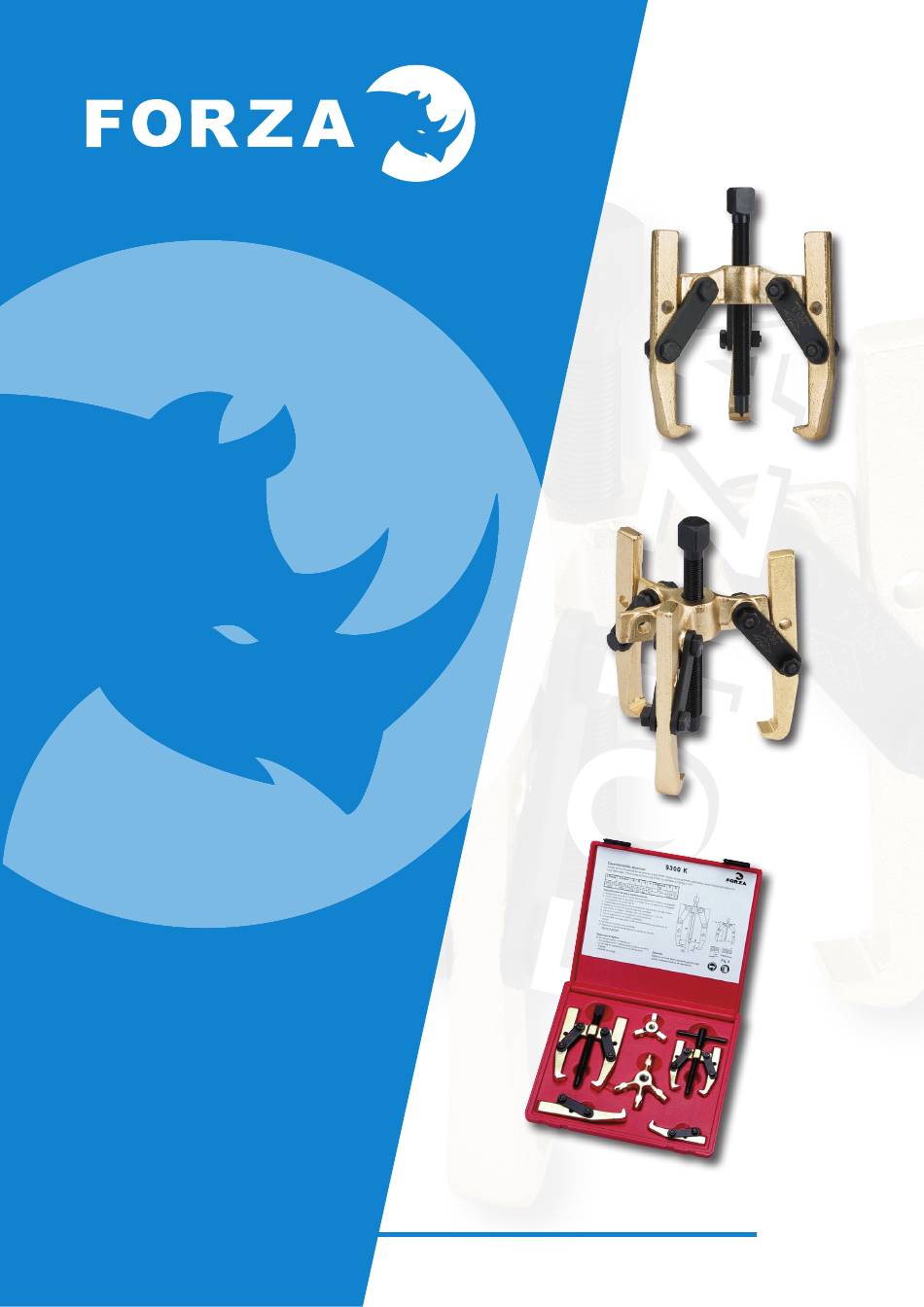

- Page 1 Mechanical Puller External 9300, 9300T series and 9300K set Manual 9300 - 9300T - 9300K...
- Page 2 ÍNDEX 1. Technical features 2. Puller dimensions 3. User instructions 4. Jaws position 5. Point protector 6. Exploded view 7. 9300K Set Rev. 25.02.21...
- Page 3 1. TECHNICAL FEATURES 2 or 3 jaws puller. External . Forged jaws. The point of the jaw is very thin in order to access to small places. 2. DIMENSIONS OF THE PULLER 2 jaws Ref. Ton. Weigth 9300 9301 3 jaws 2 and/or 3 jaws.
- Page 4 3. USER MANUAL 1. Make sure that the spindle is perfectly clean and greased. 2. Check if the axis is dotted. If it is not, place a point protector. 3. Make sure that the jaws / extenders are perfectly centred. 4.
- Page 5 5. POINT PROTECTOR Spindle with fixed point (all models) In the spindles with fixed point it is necessary to place a hardened point protector when the shaft is not dotted to protect the spindles of the pullers. Protective point...
- Page 6 6. EXPLODED VIEW Body Exploded view 2 short jaws Exploded view 3 short jaws Jaws Ref. jaw 930005 930105 spindles Spindle with fixed point. All the models Ref. jaw Thread Point Puller 130003 M8 x 1 9300 / 9300T 130103 M10 x 1 9301 / 9301T...
- Page 7 7. 9300K SET Pullers that can be assembled: Ref. Jaws Ton. Weigth 9300 9301 Ref. Jaws Ton. Weigth 9300T 9301T...
- Page 8 S.L. de Herramientas Especiales Forza C/ San Miguel de Atxa, 24 01010 Vitoria www.forza.es...
