Wheel covers 16"
Art. nr. 15680
Intended use
Wheel covers 16" are intended to be used for HD Motion with 16" drive wheels.
Parts included
2 x wheel cover
(RH and LH)

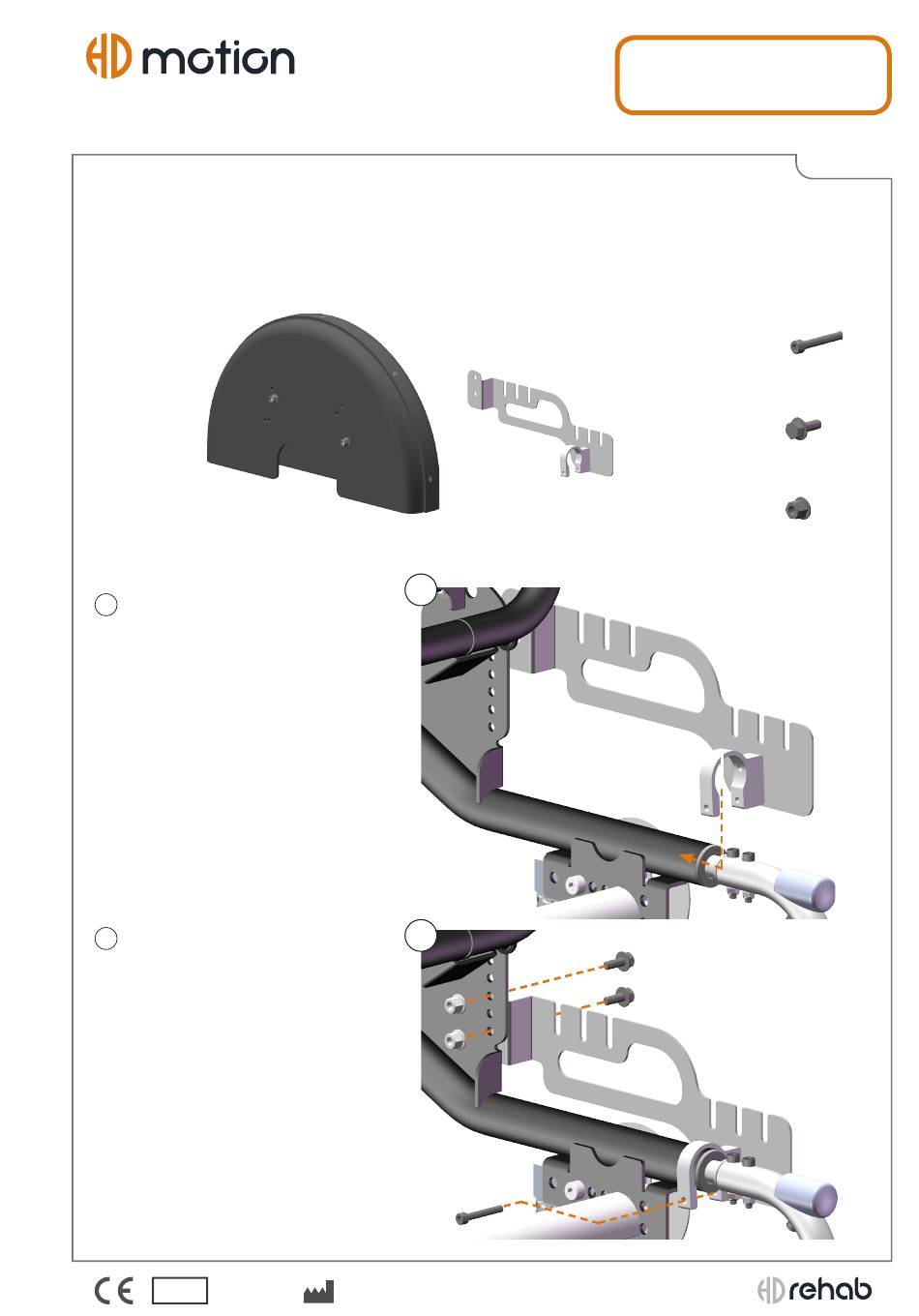

Assembly
1
Remove the drive wheel.
Place the bracket on the tube of
the wheel frame.
2
Screw the bracket in place.
Note: The screw through the
clamp should be tightened
securely but not excessively.
MD
2 x bracket
(RH and LH)
1
2
HD Rehab AB
, Tryffelslingan 4, 181 57 Lidingö, Sweden
tel. +46(0)8-767 04 80 info@hdrehab.se www.hdrehab.se
User manual /
Assembly instructions
Doc. nr. 96820-1 Rev A 2022-01-11
Page 1 (2)
2 x screw M5x35
4 x screw M6x16
4 x lock nut M6
