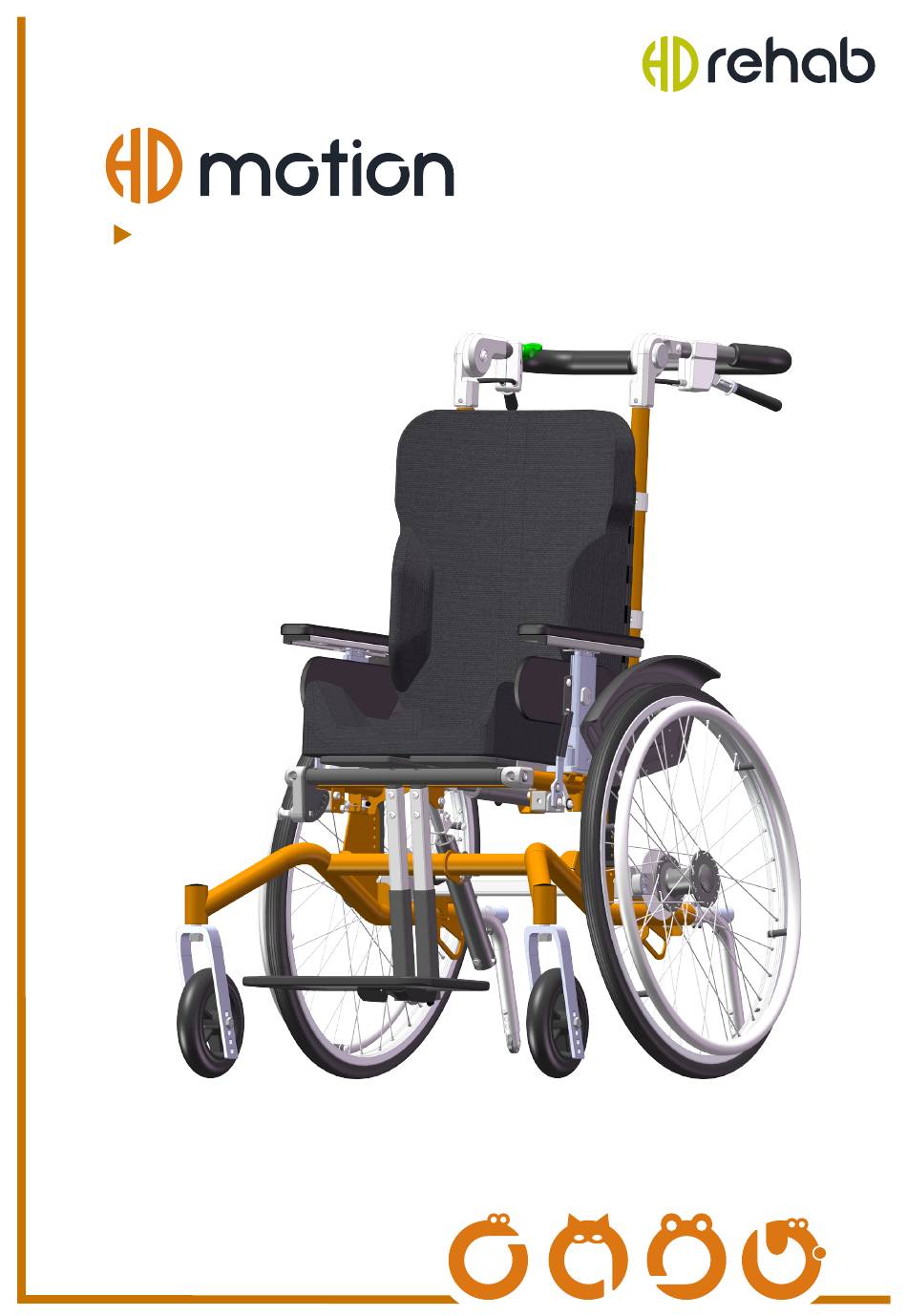

- Page 1 User Manual | English...
- Page 2 This user manual is available in PDF format at hdrehab.com. © 2020 HD Rehab AB...
-
Page 3: Table Of Contents
CONTENTS 4. Accessories 1. Warranty 4.1 Headrest 4.2 Thoracic support 2. General information 4.3 Tray table 2.1 Intended use 4.4 Knee spacer & Leg spacer 2.2 General safety aspects 4.5 Mounts for belts and 2.3 Tests harnesses 2.4 Wheelchair identification 2.5 Wheelchair parts 5. -
Page 4: Warranty
HD Rehab offers assistive products for people living with disability. Our primary product is wheelchairs, which we have been designing, developing, and manufacturing for over 40 years. We accept no compromises in quality. -
Page 5: General Information

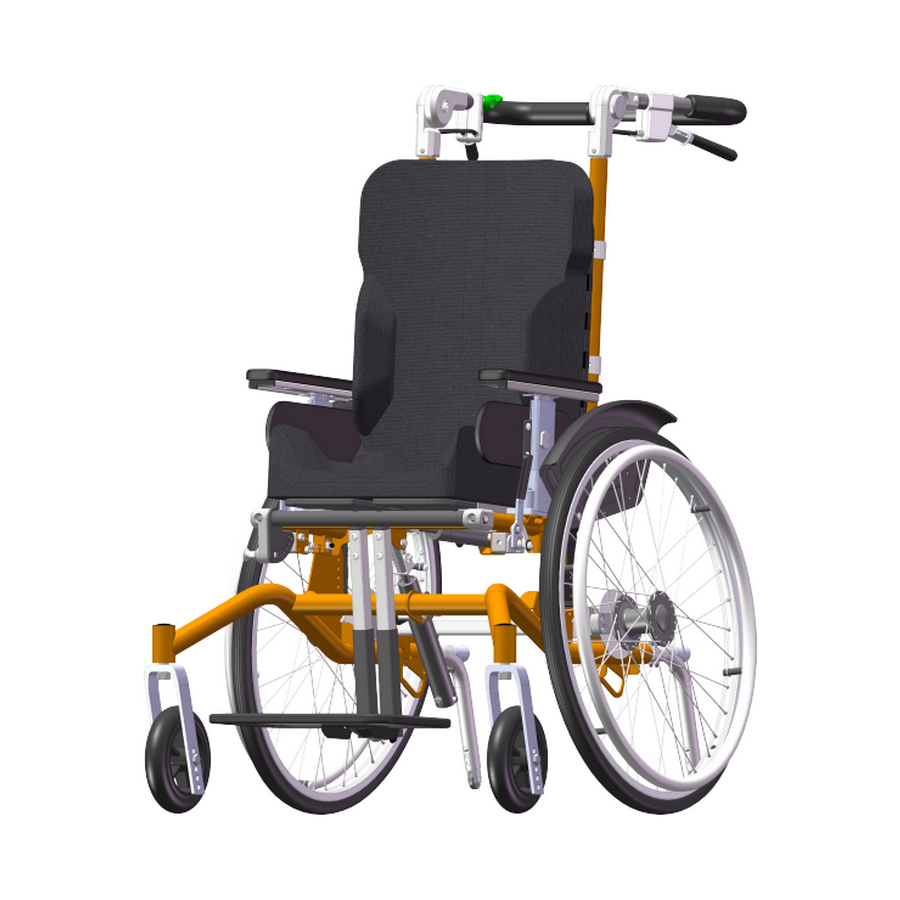

2. GENERAL INFORMATION HD Motion is a class 1 CE labelled medical device. 2.1 Intended use The HD Motion wheelchair is a manual wheelchair designed for youth who can propel themselves to a certain extent. It can also be used if the user does not propel themself. HD Motion can also in some cases be used by small adults. -
Page 6: Tests
• Training is often required to operate the lifting aid. CE MARKED ACCESSORIES, CUSTOMIZING • HD Rehab has a number of CE-marked accessories that are authorized for use with the wheelchair while maintaining the CE marking. There are also combination agreements covering accessories from other manufacturers that are approved for use with HD Motion while maintaining the CE marking. -
Page 7: Wheelchair Identification
Manufacturer, production year, serial number (SN), and article number (REF) in text and in bar code format are printed on 00105 35810-6 the front cross tube of the wheel frame, see Figure 1. HD Rehab AB Try elslingan 4 181 57 LIDINGÖ, SWEDEN (01)07322583581063(21)00105 00105... -
Page 8: Functions And Settings
3. FUNCTIONS AND SETTINGS 3.1 Included spanner Most adjustments for HD Motion are done without using tools. In those cases where a tool is required, it is a most often a 10 mm spanner. This spanner is included with the wheelchair, placed on the rear crossbar (Figure 3). -
Page 9: Wheels
3.3 Wheels HD Motion is equipped with 20”, 20”, or 24” drive wheels depending on model and configuration. The drive wheels have quick-release connectors. Several tire alternatives are available when ordering. The castors are 175mm as standard but other options are available. REMOVING THE WHEEL: - Press the quick-release button (1), see Figure 7. -
Page 10: Push Bar
3.5 Push bar HD Motion is equipped with an adjustable push bar with a large range upwards and downwards. Adjusting upwards allows the caregiver to set it to a comfortable position. It can even be set to a suitable position if the wheelchair is driven in a reclined position (see Figure 11). Adjusting the push bar all the way down allows the caregiver to come close to the user from behind in a care situation (see Figure 12). -
Page 11: Seat Tilt And Back Recline
3.7 Seat tilt and Back recline Figure 16 shows the wheelchair in back reclined and seat tilted positions. - The controls should be handled with moderate force and should always be used one at a time, never both at the same time. - Never hang items on the levers. -
Page 12: Backrest Height
3.8 Backrest Height The backrest height can be adjusted approximately 6 cm in the tracks where the back support is secured. This requires a 10mm spanner. The procedure is the type of back support (Flexi-back or Solid back). HEIGHT ADJUSTMENT OF THE BACKREST: - Loosen the two nuts on each side a few turns (1 in Figure 17). -
Page 13: Adjustable Seat Depth
3.11 Adjustable seat depth The depth of the seat plate can be continuously adjusted in a 6,5 cm range. It is secured by two knobs under the seat. SETTING SEAT DEPTH: - Loosen the two knobs a few turns (Figure 19). - Slide the seat plate to the desired position. -
Page 14: Leg Rests
3.14 Leg rests CENTRE LEG REST Centre leg rest can be angled between 80° and 140° in 7 positions. The one-piece footrest can be adjusted in height and angle. The footrest can also be folded up against the leg rest tubes to make it easier to get in-to and out-of the wheelchair (see Figure 24). - Page 15 SEPARATE LEG RESTS Separate leg rests can be angled between 80° and 140° in 7 positions. The footrests can be adjusted in height and angle. The footrests can also be folded up to the side to make it easier to get in-to and out-of the wheelchair (see Figure 27). Components, see Figure 26: 1 Release button for leg rest removal 2 Locking knob, leg rest angle...
-
Page 16: Accessories
4. ACCESSORIES The following sections briefly describe the accessories that are available for HD Motion. They are all CE-marked and approved for use with the wheelchair. More information about each accessory is available on the respective information sheet. Instructions for installing each accessory is found on the respective accessory assembly instructions. - Never use accessories that are not approved for HD Motion. -
Page 17: Thoracic Support
4.2 Thoracic support The thoracic support is mounted by inserting the profile (1 in Figure 31) in the thoracic support mount (2) on the backrest. It is secured at the desired position with a knob (3). Note: Do not tighten too hard, the knob and mount can be damaged. -
Page 18: Knee Spacer & Leg Spacer
4.5 Knee spacer & Leg spacer Knee spacer is seen in Figure 35. Components: Cushion Draw strap with locking pin Mounting profile Mount A Leg spacer version is also available. The same mount is used for both versions. To attach the spacer pull down on the draw strap and push the mounting profile in to the mount to the desired depth. -
Page 19: Transport
As an actual incident is likely to be different from than the exact conditions in testing, HD Rehab cannot take any responsibility for the outcome of an accident in which HD Motion is involved. -
Page 20: Folding The Wheelchair For Transportation
5.3 Folding the wheelchair for transportation FOLDING OF WHEELCHAIR - Tilt the seat unit to its most forward position. - Remove the armrests and any accessories such as thoracic support and pommel, as well as cushions. - Remove the leg rests (optional). - Grasp the push bar with one hand and pull the locking pin, (1 in Figure 41). -
Page 21: Driving Technique
5.5 Driving Technique SLOPED SURFACES When a user drives the wheelchair independently up a slope the wheelchair is balanced by the user leaning forward. When driving down a slope the user leans backward to balance the weight. Speed is controlled by using the hand rims. On steeper slopes the wheelchair should be driven by a caregiver. -
Page 22: Maintenance And Care
6. MAINTENANCE AND CARE For best safety and long life the wheelchair should be kept clean and tidy. Any faults and failures must be addressed immediately. Estimated lifetime is 10 years at normal use with the same patient during the whole lifetime;... -
Page 23: Long Term Storage
6.2 Long term storage The wheelchair should be cleaned before storing long-term. Store in a dry, frost-free environment between 0 and 30°C. Cushions should be wrapped. When returning the wheelchair to service read through the user manual and check that all functions are working properly. 6.3 Recycling and disposal HD Motion can be largely recycled. - Page 24 HD Rehab AB Tryffelsslingan 4 181 57 Lidingö SWEDEN +46 - 8 - 767 04 80 info@hdrehab.se www.hdrehab.com Doc. nr. 96701-1 User Manual HD Motion Rev A 2020-11-03...
