Simplex 4098-9687 Installation Instructions Manual page 10

Electrical Specifications,
24 VDC OR 24 VAC
POWER SOURCE
FUSED

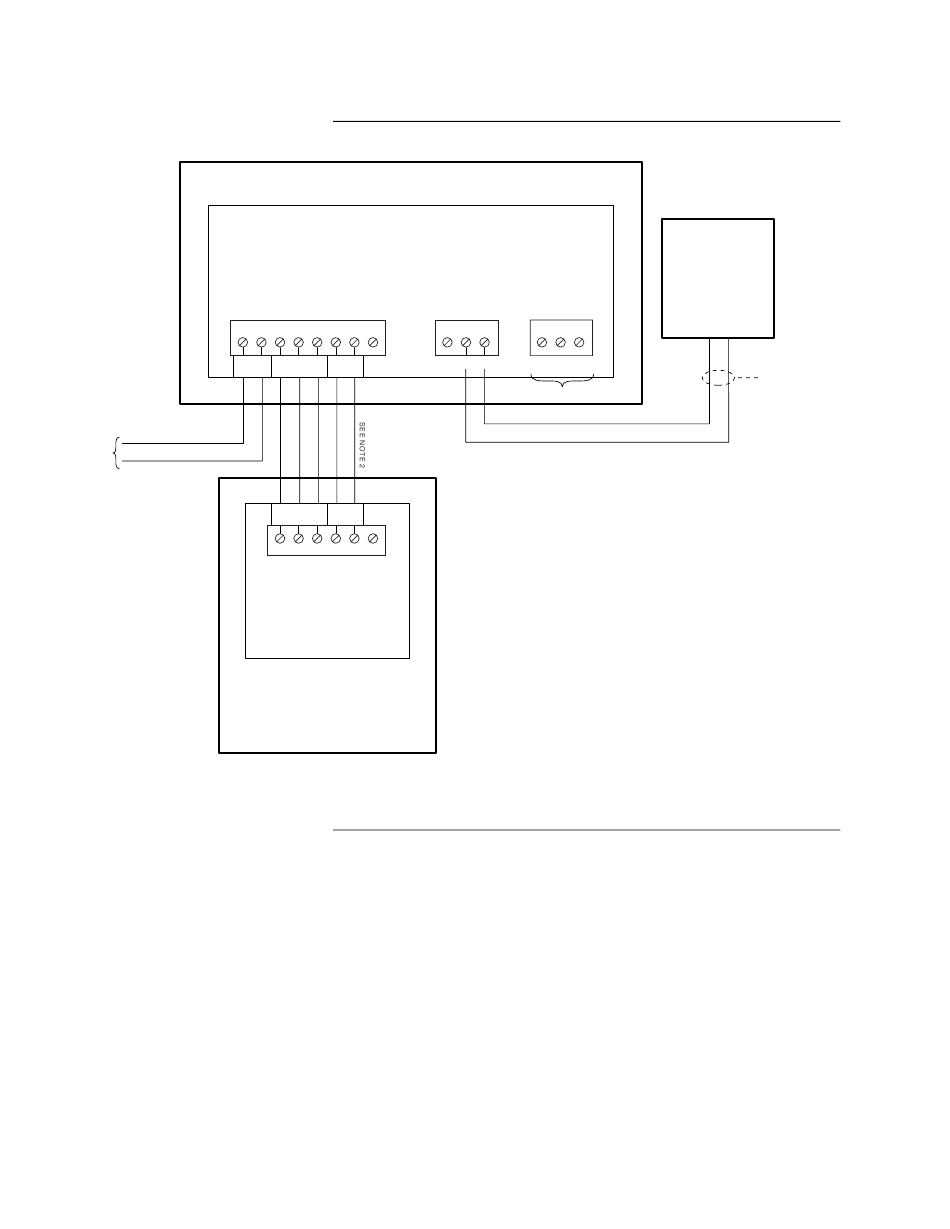

Figure 2. Wiring the 4098-9687 Stand Alone Duct Detector for 24 VDC or 24 VAC Operation
Continued
4098-9687
STAND ALONE
DUCT DETECTOR
TB1
1 2 3 4 5 6 7 8
A P -
24V TEST
LED
A P -
TEST
LED
1 2 3 4 5 6
4098-9842
DUCT CONTROL STATION
firealarmresources.com
TB2 TB3
1 2 3 3 4 5
NO C NC 120 GND NEU
NOT USED
Notes:
1. Stand Alone Duct Detector wiring is 12 to 18 AWG.
2. Maximum allowable wire run from Stand Alone Duct
to Duct Control Station is 500 feet.
3. All relay contacts rated 5 amp at 24 VDC/VAC; or
120 VAC resistive non-power-limited.
4
UNIT
BEING
CONTROLLED
TURNS OFF (OPEN CONTACTS)
ON ALARM OR DETECTOR REMOVAL
OR LOSS OF POWER
SEE NOTE 3
Continued on next page
