www.radioshack.com
SM

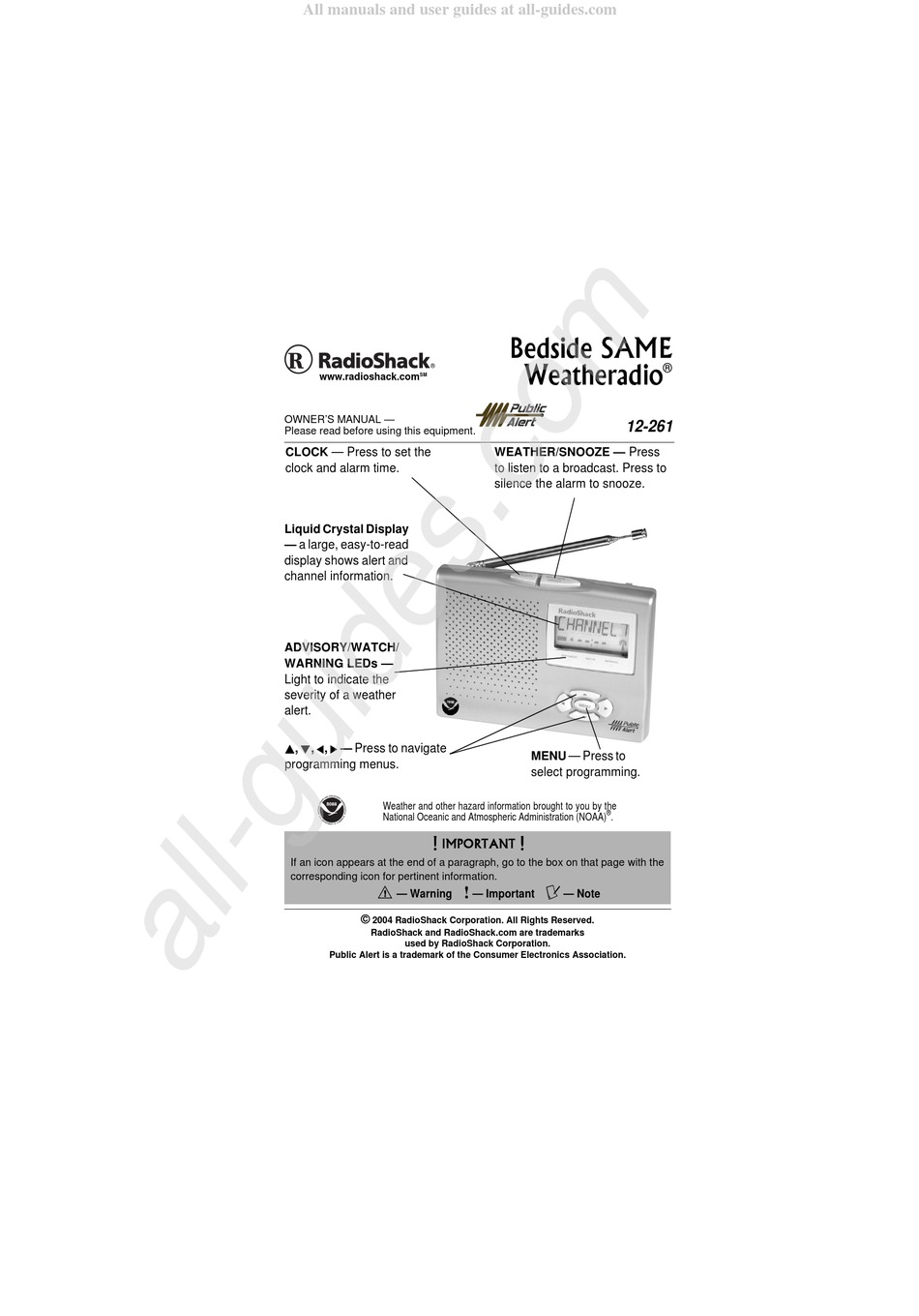

OWNER'S MANUAL —
Please read before using this equipment.
CLOCK — Press to set the
clock and alarm time.
Liquid Crystal Display
— a large, easy-to-read
display shows alert and
channel information.
ADVISORY/WATCH/
WARNING LEDs —
Light to indicate the
severity of a weather
alert.
e , d , f , g — Press to navigate
programming menus.
Weather and other hazard information brought to you by the
National Oceanic and Atmospheric Administration (NOAA)
!
IMPORTANT
If an icon appears at the end of a paragraph, go to the box on that page with the
corresponding icon for pertinent information.
o
— Warning
©
2004 RadioShack Corporation. All Rights Reserved.
RadioShack and RadioShack.com are trademarks
used by RadioShack Corporation.
Public Alert is a trademark of the Consumer Electronics Association.
Bedside SAME
Weatheradio
12-261
WEATHER/SNOOZE — Press
to listen to a broadcast. Press to
silence the alarm to snooze.
MENU — Press to
select programming.
®
.
!
Ô
!
— Important
— Note
®
Advertisement
Table of Contents
Related Manuals for Radio Shack Bedside SAME Weatheradio
Summary of Contents for Radio Shack Bedside SAME Weatheradio
- Page 1 All manuals and user guides at all-guides.com Bedside SAME Weatheradio ® www.radioshack.com OWNER’S MANUAL — 12-261 Please read before using this equipment. CLOCK — Press to set the WEATHER/SNOOZE — Press clock and alarm time. to listen to a broadcast. Press to silence the alarm to snooze.
- Page 2 All manuals and user guides at all-guides.com Back view ALARM ON/OFF/SNOOZE — ALERT ON/OFF — Turn Turn the alarm on or off, or enable the audible alert on or off as the snooze function. desired. DC 9V Jack — Insert the supplied adapter to power your Weatheradio ®...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com HOW YOUR CONTENTS WEATHERADIO ® How Your ® Weatheradio Works ..3 WORKS Weather Alerts ....4 Locking Out Undefined Traditional weather radios simply Weather Descriptions ... 4 Understanding receive the National Oceanic and FIPS Codes .... -
Page 4: Weather Alerts
All manuals and user guides at all-guides.com National Weather Service (NWS). If FIPS codes are entered, your ® Weatheradio sounds an alert only when a weather emergency is declared in that area. This helps you more Ô Ô NOTE efficiently track the weather conditions If more than one in and around your area. -
Page 5: Understanding Fips Codes
All manuals and user guides at all-guides.com signals related to these commercial weather types. ® Additionally, your Weatheradio designed to recognize all common weather alert types currently used by the NWS. However, the NWS occasionally creates and broadcasts new alert types. If a signal for a new alert type is received and the alert is UNRECOGN turned on,... -
Page 6: Fips Code(S)
All manuals and user guides at all-guides.com about a 50-mile radius. To receive alerts about weather occurring only in particular counties within that area, you can program up to nine FIPS codes into memory. You can then avoid hearing an alert that applies to an area within a 50-mile radius, but not necessarily to your county or parish. -
Page 7: Installing The Backup Battery
All manuals and user guides at all-guides.com disconnected. We recommend RadioShack alkaline batteries. Barrel Plug ONNECTING TO OWER Ô Ô NOTE 1. Insert the supplied AC adapter’s • Using the ® barrel plug into the Weatheradio ’s different polarity jack.Ô DC 9V adapter may cause the... -
Page 8: Using The Antenna
All manuals and user guides at all-guides.com 2. Place a 9V battery in the ÔBATTERY NOTESÔ compartment according to the • Dispose of old batteries polarity symbols marked inside. promptly and properly. • Do not burn or bury batteries. • Use only a fresh battery of the required size and recommended type. -
Page 9: Connecting An External Antenna
All manuals and user guides at all-guides.com ONNECTING AN XTERNAL NTENNA To improve reception in remote areas, you can connect an external antenna using an adapter cable with a phono plug. Your local RadioShack store sells a wide variety of antennas. To connect an external antenna, connect one end of the adapter cable to ®... -
Page 10: Connecting To An External System
All manuals and user guides at all-guides.com ONNECTING TO AN XTERNAL YSTEM ® The Weatheradio ’s ALERT OUT Ô Ô terminals let you connect an external NOTE module interface using twin-lead 20- • Your local gauge cable (not supplied), such as RadioShack Plug’n Power or X-10. -
Page 11: Programming
All manuals and user guides at all-guides.com listed in the telephone book under “US IMPORTANT Government, Department of Clear reception of a Commerce.” weather broadcast signal does not 1. Unplug the AC adapter and guarantee that an remove the backup battery. emergency alert will trigger your 2. -
Page 12: Channel Setup
All manuals and user guides at all-guides.com The first time you use your ® Weatheradio , it automatically scans for the strongest channel and receives all SAME alert signals broadcast within ® a 50-mile radius. The Weatheradio may not receive alert signals while it is being programmed. -
Page 13: Alert Type Setup
All manuals and user guides at all-guides.com AVLABLE channel), and appear. AUTO Then a beep sounds and reappears. NO CH If no channel is detected, AVLABLE BACK TO CHANNEL # , and (the preset channel) appear. Then AUTO a beep sounds and reappears. -
Page 14: Missed Alert Reminder
All manuals and user guides at all-guides.com Tone – An alert tone sounds for five minutes, and the alert description and duration appear. To silence the alert tone sooner, press . The WEATHER NWS broadcast turns on. This is the default setting. -
Page 15: Signal Loss Reminder
All manuals and user guides at all-guides.com press g to confirm. A beep sounds, MISS ALT reappear. REMINDER 3. Press to exit. MENU IGNAL EMINDER If a channel signal becomes weak or is Description on Signal Loss Reminder Generation lost, you can set a reminder to sound. Sequence You must then choose another channel or relocate the unit for better reception. - Page 16 All manuals and user guides at all-guides.com • SINGLE – Receives a SAME alert signal for the FIPS code programmed in memory location 1. LOCATION 1. When LOCATION appear, press g . The current response location appears and flashes. LOCATION 2.
- Page 17 All manuals and user guides at all-guides.com 4. Press g when you finish entering all six digits of the FIPS code. The radio stores your entry. Then, LOCATION reappears and LOCATION stops flashing." 5. Press to exit. MENU Multiple 1. To store multiple locations, press g MULTIPLE 1------- when...
-
Page 18: Tone Defeat
All manuals and user guides at all-guides.com ® 6. Press . The Weatheradio MENU stores all valid entries and exits programming. EFEAT ® The Weatheradio automatically sounds an alert tone during specific types of weather alerts. You can turn the alert tone on or off for each type of Ô... - Page 19 All manuals and user guides at all-guides.com AVALANCH WARNING BOIL WATER WARNING BLIZZARD WARNING COASTAL FLOOD WARNING DUST STORM WARNING FLASH FLOOD WARNING FLOOD WARNING FIRE WARNING FLASH FREEZE WARNING FREEZE WARNING HIGH WIND WARNING ICEBERG WARNING SPECIAL MARINE WARNING SEVERE THUNDER WARNING WINTER STORM WARNING 5.
- Page 20 All manuals and user guides at all-guides.com HIGH WIND WATCH SEVERE THUNDER WATCH TORNADO WATCH TROPICAL STORM WATCH TSUNAMI WATCH WIND FIRE WATCH WINTER STORM WATCH UNRECOGN WATCH 11. For each alert option, press g . TONE ON TONE OFF appears.
-
Page 21: Operation
All manuals and user guides at all-guides.com REQUIRED WEEKLY TEST SPECIAL WEATHER STATMENT SEVERE WEATHER STATMENT 911 PHONE OUTAGE TRANSMIT BACKUP ON TRANSMIT CARRIER OFF TRANSMIT CARRIER ON TRANSMIT PRIMARY ON UNRECOGN EMERGENC UNRECOGN STATMENT 17. For each alert option, press g . TONE ON TONE OFF appears. -
Page 22: Setting The Clock And Alarm
All manuals and user guides at all-guides.com 4. If no channels are detected, NO CH AVLABLE BACK TO , and CHANNEL # (last set channel) Ê SIG LOSS appear. Then appears, flashes, WARNING, ADVISORY LEDs flash alternatively, and WATCH LED is on all the time. ®... - Page 23 All manuals and user guides at all-guides.com 5. Press e or d to select the desired alarm minutes. 6. Press g to confirm. A beep sounds. 7. Press to enter clock setting CLOCK mode. If you have not set the clock --:-- before, appears.
-
Page 24: Listening To A Weather
All manuals and user guides at all-guides.com when ALARM ON/OFF/SNOOZE switch is on . Press SNOOZE to stop the WEATHER/SNOOZE Ô Ô NOTE alarm when the switch is on . Or slide ALARM ON/OFF/SNOOZE • If you programmed more than one FIPS to disable the alarm. -
Page 25: Viewing Multiple Alerts
All manuals and user guides at all-guides.com IEWING ULTIPLE LERTS ® Your Weatheradio can store up to four different alerts (with overlapping effective times) in memory. 1. If an alert is received while another Ô Ô NOTE alert is in effect, the new alert description appears and a While an alert is in corresponding tone sounds. -
Page 26: Backlight
All manuals and user guides at all-guides.com 6HOOM, 4 EVENTS, SPECIAL 4th Alert – LAND SLIDE WARNING, effective for 1 hour. The following alert information appears in sequence: LAND, SLIDE, WARNING, 1 HOOM, 4 EVENTS, LAND While reviewing alerts, if you do not press g or f for 30 seconds, the most recently viewed alert information appears on the display. -
Page 27: Troubleshooting
All manuals and user guides at all-guides.com TROUBLESHOOTING Problem(s) Suggestion(s) No power. Make sure adapter is connected or batteries are installed. No sound. Adjust volume level. Multiple FIPS codes are stored, ® Make sure the Weatheradio is set to ® but the Weatheradio only MULTIPLE. -
Page 28: The Fcc Wants You To Know
All manuals and user guides at all-guides.com THE FCC WANTS YOU TO KNOW This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 29: Specifications
All manuals and user guides at all-guides.com • Consult your local RadioShack store or an experienced radio/TV technician for help. • If you cannot eliminate the interference, the FCC requires that you ® stop using your Weatheradio Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. -
Page 30: Nws Alert Descriptions
All manuals and user guides at all-guides.com NWS A LERT ESCRIPTIONS Weather/Alert Description You See You Hear Administrative Message ADMIN MESSAGE Siren Avalanche warning AVALANCH WARNING Siren Avalanche watch AVALANCH WATCH Siren Biological Hazard Warning BIOLOGIC HAZARD WARNING Siren Boil Water Warning BOIL WATER WARNING Siren Blizzard warning... - Page 31 All manuals and user guides at all-guides.com Industrial Fire Warning INDUSTRL FIRE WARNING Siren Law enforcement warning LAW ENFORCE WARNING Siren Land Slide Warning LAND SLIDE WARNING Siren Local area emergency LOCAL AREA EMERGENC Siren National Audible Test NATIONAL AUDIBLE TEST Siren National information center NATIONAL INFO CENTER...
- Page 32 All manuals and user guides at all-guides.com Limited Ninety-Day Warranty This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from Ra- dioShack company-owned stores and authorized RadioShack franchisees and dealers. EX- CEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FIT- NESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION...
