Form: BM003
OPERATING INSTRUCTIONS
Hand Pumps- 1,000- 2,000 Bar
(10,000- 14,000 psi)

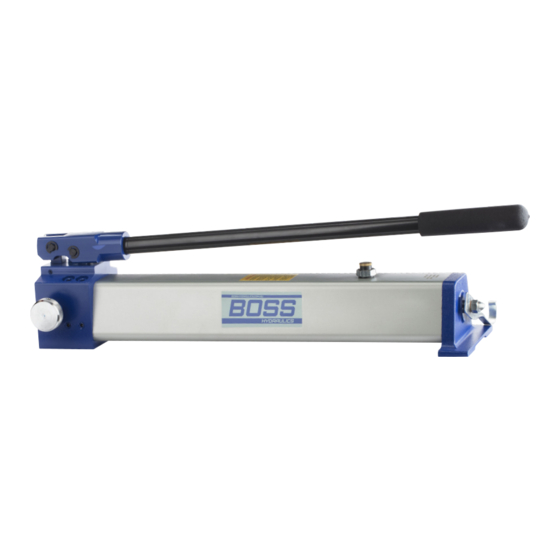

Model No.: PHAH1000, PHAH1500 and PHAH2800
WARNING
Read and follow all Safety Instructions, Warnings, Cautions and
Important information provided in this manual before using the
equipment. They are provided for the safety of those operating the
equipment and to prevent personal injury and/or damage to property
when using this equipment.
THIS EQUIPMENT SHOULD ONLY BE USED BY OPERATORS
WHO HAVE BEEN TRAINED IN THE SAFE USE OF HIGH
PRESSURE HYDRAULIC EQUIPMENT
www.bosshydraulics.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHAH1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Boss PHAH1000

  • Page 1 Form: BM003 OPERATING INSTRUCTIONS Hand Pumps- 1,000- 2,000 Bar (10,000- 14,000 psi) Model No.: PHAH1000, PHAH1500 and PHAH2800 WARNING Read and follow all Safety Instructions, Warnings, Cautions and Important information provided in this manual before using the equipment. They are provided for the safety of those operating the equipment and to prevent personal injury and/or damage to property when using this equipment.
  • Page 2 WARNING: • Boss cylinders and pumps • Always wear the correct personal are designed to operate at a protective equipment when maximum of 700 bar (10,000 psi) operating high pressure hydraulic unless specified. Never connect a tools and equipment. cylinder to a pump with a higher •...
  • Page 3 High pressure hydraulic • Always immediately replace equipment should only be worn or damaged parts with serviced, adjusted, repaired and genuine Boss Hydraulics tested by qualified hydraulic parts. The use of non- technicians. genuine parts can result in • After unpacking the equipment...
  • Page 4 SETUP/ INSTALLATION WARNING: Connecting the Pump: • In certain situations the pump • Remove shipping plugs from handle can “spring back”. Always pump port outlets. keep your body to the side of the • Connect hoses to pump. To seal pump, away from the line of force threads, use thread sealer or of the handle.
  • Page 5 WARNING: • If release valve knob is difficult to turn or becomes stuck, discontinue using pump immediately. Have pump inspected and repaired by a BOSS authorised dealer. BM003-V2...
  • Page 6 • Always add oil with the cylinders • Empty the reservoir and refill fully retracted (extended with with clean hydarulic oil (BOSS pull Cylinders) or the pump will recommends and uses grade 46 contain more oil than reservoir oil). capacity.
  • Page 7 Oil Volume per Stroke Oil Cap. Weight Model (bar) (cc) (cc) (kg) Stage / 2 Stage Stage / 2 Stage PHAH1000 13.8 / 1000 1000 12.9 / 1.65 PHAH1500 13.8 /1500 2000 12.9 / 1 PHAH2800 14 / 2800 1000 12.9 / 0.5...
  • Page 8 BOSS HYDRAULICS: Head Office: 19 Ricketts Road, Mt Waverley VIC 3149 I P: 1300 BOSS HYD (1300 267 749) E: sales@bosshydraulics.com.au I W: www.bosshydraulics.com.au...
