Boss PA010 Operating Instructions Manual

Boss PA010 Operating Instructions Manual

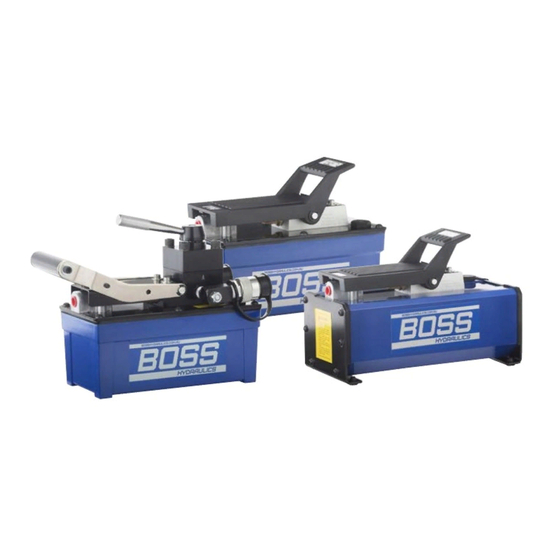

Air pumps- 700 bar (10,000 psi)

Advertisement

Quick Links

Form: BM004

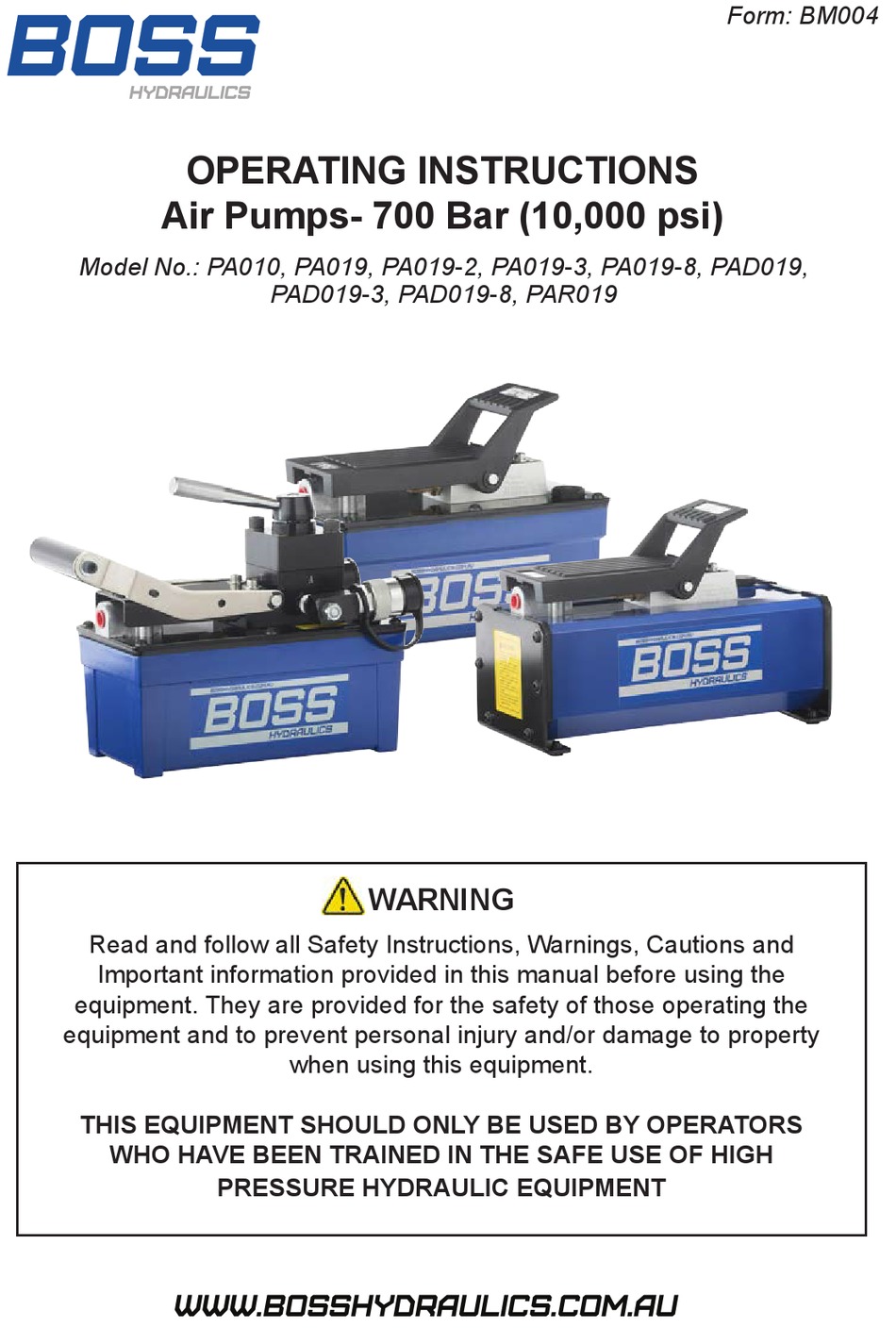

OPERATING INSTRUCTIONS
Air Pumps- 700 Bar (10,000 psi)
Model No.: PA010, PA019, PA019-2, PA019-3, PA019-8, PAD019,
PAD019-3, PAD019-8, PAR019
WARNING
Read and follow all Safety Instructions, Warnings, Cautions and
Important information provided in this manual before using the
equipment. They are provided for the safety of those operating the
equipment and to prevent personal injury and/or damage to property
when using this equipment.
THIS EQUIPMENT SHOULD ONLY BE USED BY OPERATORS
WHO HAVE BEEN TRAINED IN THE SAFE USE OF HIGH
PRESSURE HYDRAULIC EQUIPMENT
www.bosshydraulics.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Boss PA010

  • Page 1 Form: BM004 OPERATING INSTRUCTIONS Air Pumps- 700 Bar (10,000 psi) Model No.: PA010, PA019, PA019-2, PA019-3, PA019-8, PAD019, PAD019-3, PAD019-8, PAR019 WARNING Read and follow all Safety Instructions, Warnings, Cautions and Important information provided in this manual before using the equipment.
  • Page 2 WARNING: • Boss cylinders and pumps • Always wear the correct personal are designed to operate at a protective equipment when maximum of 700 bar (10,000 psi) operating high pressure hydraulic unless specified. Never connect a tools and equipment. cylinder to a pump with a higher •...
  • Page 3 High pressure hydraulic • Always immediately replace equipment should only be worn or damaged parts with serviced, adjusted, repaired and genuine Boss Hydraulics tested by qualified hydraulic parts. The use of non- technicians. genuine parts can result in • After unpacking the equipment...
  • Page 4: Installation

    27-34Nm (20-25ft-lbs). • PA010 and PA019 pumps are single acting and require only 1 hydraulic hose. PAD019 pumps are double acting will have an external 3 position valve and will require 2 hydraulic hoses which connect to the “A” and “B”...
  • Page 5: Operation

    20mm (3/4”) below the pump lid if circulate oil back to the reservoir. it is low top the level up with Boss • For both single acting and double Hydraulic oil .Then fit the filler acting pumps they should be breather.
  • Page 6: Maintenance

    Check system pressure maximum pressure Pump operates but Check hoses, couplers and External leak cylinder doesn’t connectors move Contact a Boss Hydraulics Internal leak Authorised Service Centre Contact a Boss Hydraulics Suction blocked Authorised Service Centre Contact a Boss Hydraulics Breather blocked...
  • Page 7: Specifications

    SOLUTION Check hoses, couplers and Pump External leak connectors achieves full pressure but Contact a Boss Hydraulics Internal leak doesn’t hold Authorised Service Centre Low air supply/ Dirty air filter Check air supply/ air filter Pump Check hoses, couplers and...
  • Page 8 BOSS HYDRAULICS: Head Office: 19 Ricketts Road, Mt Waverley VIC 3149 I P: 1300 BOSS HYD (1300 267 749) E: sales@bosshydraulics.com.au I W: www.bosshydraulics.com.au...
