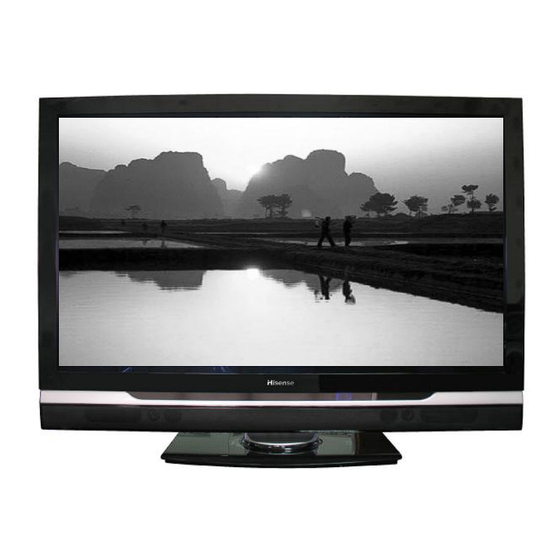

Hisense PDH5039EU Service Manual

Plasma display television
Hide thumbs
Table of Contents

Advertisement

Quick Links

PDP TV Service Manual
n
Plasma display
television

Service Manual

Classis: PW118C + PW2300B
Product Type: PDH4239EU
PDH5039EU
Ver 1.0
Hisense Electric co., Ltd.
R&D Center PDP Institute
01, 2007
Hisense confidential
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDH5039EU and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense PDH5039EU

Summary of Contents for Hisense PDH5039EU

  • Page 1: Service Manual

    PDP TV Service Manual Plasma display television Service Manual Classis: PW118C + PW2300B Product Type: PDH4239EU PDH5039EU Ver 1.0 Hisense Electric co., Ltd. R&D Center PDP Institute 01, 2007 Hisense confidential...

  • Page 2: Table Of Contents

    5. Service Mode and Adjustment………………………….. .-15- 5-1 Service mode…………………………………………...-15- 6. Software updating…………………………………………..-20- software updating……………………….-20- PDH4239EU Explode View and Bom………………………-21- PDH4239EU 7-1 Spare Parts List………………………………………..-21- 9. Troubleshooting……………………………………………..-22- 10. Stand installing…………………………………………… -24- PDP Wall-mounting Bracket Installation Guide………….. 12. Circuit Diagram…………………………………………….-28- Hisense confidential Contents -25-...

  • Page 3: Product Safety Servicing Guidelines

    Avoid operating the TV at temperatures below 5 ℃ (41°F) Warranty Warranty does not cover any damage caused by image retention; Burn-in is not covered by the warranty. Hisense confidential Displaying still images from Video games and PC for longer than a...

  • Page 4: Product Function Specifications

    ·High end flat display ·HDMI input ·High definition compatible ·Wide Screen display optimized for cinema viewing ·Multimedia display :TV/PC ·High clear picture ·Audio equalizer ·Color enhancer ,contrast enhancer ·High brightness, high contrast ·Two Scarts ,Scart1 (RGB/CVBS),Scart2(Y\C/CVBS) 2. PDH4239EU specifications Hisense confidential...
  • Page 5 PDP TV Service Manual Hisense confidential...
  • Page 6 Output: Video Output: Other: Dimensions 1054mmX812mmX331mm (LXWXH) (including stand) Hisense confidential 640 x 480, 800 x 600, 1024 x 768 576 i/p, 720p, 1080i 480i /P，720p, 1080i 640 x 480, 800 x 600, 1024 x 768 50Hz 576p, 720p, 1080i 60Hz 480p;...

  • Page 7: Pdp Panel Spec

    PDP TV Service Manual PDP panel spec 1. General description Hisense confidential...

  • Page 8: Panel Block Diagram

    PDP TV Service Manual Panel block diagram From main board(e/rsag7.820.676a) J16 socket The voltage is marked on the panel basic 3.Power (PSU) description Hisense confidential...

  • Page 9: Power Block Diagram

    PDP TV Service Manual 4.Power block diagram The selection Is on “30V”. The selection is On “normal” Hisense confidential...

  • Page 10: Block Diagram

    Pw2300 produced by pixelworks co., ltd. and the scaler chip is PW118C. the audio processing chip is msp34x0 produced by microchip co., ltd. And the audio amplifier is TA8200H . 1. unite sketch map P801 XPR01 REMOTE BOARD . 826 Hisense confidential Block Diagram P804 P802 P803 SPEAKER...
  • Page 11 5VSC 5VSC ITEM NAME 5VSC 5VSC 5VSC 12VSC 12VSC 12VF GNDF ITEM NAME ITEM NAME Hisense confidential P801---J20 FUNCTION HIGH LEVEL HIGH LEVEL P804---JA21 FUNCTION SIGNAL POWER SIGNAL POWER SIGNAL POWER SIGNAL POWER SIGNAL POWER P803---JA401 FUNCTION NO USED NO USED...
  • Page 12 NAME SPDIF 331_1 331_0 ITEM NAME ITEM NAME K101 K102 K103 K104 K105 K106 K107 Hisense confidential J13---XP13 FUNCTION HDMI AUDIO DATA HDMI CLOCK AUDIO CLOCK HDMI CLOCK J2---XP2 FUNCTION BUS CLOCK BUS DATA CONTROL SIGNAL RESET SIGNAL J21-XP21 FUNCTION...
  • Page 13 C-IN Y-IN CVBS1-OUT CVBS2-OUT GPIO ITEM NAME SC-G SC-B SC-R ITEM NAME SWI2 SC-FB Hisense confidential J5---XPR01 FUNCTION REMOTE CONTROL NO USED NO USED POWER OF REMOTE J7---XP7 FUNCTION SCART2 Y SCART2 C SCART2 Y NO USED VIDEO OUT SCART1 SWITCH...

  • Page 14: Video Processing Diagram

    PDP TV Service Manual 2.Video processing diagram HY57V161610ET-7 PW2300B-10 S.vedio Y PB PR SCART1 (RGB/CVBS) SCART2 (Y\C/CVBS) HDMI Hisense confidential HY50V281622ET-5 HY50V281622ET-5 PW118C-10 FLASH SST39VF1601 EDID 24LC02 LVDS PANNEL RS232 RxD, TxD Update flash interface...

  • Page 15: Audio Processing Diagram

    2. Select the sub-menu [Audio] with [VOL+/VOL-]. 3. Select the parameter [balance] with the keys [CH+/CH-]. 4. Press a series of numbers [0] [5] [3] [2] quickly. SERVICE MODE MENU includes: 1. PC mode: Hisense confidential AV-L AV-R DACM_L DACM_R...
  • Page 16 Middle Volume Volume 20 Min Volume Deviation Prescale Carrier Mute Sound Delay 10ms Sound delay 100ms FACTORY INI: Clear room Set channel ATS switch OPTIONS: Hisense confidential Picture normal mode Picture bright mode Picture soft mode SIL9011 360KHZ zhongshi ATS_ON...
  • Page 17 Luma peaking U Threash Luma peaking L Trans Luma peaking U Trans Luma Sharpness Gain Luma Sharpness Frequency Black Stretch White Stretch 2. TV mode: WHITE BALANCE: adjust white balance. WBL Bright WBL Contrast WBL Colour Hisense confidential English 关闭...
  • Page 18 PICTURE SETTINGS: adjust picture mode. If you adjust these data, date of all signal picture will increase same data. STD Brightness STD Contrast STD Colour DYN Brightness DYN Contrast DYN Colour Hisense confidential picture normal mode picture bright mode picture soft mode SIL9011 picture normal mode picture bright mode...
  • Page 19 PW318B: the same to PC mode PWX300: the same to PC mode NOTE: We advise service hadn’t better amend factory data, because it is better settings data. Please do not tell user the purpose password. Hisense confidential picture soft mode SIL9011 picture normal mode...

  • Page 20: Software Updating

    4. Be sure to plug the other end of the cable on the appropriate position on the TV set (RS232 port). 5.copy the update folder to your pc. Your Computer 6. Find the folder and open the appropriate application software (FlashUpgrader.exe). 7. Follow the settings of the application software (FlashUpgrader). (See upgradedemo.bmp) Hisense confidential Software updating...

  • Page 21: Pdh4239Eu Explode View And Bom

    STAND MODULE PART AUDIO MODULE PART MAIN BOARD MODULE KEY BOARD PORT MODULE EMI FILTER GLASS TUNER PORT FRONT MODULE PART PDP MODUEL REMOTE CONTROL Hisense confidential Spare Parts List Type WG5.834.002\ROH PZ004\DQ-12 罩光\ROH RSAG2.908.847\ROH RSAG2.908.977\ROH RSAG2.908.828\ROH RSAG2.908.829\ROH FG420NAA-05\JK \ROH KP0549\ROH RSAG8.074.308\Z0\ROH...

  • Page 22: Troubleshooting

    PDP TV Service Manual P.LED No picture Abnormal display Enlarged display Hisense confidential Troubleshooting Check power connections blue OSD ? Press [power] on the remote to quit stand-by mode OSD? Press [zoom]on the remote control to check whether it is...
  • Page 23 L.LED? LVDS indicator on the logic processing board. Normal state: yellow flickering. OSD? Press [MENU] to display menu on the screen. Hisense confidential Check TV channel input part circuit diagram Press mute button Check TV channel input part circuit diagram...

  • Page 24: Stand Installing

    Assemble the base subassembly onto the TV set with screw (M8X15) and screw (M5X12) as Fig.2.You can find these screws in the box of the base. NOTE: Failure to do so may result in breaking, denting and scratching the plasma display. Hisense confidential Stand installing...

  • Page 25: Pdp Wall-Mounting Bracket Installation Guide

    Do NOT install the TV on a wall aslope or a wall that makes the TV screen sloping over 25°off plumb line. Otherwise, it may cause tumble or injury. Refer all installation to qualified servicing personnel. Hisense confidential...
  • Page 26 Wall-mount the TV by putting the four fixture disks into the four mounting holes A. If the customer is not satisfied with the mounting angle, take down the TV and adjust the angle before re-mounting. After wall-mounting the TV, use bolts 2 to fix the fixture disks for fear of accidental slide. Hisense confidential...
  • Page 27 PDP TV Service Manual 360±0.2m Hisense confidential...
  • Page 28 5020 Anzhen Plaza 5020 Anzhen Plaza 5020 Anzhen Plaza Title Title Title Beijing 100013, P.R.C Beijing 100013, P.R.C Beijing 100013, P.R.C Hisense PW318 - Top Level Hisense PW318 - Top Level Hisense PW318 - Top Level (010)64482184 (010)64482184 (010)64482184 Size Size Size...
  • Page 29 PW318 Miscellaneous IO and Circuitry PW318 Miscellaneous IO and Circuitry PW318 Miscellaneous IO and Circuitry Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Friday, March 17, 2006...
  • Page 30 DDR SDRAM for PW318 DDR SDRAM for PW318 (010)64482184 (010)64482184 (010)64482184 Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 31 Data Input Block Diagram Data Input Block Diagram (010)64482184 (010)64482184 (010)64482184 Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 32 SCART and TV Input Connectors SCART and TV Input Connectors SCART and TV Input Connectors Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Friday, March 17, 2006...
  • Page 33 Title Video Input Connector Video Input Connector Video Input Connector Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 34 HDMI Connector, DDC EEPROM, and ESD Filters HDMI Connector, DDC EEPROM, and ESD Filters Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 35 Title Title PORTG Decoder PORTG Decoder PORTG Decoder Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 36 PortV DVI Receiver, Decoder PortV DVI Receiver, Decoder PortV DVI Receiver, Decoder Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005...
  • Page 37 PW318 Input Ports 0 and 1 (010)64482184 (010)64482184 (010)64482184 Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 38 Power of PW2300G Power of PW2300G (010)64482184 (010)64482184 (010)64482184 Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 39 Power of PW2300G Power of PW2300G (010)64482184 (010)64482184 (010)64482184 Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 40 Debug Header and Flash Debug Header and Flash (010)64482184 (010)64482184 (010)64482184 Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 41 Title DPort, LVDS Transmitter DPort, LVDS Transmitter DPort, LVDS Transmitter Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 42 Regulators and PW318 Capacitors Regulators and PW318 Capacitors Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sunday, March 05, 2006 Sunday, March 05, 2006 Sunday, March 05, 2006...
  • Page 43 Revision History Revision History (010)64482184 (010)64482184 (010)64482184 Size Size Size Document Number Document Number Document Number HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT HISENSE PHOTOPIA PROJECT Date: Date: Date: Sheet Sheet Sheet Wednesday, December 21, 2005 Wednesday, December 21, 2005 Wednesday, December 21, 2005...
  • Page 44 XS08A HP_MAIN_OUTR RA655 HP_MAIN_OUTL RA658 可选 HP MAIN OUT CAA706 可选 0.1U CAA705 R095 0.1U APC_R C073 100R C218 1000p 1000p RA095 CA218 100K 1000p 可选 XS10 R096 SC1-GD APC_L SC1-BD C074 100R C219 SC1-RD SC1-FBD 1000p 1000p RA096 CA219 SC2-GD 100K 1000p...
