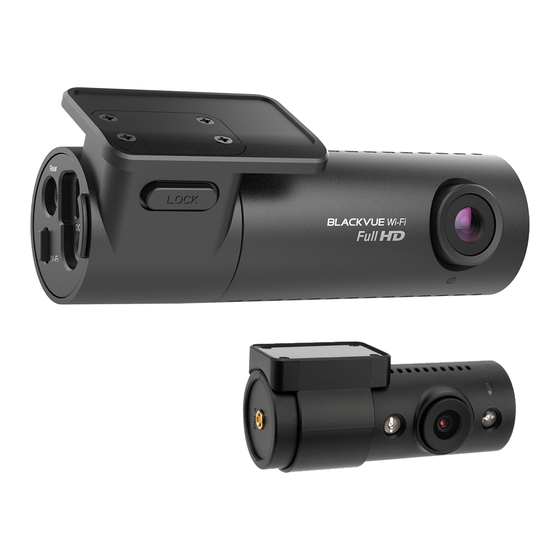

BlackVue DR590X-2CH IR User Manual

BlackVue DR590X-2CH IR User Manual

Infrared interior camera
Hide thumbs Also See for DR590X-2CH IR:

Advertisement

Quick Links

PHONES
0 (800) 800 130
(050) 462 0 130
(063) 462 0 130
(067) 462 0 130
CAR RECEIVERS — Receivers • Media receivers and stations • Native receivers • CD/DVD changers • FM-modulators/USB adapters • Flash memory • Facia plates and adapters • Antennas • Accessories |
CAR AUDIO — Car audio speakers • Amplifiers • Subwoofers • Processors • Crossovers • Headphones • Accessories | TRIP COMPUTERS — Universal computers • Model computers • Accessories |
GPS NAVIGATORS — Portable GPS • Built-in GPS • GPS modules • GPS trackers • Antennas for GPS navigators • Accessories | VIDEO — DVR • TV sets and monitors • Car TV tuners • Cameras • Videomodules
• Transcoders • Car TV antennas • Accessories | SECURITY SYSTEMS — Car alarms • Bike alarms • Mechanical blockers • Immobilizers • Sensors • Accessories | OPTIC AND LIGHT — Xenon • Bixenon • Lamps
• LED • Stroboscopes • Optic and Headlights • Washers • Light, rain sensors • Accessories | PARKTRONICS AND MIRRORS — Rear parktronics • Front parktronics • Combined parktronics • Rear-view mirrors
• Accessories | HEATING AND COOLING — Seat heaters • Mirrors heaters • Screen-wipers heaters • Engine heaters • Auto-refrigerators • Air conditioning units • Accessories | TUNING — Vibro-isolation
• Noise-isolation • Tint films • Accessories | ACCESSORIES — Radar-detectors • Handsfree, Bluetooth • Windowlifters • Compressors • Beeps, loudspeakers • Measuring instruments • Cleaners • Carsits
• Miscellaneous | MOUNTING — Installation kits • Upholstery • Grilles • Tubes • Cable and wire • Tools • Miscellaneous | POWER — Batteries • Converters • Start-charging equipment • Capacitors
• Accessories | MARINE AUDIO AND ELECTRONICS — Marine receivers • Marine audio speakers • Marine subwoofers • Marine amplifiers • Accessories | CAR CARE PRODUCTS — Additives • Washer fluid •
Care accessories • Car polish • Flavors • Adhesives and sealants | LIQUID AND OIL — Motor oil • Transmission oil • Brake fluid • Antifreeze • Technical lubricant
In store "130" you can find and buy almost all necessary goods for your auto in
Kyiv and other cities, delivery by ground and postal services. Our experienced
consultants will provide you with exhaustive information and help you to chose
the very particular thing. We are waiting for you at the address
https://130.c om.ua
Internet store of
autogoods
SKYPE
km-130

Advertisement

loading
Need help?

Need help?

Do you have a question about the DR590X-2CH IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BlackVue DR590X-2CH IR

  • Page 1 Internet store of PHONES SKYPE 0 (800) 800 130 autogoods km-130 (050) 462 0 130 (063) 462 0 130 (067) 462 0 130 CAR RECEIVERS — Receivers • Media receivers and stations • Native receivers • CD/DVD changers • FM-modulators/USB adapters • Flash memory • Facia plates and adapters • Antennas • Accessories | CAR AUDIO —...
  • Page 2 DR590X-2CH IR ENGLISH Autogoods “130”...
  • Page 3 BLACKVUE DR590X-2CH IR For manuals, customer support and FAQs go to www.blackvue.com Autogoods “130”...
  • Page 4: Need Help

    In the box Check the box for each of the following items before installing the BlackVue dashcam. Infrared Interior/IR Rear Front camera camera Cigarette lighter power Rear camera connection cable cable Quick start guide Cable clips (5 EA) microSD Card...
  • Page 5 Illumination sensor 67.4 mm IR LED Security LED V out (Front camera : Stays ON in all connection port) recording modes. The illumination sensor detects when it is dark and activates the IR LEDs for optimal interior recording. BLACKVUE Autogoods “130”...
  • Page 6 Do not install the product in a location where it can obstruct the driver's field of vision. Turn off the engine. Peel off the protective film from the double-sided tape and attach the front camera to the windshield behind the rear-view mirror. DR590X-2CH IR Autogoods “130”...
  • Page 7 Use the pry tool to lift the edges of the rubber window sealing and/or molding and tuck in the rear camera connection cable. Plug the cigarette lighter power cable into the cigarette lighter socket and the front camera. Skip to for Hardwiring Power Cable setup. BLACKVUE Autogoods “130”...
  • Page 8 Interior/rear camera connection cable Power cord Turn on the engine. The BlackVue dashcam will power up and start recording. Video files are stored on the microSD card. Turn off the engine. The dashcam will automatically stop recording and power down.
  • Page 9 Connect the GND cable to metal ground bolt. Connect the power cable to the DC in terminal of the front camera. BlackVue will power up and start recording. Video files are stored on the microSD card.
  • Page 10: Product Specifications

    Product specifications DR590X-2CH IR Model Name DR590X-2CH IR Front: Black/Width 111.8 mm x Height 34 mm/87.8 g Color/Size/Weight Rear: Black/Width 67.4 mm x Height 25 mm/20.3 g Memory microSD Card (32 GB/64 GB/128 GB/256 GB) Normal recording, Event recording (when impact is detected...
  • Page 11: Operation Temperature

    Parking Mode (WiFi Off/GPS Off): 330mA/hour * Approx. 40mA increase in current when IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment. Operation -20 °C – 70 °C (-4 °F – 158 °F) Temperature 10 BLACKVUE Autogoods “130”...
  • Page 12 Rear: FCC, CE, RoHS, WEEE BlackVue Viewer Software * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher BlackVue Application (Android 5.0 or higher, iOS 9.0 or Application higher) Other Features Adaptive Format Free File Management System * STARVIS is a trademark of Sony Corporation.
  • Page 13: Product Warranty

    Product Warranty The term of this product warranty is 1 year from the purchase date. (Accessories such as an External Battery/microSD Card: 6 Months) We, PittaSoft Co., Ltd., provide the product warranty according to the Consumer Dispute Settlement Regulations (drawn up by the Fair Trade Commission). PittaSoft or designated partners will provide the warranty service upon request.
  • Page 14 Notes Autogoods “130”...
  • Page 15 Notes Autogoods “130”...
  • Page 16 Notes Autogoods “130”...
  • Page 17 FCC ID : YCK-DR590X-2CH / HVIN : DR590X-2CH IR Product Car Dashcam Model Name DR590X-2CH IR DR750X-2CH IR, DR900X-2CH IR Manufacturer Pittasoft Co., Ltd. / South Korea Address 4F ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea, 13488 Customer Support cs@pittasoft.com...
