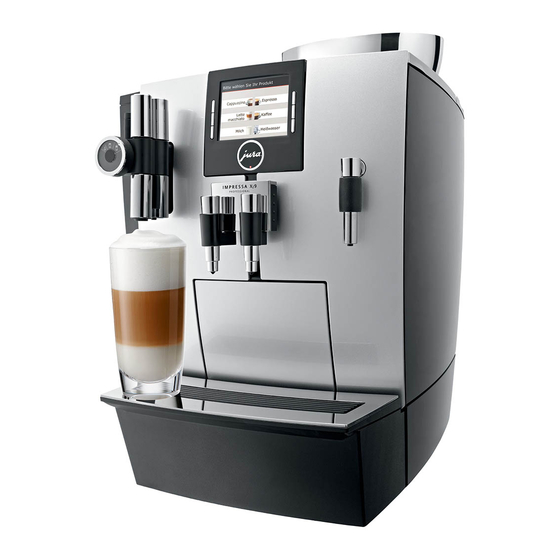

Jura IMPRESSA XJ9 OT TFT Professional Technical Information

Brilliant silver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Elektroapparate AG
Language
IMPRESSA XJ9 OT TFT Professional
Author: Patrik Studer
Date:
Rev. A:
26.06.2012
15.11.2012
Technical information
IMPRESSA XJ9 One Touch TFT
EN
Brilliant silver
Checked:
Rev. B:
Rev. C:
23.11.2012
12.03.2013
Approved:
Docu.-name:
L:\Geräte\Linie_XJ\XJ9\Schulungsunterlagen\E\Technische_
Informationen_XJ9_EN.doc
Rev. D:
Rev. E:
02.04.2013
08.08.2013
Technical Support
Professional
Technische_Informationen_XJ9_EN.doc
Rev. F:
Page 1/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPRESSA XJ9 OT TFT Professional and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jura IMPRESSA XJ9 OT TFT Professional

Summary of Contents for Jura IMPRESSA XJ9 OT TFT Professional

  • Page 1 Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional IMPRESSA XJ9 OT TFT Professional Brilliant silver Author: Patrik Studer Checked: Approved: Docu.-name: Technische_Informationen_XJ9_EN.doc L:\Geräte\Linie_XJ\XJ9\Schulungsunterlagen\E\Technische_ Informationen_XJ9_EN.doc Date: Rev. A: Rev. B: Rev. C: Rev. D: Rev. E: Rev.

  • Page 2: Table Of Contents

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional Table of contents: Control elements: ..........3 13.7.2 Inactive: ............ 10 Service connector (Animation software, Cool 13.8 One-off settings: ..........10 Control Wireless): ............3 13.8.1 Active: ............10 Key combinations: ..........

  • Page 3: Control Elements

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Professional Language Control elements: Service connector (Animation software, Cool Control Wireless):  Remove water tank  Detach cover upwards and remove it  Slide-in the beans lock  Unscrew TORX 10 of the bean container ...

  • Page 4: Key Combinations

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional Key combinations: The appliance is ready for coffee  1. setting up bit (when asks to FILL SYSTEM): Press the keys 4 (1 ESPRESSO) & Rotary Switch at the same time until SAVED shows up ...

  • Page 5: Monitorings

    Special handle, which does not turn into the water tank, if customer has taken out the CLARIS-filter  support Shield detachable  Option: IMPRESSA XJ9 (2 Generation) support the JURA Intelligent Fresh Water Kit (IFWS)  New support for the hexagon CLARIS Filter Blue  Residual water container: Capacity 1.4 liters ...

  • Page 6: Grinder / Grinder Aroma+ (Sound Design)

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional Grinder / Grinder Aroma+ (Sound Design): Precision grinder, six-level  Power switch/Zero Energy Switch: Is assembled with a main power switch and works additionally with a Zero Energy Switch ...

  • Page 7: Coffee Outlet

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional Coffee outlet: Adjustable also in width  Single coffee outlet can be detached by a TORX screw driver to have it cleaned  Bi-colour LED’s for the cup illumination: ...

  • Page 8: Maintenance Status 1/6

    Clean the milk system: Start the CAPPU cleaning  12.5 Change water: Only visible if JURA Intelligent Fresh Water Kit is used  (read user manual Intelligent fresh water kit) The water tank will be emptied and refilled  Product settings, Expert mode 2/6:...

  • Page 9: 13.1 Coffee Quantity/Amount Of Water

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Professional Language 13.1 Coffee quantity/amount of water: The coffee water quantity can be programmed either directly  (e.g. press 1 CUP for approx.. 3 seconds until “ENOUGH WATER? PRESS BUTTON”) shows up or via PROGRAMMING/PRODUCT SETTINGS, EXPERT MODE 2 cups products press key twice within 2 seconds ...

  • Page 10: Temperature

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional 13.6 Temperature: 13.6.1 Coffee: Draw off temperature is measured at the outlet and is, depending on settings, between  84 °C … 89 °C (183 °F … 192 °F) Programmable NORMAL/HIGH, difference is ca.

  • Page 11: Maintenance Settings 3/6

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Professional Language Maintenance settings 3/6: 14.1 CLARIS filter Pro Blue: Liters Switch ON rinsings Display Beep CHANGE FILTER/ 125 (+5 l) CHANGE NOW/ There is no time measurement  After max.

  • Page 12: Machine Settings 4/6

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional Machine settings 4/6: 15.1 Energy Save Mode (E.S.M.): Save energy: INACTIVE  Thermoblock is always on temperature and ready (energy consumption pprox.. 10.6 Wh) Save energy: ACTIVE ...

  • Page 13: Machine Settings 5/6

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional Machine settings 5/6: 16.1 Choose language: IMPRESSA XJ9 :  11 languages: DE / EN / FR / ES / IT / NL / PT / RU / SE / PL / ET IMPRESSA XJ9 (2.

  • Page 14: Empty Water Tank

    IMPRESSA XJ9 One Touch TFT Language Professional 16.4 Empty water tank: Only visible if JURA Intelligent Fresh Water Kit is used  (read user manual Intelligent fresh water kit) 16.4.1 Always: The water tank is emptied automatically every time the IMPRESSA is switched off ...

  • Page 15: Prepare Appliance For Resale

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional Prepare appliance for resale: Procedure: All products will be reset to factory settings and the fluid system is empty due to protection against frost. The appliance asks the customer for the desired language and afterwards it will fill the system with water. Initial position: The appliance is fully working and if necessary, an exit diagnosis has been made with the animation system.

  • Page 16: Error Messages

    Technical information Technical Support Elektroapparate AG IMPRESSA XJ9 One Touch TFT Language Professional Error messages: If there is a malfunction, an error message as described below is shown on the display:  The appliance switches-OFF automatically 5 sec. after an ERROR ...

  • Page 17: Accessory

    21.1 Since IMPRESSA XJ9 (2 Generation):  Only MDB payment system “Compact Payment Box” is supported  Support of JURA Intelligent Fresh Water Kit  External filter CLARIS water-filtering system / CLARIS flow sensor 21.1.1 External filter: Programmable only with the Customer Software (Animation Software) ...
