TBUGGY300e
Operation Manual
POWER BUGGY
FIND THE HOW TO GUIDE HERE
1
YEAR
on
EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBUGGY300e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tomahawk TBUGGY300e

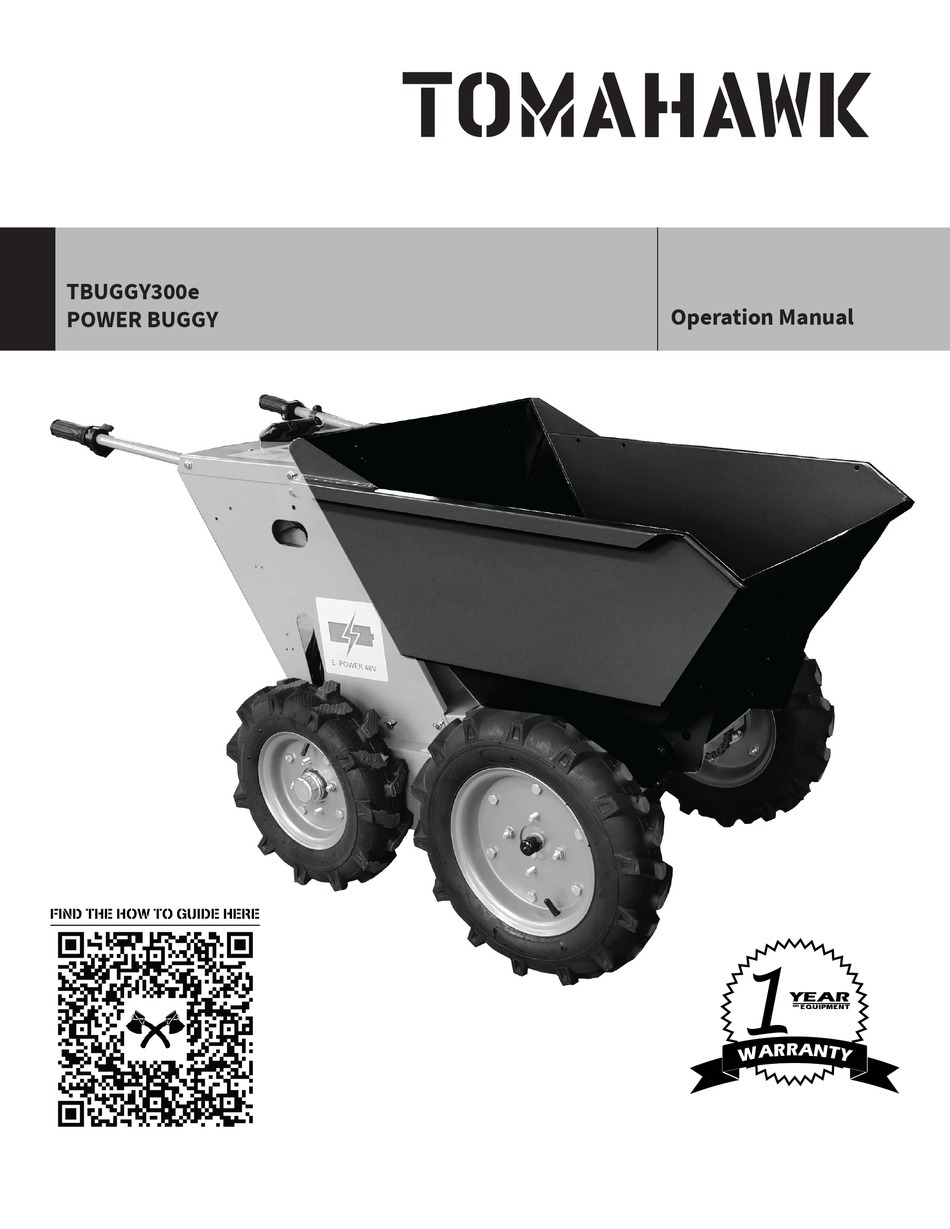

  • Page 1 TBUGGY300e Operation Manual POWER BUGGY FIND THE HOW TO GUIDE HERE YEAR EQUIPMENT...
  • Page 2: Table Of Contents

    3.2 To Move Forward 3.3 To Reverse 3.4 To Stop 3.5 To Emergency Stop 3.6 To Empty / Reset Skip 3.7 Charging the Battery 4. Operations Controls Diagram 5. Maintenance 6. Troubleshooting 7. Circuit Diagram 8. Parts Manual 9. Tomahawk Catalog & Coupon...
  • Page 3 Register Your Equipment Thank you for purchasing TOMAHAWK equipment! Your product is covered by the TOMAHAWK Warranty Policy, but in order to activate your warranty, we need you to register your product. In addition to activating your equipment warranty, product registration will grant you access to important product updates, streamlined customer service, and more.
  • Page 4: Safety Information

    Tomahawk Power. The information contained in this manual is based on equipment’s production at the time of publication. Tomahawk Power reserves the right to change any portion of this information without notice.
  • Page 5: Operating Safety

    1.1.9 NEVER DO NOT use other types of battery charger or batteries. 1.1.10 NEVER DO NOT pressure wash directly on the electrical features. 1.1.11 NEVER use accessories or attachments that are not recommended by Tomahawk Power. Damage to equipment and injury to the user may result.
  • Page 6: Service Safety

    2. TECHNICAL PERFORMANCE Tomahawk power buggies are powered by a 1000W Electric Motor with robust 4-wheel drive, providing incredible climbing ability and superior traction in mud, dirt, or sand. Plus with the 48V-20Ah battery, use your buggy longer with less down time, up to 6-8 hours! The standard 8ft³...
  • Page 7: Specifications

    2.2 Specifications Model TBUGGY300e Motor 1000W Electric Motor Brush Less Type 4WD Chain Drive All Terrain with Hydraulic Tipping Battery 48V-20Ah Charge 220V/ 50-60Hz Working Temperature 50°F ~ 104°F (-10°C ~ 40°C) Capacity 8cu.ft. or 650 lbs weight / 300 kg...
  • Page 8: Operating Controls

    3. OPERATING CONTROLS 3.1 Getting Started 3.1.1 Using the battery charger cable, charge the batteries until the battery symbol shows FULL. 3.1.2 Check that the locking catch of the skip has engaged before moving. 3.1.3 Located under the buggy, switch ON the main power. 3.2 To Move Forward 3.2.1 Turn the key switch to the “ON”...
  • Page 9: To Reverse

    3.3 To Reverse 3.3.1 Release the left hand lever and right hand throttle to stop the Power Buggy. 3.3.2 Press the black button on the right control handle to “R” status. The machine will sound its alarm. 3.3.3 Gently engage the left hand lever, the Power Buggy will move backwards. 3.3.4 Move the throttle.
  • Page 10 NOTE - When pressing the red button on the left handle while the power is ON, the Power Buggy can be moved forward and in reverse. - Parking brake (P & N) instructions: When working, keep Power Buggy in the “P” position. When the power is OFF, keep in the “N”...
  • Page 11: To Stop

    3.4 To Stop 3.4.1 Release the control lever. The Power Buggy will slow down and stop. The parking brake will automatically turn on. 3.4.2 Turn the key switch to the “OFF” position. 3.5 Emergency Stop 3.5.1 Push the red button to turn off immediately. 3.5.2 To reset the emergency stop, turn the red button to the right.
  • Page 12: Operations Controls Diagram

    4. Operation Controls Diagram...
  • Page 13: Maintenance

    5. MAINTENANCE Routine checks of your Power Buggy will ensure trouble-free operation. Inspect and/or service your power buggy at the intervals shown below. A daily check takes only minutes, but could save you hours of time and money. Good usage habits and maintenance will extend the life of the machine! DAILY WEEKLY...
  • Page 14: Circuit Diagram

    7. CIRCUIT DIAGRAM...
  • Page 15: Parts Manual

    TBUGGY300e POWER BUGGY...
  • Page 16 TBUGGY300e EXPLOSION DIAGRAM...
  • Page 17 TBUGGY300e EXPLOSION DIAGRAM Item Description Quantity KT300ESP02M001 Skip Bucket KT300ES01M001 Operator Panel KT300ES02M006 Cushion Block KT300ES04M001 Base Weldment JZVE8560221027 Impingement Block VE 60×22- M10×27 DLEDY480401 Low Beam KT300ES01M002 Side Cover Boards CWT01 Storage Bucket KTMD250A04M004 Chain Cover DKHDT2022 Grip KGZB01...
  • Page 18 TBUGGY300e EXPLOSION DIAGRAM...
  • Page 19 TBUGGY300e EXPLOSION DIAGRAM Item Description Quantity KT300ES02M001 Electric Box Welding KT300ES02M006 Cushion Block KT300ES02M005 Electrical Mounting Plate CDKY482001 Charger 48V20AH KZES4810 BLDC Controlller 48V FMYY01 Buzzer KT300EN04M016 Charger Hoop KT300ES02M003 Electric Box Cover SR01 Cooling Fans 48V KGZHM226320402 Main Power Switch...
  • Page 20 Achieve 100% Compaction Ratings on field density tests on soils up to 22 inches! Built with a 21”x17” beveled plate, this compactor is great for compaction projects including sidewalks, driveways, & more! Item #: TPC80 and TPC80H PLATE COMPACTOR 3000 LBS/FT² www.tomahawk-power.com...
  • Page 21 FINISH 4X FASTER Master your next concrete job with power screeds from TOMAHAWK Achieve incredible finishes 4x faster than traditional methods to increase crew efficiency and jobsite profit! Choose magnesium or aluminum screed boards from 4ft to 14ft long. Item #: TVSA-H 4’-6’-8’-10’-12’-14’...
  • Page 22 Lose the manual pump and gain the power to spray 15,000 ft² in 10 minutes or less while maintaining constant, adjustable pressure from 50-435 PSI with your ideal concrete sealant, cure, top cast, form release, and more! Item #: TCS6.5 6.5 GAL MOTORIZED CONCRETE SPRAYER www.tomahawk-power.com...
  • Page 23 Perfect for concrete finishing of warehouses, decks, parking lots, and more, adjust from 0-28 degrees with 4 Combo hardened, tempered steel blades to achieve a matte, light gloss, or gleaming finish! Item #: JXPT46K 24” - 36” - 46” POWER TROWELS www.tomahawk-power.com...
  • Page 24 10x Faster than manual sprayers, cover 1 acre in less than 30 minutes with 40ft of Reach. Great for year-round use, Tomahawk Foggers are also an excellent leaf blowing solution. No matter the season, keep your yard pest free and looking great! Item #: TMD14 3.7 GALLON TURBO...
  • Page 25 SPRAY TODAY ENJOY TOMORROW Offering adjustable pressure from 20 to 70 PSI, Tomahawk Battery Sprayers are perfect for spraying residential and commercial areas! Powered by a superior 7Ah lithium battery with up to 11 hours of life, spray 6000 ft² in 10 minutes or less! Item #: eTPS18 4.75 GALLON BATTERY...
  • Page 26: Tomahawk Catalog & Coupon

    3 Year Engine Warranty & 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty HAVE QUESTIONS? HAVE QUESTIONS? Contact us. We’re here to help! Contact us. We’re here to help! Email us at sales@tomahawk-power.com Email us at sales@tomahawk-power.com...
  • Page 27 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty 1 Year Product Warranty * All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes ASSEMBLED IN THE ASSEMBLED IN THE may only be used once per customer and may not be combined with any other offer.
  • Page 28 With same day shipping and faster delivery times, count on Tomahawk to keep you powered throughout the day! With long lasting parts and engines, Tomahawk equipment will be the star of your fleet for years to come. Visit www.tomahawk-power.com to get started today!
