Operation and Instruction Manual
MODEL: TSCAR-8H
GAS CONCRETE SCARIFIER
(Honda Gasoline Engine)
WARNING
!
To reduce the risk of injury, all operators and maintenance personnel must read and understand these
instructions before operating, changing accessories, or performing maintenance on this power
equipment. All possible situations cannot be covered in these instructions. Care must be
exercised by everyone using, maintaining, or working near this equipment.
Advertisement
Table of Contents
Related Manuals for Tomahawk TSCAR-8H
Summary of Contents for Tomahawk TSCAR-8H

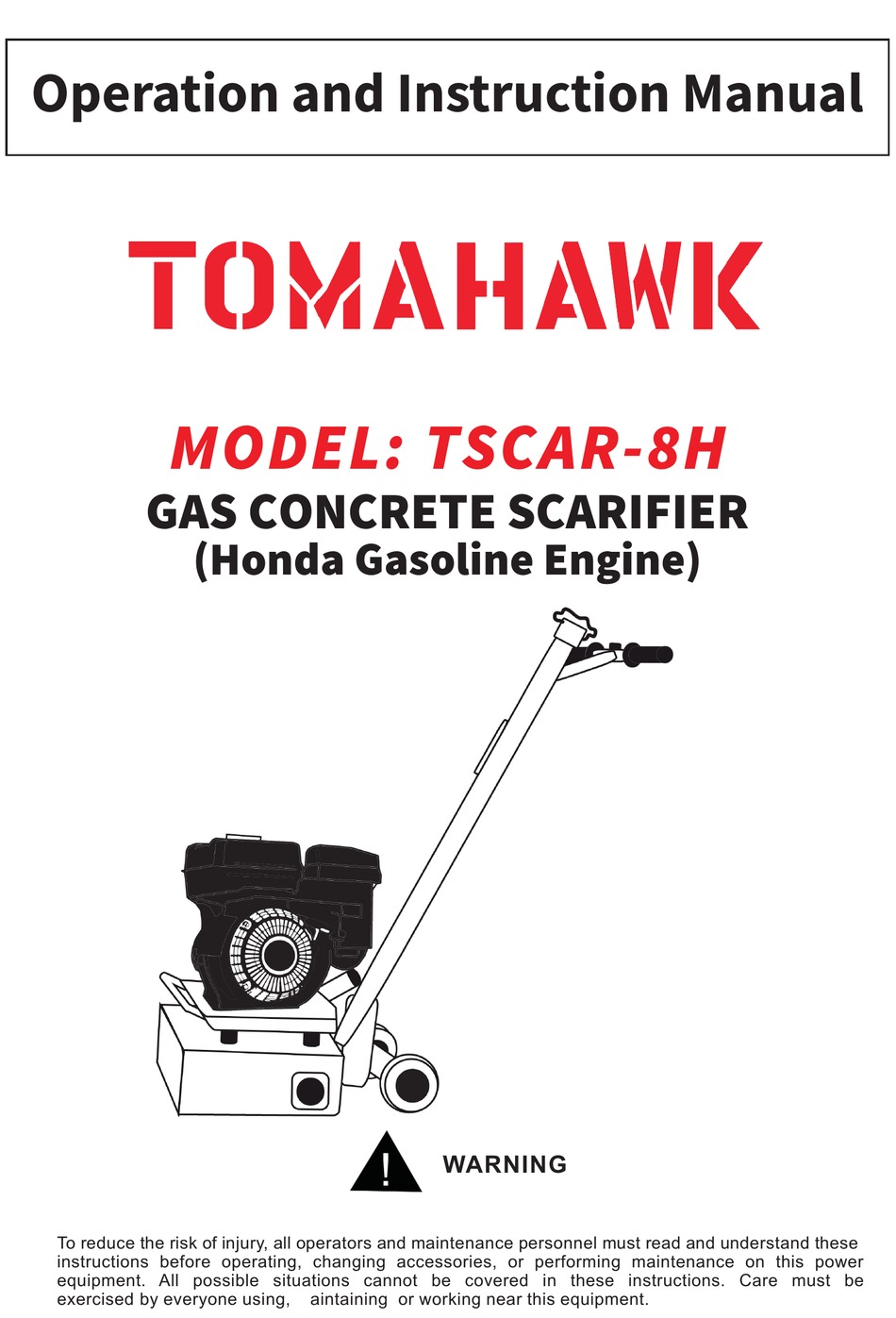

- Page 1 Operation and Instruction Manual MODEL: TSCAR-8H GAS CONCRETE SCARIFIER (Honda Gasoline Engine) WARNING To reduce the risk of injury, all operators and maintenance personnel must read and understand these instructions before operating, changing accessories, or performing maintenance on this power equipment.
-
Page 2: Table Of Contents
Contents of TSCAR-8H Manual Safety Instructions Assembly Product Assembly Stop Switch Edger Installation Edger Removal Cutter Cage Removal and Cutter Change Starting Procedures Stopping the Engine Maintenance Bearing Replacement Procedures Troubleshooting Guide Specifications Transportation Warranty Maintenance Record... -
Page 3: Safety Instructions
D. Be careful to avoid contact with the muffler when the engine is hot as it may cause severe burns. E. When using a DUST CONTROL UNIT avoid hose contact with the TSCAR-8H muffler as the muffler may burn a hole in the hose. -
Page 4: Stop Switch
7. Using socket or wrench tighten the retainer shaft by turning counter clockwise. 8. Install edger housing using the three bolts supplied. 9. Note: Edger operation is not to be performed with main TSCAR-8H cage in place. Edger Removal 1. Make sure the power source is disconnected; disconnect spark plug and turn off fuel supply on gas unit. -
Page 5: Cutter Cage Removal And Cutter
Cutter Cage Removal and Cutter Change A. To remove the cutter cage from the machine: 1. Make sure that the power source is disconnected. With gas models turn off fuel supply to engine and disconnect spark plug. 2. Tilt machine onto the handle. (If your unit is equipped with a Honda GX engine, unit must be tilted forward to change cutter or cylinders will be flooded with oil. -
Page 6: Stopping The Engine
To Stop Engines With machine in upright position, adjust the cutter cage to maximum height by turning the height adjustment knob to its farthest position. (This ensures clearance for the rotating cage). GAS UNIT- Stop engine by depressing kill switch button located at top of handle. Maintenance The machine is generally run in very dusty conditions. -
Page 7: Troubleshooting Guide
● replace wheels ● wear on front axle ● replace axle Storage The following steps should be taken to prepare your TSCAR-8H gas unit for extended storage: a. Close shutoff valve. b. Siphon excess fuel from storage tank. c. Start engine and run until it stalls due to lack of fuel. This will consume all the fuel in the carburetor and prevent formation of deposits due to evaporating fuel. -
Page 8: Specifications
Specification Motor / Weight / Working Width : Working Size (L X W X H): TSCAR-8H 65 x 19 x 13 in Transportation 1. Always shut off engine when transporting machine. 2. Make sure lifting device has enough capacity to hold machine (see identification plate on machine for weight). -
Page 9: Warranty
Warranty TOMAHAWK POWER products are covered by warranty for a period of 365 days from the date of purchase - against defects in material or workmanship provided that: The product concerned has been operated and maintained in accordance with the operating instructions. - Page 10 SPARE PARTS MANUAL MODEL: TSCAR-8H GAS CONCRETE SCARIFIER (Honda Gasoline Engine)
