SHOE BENCH

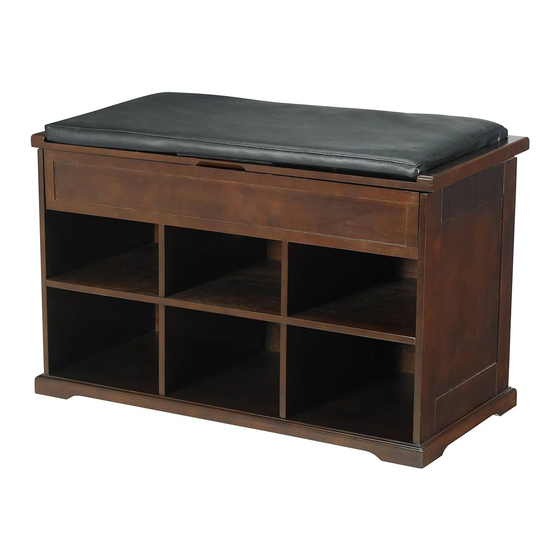

BCH 0031721800 Wooden Shoe Bench with Cushion and Storage(GSD)
Please check contents before assembly. If any items are missing or damaged,
Do not take unit back to store. Call 775-629-5029 for customer sevice and we will save you
the time by correcting the problems directly.
NOTE:
* Read all instructions before starting
* Assemble on rug or cardboard to prevent scratches to the oor and product.
1
4
x2
6
8
10
2
5
7
9
11
page 1
3
Locking Bolt
16Pcs
Large Cam
8Pcs
Small Cam
8Pcs
Left Hinge Weight
1Pc
Right Hinge Weight
1Pc
Screws
12Pcs
Wooden Dowel
32Pcs
Screw Cover
16Pcs
TOOLS RECOMMENDED
v1.1
Advertisement
Table of Contents
Related Manuals for Merry Products BCH 0031721800
Summary of Contents for Merry Products BCH 0031721800
- Page 1 SHOE BENCH BCH 0031721800 Wooden Shoe Bench with Cushion and Storage(GSD) Please check contents before assembly. If any items are missing or damaged, Do not take unit back to store. Call 775-629-5029 for customer sevice and we will save you the time by correcting the problems directly.
- Page 2 Connect panels (1) and (2) perpendicularly Slide both (4) panels into the to panel (3) using the locking bolt(A) and slots of panel (5) wooden dowel(G). STRUCTURE A STRUCTURE B Attach the panels by inserting and tightening the Small Cams (C). Apply the Screw Covers (H) onto of the Cams.
- Page 3 Connect panels(6) and (7) perpendicularly to structure(A) and structure(B) using the locking bolt(A) and wooden dowel(G). STRUCTURE A B - Large Cam H - Screw Cover STRUCTURE B Only slight turn of Cams required. Attach the panels by inserting and tightening the Large Cams (B). Do NOT overturn.
- Page 4 Attach hinge weights (D&E) with the screws(F) Set the cushion on top in its place ALL DONE! page 4 v1.1...
