Please check contents before assembly. If any items are missing or damaged, do not take the unit back to
the store. Call (416) 597-2291 for customer service and we will save you time by correcting any problems
directly for you.
Base
Table Top
(M7 x 90 mm) x 4 Pcs
(M7 x 60 mm) x 6 Pcs
(M8 x 60 mm) x 8 Pcs
NOTE:
• Read all assembly, use and care instructions, before starting.

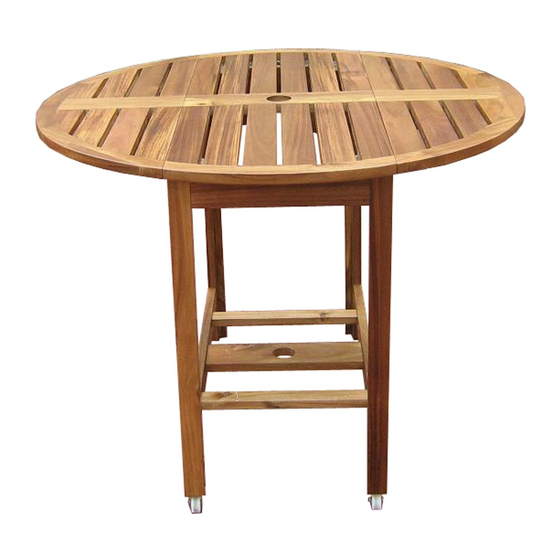

FOLDING ROUND DINING TABLE SET
C - Center Cross Beam x 1
HARDWARE
page 1
MPG-TBS01-T
COMPONENTS
A -Table Leg x 4
D - End Cross Beam x 2
B - Table Leg Cross Beam x 2
E - Center of Table Top x 1
F - Side of Table Top x 2
(M4 x 15 mm) x 18 Pcs
washer x 8 Pcs
Allen Key x 1 Pcs
TOOLS REQUIRED
# 2
Phillips
Screwdriver
v.3.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Merry Products MPG-TBS01-T
Summary of Contents for Merry Products MPG-TBS01-T
- Page 1 FOLDING ROUND DINING TABLE SET MPG-TBS01-T Please check contents before assembly. If any items are missing or damaged, do not take the unit back to the store. Call (416) 597-2291 for customer service and we will save you time by correcting any problems directly for you.
- Page 2 R R Y P R O D U C T FOLDING ROUND DINING TABLE SET MPG-TBS01-T A x 4 figure 1 B x 2 STEP 1 Insert the doweled ends on the Table Leg Cross Beams (B) into the Table Legs (A).
- Page 3 FOLDING ROUND DINING TABLE SET MPG-TBS01-T figure 3 F x 2 STEP 3 Lay the table top panels gently upside down as shown in Figure 4. Secure the Sides of the Table Top (F) to the hinges of the Center of Table Top (E) using 3 (4) Screws for each hinge.
- Page 4 R R Y P R O D U C T FOLDING ROUND DINING TABLE SET MPG-TBS01-T USE INSTRUCTIONS • Once assembled, the sides of the table top (F) will hang down. This is the folded position. F x 2 figure 5 •...
- Page 5 FOLDING ROUND DINING TABLE SET MPG-TBS01-T CARE INSTRUCTIONS Thank you for choosing MERRY PRODUCTS’™ FURNITURE. With little care and maintenance of the Folding Round Dining Table Set, MERRY PRODUCTS’™ FURNITURE will provide you with comfort and enjoyment for many years to come! •...
