Related Manuals for DEKALA ArkenStone SWL3-S
Summary of Contents for DEKALA ArkenStone SWL3-S

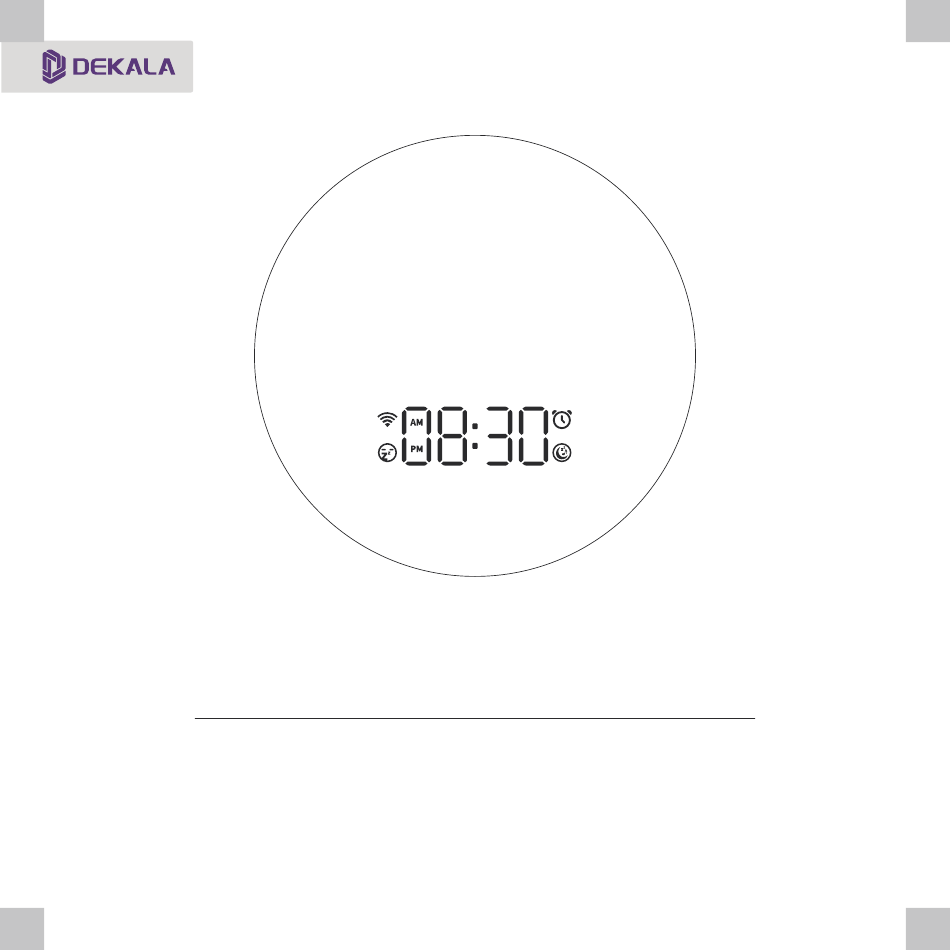

- Page 1 Dekala ArkenStone™ Smart Light Therapy Alarm Clock Instructions （V1.0） Please read the instructions carefully before use and keep it with proper storage...
-
Page 2: Table Of Contents
-Scan QR Code to Download User Manual- CONTENTS Elements Controls Feature Description Quick Guidance App Guidance Voice Control Usage Specification Notes... -
Page 3: Elements
Elements Selector Speaker Input power of (5V-2A) Time-Display Controls Selector Alarm clock Sleep-aid Snooze/Wi-Fi Volume Setting... -
Page 4: Feature Description
Feature Description This product is a smart product integrating wake-up alarm clock, colorful atmosphere lamp and sleep-aid white noise. The product is aesthetically designed to a candy-drop shape, can be used both horizontally and vertically to let you have a multi-angle lighting experience. The 360°... -
Page 5: Quick Guidance
Quick Guidance General functions and settings Color Light Press to turn on the light, rotate to adjust the brightness, press again to switch the light mode. Double-press to switch color/style under the current ambient light mode(some of the 9 ambient light modes come with more than one color option, please see page 27 and page 28 as reference ). -
Page 6: App Guidance
App Guidance Wi-Fi Setup 1. Download the App Download "Smart Life" from App Store / Google Play or Scan the QR code, sign up and log in. Attention: Turn on GPS location, Wi-Fi (2.4 GHz only) and bluetooth before connecting device to your Wi-Fi (2.4 GHz only), then you can choose auto-search and connect or manually connect. - Page 7 Connect device to App App auto-search and connect ① Open up"Smart Life" App, ② Click on "Go to add" ; ③ Select the device you want to click " "; connect with "Smart Life" App and click" "on the right.
- Page 8 Smart Life App are both connecting(as closely as complete the Wi-Fi setup process. connected to 2.4 GHz Wi-Fi); possible); When " "stays solid and high-lighted, it means that the device is currently connected to Smart Life App and your Wi-Fi. Dekala 2.4G...
- Page 9 App setting page 1. ArkenStone™ home page Time-Display Alarm 1 switch/setting Alarm 2 switch/setting Sleep-aid setting Night light setting Color light setting Ambilight setting...
- Page 10 2. Time setting Device automatically calibrates with real time after successful Wi-Fi connection, you can also manually calibrate the time and switch between duodecimal hour system (12-hour clock) and military time (24-hour clock) on the App. Tap the time display section to enter device setting page, it allows you to customize your desired screen display with all the detailed settings;...
- Page 11 3. Alarm clock setting Attention: The two sets of alarm clocks are set within the same process, and the alarm clock button( ) in the back of the device is able to deactivate both alarm yet can only activate "Alarm 1" Take Alarm clock 1 as a demostration ①...
- Page 12 4. Sleep-aid setting ① You are able to activate/deactivate "Sleep-aid" mode from the ArkenStone™ home page; ② Tap "Sleep-aid" section to enter the "Sleep-aid" setting page， the device will auto-save all your customized settings.
- Page 13 5. Night Light setting ① You are able to turn on/off Night Light from the ArkenStone™ home page; ② Tap "Night Light" section to enter "Night Light" page, adjust the brightness level.
- Page 14 6. Color Light setting ① You are able to turn on/off Color Light from ArkenStone™ home page; ② Tap “Color Light" section to enter the "Color Light" customizing page， you can customize your favourite color from the 16-million color board. The device will auto-save all your customized settings.
- Page 15 7. Ambilight setting ① You are able to turn on/off Ambilight from ArkenStone™ home page; ② Tap"Ambilight" section to enter the "Ambilight" selecting page， you can re-name "Ambilight" to your liking， such as "Michael" or "Lily"(for voice command purposes) . ③...
- Page 16 8. Other setting Click " " in the upper right corner to enter, on this screen you can view device information. Third party control guidelines, Offline notification, remove the device and so on.
-
Page 17: Voice Control
Voice Control Take "Alexa" connecting setup as an example Attention: Make sure device has already linked with the Smart Life App ① Download "Amazon Alexa" from Google Play / App Store and sign up (If you are already an Alexa user, you can just open it) . - Page 18 ③"Launch" and log in to Alexa Smart Life with the same username and password you have for Smart Life App and tap "Agree and link" . You are able to voice control the device with Amazon Echo (Alexa) after seeing "Your Smart Life account has been succesfully linked."...
- Page 19 ④ Open Smart Life App to check if the third-party control has linked, if it shows yes, it means the two accounts has linked up on cloud. You can rename the device with Smart Life App and Alexa will automatically synchronize the new name via cloud.
- Page 20 Voice control You can re-name all the functions of device, Alexa will sync with the new names and recognize them as voice commands. Works with Alexa / Google smart home. Attention: Minor delay might occur due to various Wi-Fi speed and cloud processing system, when device or Alexa fail to react to voice control, please wait for a few minutes and try again.
-
Page 21: Usage
Usage Set the functions 1. Manual time-setting ② Rotate to select the corret hour, press ① Plug in to power, long-press to enter manual time-setting; to apply and continue; ③ Rotate to select the corret minute, press ④ Rotate to select the desired Time-Display system(12H or 24H), press to confirm and to apply and continue;... - Page 22 2. Time-Display visibility control Press to select the visibility(Off, 10%,40%,70%,100%) of the Time-Display, you can do the same thing on the Smart Life App, the default visibility is at 40% of its maxium brightness. 100% Alarm Clock 1. Turn on/off alarm ②...
- Page 23 2. Alarm setting ② Rotate to select the corret hour, press ① Under Time-Display page, long-press till alarm icon on the screen flashes to enter alarm setting to apply and continue; mode; ④ Rotate to select the desired alarm-sound(S-01 ③ Rotate to select the corret minute, press to S-05), press to apply and continue to volume...
- Page 24 ⑥ Rotate to select the lighting effect(E-01 to E-11) ⑤ Rotate to select the alarm-sound press to confirm and continue to brightness level volume(U-01 to U-10） , press to confirm and selecting; continue to lighting effects selecting; Attention: During the alarm, the lighting effects change accordingly to your "Ambilight" and "Color Light" customization.
- Page 25 Snooze (Gives you multiple 9-minute naps before completely waking up ) Activate/deactivate snooze mode ① During the alarm beeping, press ② Under snooze mode(device stays silent while turn on snooze mode (alarm-sound pauses for 9 are both on the screen keep flashing), minutes while both on the screen press any of the three buttons:...
- Page 26 Sleep-aid mode 1. Activate/Deactivate sleep-aid mode ① When the device is under Time-Display page, press ② Press to deactivate sleep-aid mode as well as hide the sleep-aid icon. to activate sleep-aid mode. 2. Sleep-aid setting ① When the device is under Time-Display page, ②...
- Page 27 ③ Rotate to select sleep-aid sound volume (U-01 ④ Rotate to select sleep-aid lighting effects (E-01 to U-10), press to confirm and continue to to E-10), press to confirm and continue to sleep-aid lighting effects selecting; brightness level selecting; Attention: During the alarm, the lighting effects change accordingly to your "Ambilight" and "Color Light" customization.
- Page 28 Color Light function 1. Turn on/off the Color Light ① Plug in to power, press to turn on the ② When the Color Light is on, long-press for 3 Color Light; seconds to turn off the Color Light. Attention: When the color light is on, click to adjust the brightness of the Time-Display or turn off...
- Page 29 3.Manual lighting-effect switching diagram *Most colors can be customized from Smart Life App. All customization will be automatically memorized by the device. Press Double-press ① Switch lighting-flow direction Press Double-press ② Switch color Press Double-press Double-press Double-press ③ Switch color Switch color Press Double-press...
- Page 30 Press Double-press ⑤ Switch color Press Double-press Double-press Double-press Double-press ⑥ Switch color Switch color Switch color Press Double-press ⑦ Switch lighting-flow direction Press Double-press ⑧ Switch color Press ⑨ Press...
- Page 31 Press ⑩ Press Double-press Double-press Double-press Switch color Switch color Switch color customization Double-press Double-press Double-press Switch color Switch color Switch color ①...
-
Page 32: Specification
Specification Model SWL3-S Material PC、 ABS、 Metal Color White Weight 556g Size 180x180x90.3mm Adaptor 5V-2A Input 100-240V Speaker 4Ω 2W Power 10W(MAX) Communiccation Wi-Fi 2.4GHz & Bluetooth mode Control mode Button control, APP control and Voice control ArkenStone™ X1, Use guide X1, Packing list Adapter X1, Charging cable X1 Certification... - Page 33 2. App suddently loses control over the device? ① Please make sure that the device is powered on. ② Check the strength of the Wi-Fi signal(open a random web page as testing) and whether the device and your smartphone are connected under the same Wi-Fi(2.4GHz only) ③Re-open Smart Life App and try again.
-
Page 34: Notes
Notes Please wipe this product with a soft cloth. Do not scrub this product with abrasive cleaning agents, rough chemicals, alcohol, acetone cleaning agents, etc., so as not to damage the surface of the product. Store the product in a safe, dry place that will not be overstocked, bruised or damaged. Do not wrap the power cord around the appliance when storing the product.
