10,000 gals (37,854
AR-10000
liters) chlorine taste
and odor reduction
AR-20000
20,000 gals (75,708
liters) chlorine taste
and odor reduction
AR-40000
40,000 gals (151,417
liters) chlorine taste
and odor reduction
Description
Replacement
Cartridge
Prefilter
K00337
K00338
K00339
K00339
Model #s
Qty
1
1
1
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Manitowoc ArcticPure AR-Pre
Summary of Contents for Manitowoc ArcticPure AR-Pre
- Page 1 Model #s Prefix denotes brand Description Replacement Suffix denotes claim Cartridge AR-Pre Prefilter K00337 10,000 gals (37,854 AR-10000 K00338 liters) chlorine taste and odor reduction AR-20000 20,000 gals (75,708 K00339 liters) chlorine taste and odor reduction AR-40000 40,000 gals (151,417 K00339 liters) chlorine taste and odor reduction...
- Page 2 Quick Sizing Guide Under counter Cubers Ice Machine Model # AR-Pre AR-10000 AR-20000 AR-40000 QM30 through Q270 Modular Cubers Ice Machine Model # AR-Pre AR-10000 AR-20000 AR-40000 Q280 through Q450 Q600 through Q800 Q1000 through Q1800 Flakers Ice Machine Model # AR-Pre AR-10000 AR-20000...
- Page 3 Arctic Pure Products ™ Siliphos ® Built into the AR-10000, AR-20000 and AR-40000 systems and cartridges AR-10000 contains 20 grams of Siliphos AR-20000 contains 40 grams of Siliphos AR-40000 contains 80 grams of Siliphos Siliphos location in cartridge Arctic Pure Products ™...

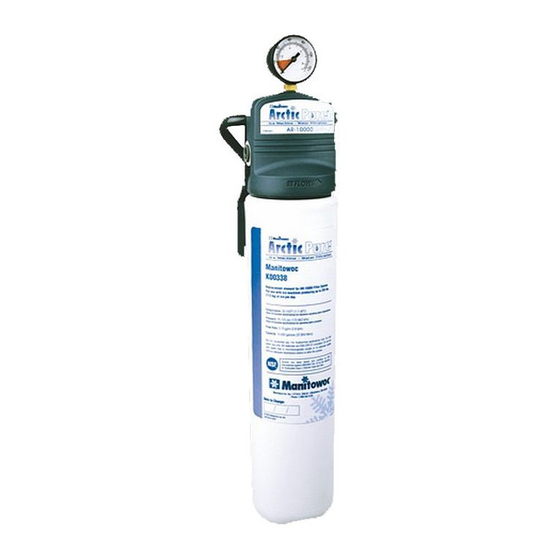

- Page 4 Arctic Pure Product ™ AR-10000 – Chlorine taste and odor reduction – 1.0 micron particle reduction – Capacity @ 10,000 gals (37,854 liters) – Flow Rate @ 0.75 gpm (2.84 lpm) – Replacement cartridge is K00338 NOTE: Works with Copper or Polyethylene tubing AR-1000 Dimensions...
- Page 5 Arctic Pure Product ™ AR-20000 – Chlorine taste and odor reduction – 1.0 micron particle reduction – Extended length for extra capacity Capacity @ 20,000 gallons 75,708 (liters) – Flow Rate @ 0.75 gpm 2.84 (lpm) NOTE: Works with Copper or Polyethylene tubing –...
- Page 6 Arctic Pure AR-40000 ™ AR-40000 – Chlorine taste and odor reduction – 1.0 micron particle reduction – Capacity @ 40,000 gals (151,417 liters) – Flow Rate @ 1.5 gpm (5.68 lpm) – Replacement cartridge is K00339, quantity: (2) required NOTE: Works with Copper or Polyethylene tubing Arctic Pure ™...
- Page 7 Arctic Pure ™ AR-20000 Physical Attributes AR-20000 • Vent hole with tubing relieves water pressure during cartridge change out • Built-in shut off valve in the head allows easy cartridge changeout– no need to turn the water off to the machine •...
- Page 8 Arctic Pure ™ AR-40000 Water Flow Path Dual Outlet Lines Vent Lines “Y” John Guest Outlet Fitting “Y” John Guest Dual Inlet Lines Inlet Fitting Why This Design? • Protects the specification – Exclusive replacement cartridge design – Prevents use of incorrect replacement cartridges –...
- Page 9 Built–In Valve-in-Head • Built in valve-in-head provides a positive shut- off and vents the water line with 1/4 turn of the cartridge • No external shut off valves are required Ramped Cartridge Interconnect • The ramped cartridge interconnect engages and disengages the cartridge o-rings completely from the head with a 1/4 turn...
- Page 10 How to Install Use the following procedure to install AR-10000, AR-20000, AR-40000 and AR-Pre Systems. Installation of the AR-10000 and AR-20000 Systems • Locate position to mount filter system. Be sure to leave 2 inches under the filter cartridges to allow for cartridge change-out.
- Page 11 Installation of the AR-40000 System • Locate position to mount filter system. Be sure to leave 2 inches under the filter cartridges to allow for cartridge change-out. • Use a level to be sure that the system hangs evenly. At least 2” gap for all cartridges •...
- Page 12 Water Connections for the AR-10000, AR-20000 and AR-40000 Filter Systems • Turn off water supply. • Attach inlet and outlet water lines. – To install water lines into John Guest fittings: Be sure tubing is high quality, exact size and roundness and has no nicks or scratches.
- Page 13 Installation of the AR-10000, AR-20000 and AR-40000 Filter Systems • Installation of filter cartridges – Remove protective cap from cartridge – Inspect cartridge and o- rings for damage – Lubricate o-rings with food AR-Pre, AR-10000 and AR-20000 grade lubricant – Insert cartridge into head assembly –...
- Page 14 Installation of AR-Pre • If the AR-Pre is being retrofitted to an existing system, relieve filter pressure and disengage incoming water line. If optional stainless threaded fitting is being used, remove as well. • Draw a minimum 8” level line to the left of the primary filter system bracket from the center of the first mounting screw.
-
Page 15: Pressure Gauge
Starting the AR-Pre • Insert incoming water line into the inlet port of the AR-Pre head. • Install AR-Pre cartridge, K00337. The label will be facing front. • Turn on incoming water supply. Check for leaks. NOTE: Flush cartridge for 2 minutes to remove trapped air and carbon fines Setting the pressure gauge... - Page 16 This label must be adhered to the enclosed warranty card for submittal. • Fill out the appropriate information and place on the warranty card as shown. • Return to Manitowoc. Routine maintenance • Cartridge change out • Water leak repair...
-
Page 17: Cartridge Change Out
Cartridge change out Water filter cartridges need to be changed for one or more of the following reasons: • The filter has trapped sediment from the water and the water flow has stopped or is reduced below 20 psi. • The maximum life of the carbon filter has been reached and the filter will no longer reduce... -
Page 18: Troubleshooting
How to change filter cartridges • Rotate the cartridge ¼ turn to the left. The cartridge should easily release. Dispose of used cartridge. – IMPORTANT: Arctic Pure™ system are equipped with internal shut-off valves. It is not necessary to shut off the incoming water supply during cartridge change out. - Page 19 Troubleshooting Problem Cause To Correct No water through filter system - Filter cartridges plugged - Replace filter cartridges - Water to filter system shut off - Turn on water supply Low water flow through filter - Filter cartridges plugged - Replace filter cartridges system, below 20 psi - Low water pressure to - Repair water supply...
