Summary of Contents for Manitowoc ArcticPure

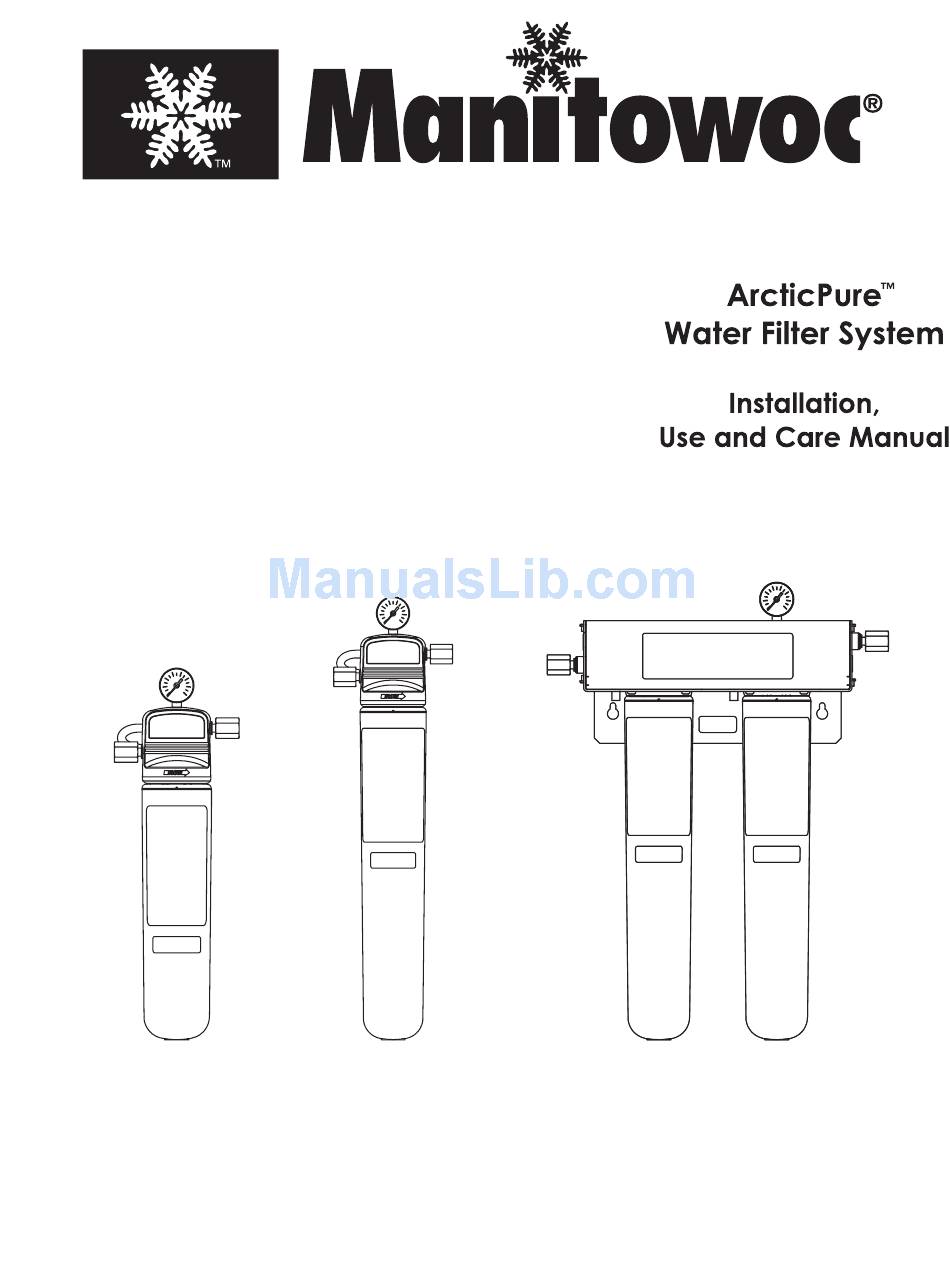

- Page 1 INSTR4166 0703 Thank you for selecting a Manitowoc ArcticPure filter system. With proper installation, care and maintenance, your new Manitowoc filter system will provide you with many years of reliable and economical performance. Part Number 80-1462-3...
-
Page 2: Table Of Contents
Table of Contents Section 1 - General Information Safety Notices................2 Model Numbers ..............3 Warranty Coverage ..............3 Section 2 - Installation Instructions General ..................4 Dimensions/Exploded Views ..........5-6 Location ................7 Water Service ................7 Assembly AR-10000/AR-20000 ............7 AR-40000 ................7 Installation AR-10000/AR-20000 ............8 AR-40000 ................8 AR-Pre ................9 Section 3 - Start-up and Maintenance Installation Checklist............10... -
Page 3: Safety Notices
Be sure to read the Caution statement, and then proceed carefully. Procedural Notices When using or servicing an Arctic Pure™ water filter or Manitowoc ice machine, be sure to read the procedural notices in this manual. These notices supply helpful and important information. -
Page 4: Model Numbers
For ice machines Chlorine taste and odor K00339 (2) 40,000 gal capacity 600-2000 lbs reduction, scale inhibition The following items are not included in the ArcticPure system(s) ™ warranty coverage: For use in conjunction with: • Wear items such as filter cartridges or o-rings. -
Page 5: Section 2 - Installation Instructions
Always follow these safety precautions when installing and Check your local Yellow Pages for the name of the nearest operating the water filter system: Manitowoc distributor, or call Manitowoc Ice, Inc. for information. The ArcticPure ™ water filtration systems are designed to reduce coarse and fine particulate matter from the incoming potable water supply. -
Page 6: Dimensions/Exploded Views
Section 2 Dimensions & Exploded Views 5 23/32" USING FPT ADAPTERS 3 1/4" OUTLET- 3/8" OD TUBE OR VENT TUBE 3/8" FPT INLET- 3/8" OD TUBE OR 2 17/32" 3/8" FPT 17 3/32" NOM. 14 5/16" 13 7/32" AR-10000 5 23/32" USING FPT ADAPTERS 3 1/4"... -
Page 7: Dimensions/Exploded Views
Section 2 Dimensions & Exploded Views (continued) 15 7/8" USING FPT ADAPTERS INLET 3/8" OD TUBE OR 3/8" FPT 13 13/32" OUTLET 3/8" OD TUBE OR 3/8" FPT 21 5/16" 17 1/2" 19 9/16" AR-40000... -
Page 8: Location
(a minimum of 2" beneath the filter cartridge length is Water Service recommended) to allow for cartridge changeout. All ArcticPure ™ systems come with 3/8" John Guest connections on 1. Use a level under the mounting bracket to be sure that the the inlet and outlet ports. -
Page 9: Installation Ar-10000/Ar-20000
Section 2 Installation - AR-10000/AR-20000 & AR-40000 Shut off the incoming water supply. For Stainless Steel FPT Adapter Installation: For John Guest Fitting Installation: 1. Insert the adapter into the inlet port fitting NOTE: Please review the following recommendations before installing the water lines. -
Page 10: Ar-Pre
Installation - AR-Pre 5. Pull on the tubing to be sure it is secure. If the tubing releases, NOTE: If the AR-Pre is being retrofitted to an existing ArcticPure ™ refer to the Troubleshooting section of this manual (page 11) to system, shut off the incoming water supply, relieve the filter reinstall. -
Page 11: Installation Checklist
Installation Check List It is recommended that ArcticPure ™ filter cartridges be changed out: • Every 6 months or when water pressure through the system • Have the min.-max. water temperature and pressure been drops below 20 psi, whichever occurs first. -
Page 12: Troubleshooting
Troubleshooting Please use Troubleshooting Guide to repair system. If system still does not work properly, contact Manitowoc Service for assistance. A leak may occur at the inlet/outlet connections because of defective tubing. To repair: • Turn off incoming water supply and depressurize system by removing the filter cartridge(s). •... -
Page 13: Recommended Service Parts
Recommended Replacement Parts List Part # Description K00337 AR-Pre Cartridge K00338 AR-10000 Cartridge K00339 AR-20000 Cartridge 7601973 John Guest Collet 7601983 John Guest O-ring Exploded View AR-Pre, AR-10000, AR-20000 Exploded View AR-40000 Manifold...
