Olympus U-RFL-T Instructions Manual

Hide thumbs Also See for U-RFL-T:

Advertisement

Table of Contents

This instruction manual is for the Olympus Power Supply for Mercury/Xenon Burner model U-RFL-T/
U-RX-T. To ensure the safety, obtain optimum performance and familiarize yourself fully with the use
of this module, we recommend that you study this manual thoroughly before operating it. After
reading, retain this instruction manual in an easily accessible place near the work desk for future
reference.

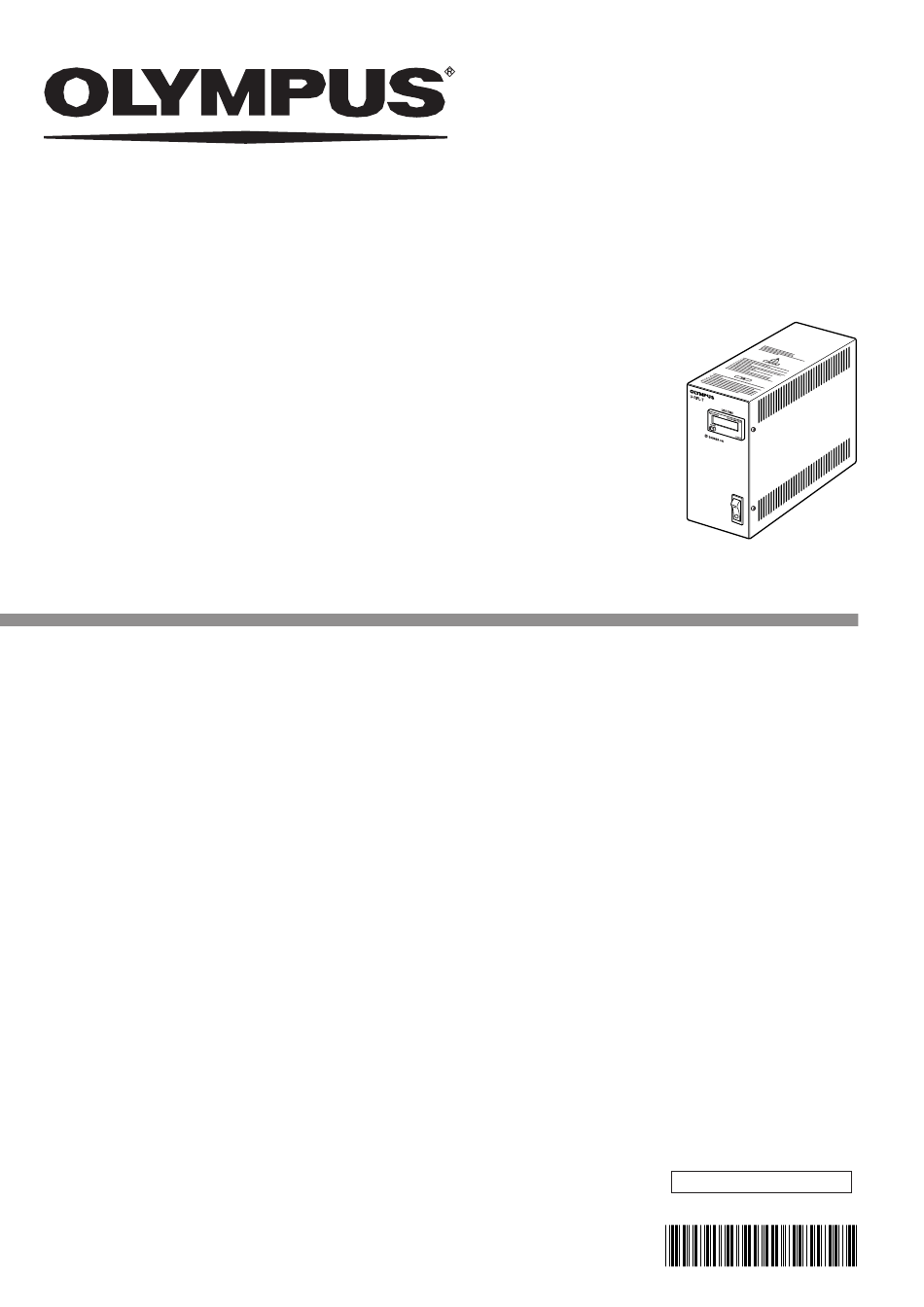

INSTRUCTIONS
U-RFL-T
POWER SUPPLY FOR
MERCURY BURNER
U-RX-T
POWER SUPPLY FOR
XENON BURNER
Optical Microscope Accessory
A X 7 7 1 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-RFL-T and is the answer not in the manual?

Questions and answers

Related Manuals for Olympus U-RFL-T

Summary of Contents for Olympus U-RFL-T

  • Page 1 XENON BURNER Optical Microscope Accessory This instruction manual is for the Olympus Power Supply for Mercury/Xenon Burner model U-RFL-T/ U-RX-T. To ensure the safety, obtain optimum performance and familiarize yourself fully with the use of this module, we recommend that you study this manual thoroughly before operating it. After reading, retain this instruction manual in an easily accessible place near the work desk for future reference.
  • Page 2 Refer to your local Olympus distributor in EU for return and/or collection systems available in your country. NOTE: This product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    U-RFL-T/U-RX-T CONTENTS IMPORTANT — Be sure to read this chapter for safe use of equipment. — NOMENCLATURE ASSEMBLY Assembly Diagram Detailed Assembly Procedures PREPARATION Turning the Burner ON Centering the Burner SPECIFICATIONS TROUBLESHOOTING GUIDE ■ ■ ■ ■ ■ PROPER SELECTION OF THE POWER SUPPLY CORD ..............9-10...

  • Page 4: Important - Be Sure To Read This Chapter For Safe Use Of Equipment

    4. Do not attempt to disassembly the power supply because it includes high-voltage parts inside. 5. Always use the power cord provided by Olympus. If no power cord is provided, please select the proper power cord by referring to the section “PROPER SELECTION OF THE POWER SUPPLY CORD” at the end of this instruction manual. If the proper power cord is not used, product safety and performance cannot be guaranteed.
  • Page 5 2. When disposing of the power supply. Check the regulations and rules of your local government and be sure to observe them. If you cannot dispose of a used mercury burner yourself, please contact Olympus. Caution If the power supply is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition, the equipment may also be damaged.

  • Page 6: Nomenclature

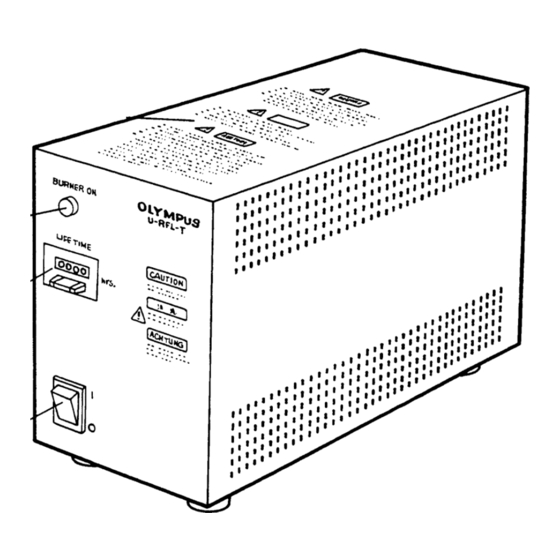

    NOMENCLATURE }The following illustration shows the U-RFL-T, but the appearance of the U-RX-T is identical. Lamp housing connector Hour counter (Counts up by 0.1 every 6 minutes.) Reset button Burner ON LED Main switch I : ON : OFF Power cord connector...

  • Page 7: Detailed Assembly Procedures

    † … Always use the power cord supplied by Olympus and connect it to a 3-conductor wall outlet with a grounding terminal. If the grounding terminal of the wall power outlet is not grounded/earthed, Olympus can no longer warrant the electrical safety performance of the equipment.
  • Page 8 Setting/Resetting the Hour Counter (Fig. 3) 1. Push the reset button @ inside the reset button guard so that the hour ² counter ² reads “0.0”. Do not push the reset button @ until the next time the burner is replaced.

  • Page 9: Preparation

    U-RFL-T/U-RX-T PREPARATION 3-1 Turning the Burner ON 1. Set the main switch @ of the power supply to “ I ” (ON). 2. The burner is ignited automatically by the auto ignition mechanism. If the mercury burner is not ignited even though passing 30 seconds or more after the main switch @ of the power supply unit is set to “...

  • Page 10: Specifications

    , 50/60 Hz, 1.6 A (Power consumption 150 W) Dimensions & weight 90(W) x 180(H) x 270(D) mm, approx. 3 kg Applicable lamp housing Olympus lamp housing for 100 W mercury burner Applicable mercury burner Ultrahigh-pressure mercury burner USH-103OL* (Olympus) * The USH-102D (Ushio) and HBO103W/2 (Osram) are also applicable.

  • Page 11: Troubleshooting Guide

    U-RFL-T/U-RX-T TROUBLESHOOTING GUIDE Under certain conditions, performance of the unit may be adversely affected by factors other than defects. If problems occur, please review the following list and take remedial action as needed. Problem Cause Remedy Page a) Field of view is obscured, or field of...

  • Page 12: Proper Selection Of The Power Supply Cord

    If no power supply cord is provided, please select the proper power supply cord for the equipment by referring to “ Specifications ” and “ Certified Cord ” below: CAUTION: In case you use a non-approved power supply cord for Olympus products, Olympus can no longer warrant the electrical safety of the equipment.
  • Page 13 U-RFL-T/U-RX-T Table 2 HAR Flexible Cord APPROVAL ORGANIZATIONS AND CORDAGE HARMONIZATION MARKING METHODS Alternative Marking Utilizing Printed or Embossed Harmoniza- Black-Red-Yellow Thread (Length tion Marking (May be located on Approval Organization of color section in mm) jacket or insulation of internal wir-...
  • Page 14 MEMO...
  • Page 16 Manufactured by Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan Distributed by AX7713 10...
