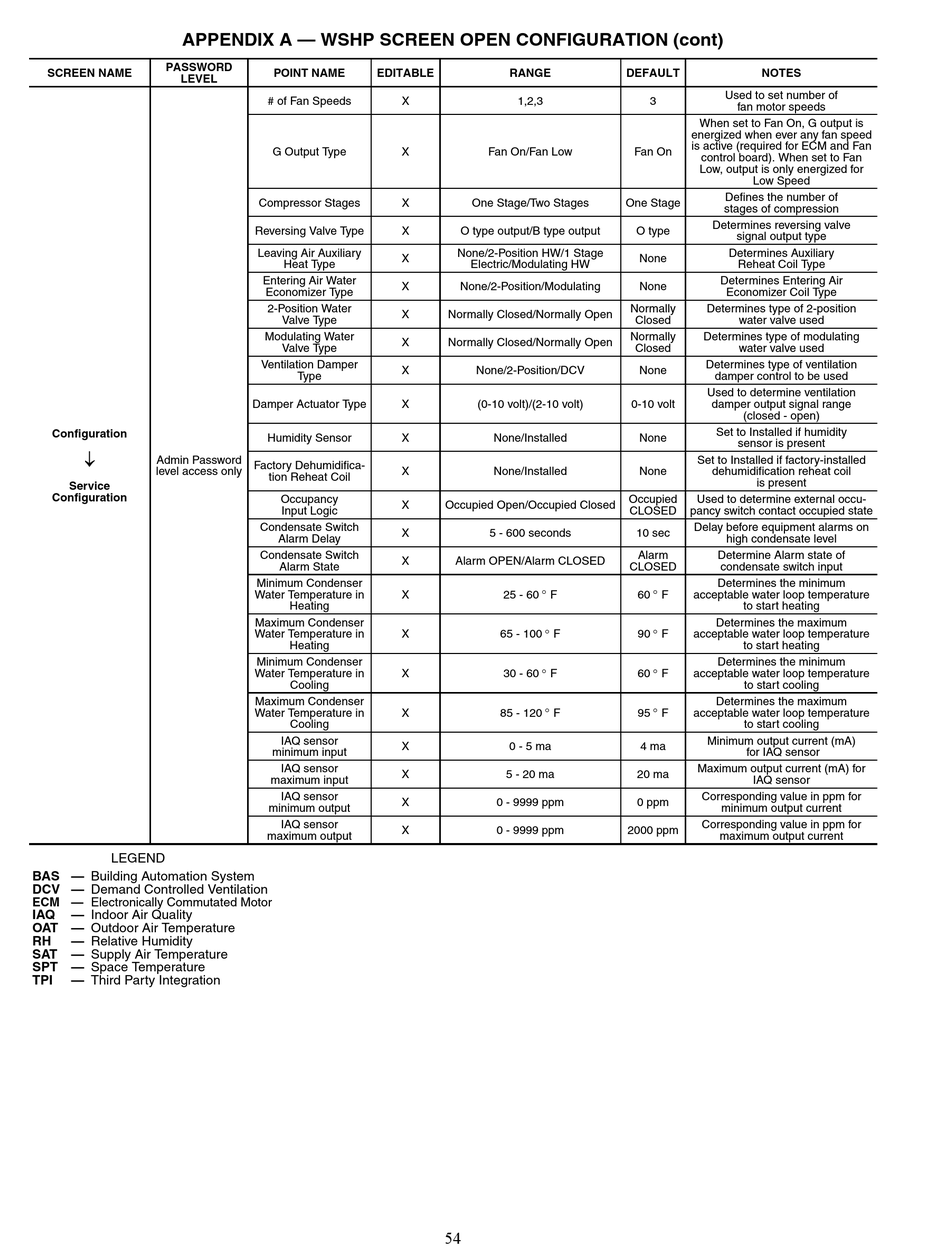

APPENDIX A — WSHP SCREEN OPEN CONFIGURATION (cont)
PASSWORD
SCREEN NAME
LEVEL
Configuration
Admin Password
level access only
Service
Configuration
LEGEND
BAS — Building Automation System
DCV — Demand Controlled Ventilation
ECM — Electronically Commutated Motor
IAQ — Indoor Air Quality
OAT — Outdoor Air Temperature
RH — Relative Humidity
SAT — Supply Air Temperature
SPT — Space Temperature
TPI — Third Party Integration
POINT NAME EDITABLE
# of Fan Speeds X
G Output Type X
Compressor Stages X
Reversing Valve Type X
Leaving Air Auxiliary
X
Heat Type
Entering Air Water
X
Economizer Type
2-Position Water
X
Valve Type
Modulating Water
X
Valve Type
Ventilation Damper
X
Type
Damper Actuator Type X
Humidity Sensor X
Factory Dehumidifica-
X
tion Reheat Coil
Occupancy
X
Input Logic
Condensate Switch
X
Alarm Delay
Condensate Switch
X
Alarm State
Minimum Condenser
Water Temperature in X
Heating
Maximum Condenser
Water Temperature in X
Heating
Minimum Condenser
Water Temperature in X
Cooling
Maximum Condenser
Water Temperature in X
Cooling
IAQ sensor
X
minimum input
IAQ sensor
X
maximum input
IAQ sensor
X
minimum output
IAQ sensor
X
maximum output
RANGE
1,2,3
Fan On/Fan Low
One Stage/Two Stages
O type output/B type output
None/2-Position HW/1 Stage
Electric/Modulating HW
None/2-Position/Modulating
Normally Closed/Normally Open
Normally Closed/Normally Open
None/2-Position/DCV
(0-10 volt)/(2-10 volt)
None/Installed
None/Installed
Occupied Open/Occupied Closed
5 - 600 seconds
Alarm OPEN/Alarm CLOSED

25 - 60 F

65 - 100 F

30 - 60 F

85 - 120 F
0 - 5 ma
5 - 20 ma
0 - 9999 ppm
0 - 9999 ppm
54
DEFAULT NOTES
Used to set number of
3
fan motor speeds
When set to Fan On, G output is
energized when ever any fan speed
is active (required for ECM and Fan
Fan On
control board). When set to Fan
Low, output is only energized for
Low Speed
Defines the number of
One Stage
stages of compression
Determines reversing valve
O type
signal output type
Determines Auxiliary
None
Reheat Coil Type
Determines Entering Air
None
Economizer Coil Type
Normally Determines type of 2-position
Closed water valve used
Normally Determines type of modulating
Closed water valve used
Determines type of ventilation
None
damper control to be used
Used to determine ventilation
0-10 volt damper output signal range
(closed - open)
Set to Installed if humidity
None
sensor is present
Set to Installed if factory-installed
None dehumidification reheat coil
is present
Occupied Used to determine external occu-
CLOSED pancy switch contact occupied state
Delay before equipment alarms on
10 sec
high condensate level
Alarm Determine Alarm state of
CLOSED condensate switch input
Determines the minimum

60 F acceptable water loop temperature
to start heating
Determines the maximum

90 F acceptable water loop temperature
to start heating
Determines the minimum

60 F acceptable water loop temperature
to start cooling
Determines the maximum

95 F acceptable water loop temperature
to start cooling
Minimum output current (mA)
4 ma
for IAQ sensor
Maximum output current (mA) for
20 ma
IAQ sensor
Corresponding value in ppm for
0 ppm
minimum output current
Corresponding value in ppm for
2000 ppm
maximum output current
