m0061
HBMX EN 040617
© Copyright Huffy Corporation 2017
Date Code Label
Here
EN

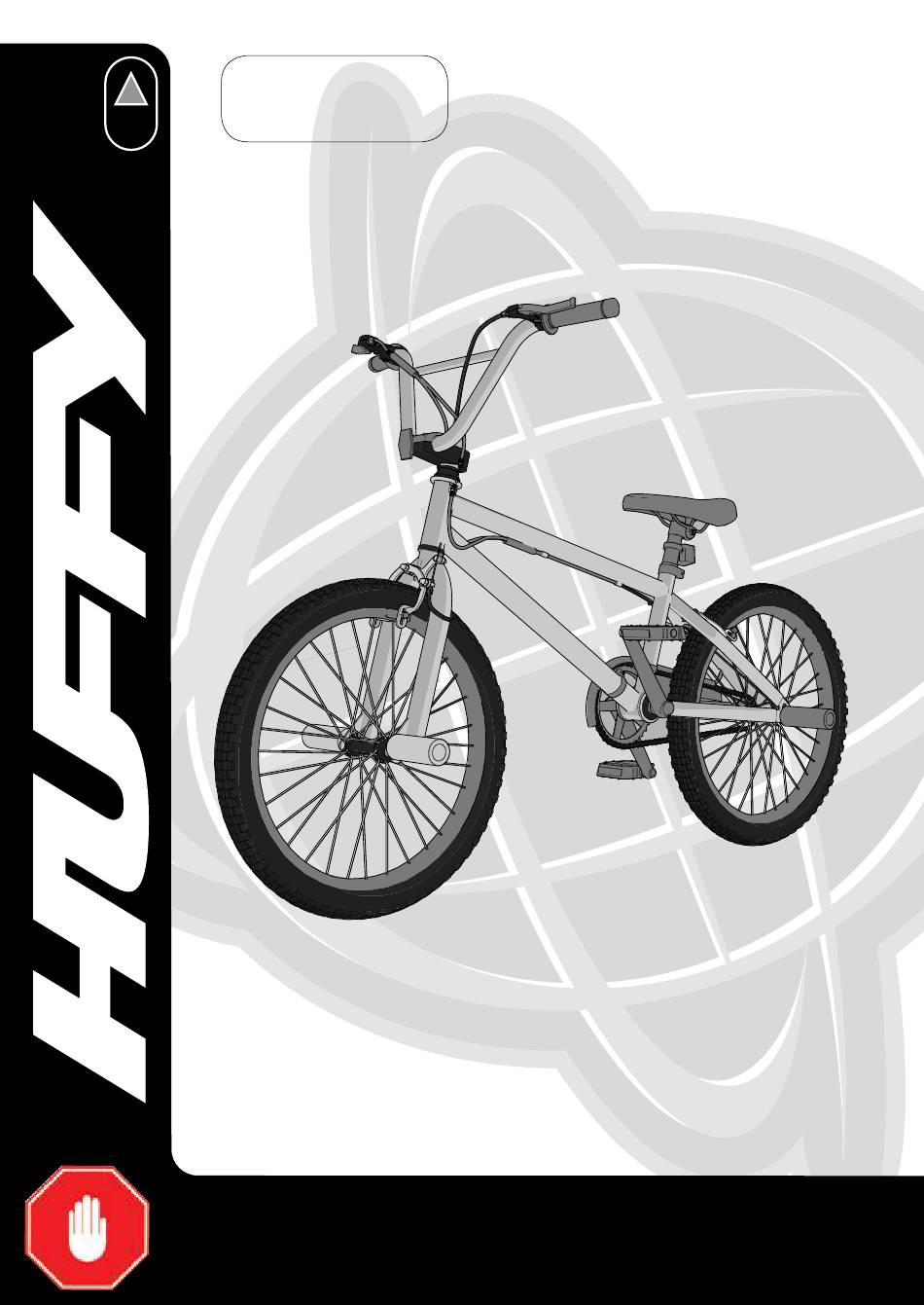

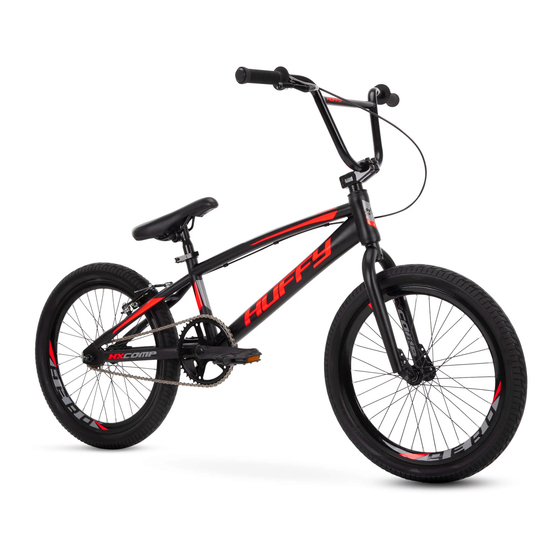

Owner's Manual
BMX Bicycles
This manual contains important safety, assembly, operation and
maintenance information.
Please read and fully understand this manual
before operation.
Save this manual for future reference.
See back page for Customer Service Information
Consulte el reverso para Servicio de Información al Cliente
Voir pages verso pour des renseignements le service à la clientèle
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huffy BMX
Summary of Contents for Huffy BMX
- Page 1 HBMX EN 040617 © Copyright Huffy Corporation 2017 Date Code Label Here Owner’s Manual BMX Bicycles This manual contains important safety, assembly, operation and maintenance information. Please read and fully understand this manual before operation. Save this manual for future reference.
-
Page 2: Table Of Contents
Owner’s Manual Index Introduction • Owner’s Bicycle Identification Record ................3 • Fitting the Rider to the Bicycle ..................3 • Warning and Safety Information ..................4 • Freewheel Brakes ........................4 • The Owner’s Responsibility ....................4 • Rules of the Road ........................5 Components •... -
Page 3: Owner's Bicycle Identification Record
Owner’s Bicycle Identifi cation Record NOTE: This information is only available on the bicycle itself. It is not available from Huff y. Each Huff y bicycle has a Recovery Code stamped into the frame. The Recovery Code can be found on the bottom of the crank ... -
Page 4: Warning And Safety Information
Warning and Safety Information Meanings of Warnings: This symbol is important. See the word “CAUTION” or “WARNING” which follows it. The word “CAUTION” is before mechanical instructions. If you do not obey these instruc- tions, mechanical damage or failure of a part of the bicycle can occur. The word “WARNING”... -
Page 5: Rules Of The Road
Rules of the Road WARNING : Failure of the rider to obey the following “Rules of the Road” can result in injury to the rider or to others. • Obey all traffi c regulations, signs, and signals. • Always wear a bicycle helmet that meets safety standards, as well as local safety standards. •... -
Page 6: Part Assembly View
Part Assembly View... -
Page 7: Parts Assembly List
Parts Assembly List... -
Page 8: Introduction
Introduction to Assembly This Owner’s Manual is made for several diff erent bicycles: • Some illustrations may vary slightly from the actual product. • Follow instructions completely. • If the bicycle has any parts that are not described in this manual, look for separate “Special Instructions”... -
Page 9: Assemble The Front Wheel To The Fork
Installing the Front Wheel NOTE: See Brake Section to loosen and Re-attach front Brakes (if equipped). 1. If the Axle Nuts are already attached to the front wheel axle, begin by remov- ing them with an open end wrench or adjustable wrench. 2. -
Page 10: Handlebar And Stem Installation - No Gyro Brakes
Handlebar and Stem Installation - No Gyro Brake NOTE: Check which Stem style your bike has and use one of the following installation guides. WARNING: To prevent steering system damage and possible loss of control, the “MIN-IN” (minimum insertion) mark on the stem must be below the top of the Locknut QUILL TYPE STEM: NOTE: Remove plastic Cap... - Page 11 Handlebar Installation - continued Four Bolt Clamp Top Mount: Adjust the Handlebar into a comfortable riding position. Tighten Clamp Screws evenly accord- ing to pattern. NOTE: Do not over tighten. See Torque Chart for recommended torque. Four Bolt Clamp, Front Mount: Adjust the Handlebar into a comfortable riding position.
-
Page 12: Gyro Brake And Stem Setup - Rear Brake
Stem and Handlebar Setup - Gyro Brake Note: The Handlebar Stem Clamp may be pre-installed from the factory. • Carefully unpack Handlebar and Brake Cables. • Install the Handlebar using Clamp Clamp Screws • Rotate Handlebar into a comfortable riding position. - Page 13 Gyro Stem and Brake Setup - continued • Install the two Cable Adjusters into the Gyro Plate making sure the Shorter Cable is on the same side as the Brake Lever • Turn the Cable Adjusters and Nuts the way into the Gyro Plate - hand tight. •...
-
Page 14: Gyro Brake Setup - Front Brake Cable Install
Gyro Brake Setup - Front Brake Cable Install • Pull the Front Brake Cable up through the Stem Nut so that it is routed as shown. • Ensure the Brake Cable does not touch the Tire • Insert Cable Barrel (2-1) into Brake Lever. •... - Page 15 Gyro Brake Setup - Front Brake Cable Install - continued • Rotate Brake Levers into a comfortable riding position and tighten securely. WARNING: Ensure Gyro Handlebar/Stem/Wheel system can rotate 360 degrees without binding any Cables and that the Gyro mechanism works smoothly.
-
Page 16: Testing Stem And Handlebar Tightness
Testing Stem and Handlebar Tightness To test the tightness of the stem: • Straddle the front wheel between your legs. • Try to turn the front wheel by turning the handlebar. • If the handlebar and stem turn without turning the front wheel, realign the stem with the wheel and tighten the stem bolt(s) tighter than before (about 1/2 revolution only at a time). -
Page 17: Seat Installation (Various Models)
Seat Installation WARNING : To prevent the Seat coming loose and possible loss of control, the “MIN-IN” (minimum insertion) mark on the Seat Post must be below the top of the Seat Tube SEAT AND SEAT POST SETUP: If needed, loosen Nuts on Seat Clamp and rotate Seat into rid- ing position. -
Page 18: Testing Seat Clamp And Post Clamp Tightness
Seat Installation - continued Post Clamp The tightening torque of the Quick Release Lever should be tight enough so that the seat does not move during normal operation. Seat Bolt Mount (various models) Some models have a Bolt Washer and Nut instead of a Quick Release Lever. -
Page 19: Pedal Installation
Pedal Installation CAUTION: There is a RIGHT pedal marked and a LEFT pedal marked NOTE: A Pedal Wrench is preferred for attaching Ped- als. A thin open-end wrench can also be used. • The pedal marked has right-hand threads. Tighten it in a clockwise direction. •... -
Page 20: Pegs Installation (If Equipped)
Pegs Installation - Threaded (if equipped) NOTES • Front and rear pegs may be different sizes. • The pegs are optional. You may choose not to install them on the axles. Pegs can be installed on the front, rear or on one side. •... -
Page 21: Repair And Service
Repair and Service WARNING: • Inspect the product frequently. Failure to inspect the product and to make repairs or adjustments, as necessary, can result in injury to the rider or to others. Make sure all parts are correctly assembled and adjusted as written in this manual and any “Special Instructions”. -
Page 22: Coaster Brake
Coaster Brakes (various models) These models are equipped with a rear ‘coaster’ brake that is operated by rotating the crank backwards. Operate the coaster brake as follows: • Push the pedals backward to move the chain backward • The chain activates the coaster brake mechanism that is inside the rear wheel •... -
Page 23: Chain Adjustment
coaster brake increases. Chain Adjustment WARNING: • The chain must remain on the sprock- ets. If the chain comes off the sprock- ets, the coaster brake will not operate. • Do not attempt chain repairs. If there is a problem with the chain, have a bicycle service shop make any repairs. -
Page 24: Rim Brake System: Setup And Adjustment
Caliper Rim Brake System Setup (various models) WARNING: You must adjust the front brakes before you ride the bicycle. NOTE: FRONT AND REAR BRAKE SETUP IS THE SAME. Step One: Put the brake shoes in the correct position: • Loosen the Screw of each Brake Shoe •... - Page 25 Caliper Rim Brake System Setup - continued Step 1: • Loosen Cable Nut so that the cable is loose. Step 2: • Insert Cable Barrel into Brake Lever. Step 3: • Insert Brake Cable into Groove as shown. ...
- Page 26 Caliper Rim Brake System Setup - continued Step 5: • Squeeze Brake Arms so that Brake Pads are against the Rim. Step 6: • Pull Brake Cable tight. • Tighten Cable Nut • Adjust Cable Nut for 1/16in (1.5mm) Brake ...
-
Page 27: Brake Pad Replacement
Caliper Rim Brake System Setup - continued Step 8: • Make sure the cable sheaths are fully in- serted into the adjustment housing at the Caliper and Hand Lever Step 9: • Rotate Brake Levers into a comfortable riding position and tighten securely. -
Page 28: Tires
Tires Maintenance: • Frequently check the tire infl ation pressure because all tires lose air slowly over time. For extended storage, keep the weight of the off the tires. • Do not use unregulated air hoses to infl ate the tire/tubes. An unregulated hose can sud- denly over infl ate tires and cause them to burst. -
Page 29: Lubrication / Lubrication Table
Lubrication WARNING: • Do not over lubricate. If oil gets on the wheel rims or the brake shoes, it will reduce brake performance and a longer distance to stop the bicycle will be necessary. Injury to the rider or to others can occur. •... -
Page 30: Warranty
Limited Warranty General: • Used in a manner contrary to the instructions • Part or model specifi cations are subject to and warnings in this Owner’s Manual change without notice. • This Limited Warranty is the only warranty Huff y will not be liable for incidental or for the product. - Page 31 WARNING: ALWAYS WEAR YOUR HELMET WHEN RIDING THIS PRODUCT! • Helmet should sit level on your head and low on your forehead • Adjust the strap sliders below the ear on both sides. • Buckle the chin strap. Adjust strap until it is snug. •...
- Page 32 ANTES DE DEVOLVER EL RETOURNER AU MAGASIN, PRODUCTO A LA TIENDA, COMMUNIQUEZ AVEC LE SERVICE COMUNÍQUESE CON SERVICIO À LA CLIENTÈLE DE HUFFY. NOUS AL CLIENTE DE HUFFY. NOS VOUS AIDERONS VOLONTIERS AVEC COMPLACE AYUDARLO CON TOUT PROBLÈME CONCERNANT LES CUALQUIER PARTE O PROBLEMA PIÈCES OU LE MONTAGE!
