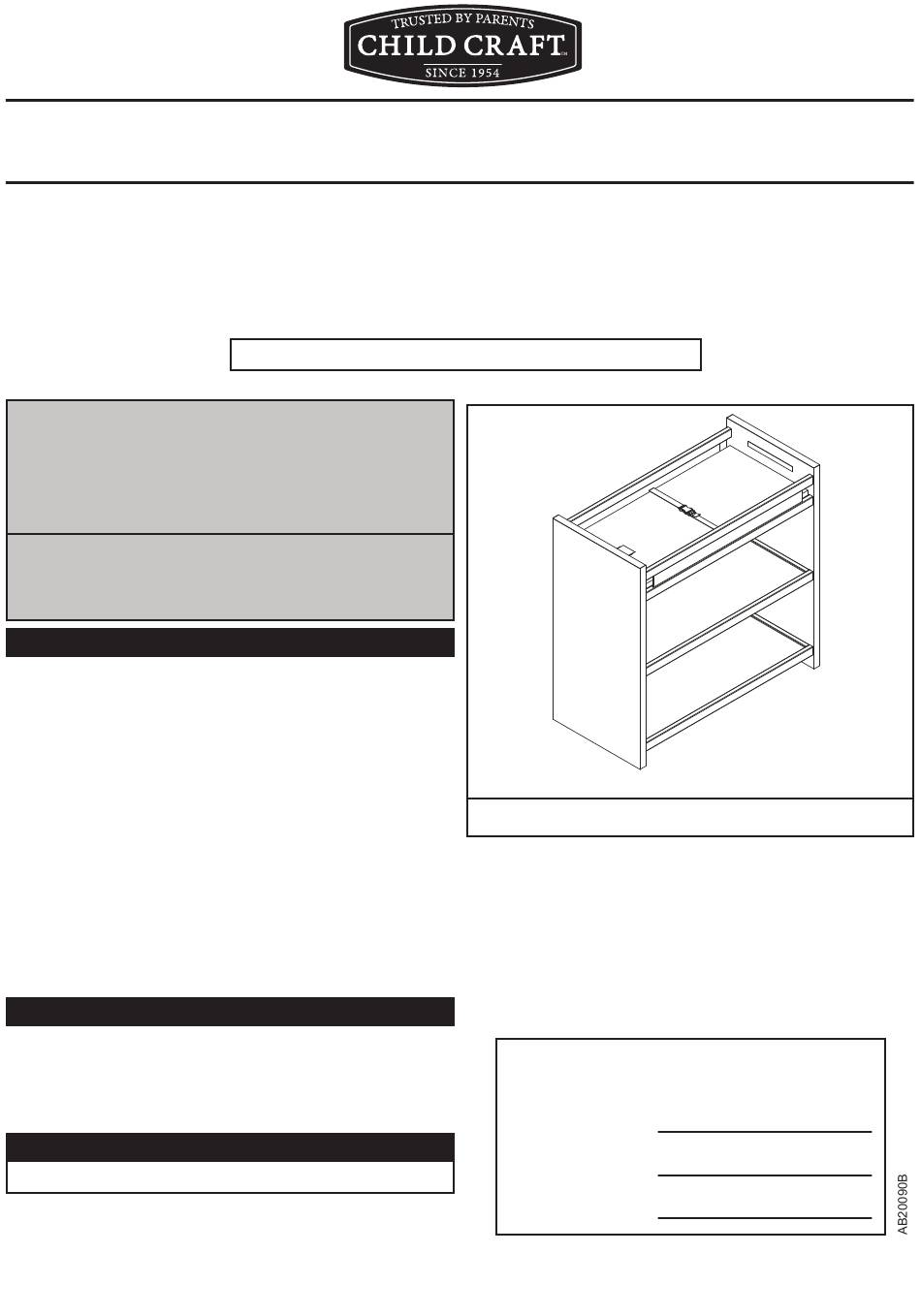

Child Craft Loft F05116 Instructions Manual

Dressing table

Advertisement

Available languages

Available languages

Quick Links

5216 Portside Dr., Medina, OH 44256 USA • PH: 1 330.722.5033 • FAX: 1 330.722.5037
FOR CUSTOMER SERVICE CALL
1-877-716-2757
(outside of U.S. 330-722-5033). DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR WARRANTY AND FEDERAL SAFETY STANDARD
COMPLIANCE CERTIFICATES,
PLEASE VISIT OUR WEBSITE AT
www.foundations.com
ASSEMBLY ASSISTANCE
IMPORTANT: Retain for future reference. Read
carefully.
Foundations strives for the highest quality in our
products but occasionally a missing part or problem
can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.child-craft.com or call Foundations
for assistance at 1-877-716-2757 (U.S. Only) or
1-330-722-5033 (Monday through Friday, 9:00
a.m.– 4:00 p.m. Eastern Time). Please have the
model number and manufacture date available
when you call or write us at:
Foundations Worldwide, Inc.,
5216 Portside Dr., Medina ,OH 44256
ASSEMBLY INSTRUCTIONS
• Adult assembly required.
• Read all instructions BEFORE assembly and USE
of product.
• Unpack carton, remove packing materials,
including polybag. Identify and check all parts.
SUGGESTED TOOLS
Adjustable wrench or pliers
Foundations Worldwide, Inc.
www.foundations.com • www.child-craft.com
Loft™ Dressing Table
Model Covered: F05116
KEEP INSTRUCTIONS FOR FUTURE USE
Dressing Table
Record the information for your product here:
Model number:
Manufacture date:
PO number:
1
.
AB20090_A1
