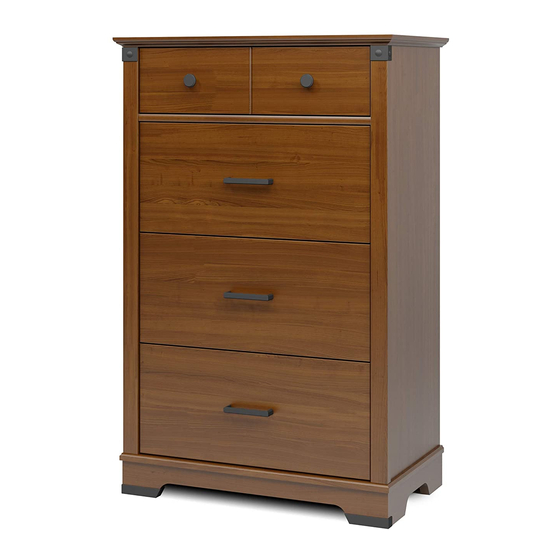

Redmond chest
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

This page is for printing and document
formating speci cations only.
THIS PAGE DOES NOT PRINT.
210 mm
DO NOT scale the artwork for printing. Each page
has been scaled for proper scaling of parts.
Page 1 will be the cover page and rst page printed
after this speci cation page. Any blank pages needed will
be placed at the end of this booklet.
printer to arrange booklet pages in proper
sequence according to page number.
Revisions:
A: initial release.
B. Changed model number from F02802 to F02812 - RDA ACN126
C: Updated step 9 to show base without cutouts per Casey's updated CAD. 11/30/2020 RDA. ACN148

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F02812 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Child Craft F02812

Summary of Contents for Child Craft F02812

  • Page 1 Revisions: A: initial release. B. Changed model number from F02802 to F02812 - RDA ACN126 C: Updated step 9 to show base without cutouts per Casey’s updated CAD. 11/30/2020 RDA. ACN148...
  • Page 2 1-330-723-0599 (Monday through Friday, 9:00 a.m.– 4:00 p.m. Eastern Time). Please have the model number and manufacture date available when you call or write us at: Child Craft, 5216 Port- side Dr., Medina, OH. 44256 Record the information for your product...

  • Page 3: Parts List

    STEP 1 PARTS LIST Furniture Parts D x 1 Part Description Part Number QTY. C x 1 A. Drawer Supprt 23101641 BB x 2 B. Back Middle Rail 23101717 C. Chest Bottom 23101718 CC x 2 D. Back Panel Bottom 23101720 E.
  • Page 4 STEP 5 STEP 3 G x 1 EE x 4 H x 1 CC x 2 AA x 4 BB x 2 AA x 2 BB x 2 CC x 2 EE x 2 EE x 4 EE x 4 AA x 2 EE x 2 AB20415_G3...
  • Page 5 STEP 7 STEP 9 I x 1 M x 1 J x 2 N x 2 AA x 3 AA x 6 FF x 32 EE x 4 AA x 3 N x 2 EE x 2 EE x 2 FF x 32 AB20415_G7 AB20415_G9...
  • Page 6 STEP 11 x 3 STEP 13 x 3 A x 1 HH x 2 O x 1 JJ x 1 AB20415_G13 AB20415_G11 STEP 12 x 3 STEP 14 W x 1 P x 1 GG x 5 Q x 1 R x 1 GG x 4 AB20415_G12...

  • Page 7: Drawer Installation

    STEP 15 STEP 17 A x 1 HH x 2 O x 1 II x 2 AB20415_G15 AB20415_G17 STEP 16 DRAWER INSTALLATION S x 1 These slide sections GG x 5 mounted on chest side must be fully extended for install. This side section mounted to drawer.

  • Page 8: Drawer Removal

    DO NOT use furniture if any parts are missing or broken. If any parts are missing, broken or you need assistance DO NOT return furniture to your dealer. Call Child Craft at 330.723.0599 and include model identification numbers recorded on page 1. DO NOT substitute parts.

  • Page 9: Instructions D'assemblage

    11201220 Lisez attentivement. BB. Boulon à tête Allen 6 mm, longueur 45 mm 11201221 Child Craft s’efforce de la plus haute qualité dans notre CC. Connecteur demi-lune 11201222 produits, mais de temps en temps une partie ou prob- DD. Clé Allen à bille (4 mm) 11201223 lème manquant peuvent se produire lors de...
  • Page 10 ÉTAPE 1 ÉTAPE 3 D x 1 EE x 4 C x 1 CC x 2 BB x 2 BB x 2 CC x 2 BB x 2 CC x 2 EE x 4 CC x 2 BB x 2 AB20415_G3 AB20415_G1 ÉTAPE 2...
  • Page 11 ÉTAPE 5 ÉTAPE 7 I x 1 G x 1 H x 1 J x 2 AA x 4 AA x 6 AA x 3 EE x 4 EE x 4 AA x 2 EE x 2 AA x 3 EE x 2 EE x 2 AA x 2...
  • Page 12 ÉTAPE 9 ÉTAPE 11 x 3 M x 1 A x 1 N x 2 O x 1 FF x 32 N x 2 FF x 32 AB20415_G9 AB20415_G11 ÉTAPE 10 x 3 ÉTAPE 12 x 3 T x 1 W x 1 U x 1 GG x 5...
  • Page 13 ÉTAPE 13 x 3 ÉTAPE 15 HH x 2 A x 1 JJ x 1 O x 1 AB20415_G13 AB20415_G15 ÉTAPE 14 ÉTAPE 16 P x 1 S x 1 Q x 1 GG x 5 R x 1 GG x 4 AB20415_G14 AB20415_G16...

  • Page 14: Installation Du Tiroir

    ÉTAPE 17 RETRAIT DU TIROIR HH x 2 II x 2 AB20415_G23 AB20415_G17 INSTALLATION DU TIROIR AVERTISSEMENT WARNING These slide sections mounted on chest side Des blessures graves ou mortelles peuvent se produire lorsqu’un meuble se renverse. must be fully extended Pour éviter les renversements : for install.

  • Page 15: Entretien

    Si des pièces sont manquantes, cassées ou vous avez besoin d’aide NE PAS retourner meubles à votre revendeur. Appelez au 330.723.0599 Child Craft et inclure les numéros d’identification de modèles enregistrés à la page 14. NE PAS remplacer les pièces.
