7001 Wooster Pike, Medina, OH 44256 USA
Directions for maintenance, cleaning, storage and use of your Changing Table are also included.
BEFORE STARTING THE ASSEMBLY PROCEDURE, READ ALL DIRECTIONS WITH CARE.
YOU WILL NEED THE FOLLOWING FOR THE ASSEMBLY OF YOUR CHANGING TABLE:
A
(1) Allen Wrench
E
F
(2) Nylon Washer
(1) Dressing Pad
H
(1) End Assembly-Right
K
(1) Top Front Rail
L
(1) Top Shelf Front Rail
M
(4) Lower Front Back Rail
Division of Foundations
•
PH: 1 877.716.2757 (U.S. Only) or +1 330.722.5033
•
www.childcraftbaby.com

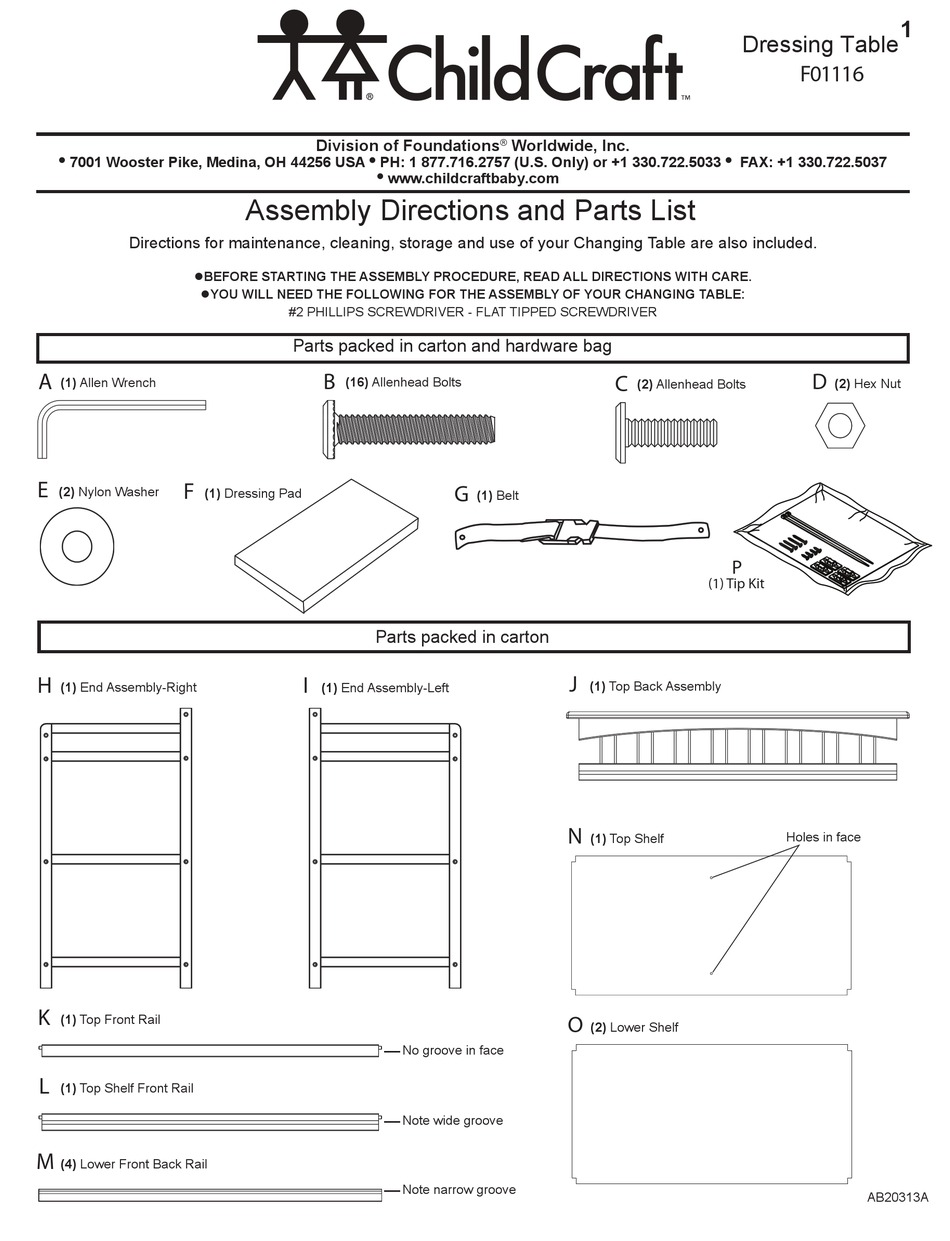

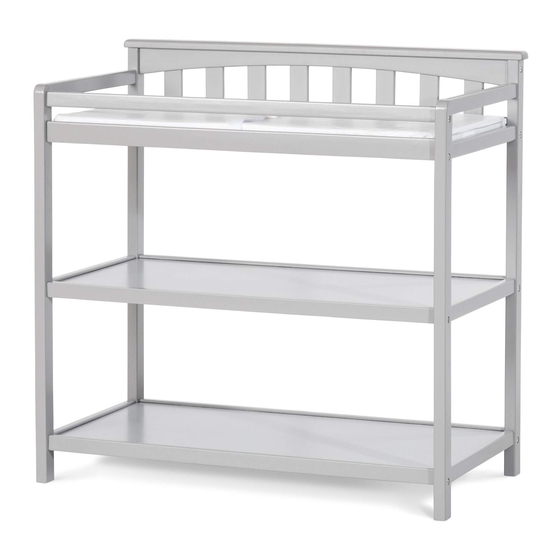

Assembly Directions and Parts List
#2 PHILLIPS SCREWDRIVER - FLAT TIPPED SCREWDRIVER
Parts packed in carton and hardware bag
B
(16) Allenhead Bolts
Parts packed in carton
I
(1) End Assembly-Left
No groove in face
Note wide groove
Note narrow groove
Worldwide, Inc.
®
C
G
(1) Belt
J
(1) Top Back Assembly
N
(1) Top Shelf
O
(2) Lower Shelf
Dressing Table
F01116
•
FAX: +1 330.722.5037
D
(2) Allenhead Bolts
P
(1) Tip Kit
Holes in face
1
(2) Hex Nut
AB20313A
