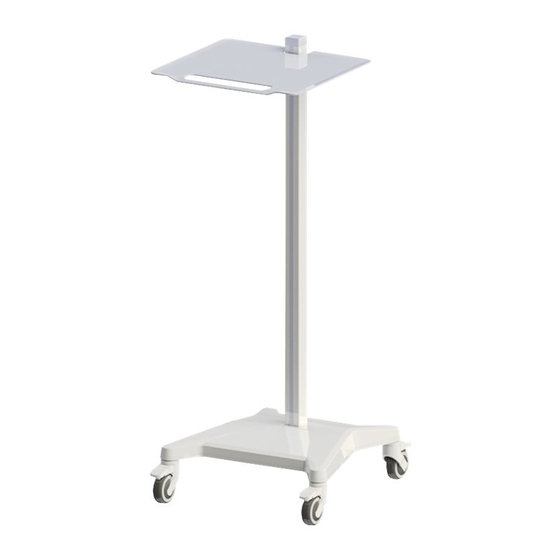

Tryten Nova
Motion/Tall/Connect-O
Assembly Instructions
For further instructions please visit Tryten.com/instructions.
For additional questions or technical support contact us at
Tryten.com/contact or 1-800-860-4455.
Nova Motion/Tall/Connect-O Assembly Instructions – Rev A
Page 1
Advertisement
Table of Contents
Related Manuals for tryten Nova Motion
Summary of Contents for tryten Nova Motion
- Page 1 Nova Mobile Carts 1-800-860-4455 Tryten Nova Motion/Tall/Connect-O Assembly Instructions For further instructions please visit Tryten.com/instructions. For additional questions or technical support contact us at Tryten.com/contact or 1-800-860-4455. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 1...
-
Page 2: Table Of Contents
POLY P15/X30 Mount Installation HD Hinge Installation and Adjustment Yeti-200 Battery Bracket Installation Poly SY20 Speaker installation Speaker Bracket and Speaker Installation 26-27 Handle Installation Intel NUC Bracket and Unit Installation Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 2... - Page 3 (up/down) when inserted into the extrusion channel. Once adjusted at the desired height, tighten the screw until it is fully locked to the extrusion. Always verify that the nut is aligned horizontally (left/right) when fully tightened. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 3...
-
Page 4: Receiving The Shipping Box
1. RECEIVING THE SHIPPING BOX • Base. • Extract the Hardware Pack. • Remove Pole Assembly from packaging. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 4... -
Page 5: Assembling Pole To Base
2. ASSEMBLING THE POLE TO BASE • Assemble the Pole to the base with the four (4) screws and dome washers using the 3/16” Hex L-Key from the Hardware Pack. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 5... -
Page 6: Power Box And Cabling Installation
When the cart is not in use, or devices are not being charged, the extension cord should be wrapped and stored on the unit. Wrap the cable firmly around the upper handle and lower cord wraps located on the back of the unit pole. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 6... -
Page 7: Removing Channel Strips
(2) screws (1”) using the 3/16” Allen L-Key. • On the Nova Tall, shown below right, assemble with one (1) screw using Torx Security L-Key provided in hardware pack. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 7... -
Page 8: Device Height Adjustment
(image 1), rotate counterclockwise and release handle back in place (image 3) to tighten the assembly. Repeat process until device is fully tightened. • Work Surface adjustment Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 8... -
Page 9: Work Surface Installation
• Remove extrusion adapter by removing two (2) 1/4” screws with 3/16” Hex L-Key provided. • Slide Work Surface down from top and secure at desired height (ref. point 6). • Reinstall Extrusion Adapter and Tall Pole. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 9... - Page 10 8. NOVA MOTION – WORK SURFACE INSTALLATION • Remove channel cover strip (ref. point 4). • Remove Pole Cap with rear screw using Torx Security L- Key. • Remove Extrusion Adapter with two (2) screws from top using 3/16” Hex L-Key.
- Page 11 (ref. point 6). • Re-install offset adapter cap. • To move handle to a more desirable location; pull handle out, rotate CW or CCW and release handle (ref. point 6). Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 11...
-
Page 12: Keyboard Tray Installation
(ref. point 7). • Re-install offset adapter cap to pole. To move handle to a more desirable location; pull handle out, rotate CW or CCW and release handle (ref. point 6). Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 12... -
Page 13: Supply Caddy And Transducer Holder Installation
• Adjust bracket to desired height and tighten screws. • Slide the Supply Caddy or Transducer Holder onto the Mounting Bracket from above until it snaps in place. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 13... -
Page 14: Supply Caddy Lockable Lid
• Rotate Z-Nut so it slides into the channel. • Lower entire lid until it rests on the Caddy. • Fasten lid to pole by using Torx Security L-Key (provided) and turn screw until tight. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 14... - Page 15 • Set numbers to desired combination. • Release button and your new combination is set. To lock, rotate to ‘locked’ position, rotate one or more dials. To unlock, rotate dials to personal combination and ‘unlock’. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 15...
-
Page 16: Installation
Note: Ensure the thicker section of the bracket is mounted at the top. • Install VESA plate to bracket with four (4) button head screws. • Install Monitor to VESA plate with four (4) mounting screws (not included). Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 16... - Page 17 • Remove two (2) cover screws using Torx Security L-Key. • Rotate plastic cover to install Monitor to VESA plate with four (4) mounting screws (not included). • Re-install two (2) cover screws. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 17...
-
Page 18: Nova Connect And Tall Camera Bracket Installation
• Align the alignment hole on camera with protruding alignment screw on bracket. • Use screw and Allen L-Key provided to install camera on bracket. • Remove alignment screw and install from opposite side to mount camera opposite way. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 18... - Page 19 • Align the alignment hold on camera with protruding alignment screw on bracket. • Use screw and Allen L-Key provided to install camera on bracket, remove alignment screw and install from opposite side to mount camera opposite way. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 19...
-
Page 20: Logitech Bracket And Camera Installation
(1) Z-Nut. • Remove screws and cap with Allen L-Key provided. • Install camera by placing camera slot over bracket ledge. • Re-install screws and cap with Allen L-Key provided. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 20... - Page 21 (2) Z-Nuts. • Remove screws and cap with Allen L-Key provided. • Install camera by placing camera slot over bracket ledge. • Re-install screws and cap with Allen L-Key provided. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 21...
-
Page 22: Poly P15/X30 Mount Installation
• Install camera/speaker, as per example. (P15 shown) • To adapt the mount from P15 to X30 or reverse, undo two (2) screws from hinge and flip plate over, re-install two (2) screws. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 22... -
Page 23: Hd Hinge Installation And Adjustment
CW to tighten. • To move handle to a more desirable location; pull handle out, rotate CW or CCW and release handle. For locking handle operation see point 7. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 23... -
Page 24: Yeti-200 Battery Bracket Installation
• Place battery on platform. • Place handle bracket around the green handle as the Z-Nut is inserted into the channel, place bracket on battery and tighten screw. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 24... -
Page 25: Poly Sy20 Speaker Installation
• Tighten bracket to extrusion with screw and T-Nut. • Slide speaker back ridge into the fixed bracket, slide clamp bracket onto speaker and align two (2) screw holes. • Install and tighten two (2) screws. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 25... -
Page 26: Speaker Bracket And Speaker Installation
• Install Jabra 410 and 510 Bracket to extrusion with screw and Z-Nut. • Install speaker by sliding speaker ledge into bracket lip with wire either at top or bottom. • Re-install cap and screw using Torx Security L-Key provided. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 26... -
Page 27: Handle Installation
• Install Handle by loosening T-Nut, insert T-Nut into extrusion channel, slide handle up or down to desired height and tighten screw. • Press protective plastic cap on to end of screw head. Nova Motion/Tall/Connect-O Assembly Instructions – Rev A Page 27... -
Page 28: Intel Nuc Bracket And Unit Installation
