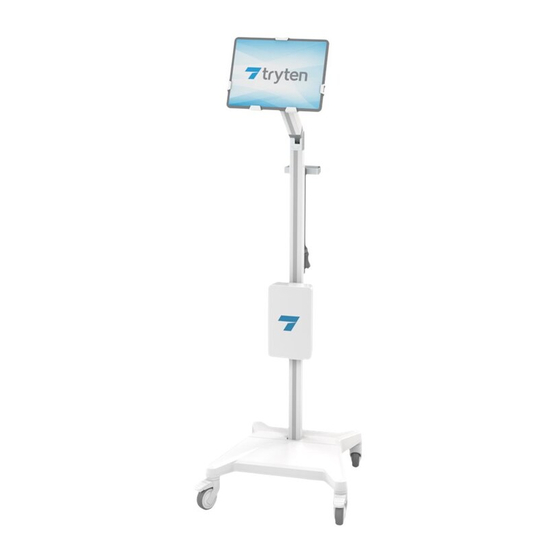

Nova Mobile Carts
1-800-860-4455
Tryten Nova Line
Assembly Instructions
For further instructions please visit Tryten.com/instructions, for
additional questions or technical support contact us at
Tryten.com/contacts or 1-800-860-4455.
Nova Assembly Instructions – Rev G
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nova Line and is the answer not in the manual?

Questions and answers

Related Manuals for tryten Nova Line

Summary of Contents for tryten Nova Line

  • Page 1 Nova Mobile Carts 1-800-860-4455 Tryten Nova Line Assembly Instructions For further instructions please visit Tryten.com/instructions, for additional questions or technical support contact us at Tryten.com/contacts or 1-800-860-4455. Nova Assembly Instructions – Rev G Page 1...

  • Page 2: Table Of Contents

    Assembly Instructions Page Receiving the Shipping Box Assembling Base to Pole Universal Omnitab Adjustment Removing Channel Strips Nova Go Universal Omnitab Installation Power Box and Cabling Installation Extension Pole installation, Neo and Connect Work Surface Installation 13-15 Keyboard Tray Installation Supply Caddy and Transducer Holder Installation Supply Caddy Lockable Lid 18-19...

  • Page 3: Receiving The Shipping Box

    NOVA HARDWARE PACK Felt Pads - ¾” x 1/8” thick (6) • • Label Hardware Kit Nova (1) Hex L-Key - 3/16” size, 3” length (1) • Torx Security L-Key - T25, 2-11/16” long (1) • • Hex L-Key - 5/32” size, 2-11/16” length (1) •...
  • Page 4 Extract the Hardware pack. • Remove Pole Assembly from packaging. Nova Assembly Instructions – Rev G Page 4...

  • Page 5: Assembling Base To Pole

    2. ASSEMBLE THE POLE • Assemble the Pole to the base with the four (4) screws and dome washers using the 3/16” Hex L-Key from the Hardware Pack. Nova Assembly Instructions – Rev G Page 5...
  • Page 6 3. (A) ADJUST OMNITAB UNIVERSAL BRACKET TO FIT TABLET The Universal bracket comes adjusted to fit the standard iPad 9.7 • Unlock the Top Slider using the set of keys from the Hardware Pack. Remove the Top Slider from the Universal Bracket.
  • Page 7 3. (B) INSTALLING 2 SET OF SLIDERS WHEN TABLET IN CASE • Remove the 4 Felt Pads from the Universal Bracket. • Remove the 4 Screws holding the cover of the Universal Bracket using the 1/8-inch Hex L-Key from the front of the cover.
  • Page 8 • Remove cover and the 3 screws holding the sliders using the 1/8-inch Hex L-Key from the front of the cover. • Remove the 4 sliders and replace with the set of sliders from Hardware Pack. • Install the 3 Screws holding the sliders using the 1/8-inch Hex L-key from the front of the cover.
  • Page 9 • Put back the cover and install the four (4) screws removed at step b) using the 1/8” Hex L-Key from the front of the cover. • Apply the set of felt pads supplied in the hardware pack on top of the screws. •...

  • Page 10: Removing Channel Strips

    4. REMOVE THE CHANNEL STRIPS Insert one of the smaller Allen Keys in behind the top of • the channel cover to pull out of the pole. Reinstall covers after the power cords are in place. Note: Channel Cover Strips will need to be adjusted if accessories are installed.

  • Page 11: Power Box And Cabling Installation

    6. POWER BOX AND CABLING INSTALLATION • Open box by using Torx security L-Key, loosen and remove the 2 screws located on the back of the Power Box. • Lift cover up or down to remove. • Install 9’ Green Dot Hospital Grade Power Extension Cable as shown.

  • Page 12: Extension Pole Installation, Neo And Connect

    7. EXTENSION POLE INSTALLATION, NOVA CONNECT AND NOVA NEO • On the nova connect, shown below left, assemble the extension pole to the offset adapter with the 2 screws (1”) using the 3/16” Allen key. • On Nova Neo, shown below right, assemble with 1 screw using Torx security L-Key provided in hardware pack.

  • Page 13: Work Surface Installation

    8. NOVA PRO AND TALL WORK SURFACE INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Remove articulating arm or tall pole with 1 screw using Torx security L-Key provided in hardware pack. • Remove extrusion adapter by removing (2) ¼” screws with 3/16”...
  • Page 14 9. NOVA MOTION – WORK SURFACE INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Remove Pole Cap with rear screw using Torx Security L-Key • Remove Extrusion Adapter with two (2) screws from top using 3/16” hex L-key •...
  • Page 15 10. NOVA CONNECT – WORK SURFACE INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Remove two (2) screws from underneath to remove offset adapter cap using Torx security L-key provided. • Slide keyboard tray down channel from top, set and lock with handle at desired height.

  • Page 16: Keyboard Tray Installation

    11. KEYBOARD TRAY INSTALLATION • Remove channel cover from front extrusion (ref. step 5). • Remove two (2) screws from underneath to remove offset adapter cap using Torx Security L-Key provided. • Slide keyboard tray down channel from top, set and lock with handle at desired height.

  • Page 17: Supply Caddy And Transducer Holder Installation

    12. SUPPLY CADDY & TRANSDUCER HOLDER INSTALLATION The Supply Caddy and Transducer Holder each come in two (2) parts – the Caddy/Holder and the Mounting Bracket and Hardware to attach to the pole. • Remove Channel Cover Strip (ref. point 4). •...

  • Page 18: Supply Caddy Lockable Lid

    12.1 SUPPLY CADDY LOCKABLE LID • Loosen Z-nut from screw but do not remove. • Rotate Z-nut so it slides into the channel. • Lower entire lid until it rests on the Caddy. • Fasten lid to pole by using Torx security L-key (provided) and turn screw until tight.
  • Page 19 12.2 SETTING PERSONAL COMBINATION NUMBERS DY KABLE LID • Factory combination is set at 0-0-0 • Combination must be on opening numbers prior to resetting. • You will find a hole on the outer ring for code reset, see picture. •...
  • Page 20 13. NOVA CONNECT & TALL – FIXED VESA BRACKET & MONITOR INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Install bracket to extrusion with two (2) screws and two (2) Z-Nuts. Note: Ensure the thicker section of the bracket is mounted at the top •...
  • Page 21 14. NOVA CONNECT & TALL – TILTING VESA BRACKET & MONITOR INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Install bracket to extrusion with two (2) screws and two (2) Z-Nuts. Note: Ensure the thicker section of the bracket is mounted at the top FOR ALL VESA BRACKETS •...

  • Page 22: Nova Neo Vertical Tablet Arm Installation

    16. NOVA NEO – VERTICAL TABLET ARM INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Install Adapter Plate to extrusion with two (2) screws and two (2) Z-Nuts provided. 17. NOVA PRO/GO VESA – VESA PLATE INSTALLATION • Install VESA Mount Plate to adapter with four (4) Button- Head Screws.
  • Page 23 18. NOVA CONNECT & TALL – UNIVERSAL ANGLE BRACKET & CAMERA INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Install camera bracket to extrusion with two (2) screws and two (2) Z-Nuts. • Align the alignment hole on camera with protruding alignment screw on bracket.
  • Page 24 19. NOVA CONNECT & TALL – FIXED CAMERA BRACKET & CAMERA INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Remove cap and adapter with Allen key provided (if necessary). • Install fixed camera bracket using two (2) ¼” cap screws. •...

  • Page 25: Logitech Bracket And Camera Installation

    20. LOGITECH MEETUP & RALLY, FIXED BRACKET – BRACKET & CAMERA INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Install Logitech bracket to extrusion with one (1) screw and (1) Z-nut. • Remove screws and cap with Allen L-key provided. •...
  • Page 26 21. LOGITECH MEETUP & RALLY, 180 PAN BRACKET – BRACKET & CAMERA INSTALLATION • Remove channel cover from front extrusion (ref. step 5). • Install Logitech bracket to extrusion with two (2) screws and two (2) Z-Nuts. • Remove screws and cap with Allen L-key provided. •...

  • Page 27: Speaker Bracket And Speaker Installation

    22. JABRA 410/510 – BRACKET & SPEAKER INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Remove screw and cap using Torx Security L-Key provided. • Install Jabra 410 and 510 Bracket to extrusion with screw and Z-Nut. • Install speaker by sliding speaker ledge into bracket lip with wire either at top or bottom.
  • Page 28 23. JBL CHARGE 4 AND FLIP 5 – BRACKET & SPEAKER INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Install JBL Charge 4 bracket to extrusion with two (2) screws and (2) Z-nuts. • Remove screws and cap using Torx Security L-Key provided.
  • Page 29 24. JBL GO2 – BRACKET & SPEAKER INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Install JBL GO2 bracket to extrusion with screw and Z-nut. • Remove screw and block using Torx Security L-Key provided. • Install speaker by sliding speaker into bracket tabs from underneath.

  • Page 30: Intel Nuc Bracket And Unit Installation

    25. INTEL NUC – BRACKET & UNIT INSTALLATION • Remove Channel Cover Strip (ref. point 4). • Install Intel NUC bracket to extrusion with screw and Z-nut. • Install Intel NUC by lining up holes of bracket and unit. • Install 2 screws with Allen L-key provided. Nova Assembly Instructions –...
