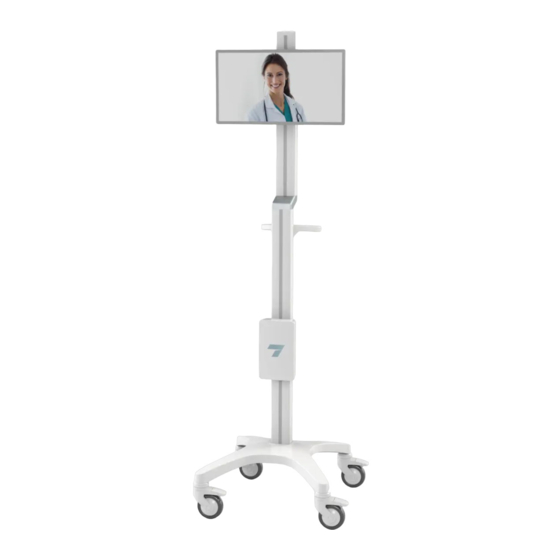

- Page 1 Nova Mobile Carts 1-800-860-4455 Tryten Nova Connect Assembly Instructions For further instructions please visit Tryten.com/instructions. For additional questions or technical support contact us at Tryten.com/contact or 1-800-860-4455. Nova Connect Assembly Instructions – Rev B Page 1...
-
Page 2: Table Of Contents
HD Hinge Installation and Adjustment Transducer Holder Installation Lockable Caddy Installation 20-21 Yeti 200 Battery Bracket Installation Poly SY20 Speaker installation Speaker Bracket and Speaker Installation 24-25 Intel NUC Bracket and Unit Installation Nova Connect Assembly Instructions – Rev B Page 2... - Page 3 ADDITIONAL TOOLS NEEDED FOR INSTALLATION • Scissors for cutting channel cover to length. ASSEMBLY INSTRUCTIONS Note: Shipping box pictures show Nova Connect Cart for assembly reference. Configurations may vary, but the installation process will be similar. INSTALLATION OF ACCESSORIES TO THE CARTS...
-
Page 4: Receiving The Shipping Box
1. OPEN THE SHIPPING BOX • Base. • Extract Poles. • Extract Accessories. Nova Connect Assembly Instructions – Rev B Page 4... -
Page 5: Assembling Base To Pole
2. ASSEMBLE THE POLE • Assemble the Pole to the base with the four (4) screws and dome washers using the 3/16” Hex L-Key from the hardware pack. Nova Connect Assembly Instructions – Rev B Page 5... -
Page 6: Removing Channel Strips
Reinstall covers after the power cords are in place. place. Note: Channel Cover Strips will need to be adjusted if accessories are installed. Nova Connect Assembly Instructions – Rev B Page 6... -
Page 7: Power Box And Cabling Installation
When the cart is not in use, or device is not being charged, the extension cord should be wrapped and stored on the unit. Wrap the cable firmly around the upper and lower cord wraps located on the back of the unit pole. Nova Connect Assembly Instructions – Rev B Page 7... -
Page 8: Extension Pole Installation
5. EXTENSION POLE INSTALLATION, NOVA CONNECT • On the Nova Connect, shown below, assemble the offset adapter to the main extrusion with the four (4) screws (1”) using the 3/16” Allen L-Key. 6. HANDLE INSTALLATION • Install Handle by loosening the T-Nut, insert T-Nut into the extrusion channel, slide handle up or down to desired height and tighten screw. -
Page 9: Device Height Adjustment
(image 3) to tighten the assembly. Repeat process until device is fully tightened. • Work Surface adjustment Image 2 Image 3 Image 1 • Keyboard Tray adjustment Image 1 Image 2 Image 3 Nova Connect Assembly Instructions – Rev B Page 9... -
Page 10: Work Surface Installation
8. NOVA CONNECT – WORK SURFACE INSTALLATION • Remove channel cover strip (ref. point 3). • Remove two (2) screws from underneath to remove offset adapter cap using L-Key provided. • Slide Work Surface down channel from top, set and lock with handle at desired height (ref. -
Page 11: Keyboard Tray Installation
9. NOVA CONNECT - KEYBOARD TRAY INSTALLATION • Remove channel cover strip (ref. point 3). • Remove two (2) screws from underneath to remove offset adapter cap using L-Key provided. • Slide Keyboard Tray down channel from top, set and lock with handle at desired height (ref. -
Page 12: Installation
10. NOVA CONNECT– FIXED VESA BRACKET & MONITOR INSTALLATION • Remove channel cover strip (ref. point 3). • Install bracket to extrusion with two (2) screws and two (2) Z-Nuts. Note: Ensure the thicker section of the bracket is mounted at the top •... - Page 13 11. NOVA CONNECT– TILTING VESA BRACKET & MONITOR INSTALLATION • Remove channel cover strip (ref. point 3). • Install bracket to extrusion with two (2) screws and two (2) T-Nuts. Note: Ensure the thicker section of the bracket is mounted at the top FOR ALL VESA BRACKETS •...
-
Page 14: Nova Connect Camera Bracket Installation
13. NOVA CONNECT– UNIVERSAL ANGLE BRACKET & CAMERA INSTALLATION • Remove channel cover strip (ref. point 3). • Install camera bracket to extrusion with two (2) screws and two (2) T-Nuts. • Align the alignment hole on camera with protruding alignment screw on bracket. -
Page 15: Logitech Bracket And Camera Installation
14. NOVA CONNECT - LOGITECH MEETUP & RALLY, FIXED BRACKET – BRACKET & CAMERA INSTALLATION • Remove channel cover strip (ref. point 3). • Install Logitech bracket to extrusion with one (1) screw and (1) Z-Nut. • Remove screws and cap with Allen L-Key provided. - Page 16 15. NOVA CONNECT - LOGITECH MEETUP & RALLY, 180 PAN BRACKET – BRACKET & CAMERA INSTALLATION • Remove channel cover strip (ref. point 3). • Install Logitech bracket to extrusion with two (2) screws and two (2) Z-Nuts. • Remove screws and cap with Allen L-Key provided.
-
Page 17: Poly P15/X30 Mount Installation
16. NOVA CONNECT - POLY P15/X30 MOUNT INSTALLATION • Remove channel cover strip (ref. point 3). • Loosen T-Nut but do not remove, insert T-Nut into the extrusion channel, move bracket up or down to desired height. • Tighten bracket to extrusion with screw and T-Nut. -
Page 18: Hd Hinge Installation And Adjustment
17. NOVA CONNECT - HD HINGE INSTALLATION AND ADJUSTMENT • Remove channel cover strip (ref. point 3). • Install HD Hinge to extrusion by having two (2) screws and T-Nuts loose, insert into extrusion channel, move up or down to desired position and tighten screws. -
Page 19: Transducer Holder Installation
18. NOVA CONNECT - TRANSDUCER HOLDER INSTALLATION • Remove channel cover strip (ref. point 3). • Install Adapter Block bracket to extrusion by having two (2) screws and T-Nuts loose, insert into extrusion channel, move up or down to desired position and tighten screws. -
Page 20: Lockable Caddy Installation
19. NOVA CONNECT - LOCKABLE CADDY INSTALLATION • Remove channel cover strip (ref. point 3). • Install Adapter Block bracket to extrusion by having two (2) screws and T-Nuts loose, insert into extrusion channel, move up or down to desired position and tighten screws. - Page 21 • Lower Lockable Lid assembly onto Caddy as shown. • Install Lockable Lid assembly with screw as shown. Nova Connect Assembly Instructions – Rev B Page 21...
-
Page 22: Yeti 200 Battery Bracket Installation
20. NOVA CONNECT - YETI 200 BRACKET INSTALLATION • Remove channel cover strip (ref. point 3). • Install Yeti 200 platform bracket to extrusion by having two (2) screws and T-Nuts loose, insert into extrusion channel, move up or down to desired position and tighten screws. -
Page 23: Poly Sy20 Speaker Installation
21. NOVA CONNECT - POLY SY20 SPEAKER INSTALLATION • Remove channel cover strip (ref. point 3). • Loosen T-Nut but do not remove, place T-Nut into extrusion channel, move bracket up or down to desired height. • Tighten bracket to extrusion with screw and T-Nut. -
Page 24: Speaker Bracket And Speaker Installation
• Install Jabra 410 and 510 Bracket to extrusion with screw and Z-Nut. • Install speaker by sliding speaker ledge into bracket lip with wire either at top or bottom. • Re-install cap and screw using Torx Security L-Key provided. Nova Connect Assembly Instructions – Rev B Page 24... - Page 25 (2) Z-Nuts. • Remove screws and cap using Torx Security L-Key provided. • Install speaker by sliding speaker ledge into bracket lip. • Re-install cap and screw using Torx Security L-Key provided. Nova Connect Assembly Instructions – Rev B Page 25...
-
Page 26: Intel Nuc Bracket And Unit Installation
California Proposition 65 This product or its power cord may contain chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. Nova Connect Assembly Instructions – Rev B Page 26...
