3. FUNCTIONAL DESCRIPTION
≡
3 Functional description
This section describes the functionality of the TTE-Switch A664 Lab v2.0.
3.1 Block diagram
3.1.1 Primary components
Base Board:
• 25 Ethernet transceivers (18 x 10/100 Mbit/s ports, 6 x 10/100/1000 Mbit/s ports, and 1 x 10/100/1000 Mbit/s
port for mirroring only).
TTE Switch Module 2:
• ASIC as switch engine.
• Reduced-latency DRAM with a storage capacity of 288 Mbit and running at 320 MHz.
• Application CPU that controls BISTs, error logging and management functions.
• Three 256 Mbit Flash memory ICs for storing the configuration(s) (CPU Flash).
• JTAG chain that offers access to the CPU and reduced-latency DRAM for debugging, production
testing and programming the flash memories.
• A 64 kbit FRAM used for error logging.
© TTTech Computertechnik AG 2020. All rights reserved.
Confidential and Proprietary Information

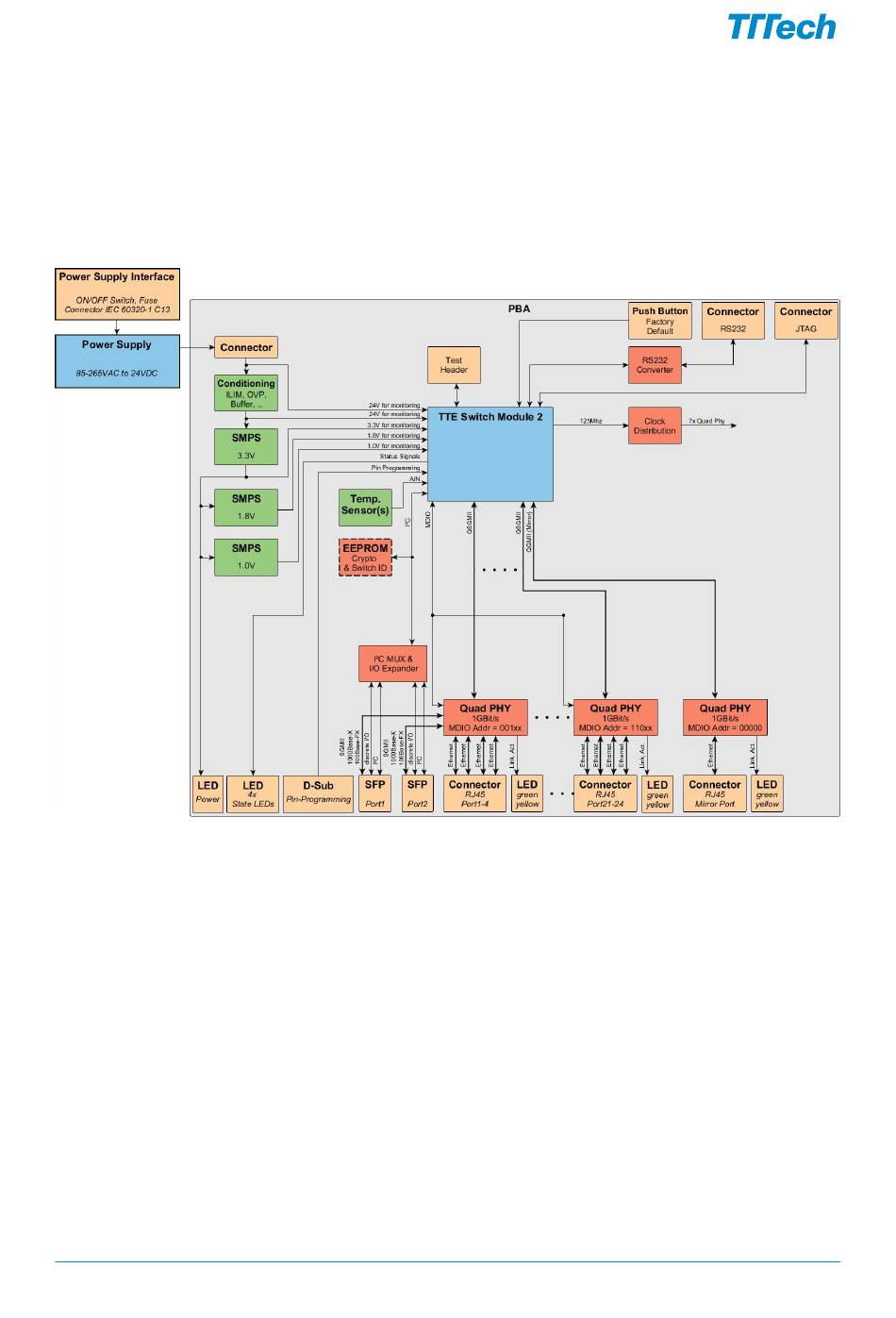

Figure 5: Block diagram of the TTE-Switch A664 Lab v2.0
