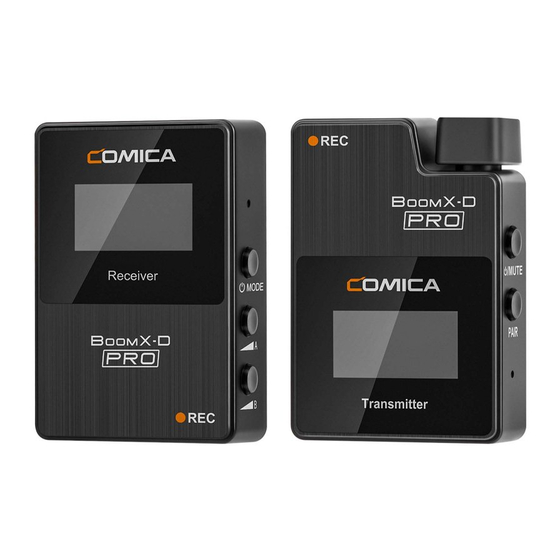

Comica BoomX-D PRO User Manual

2.4g dual-channel on-board recording wireless microphone
Hide thumbs Also See for BoomX-D PRO:

Advertisement

Quick Links

Download this manual
BoomX-D PRO
2.4G Dual-channel On-board Recording Wireless Microphone
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BoomX-D PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Comica BoomX-D PRO

Summary of Contents for Comica BoomX-D PRO

  • Page 1 BoomX-D PRO 2.4G Dual-channel On-board Recording Wireless Microphone User Manual...
  • Page 3 FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the 　 　...
  • Page 5 Foreword Thanks for purchasing COMICA BoomX-D PRO Main Features . 2.4G Digital Dual-channel Wireless microphone, Global Free Frequency . 48kHz/16bits Audio Recording, Intelligent Denoise . Support On-board Recording with 8G Internal Memory（About 24 hours） . Support Recording File's High-speed Transmission and Copy .
  • Page 6 Notice Due to 2.4G wireless characteristics, it's better to keep face to face when use it, and don’t turn your back to the receiver, otherwise it is easy to generate breakpoints, which is a normal phenomenon Don't block the antenna position to avoid any poor signal generated Please attention that it can not realize STEREO function when in single-channel and safety mode When you need to continuously record, a new recording file will be saved every 2 hours of recording, and the total recording time is 24 hours.
  • Page 7 Receiver (RX) Tips 1. BoomX-D PRO is universal for USB and 3.5mm interface devices. When used in smartphone, the system will compulsorily choose BoomX-D PRO as audio input and output device 2. When used in computer, please follow the steps below: ①...
  • Page 8 Packing List Main Parts: Transmitter(TX) Receiver (RX) Purchase Options: BoomX-D PRO D1 = TX + RX BoomX-D PRO D2 = TX + TX + RX （Black/White） （Black/White）...
  • Page 9 ① + ② + ③ + ④ + ⑤ + ⑥ + ⑦ + ⑧ + ⑨ + ⑩ BoomX-D PRO D1= ①x2 + ②x2 + ③ + ④ + ⑤ + ⑥ + ⑦ + ⑧ + ⑨ + ⑩...
  • Page 10 Components and Instruction Transmitter (TX) ① ② ⑦ ③ ⑧ ④ ⑨ ⑤ ⑥ 1. External Mic Locking Buckle 6. Reset Hole 2. 3.5mm TRS Port of External Mic 7. Belt Clip 3. Internal Mic 8. USB-C Charging/Copy Port 4. Power/Muting Button 9.
  • Page 11 Receiver (RX) ① ② ⑦ ③ ④ ⑧ ⑤ ⑥ 1. 3.5mm TRS/TRRS Monitoring Headphone Port 5. A Channel Output Gain Control Button 2. 3.5mm TRS Audio Output Port 6. B Channel Output Gain Control Button 3. Reset Hole 7. Belt Clip 4.
  • Page 12 Screen Display and Function Instruction Transmitter(TX) 1.Screen Display Instruction: Unpaired Muting in the Pairing Paired Microphone Normal Working Transmitter Battery Status Signal Strength REC 00 : 00 : 00 Flash:Recording Recorded Time A/B Channel is Connected A/B Channel is not Connected A / B Channel Microphone Audio Dynamic Bar...
  • Page 13 2.Function Introduction: 2.1. Power/Muting Button Long press for On/O ; Short press for muting switch 2.2. Pair Button Long press for pairing with receiver 2.3. Reset Hole If there is an abnormal phenomenon such as the device is crash or unable to turn on it, then insert the reset pin into the reset hole to reset it...
  • Page 14 2.4. 3.5mm TRS Microphone Port Insert the 3.5mm TRS microphone input cable, and you can use the external lavalier microphone for recording. At this time, the internal microphone of this device is turned o 2.5. USB-C Charging/Copy Port Connect the transmitter with the power or computer through 3 in 1 charging/output cable to charge or copy recording file 2.6.
  • Page 15 Receiver(RX) 1.Screen Display Instruction: Mono Stereo Safety (It will output dual-channel audio in mono in safety mode, one channel is normal audio, another channel is the safe audio reduced with -6dB based on the normal audio) Receiver Battery Status A Channel Microphone B Channel Microphone Audio Dynamic Bar Audio Dynamic Bar...
  • Page 16 2. Function Introduction: 2.1. Reset Hole If there is an abnormal phenomenon such as the device is crash or unable to turn on it, then insert the reset pin into the reset hole to reset it 2.2. Power/Mono/Stereo/Safety Mode Switch Button Long press for On/O ;...
  • Page 17 2.4. USB-C Charging/Output Port Connect the receiver with the power or USB interface devices through 3 in 1 charging/output cable to charge or output 2.5. 3.5mm TRS Audio Output Port Connect with mobile phone through the 3.5mm TRS-TRRS audio cable; Connect with camera through the 3.5mm TRS-TRS audio cable 2.6.
  • Page 18 Installation and Usage Pairing Method (All have been paired at the factory. If you need to re-pair, please follow the description) Long press the pair button of the transmitter to pair when the screen is on, the icon changes from after pairing successfully, the first paired transmitter as channel A(left channel), and the second paired transmitter as channel B(right channel)
  • Page 19 Transmitter(TX) 1. Use the internal/external mic according to your need Internal Mic External Mic 1.For better concealment during use, it is recommended that the belt clip is fixed and used outwards 2.When using an external microphone, the internal microphone is automatically turned o...
  • Page 20 file 3. Copy recording file according to your need BOOMX-D_PRO disk appears after BoomX-D PRO is connected with the computer, then you can copy the recording file Please keep the TX turned on when copying recording files...
  • Page 21 Receiver(RX) 1. Analog Output： 1.1 Work with Camera Fix the receiver through the belt clip to the camera's hot shoe mount, then connect the receiver with camera through the 3.5mm TRS-TRS audio cable; Insert the headphone into the monitoring headphone port for monitoring 3.5mm TRS-TRS audio cable...
  • Page 22 1.2. Work with Smartphone/Computer Connect the receiver with smartphone/computer through the 3.5mm TRS-TRRS audio cable and corresponding audio adapter cable, then insert headphone to monitor according to your need (Please purchase audio adapter cable by yourself ) Audio adapter cable TRS Plug TRRS Plug...
  • Page 23 BoomX-D PRO is equipped with a USB C-USB A audio cable(the orange cable of the 3 in 1 charging/output cable) , please purchase other audio cable and audio adapter by yourself...
  • Page 24 Specifications Transmitter (TX) Wireless Band 2400~2483.5MHz Transmitting Power +10dBm Receiving Sensitivity -86dBm Antenna PCB Antenna Omnidirectional Polar Pattern Frequency Response 80Hz ~ 20kHz Sound Pressure Level 100dB 70dB Equivalent Noise 24dBA Dynamic Range 76dB Sound Delay <20ms External Mic Input Interface 3.5mm TRS Battery Built-in Li-ion Battery 330mAh 3.7V...
  • Page 25 Receiver (RX) Wireless Band 2400~2483.5MHz Transmitting Power +10dBm -86dBm Receiving Sensitivity Antenna PCB Antenna Audio Output Adjustment -12dB~+12dB 70dB Equivalent Noise 24dBA 76dB Dynamic Range Sound Delay <20ms Audio Output Interface 3.5mm TRS&USB-C Digital Output 48kHz 24bits Monitor Interface 3.5mm TRS/TRRS Battery Built-in Li-ion Battery 330mAh 3.7V Battery Life...
  • Page 27 BoomX-D PRO 2.4G 双通道板载录音无线麦克风 用户使用手册...
  • Page 29 前言 感谢您购买科唛BoomX-D PRO 产品主要功能 . 2.4G数字双通道无线麦克风，全球通用频段 . 单声道/立体声输出，支持实时监听 . 48kHz/16bits录音，智能降噪 . 内置和外置MIC两种输入方式 . 支持8G内存板载录音及高速传输拷贝（约24小时） . 自动调频，传输稳定 . 数字&模拟双模式输出，通用于相机，手机，电脑 . 低音频延迟< 20ms，传输距离稳定高达100m . 安全音轨模式，便于后期剪辑 . 多功能背夹，小巧精悍 . 可视化电量，音频动态监控等屏显功能...
  • Page 30 注意事项 由于2.4G无线特性，使用时尽量保持面对面，避免背对的情况，否则容易产生断点，属正常现象 使用时避免任何物体遮挡天线位置，以免信号不良 单通道以及安全音轨模式下，立体声（STEREO）功能不可实现 当持续录音时，每录满2小时会新存为一个录音文件，总录音时长为24小时，当8G内存录满时，新录音文件会覆盖 旧录音文件 录音功能和拷贝功能不可同时使用 3.5mm TRS-TRS音频连接线适用于佳能、尼康等收音灵敏度较弱的相机 3.5mm TRS-TRS阻尼音频连接线适用于索尼、松下、富士等收音灵敏度较强的相机 (如连接设备后出现声音过爆现象，此时建议使用3.5mm TRS-TRS阻尼音频连接线) 本产品属于高精密仪器类产品，请避免使用时掉落、碰撞或重击 请勿将本设备放置在热源或干扰源附近使用，如散热器、烤箱等 如拾音距离较近或于户外使用时，请套上麦克风防风毛，防止声音爆裂或降低风噪 不要在雨中或潮湿的环境中使用该设备，否则会有短路的危险 请在干燥环境中对该产品进行保存...
  • Page 31 使用时避免任何物体遮挡天线位置，以免信号不良 天线位置 天线位置 发射器（TX） 接收器（RX） 提示 1. BoomX-D PRO通用于USB和3.5mm接口的设备。当用于手机时，系统会强制性使用BoomX-D PRO 2. 当用于电脑时，请按以下步骤进行操作： ① 将BoomX-D PRO插入电脑 ② 打开声音设置界面，选择“Comica_BoomX-D_PRO”为输出和输入设备 声音 输出 输入 选择输出设备 选择输入设备 Comica_BoomX-D_PRO Comica_BoomX-D_PRO...
  • Page 32 包装清单 主体: 发射器（TX） 接收器（RX） 搭配选择: BoomX-D PRO D1 = TX + RX BoomX-D PRO D2 = TX + TX + RX （黑色/白色） （黑色/白色）...
  • Page 33 ① + ② + ③ + ④ + ⑤ + ⑥ + ⑦ + ⑧ + ⑨ + ⑩ BoomX-D PRO D1= ①x2 + ②x2 + ③ + ④ + ⑤ + ⑥ + ⑦ + ⑧ + ⑨ + ⑩...
  • Page 34 部件介绍及说明 发射器（TX） ① ② ⑦ ③ ⑧ ④ ⑨ ⑤ ⑥ 1. 外置麦克风插头卡扣 6. 复位孔 2. 3.5mm TRS外置麦克风插孔 7. 背夹 3. 内置麦克风 8. USB-C充电/拷贝插口 4. 电源/静音按钮 9.录音按钮 5. 配对按钮...
  • Page 35 接收器（RX） ① ② ⑦ ③ ④ ⑧ ⑤ ⑥ 1. 3.5mm TRS/TRRS耳机监听插孔 5. A通道输出音量调节按钮 2. 3.5mm TRS音频输出插孔 6. B通道输出音量调节按钮 3. 复位孔 7. 背夹 4. 电源/单声道/立体声/安全音轨切换按钮 8. USB-C充电/输出插口...
  • Page 36 屏显与功能介绍 发射器（TX） 1.屏幕显示: 未配对 静音 配对中 麦克风正常工作 已配对 发射器电池电量 信号强度 REC 00 : 00 : 00 闪烁：正在录音 已录音时长 A/B通道已连接 A/B通道未连接 A/B通道麦克风音频动态条...
  • Page 37 2.功能介绍: 2.1. 电源/静音按钮 长按开机/关机，短按进行静音切换 2.2. 配对按钮 长按与接收器进行配对 2.3. 复位孔 如出现死机或开不了机等异常现象，使用复位针插入复位孔即可复位...
  • Page 38 2.4. 3.5mm TRS麦克风插孔 插入3.5mm TRS麦克风输入线，即可使用外置领夹麦克风进行录音，此时本机的内置麦克风被关闭 2.5. USB-C充电/拷贝插口 使用三合一充电/输出线连接发射器可充电和拷贝录音文件 2.6. 录音按钮 在屏幕亮显的情况下长按进行录音或者停止录音 所有功能调节需在屏幕亮显时才可用，如果屏幕暗显，请先按任何按键使屏幕亮显再操作...
  • Page 39 接收器（RX） 1.屏幕显示: Mono: 单声道 Stereo: 立体声 Safety: 安全模式(该模式下为单声道输出，输出两路音频，一路为正常音频， 一路为正常音轨降低-6dB后的安全音频) 接收器电池电量 A通道麦克风 B通道麦克风 音频动态条 音频动态条 A通道已连接 B通道输出音量 A通道未连接 A通道输出音量 B通道已连接 B通道未连接...
  • Page 40 2.功能介绍: 2.1. 复位孔 如出现死机或开不了机等异常现象，使用复位针插入复位孔即可复位 2.2. 电源/单声道/立体声/安全音轨切换按钮 长按开机/关机，短按进行单声道、立体声与安全模式切换。单通道以及安全音轨模式下，立体声（STEREO）功 能不可实现 2.3. A/B通道输出音量调节按钮 短按可循环调节A/B通道输出音量；在单声道模式下，A/B通道输出音量同步调节...
  • Page 41 2.4. USB-C充电/输出插口 通过三合一充电/输出线连接接收器可充电或数字输出到USB接口的设备 2.5. 3.5mm TRS音频输出插孔 通过3.5mm TRS-TRRS音频连接线与手机进行连接；通过3.5mm TRS-TRS音频连接线与相机进行连接 (如连接设备后出现声音过爆现象，此时建议使用3.5mm TRS-TRS阻尼音频连接线) 2.6. 3.5mm TRS/TRRS耳机监听插孔 插入3.5mm TRS/TRRS耳机即可监听 所有功能调节需在屏幕亮显时才可用，如果屏幕暗显，请先按任何按键使屏幕亮显再操作...
  • Page 42 安装与使用方法 配对方法（出厂时默认配对，如需重新配对，请根据以下说明操作） 在发射器屏幕亮显的情况下长按配对按钮进行配对，配对成功后屏幕图标由 变成 ，先配对成功的发射器 为A通道（左声道），后配对成功的发射器为B通道（右声道） 配对成功后屏幕图标由 变成 REC 00 : 00 : 00 REC 00 : 00 : 00 发射器（TX）...
  • Page 43 发射器（TX） 1.根据个人需求选择使用内置/外置麦克风 内置麦克风 外置麦克风 1.在使用内置麦克风时，为了更好的隐蔽性，建议将背夹朝外固定使用 2.当使用外置麦克风时，内置麦克风会自动关闭...
  • Page 44 2.根据个人需求选择是否开启录音功能 在屏幕亮显的情况下长按REC进行录音或停止录音 REC 00 : 00 : 00 持续录音时，每录满2小时会新存为一个录音文件，总录音时长为24小时， 当8G内存录满时，新录音文件会覆盖旧录音文件 3.根据个人需求选择是否拷贝录音文件 通过TX的USB-C接口连接电脑后出现一个盘符BOOMX-D_PRO，录制的音频文件可从盘符中拷出 拷贝录音文件时，TX需保持开机状态，否则将无法拷贝...
  • Page 45 接收器（RX） 1. 模拟输出: 1.1 搭配相机 把接收器通过背夹夹到相机的热靴座固定；通过3.5mm TRS-TRS音频连接线连接接收器和相机；把耳机插入 耳机监听插孔进行监听 3.5mm TRS-TRS音频连接线...
  • Page 46 1.2. 搭配手机/电脑 通过3.5mm TRS-TRRS音频连接线和相关音频转接线连接接收器和手机/电脑，可根据个人需求选择是否进 行监听（转接线请自行购买） 转接线 三节TRS插头 四节TRRS插头...
  • Page 47 2. 数字输出: 通过相关音频连接线及转接头连接接收器和USB接口的设备，根据个人需求选择是否进行监听 USB C-USB A音频连接线可用三合一充电/输出线中的橙色线， 其他音频连接线及转接头需自行购买...
  • Page 48 技术规格 发射器（TX） 2400~2483.5MHz 无线频段 +10dBm 发射功率 -86dBm 接收灵敏度 PCB天线 天线 麦克风指向性 全指向 80Hz ~ 20kHz 麦克风频响 100dB 声压级 70dB 系统信噪比 24dBA 系统等效噪声 76dB 系统动态范围 <20ms 声音延迟 外置输入接口 3.5mm TRS 锂聚合物 330mAh 3.7V 电池 4.5小时 续航时间 24小时 录音时间 净重 39x22x55mm 尺寸 0℃...
  • Page 49 接收器（RX） 2400~2483.5MHz 无线频段 +10dBm 发射功率 -86dBm 接收灵敏度 PCB天线 天线 -12dB~+12dB 音频输出调节 70dB 系统信噪比 24dBA 系统等效噪声 76dB 系统动态范围 <20ms 声音延迟 3.5mm TRS&USB-C 音频输出接口 48kHz 24bits 数字输出 3.5mm TRS/TRRS 监听接口 锂聚合物 330mAh 3.7V 电池 6小时 续航时间 净重 39x22x55mm 尺寸 0℃ ~ 50℃ 工作温度...
