Range Servant Tee Up Manual

Hide thumbs Also See for Tee Up:
Table of Contents

Advertisement

Quick Links

Download this manual
Tee Up Manual
In English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tee Up and is the answer not in the manual?

Questions and answers

Related Manuals for Range Servant Tee Up

Summary of Contents for Range Servant Tee Up

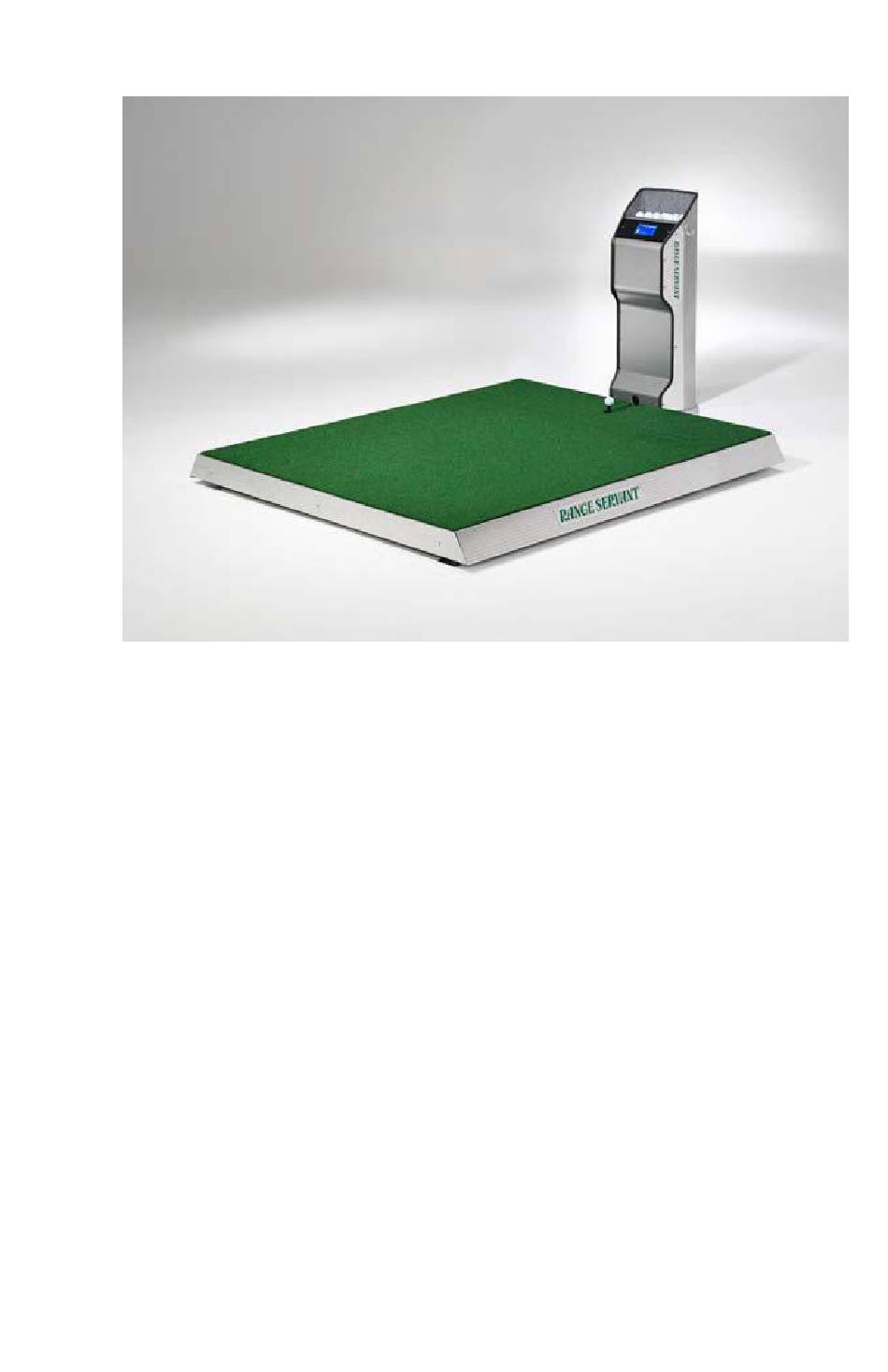

  • Page 1 Tee Up Manual In English...

  • Page 2: Table Of Contents

    5.3 Periodic Maintenance ....................................10 5.4 Troubleshooting and Repairs ..................................11 6 Spare Parts ..........................................16 6.1 Tee-Up Platform ......................................16 6.2 Feed unit ........................................... 17 8 Sales Offices and Agents...................................... 18 8.1 Head Office ........................................18 8.2 Range Servant America ....................................18...

  • Page 3: General Information

    ONE YEAR GUARANTEE Range Servant AB hereby offers a guarantee of one year from the date of shipment from the factory on material and function of the RANGE SERVANT product specified below. This engagement applies to repaired or replaced components for a period of three months. This undertaking only applies to the original purchaser.

  • Page 4: Ec Declaration Of Conformity

    1.2 EC Declaration of Conformity In accordance with the Machine Directive 89/392/EEC, annex IIA. The Manufacturer: (PLACE LOGO) Range Servant AB Skallebackavägen 11 SE- 302 41 HALMSTAD Sweden The Representative: (To be filled out by a representative established within the EU) Company …………………………………………………...

  • Page 5: Technical Specifications

    1 Technical Specifications 1.1 Stand alone Tee-Up General Stand-alone Tee-Up With Ball Feed Capacity 100 balls Max. - Min. tee height (mm)/(in) (ball 0-60/0-2.36 center) Measurements: Height (mm)/(in) 1000/39.4 Width (mm)/(in) 1678/66 Length (mm)/(in) 2322/91.5 Stance Mat (mm)/(in) 1500x1500/59x59 Frame height (mm)/(in) 167/6.5 Weight without balls (kg)/(lbs) 120kg/264,5pounds...
  • Page 6 1000 (39,4)

  • Page 7: Design And Functions

    2 Design and Functions Item Description Stance platform Stance mat Hitting platform with Tee Up mechanism and control equipment Hitting/Tee mat Feed unit...

  • Page 8: Unpacking And Assembly

    3 Unpacking and Assembly Dear customer, to unpack and assembly/installation the Tee Up properly and trouble free, please contact authorized Range Servant personnel. Contact information for customers outside of North & South America: Range Servant AB Skallebackavägen 11 302 41 Halmstad...

  • Page 9: Operation

    4 Operation 4.1 Operation of Tee-Up with Feed Unit Collect a bucket of balls from the ball dispenser or storage bin. Pour the balls into the feed unit which holds a maximum of 100 balls. If no ball comes out, place a ball on the tee to start. Press the height adjustment button to adjust the tee height, up or down.

  • Page 10: Service And Maintenance

    If the person is absent for more than three months training shall be repeated. 5.2 Service Accessories and original spare parts along with qualified support will be provided by Range Servant. Correct maintenance and service prolongs the life of the unit and secures reliable operation. Any faults, if any, will be detected at an early stage and are therefore easier to repair.

  • Page 11: Troubleshooting And Repairs

    5.4 Troubleshooting and Repairs 5.4.1 General Even though the unit is reliable failures do occur for various reasons. Start troubleshooting by deciding whether a fault is mechanical or electrical. 5.4.2 Troubleshooting and Repairs Type of fault Symptoms Checks/Repairs Mechanical failures can in most cases be detected by observing changes in moving parts caused by e.g.
  • Page 12 5.4.3 Replacing of the rubber tee Sink the tee to the lowest level. There must be a ball on the tee to do it.  Take away the ball  Insert a cross-headed screwdriver inside the tee and screw off the tee. ...
  • Page 13  Adjust the spring until you have a balance on the arm/tee with ball and without. Check that it is good balance even if you put on the ball slowly.  Reverse the procedure to lock the bolt / nut. ...
  • Page 14  If the sensor is damaged or the distance between the sensor and the screw cap increases 2mm, it would not work and the arm cannot find the home (down) position.
  • Page 15 Resolve the problem as following:  Remove the cover of the control box. Loose the nuts holding the sensor, adjust the distance between the sensor head and screw to approx. 0.5-1mm.  Connect the power supply and check the function. ...

  • Page 16: Spare Parts

    6 Spare Parts This section provides detailed drawings of the tee-up and the location of the different parts. The tables accompanying the drawings contain information showing spare parts numbers and descriptions and quantity. 6.1 Tee-Up Platform Item Part No. Description TJM0216 Hitting platform TJM0214/17/18...

  • Page 17: Feed Unit

    6.2 Feed unit Item Part No. Description TJM0271 Hopper TJM0249 Feeder mechanism assay TJA0010 Height Adjustment Button...

  • Page 18: Sales Offices And Agents

    8 Sales Offices and Agents Below is a list of current sales offices and agents dealing with Range Servant products. The list is continually updated on our website http://www.rangeservant.com. 8.1 Head Office Sweden Range Servant AB Skallebackavägen 11 302 41 Halmstad...
