Tee Up Manual
In English

Advertisement

Table of Contents
loading

Related Manuals for Range Servant Tee-Up

Summary of Contents for Range Servant Tee-Up

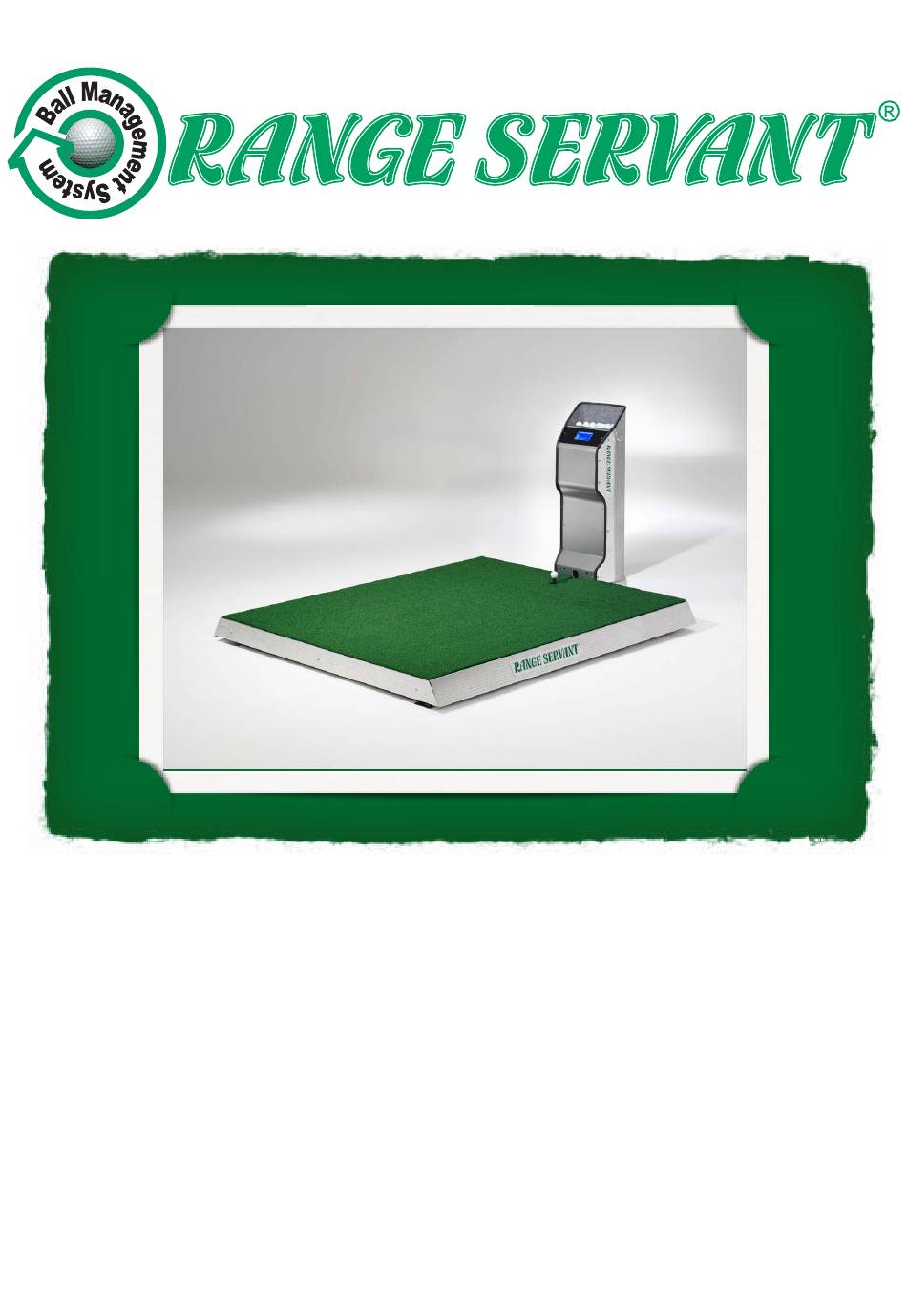

  • Page 1 Tee Up Manual In English...

  • Page 2: Table Of Contents

    1 Technical Specifications! 1.1 Stand alone Tee-Up! 2 Design and Functions! 3 Unpacking and Assembly ! 3.1 General! 4 Operation! 4.1 Operation of Tee-Up with Feed Unit! 5 Service and Maintenance! 5.1 Requirements! 5.2 Service! 5.3 Periodic Maintenance! 5.4 Troubleshooting and Repairs! 6 Spare Parts ! 6.1 Tee-Up Platform!

  • Page 3: General Information

    ONE YEAR GUARANTEE Range Servant AB hereby offers a guarantee of one year from the date of shipment from the factory on material and function of the RANGE SERVANT product specified below. This engagement applies to repaired or replaced components for a period of three months.

  • Page 4: Ec Declaration Of Conformity

    1.2 EC Declaration of Conformity In accordance with the Machine Directive 89/392/EEC, annex IIA. The Manufacturer:" Range Servant AB " " " Skallebackavägen 11 " " " SE- 302 41 HALMSTAD " " " Sweden " " " The Representative: (To be filled out by a representative established within the EU)

  • Page 5: Technical Specifications

    Weight without balls (kg)/(lbs) 120kg/264,5pounds Electrical System Supply voltage (V, 50, 60 Hz) 240/110 Operating voltage (V, DC) Motor capacity, ball mixer (W) Motor capacity, tee-up unit (W) Recommended Operational Conditions Temperature range ˚C/˚F +4 to +50˚C/+35 to +122˚F Atmospheric humidity 10%-90%...

  • Page 7: Design And Functions

    2 Design and Functions Item Description Stance platform Stance mat Hitting platform with Tee Up mechanism and control equipment Hitting/Tee mat Feed unit...

  • Page 8: Unpacking And Assembly

    3 Unpacking and Assembly 3.1 General The tee-up should be placed under cover. If the unit card is card-operated, the payment panel must be covered for the warranty to be valid. • Place the ramp on a firm and level surface. The distance between the next tee should not be less then 3 meters (10 ft.).

  • Page 9: Operation

    4 Operation 4.1 Operation of Tee-Up with Feed Unit • Collect a bucket of balls from the ball dispenser or storage bin. • Pour the balls into the feed unit which holds a maximum of 100 balls. If no ball comes out, place a ball on the tee to start.
  • Page 10 Display Photocell sensors - place the club head here to adjust the tee height.

  • Page 11: Service And Maintenance

    1.3 Remove any balls caught under the platform. 1.4 Replace the mat (hitting/range mat) 2 Feed Unit 2.1 Check mixer wheel and contact Range Servant if replacement is necessary. 2.2 Remove any balls caught under the feed unit. 2.3 Check the feeder outlet tube for dirt and other obstacles.

  • Page 12: Troubleshooting And Repairs

    5.4 Troubleshooting and Repairs 5.4.1 General Even though the unit is reliable failures do occur for various reasons. Start troubleshooting by deciding whether a fault is mechanical or electrical. 5.4.2 Troubleshooting and Repairs Type of fault Symptoms Checks/Repairs Mechanical failures can in most case ses be detected by observing changes in moving parts caused by y e.g.
  • Page 13 • Reverse the procedure to fasten the new tee. • Pull the tee (by hand) to make sure it is mounted correctly. • Place a ball on the tee. • Raise the tee from the lowest position. Now the the tee-up is ready to use.
  • Page 14 5.4.4 Replacing or adjusting of the adjustment spring for the tee balance • Disconnect the power supply. • Remove the tee mats and the sheet (sheet below grass). • Loose the lock-nut using box wrench 19mm and allen key 6mm. •...
  • Page 15 • Connect the power supply and check the function. • Mount the sheet and mats.
  • Page 16 5.4.5 Replacing or adjusting of the inductive sensor • Disconnect the power supply. • Remove the tee mat and the sheet (sheet below grass), unscrew the bolts. • The sensor stops the arm when going down by sensing the screw cap mounted on the motor axis.
  • Page 17 • Connect the power supply and check the function. • If necessary, replace the sensor (Part No TCA0010). • Mount the cover, sheets, mats. 5.4.6 Replacing the tee mat To replace the Range mat lift the mat from the stance platform and replace it with the new one.

  • Page 18: Spare Parts

    6 Spare Parts This section provides detailed drawings of the tee-up and the location of the different parts. The tables accompanying the drawings contain information showing spare parts numbers and descriptions and quantity. 6.1 Tee-Up Platform Item Part No. Description...

  • Page 19: Feed Unit

    6.2 Feed unit Item Part No. Description TJM0271 Hopper TJM0249 Feeder mechanism assay TJM0296 Feeder outlet 930218 Photocell...

  • Page 20: Circuit Diagram

    7 Circuit diagram...

  • Page 23: Sales Offices And Agents

    8 Sales Offices and Agents Below is a list of current sales offices and agents dealing with Range Servant products. The list is continually updated on our website http://www.rangeservant.com. 8.1 Head Office Sweden Range Servant AB Skallebackevägen 11 302 41 Halmstad Telephone:"...
