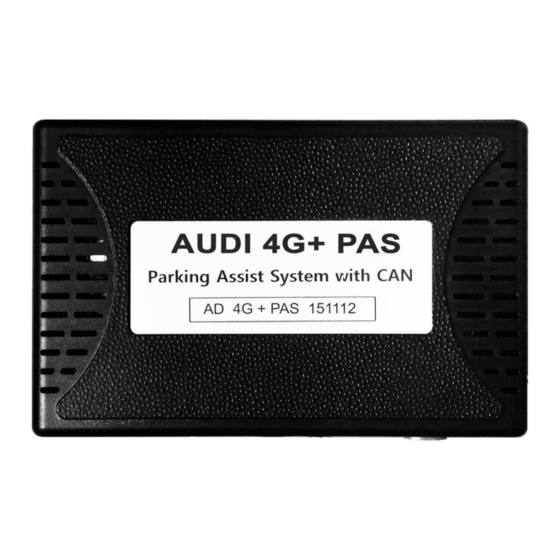

KAP AD 4G Plus PAS-151112 Instruction Manual
  1. Manuals
  2. Brands
  3. KAP Manuals
  4. Automobile Electronics
  5. AD 4G Plus PAS-151112
  6. Instruction manual

KAP AD 4G Plus PAS-151112 Instruction Manual

Parking assist system
Hide thumbs

Advertisement

Quick Links

Download this manual
Instruction Manual
Korea Auto Parts
www.kaptrade.com
All manuals and user guides at all-guides.com
AUDI 4G+ PAS
Parking Assist System
REAR INTERFACE
AD 4G+ PAS-151112
MODEL.
2019.02.01
D A T E .

Advertisement

loading
Need help?

Need help?

Do you have a question about the AD 4G Plus PAS-151112 and is the answer not in the manual?

Questions and answers

Related Manuals for KAP AD 4G Plus PAS-151112

Summary of Contents for KAP AD 4G Plus PAS-151112

  • Page 1 All manuals and user guides at all-guides.com Instruction Manual AUDI 4G+ PAS Parking Assist System REAR INTERFACE AD 4G+ PAS-151112 MODEL. 2019.02.01 D A T E . Korea Auto Parts www.kaptrade.com...
  • Page 2 All manuals and user guides at all-guides.com Serviceable Model 4G+ 8.2inch Supported 8.2inch Not supported. 7.0inch...
  • Page 3 All manuals and user guides at all-guides.com Spec 1. Input Spec. (MULTI VIDEO INTERFACE) • 1 x Analog RGB Input (Navigation System output) • 1 x CVBS(REAR CAMERA) Input (Rear camera source) • 1 x CVBS(FRONT CAMERA) Input (Front camera source) •...

  • Page 4: External Appearance

    All manuals and user guides at all-guides.com External Appearance IMAGE DIP S/W PROGRAM NAVI LCD-OUT Power/CAN FRONT REAR LCD-IN...

  • Page 5: Connector Pin Assignment

    All manuals and user guides at all-guides.com Connector Pin Assignment NAVI Power/CAN NAVI Connect POWER Connect ① ② ③ ④ ⑤ ⑥ ⑦ ① ② ③ ④ ⑤ ⑥ ① R DATA (Red) ① ACC (Yellow) ② G DATA (Green) ②...

  • Page 6: Product Composition

    All manuals and user guides at all-guides.com Product Composition Interface Power Cable RGB NAVI Cable (5PIN) LVDS Cable (O Type) OSD Board...

  • Page 7: Dip Switch Setting

    All manuals and user guides at all-guides.com Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ON : Not used VIDEO Mode OFF : used CAR type SEL Bottom Picture Car Type Select Audi...

  • Page 8: Mode Change

    All manuals and user guides at all-guides.com Mode Change • DIP-SW 1 must be OFF in order to install Navigation MODE • Use by selecting "MODE" or "NAV" from the OSD menu • (Select "OFF" when the button is not used.)
  • Page 9 All manuals and user guides at all-guides.com OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •...
  • Page 10 All manuals and user guides at all-guides.com OSD Control Config First Menu Second Menu Third Menu Description DIGTAL-INAVI NAVI-RGB Setting the Connected NAVI Model Config RearCam Setting the Connected REAR Model Reset Execute Reset to default value of Config menu...
  • Page 11 All manuals and user guides at all-guides.com OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off Detected by P >>...
  • Page 12 All manuals and user guides at all-guides.com OSD Control Option First Menu Second Menu Third Menu Description After RearCam shows FrontCam and returns to previous state FrontCam- RcvOpt Disable feature MODE Select to use the “MODE” button. SteeringWheel Select to use the “NAV” button. Option Disable feature FINE...
  • Page 13 All manuals and user guides at all-guides.com OSD Control Rear Detect Control Car Audio Box Button Gear...
  • Page 14 All manuals and user guides at all-guides.com OSD Control Option ▶ FrontCam-RcvOpt Front Camera Auto Mode OEM or REAR FRONT OEM or INTERFACE CAMERA CAMERA INTERFACE Select time of display 0~30 second 0 second FrontCam-RcvOpt Menu OFF 1~30 second FrontCam-RcvOpt Menu ON & time control...
  • Page 15 All manuals and user guides at all-guides.com OSD Control Image NAVI – RGB Menu First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color-RED Adjust the value of RED Image Color-GREEN Adjust the value of GREEN Color-BLUE...
  • Page 16 All manuals and user guides at all-guides.com OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down...
  • Page 17 All manuals and user guides at all-guides.com OSD Control Parking First Menu Second Menu Third Menu Description Display the parking line. Line Display The parking line is not displayed. Displays the PDC PDC Display The PDC is not displayed. Parking Warnings Lang Set warning text language Horizontal...
  • Page 18 All manuals and user guides at all-guides.com OSD Control Parking – PDC Display / Guide Line ON/OFF PDC ON Screen PDC OFF Screen Parking Line ON Screen Parking Line OFF Screen...
  • Page 19 All manuals and user guides at all-guides.com OSD Control Parking – Change warning message language...
  • Page 20 All manuals and user guides at all-guides.com OSD Control Parking – Adjust position of parking guide line MENU DOWN • Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears. • Possible to adjust the position of parking guide line by Keypad in Horizontal / Vertical menu •...
  • Page 21 All manuals and user guides at all-guides.com OSD Control First Menu Second Menu Third Menu Description value Horizontal Move OSD Menu horizontally value Vertical Move OSD Menu vertically value Display Time OSD Menu Display Time (in seconds) value Transparency OSD menu transparency Language OSD menu display language Reset...
  • Page 22 All manuals and user guides at all-guides.com OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Utility FDSYOOKRX-180209 Version (Check for future upgrades) • Last Source : FDSYOOKRX-180209 FD SY 00 KR X - 18 02 09 Motor Model Hardware National...
  • Page 23 All manuals and user guides at all-guides.com Install Manual 1. Installation Diagram AUDI 4G+ PAS INTERFACE POWER/CAN NAVI FRONT REAR LCD-IN LVDS-OUT SYNC BLUE GREEN LVDS LVDS COMANDER MONITOR...
  • Page 24 All manuals and user guides at all-guides.com Install Manual 2. Installation External Reverse(Rear) Camera Connection OSD Screen selection CAN AUDI 4G+ PAS INTERFACE FRONT LCD-IN LVDS-OUT POWER/CAN NAVI REAR 6. GND (Black) 5. MMI(Blue) 4. CAN-LOW (Green) 3. CAN-HIGH (Orange) 2.
  • Page 25 All manuals and user guides at all-guides.com Install Manual 3. Installation LVDS connection Screen Rear Camera HeadUnit (Commander)
  • Page 26 All manuals and user guides at all-guides.com Install Manual 4. Installation CAN connection Remove the original Check the gray area gray connector. Be careful of the Be careful of the protruding part, protruding part, connect the connector connect the connector...
  • Page 27 All manuals and user guides at all-guides.com A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
