Summary of Contents for KAP PCM 3.1 PAS-TD
Page 1

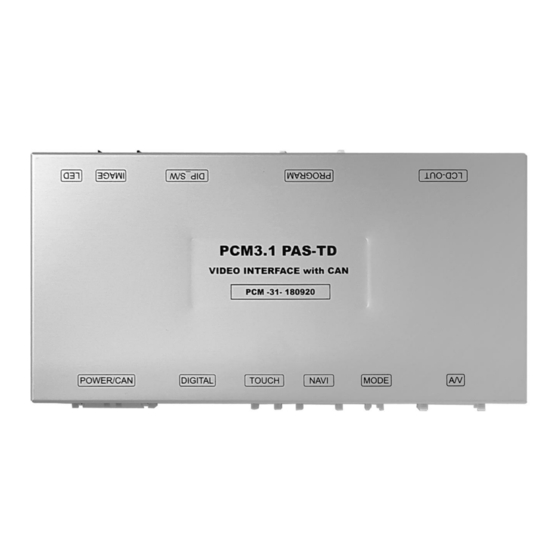

All manuals and user guides at all-guides.com Instruction Manual PCM 3.1 PAS-TD VW Touareg RCD550 VIDEO INTERFACE VIDEO INTERFACE PCM-31-171026 MODEL. 2019.07.10 D A T E . Korea Auto Parts www.kaptrade.com...
Page 2
All manuals and user guides at all-guides.com Car Compatibility Sheet VW Touareg RCD550 BRAND MODEL YEAR Touareg RCD550 2010 - Volkswagen Touareg RCD550 Monitor...
Page 3
All manuals and user guides at all-guides.com Spec 1. Input Spec. (MULTI VIDEO INTERFACE) • 1 x Digital RGB Input (Navigation System source) • 1 x Analog RGB Input (Navigation System output) • 2 x A/V Input (External video source). •...
All manuals and user guides at all-guides.com Connector Pin Assignment POWER Connect (10Pin) 9 10 ■ ■ ■ ■ ■ ■ ■ ■ Color BLACK ORANGE GREEN ORANGE BLUE CAN-H CAN-L REAR VCC REAR DET FRONT DET FRONT VCC Connect TOUCH Connect (4Pin) ■...
All manuals and user guides at all-guides.com Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used CAR type SEL...
All manuals and user guides at all-guides.com Mode Change Mode Change Button Steering wheel button • Other button changed to OEM screen Mode Change Sequence NAVI (ROiK-10) (DVBT) (DVD)
All manuals and user guides at all-guides.com Touch Control Touch Calibration / DVBT, DVD Control Method 1 Method 2 • Touch the screen for 11 seconds • OSD menu ▶ Utility ▶ Calibration Touch Calibration • + Touch according to the shape coordinates.
Page 10
All manuals and user guides at all-guides.com OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •...
Page 11
All manuals and user guides at all-guides.com OSD Control Config First Menu Second Menu Third Menu Description DIGTAL- NAVI-RGB INAVI Setting the Connected NAVI Model ELT_DVBT20 DVB-T(DMB) Setting the Connected DVB-T Model Config ELT_980XU Slim Setting the Connected DVD Model Reset Execute Reset to default value of Config menu...
Page 12
All manuals and user guides at all-guides.com OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off GEAR Detected by CAN RearCam-Det...
Page 13
All manuals and user guides at all-guides.com OSD Control Option First Menu Second Menu Third Menu Description After RearCam shows FrontCam and returns to previous state FrontCam- RcvOpt Disable feature Use the Streeing Wheel Button. StreeingWheelBt Disable feature In the OEM, NAVI, AV1, FRONT, and REAR modes, the output of AV OUT is set to AV1.
Page 14
All manuals and user guides at all-guides.com OSD Control Option ▶ FrontCam-RcvOpt Front Camera Auto Mode OEM or REAR FRONT OEM or INTERFACE CAMERA CAMERA INTERFACE Select time of display 0~30 second 0 second FrontCam-RcvOpt Menu OFF 1~30 second FrontCam-RcvOpt Menu ON & time control...
Page 15
All manuals and user guides at all-guides.com OSD Control Image NAVI – RGB Menu First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color-RED Adjust the value of RED Image Color-GREEN Adjust the value of GREEN Color-BLUE...
Page 16
All manuals and user guides at all-guides.com OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down...
Page 17
All manuals and user guides at all-guides.com OSD Control Parking First Menu Second Menu Third Menu Description Show OPS OPS Display Do not show OPS Show parking line Line Display Do not show parking lines Parking Warnings Lang Set warning text language Horizontal Moving a parking line horizontally Vertical...
Page 18
All manuals and user guides at all-guides.com OSD Control Parking – PDC Display / Guide Line ON/OFF OPS ON Screen OPS OFF Screen Parking Line ON Screen Parking Line OFF Screen...
Page 19
All manuals and user guides at all-guides.com OSD Control Parking – Change warning message language...
Page 20
All manuals and user guides at all-guides.com OSD Control Parking – Adjust the position of parking guideline MENU DOWN • Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears. • Possible to adjust the position of parking guide line by Keypad in Horizontal / Vertical menu •...
Page 21
All manuals and user guides at all-guides.com OSD Control First Menu Second Menu Third Menu Description value Horizontal OSD Menu Horizontal Shift value Vertical OSD menu vertical Shift value Display Time OSD Menu Display Time (in seconds) value Transparency OSD menu transparency Language OSD menu display language Reset...
Page 22
All manuals and user guides at all-guides.com OSD Control IR learning function • In order to work with the IR learning function, a separate IR cable is required. 1. In DVB-T / DVD menu, select User in Sys (OSD list) or User (learned contents). 2.
Page 23
All manuals and user guides at all-guides.com OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Calibration Execute Run Calibration mode Utility FDS302KRX-171004 Version (Check for future upgrades) • Last Source : FDS302KRX-171004 FD S3 02 KR X - 17 10 04 Motor Model Hardware...
Page 24
All manuals and user guides at all-guides.com OSD Control Installation Navigation (Digital) Connection • OSD setting must be done before Navigation can be used Screen Settings (Digital) Config ▶ NAVI RGB ▶ DGT-0000 DGT-0000 DGT = DIGITAL • When DGT (DIGITAL) is selected, it is output to the screen. •...
Page 25
All manuals and user guides at all-guides.com Install Manual 1. Installation Navigation Connection PCM 3.1 PAS-TD VIDEO INTERFACE POWER/CAN DIGITAL TOUCH MODE NAVI DVD-IR DVBT-IR SYNC BLUE GREEN Resistive Touch Analog RGB Navigation...
Page 26
All manuals and user guides at all-guides.com Install Manual 2. Installation DVB-T Remote Control Connection PCM 3.1 PAS-TD VIDEO INTERFACE POWER/CAN DIGITAL TOUCH NAVI MODE DVD-IR DVBT-IR SYNC BLUE GREEN DVB-T-IR TUE-T440 GEX-909DTV...
Page 27
All manuals and user guides at all-guides.com Install Manual 3. Installation DVD Remote Control Connection PCM 3.1 PAS-TD VIDEO INTERFACE POWER/CAN DIGITAL TOUCH NAVI MODE DVD-IR DVBT-IR SYNC BLUE GREEN DVD-IR DHA-S690...
Page 28
All manuals and user guides at all-guides.com Install Manual 4. Installation External Reverse(Rear) Camera Connection OSD Screen selection WIRE PCM 3.1 PAS-TD VIDEO INTERFACE POWER/CAN DIGITAL TOUCH MODE NAVI 10. FRONT Power (Red) 9. FRONT Detect (Blue) 8. N.C 7. REAR Detect (Brown) 6.
Page 29
All manuals and user guides at all-guides.com Install Manual 5. Installation External Front Camera Connection OSD Screen selection WIRE PCM 3.1 PAS-TD VIDEO INTERFACE POWER/CAN DIGITAL TOUCH MODE NAVI 10. FRONT Power (Red) FRONT-POWER (Red) 9. FRONT Detect (Blue) 8. N.C 7.
Page 30
All manuals and user guides at all-guides.com Install Manual Screen decomposition Decomposition Cover Decomposition Decomposition...
Page 31
All manuals and user guides at all-guides.com Install Manual Screen assembly CAN High CAN Low ▲ Installation CAN connection...
Page 32
All manuals and user guides at all-guides.com A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
