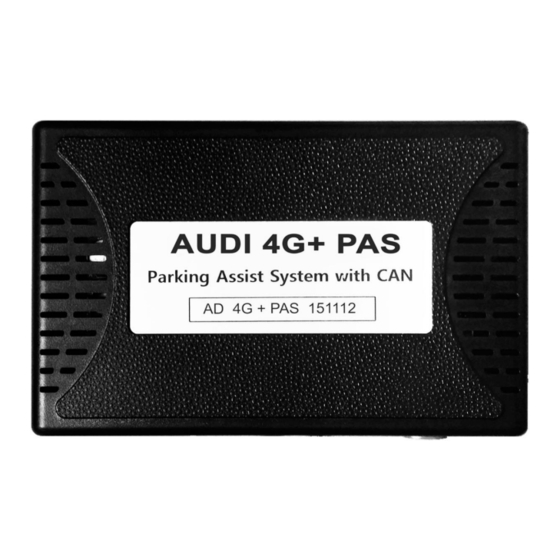

- Page 1 Instruction Manual AUDI 4G+ PAS Parking Assist System REAR INTERFACE AD 4G+ PAS-151112 MODEL. 2019.02.01 D A T E . Korea Auto Parts www.kaptrade.com...
- Page 2 Serviceable Model 4G+ 8.2inch Supported 8.2inch Not supported. 7.0inch...
- Page 3 Spec 1. Input Spec. (MULTI VIDEO INTERFACE) • 1 x Analog RGB Input (Navigation System output) • 1 x CVBS(REAR CAMERA) Input (Rear camera source) • 1 x CVBS(FRONT CAMERA) Input (Front camera source) • 1 x LVDS Input (Car Command System) 2.
-
Page 4: External Appearance
External Appearance IMAGE DIP S/W PROGRAM NAVI LCD-OUT Power/CAN FRONT REAR LCD-IN... -
Page 5: Connector Pin Assignment
Connector Pin Assignment NAVI Power/CAN NAVI Connect POWER Connect ① ② ③ ④ ⑤ ⑥ ⑦ ① ② ③ ④ ⑤ ⑥ ① R DATA (Red) ① ACC (Yellow) ② G DATA (Green) ② REAR_POWER (Red) ③ B DATA (Blue) ③... -
Page 6: Product Composition
Product Composition Interface Power Cable RGB NAVI Cable (5PIN) LVDS Cable (O Type) OSD Board... -
Page 7: Dip Switch Setting
Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ON : Not used VIDEO Mode OFF : used CAR type SEL Bottom Picture Car Type Select Audi A4/Q7 8.2”... -
Page 8: Mode Change
Mode Change • DIP-SW 1 must be OFF in order to install Navigation MODE • Use by selecting "MODE" or "NAV" from the OSD menu • (Select "OFF" when the button is not used.) - Page 9 OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •...
- Page 10 OSD Control Config First Menu Second Menu Third Menu Description DIGTAL-INAVI NAVI-RGB Setting the Connected NAVI Model Config RearCam Setting the Connected REAR Model Reset Execute Reset to default value of Config menu...
- Page 11 OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off Detected by P >> button (CAN) RearCam-Det GEAR Detected by GEAR (CAN)
- Page 12 OSD Control Option First Menu Second Menu Third Menu Description After RearCam shows FrontCam and returns to previous state FrontCam- RcvOpt Disable feature MODE Select to use the “MODE” button. SteeringWheel Select to use the “NAV” button. Option Disable feature FINE Select Device Manufacturer for UART Touch NAVI COM...
- Page 13 OSD Control Rear Detect Control Car Audio Box Button Gear...
- Page 14 OSD Control Option ▶ FrontCam-RcvOpt Front Camera Auto Mode OEM or REAR FRONT OEM or INTERFACE CAMERA CAMERA INTERFACE Select time of display 0~30 second 0 second FrontCam-RcvOpt Menu OFF 1~30 second FrontCam-RcvOpt Menu ON & time control...
- Page 15 OSD Control Image NAVI – RGB Menu First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color-RED Adjust the value of RED Image Color-GREEN Adjust the value of GREEN Color-BLUE Adjust the value of BLUE Reset Execute...
- Page 16 OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset...
- Page 17 OSD Control Parking First Menu Second Menu Third Menu Description Display the parking line. Line Display The parking line is not displayed. Displays the PDC PDC Display The PDC is not displayed. Parking Warnings Lang Set warning text language Horizontal Moving a parking line horizontally Vertical Moving a parking line vertically...
- Page 18 OSD Control Parking – PDC Display / Guide Line ON/OFF PDC ON Screen PDC OFF Screen Parking Line ON Screen Parking Line OFF Screen...
- Page 19 OSD Control Parking – Change warning message language...
- Page 20 OSD Control Parking – Adjust position of parking guide line MENU DOWN • Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears. • Possible to adjust the position of parking guide line by Keypad in Horizontal / Vertical menu •...
- Page 21 OSD Control First Menu Second Menu Third Menu Description value Horizontal Move OSD Menu horizontally value Vertical Move OSD Menu vertically value Display Time OSD Menu Display Time (in seconds) value Transparency OSD menu transparency Language OSD menu display language Reset Execute Initialize OSD settings...
- Page 22 OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Utility FDSYOOKRX-180209 Version (Check for future upgrades) • Last Source : FDSYOOKRX-180209 FD SY 00 KR X - 18 02 09 Motor Model Hardware National Special Software...
- Page 23 Install Manual 1. Installation Diagram AUDI 4G+ PAS INTERFACE POWER/CAN NAVI FRONT LCD-IN LVDS-OUT REAR SYNC BLUE GREEN LVDS LVDS COMANDER MONITOR...
- Page 24 Install Manual 2. Installation External Reverse(Rear) Camera Connection OSD Screen selection CAN AUDI 4G+ PAS INTERFACE FRONT LCD-IN LVDS-OUT POWER/CAN NAVI REAR 6. GND (Black) 5. MMI(Blue) 4. CAN-LOW (Green) 3. CAN-HIGH (Orange) 2. REAR_POWER (Red) REAR-POWER (Red) 1. BATTERY (Yellow)
- Page 25 Install Manual 3. Installation LVDS connection Screen Rear Camera HeadUnit (Commander)
- Page 26 Install Manual 4. Installation CAN connection Remove the original Check the gray area gray connector. Be careful of the Be careful of the protruding part, protruding part, connect the connector connect the connector...
- Page 27 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
