- Page 1 AUDI 4G HIGHEND (VIDEO Interface) MODEL AD 4G 151223 DATE 2016.04.21...
- Page 2 Main Spec. 1. Input Spec. (MULTI VIDEO INTERFACE) - 2 x A/V Input (External video source). - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 1 x CVBS(FRONT CAMERA) Input. (Front camera source) - 1 x Analog RGB Input (Navigation System output) - 1 x LVDS Input.

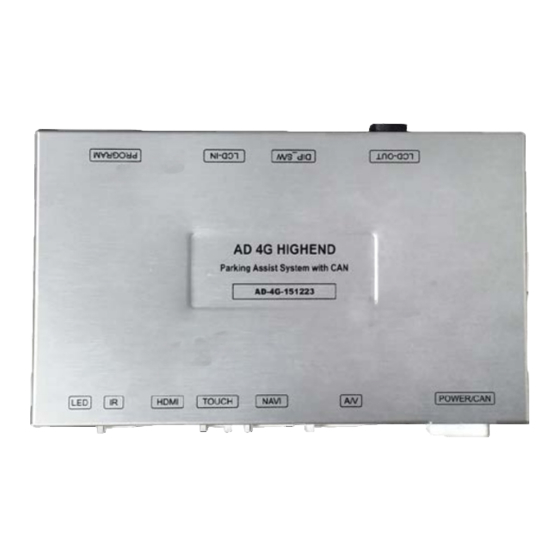

- Page 3 Dimension/External Appearance 156mm * 93 mm * 26mm PROGRAM LCD-OUT DIP S/W LCD-IN * This can change under manufacturer’s circumstance TOUCH HDMI NAVI POWER/CAN...
-
Page 4: Connector Pin Assignment
Connector Pin Assignment *NAVI Connect *POWER Connect ① ③ ⑤ ⑦ ⑨ ⑪ ① ② ③ ④ ⑤ ⑥ ⑦ ② ④ ⑥ ⑧ ⑩ ⑫ ① R DATA (Red) ① ACC (Red) ② G DATA (Green) ② NC ③ B DATA (Blue) ③... -
Page 5: Product Composition
Product Composition A/V Cable(24pin) 1 EA LVDS Cable 1 EA Interface 1 EA (O-Type S/T work) Or (O-Type R/A work) Power Cable 1 EA Touch exchange Cable(for KD-900) 1 EA OSD Board 1 EA RGB NAVI Cable(7pin) 1 EA... -
Page 6: Dip S/W Setting
DIP S/W Setting * ON : DOWN , OFF : UP * DIP S/W Example FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used Volkswagen_Golf_8.0” Audi_A3_7.0” ON : Skipping AV1 (DVB-T) Video OFF : Display Volkswagen_Golf_5.8” ON : Skipping Audi_A3_5.8”... - Page 7 DIP S/W Setting * Use Steering Wheel Button - Audi A6/A7 (4G system) * For use Navigation, DIP S/W 1 must ‘OFF’ and cable no.5 (MMI) must connect NAVI mode change * VW / Audi A3 not support Navigation...
-
Page 8: Mode Change
Mode Change * Audi A4 / Q7 (Low cost) Mode change) * AUDI-A6 Mode change... - Page 9 OSD(On Screen Display) Control OSD Control Board MENU DOWN MENU Push -> OSD menu On/Off Item Selection, Value Selection Item up Increase selected value DOWN Item down Decrease selected value Mode State First Menu Second Menu Third Menu...
- Page 10 OSD(On Screen Display) Control First Menu Second Menu Third Menu Action Original Camera RearCam-Type ExtDevice Use aftermarket Rear camera Rear camera get +12V consistently RearCam-Power AUTO Rear camera get +12V when reverse gear on Shut out the power supply. Original Camera FrontCam-Type Option ExtDevice...
- Page 11 OSD(On Screen Display) Control NAVI-RGB menu DVD,DVB-T(DMB),NAVI-AV,REAR,FRONT menu First Menu Second Menu Third Menu Action First Menu Second Menu Third Menu Action Brightness Adjust the value of brightness Brightness Adjust the value of brightness Contrast Adjust the value of contrast Contrast Adjust the value of contrast Color-RED...
- Page 12 OSD(On Screen Display) Control OSD Setting– Screen Mode - Horizontal - Vertical - Scaler X Up - Scaler X Down - Scaler Y Up - Scaler Y Down...
- Page 13 OSD(On Screen Display) Control OSD Setting – Parking Mode On/Off Parking Line ON Parking line OFF On Reverse mode enter this OSD menu...
- Page 14 OSD(On Screen Display) Control OSD Setting – Parking Sensor Display On/Off OPS ON OPS OFF If car don’t have a parking sensor, NO OPS Image...
- Page 15 OSD(On Screen Display) Control OSD Setting – Warnings Language Change...
- Page 16 OSD(On Screen Display) Control OSD Setting – Front Camera Auto Mode - Option -> RearCam-RcvOpt -> 0 second = RearCam-RcvOpt menu OFF 1~30 second = RearCam-RcvOpt menu ON & time control NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) 1~30 second...
- Page 17 OSD(On Screen Display) Control OSD Setting – Utility Mode - Factory Reset : Execute - Reset All (Setting Default) - Version : FW Version Finish update FW, check the FW versoin Last Source : BEPP06SGX-130950 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States Hardware Version...
- Page 18 Install Manual 3. Installation LVDS connection Must connect to GREY connector DO NOT connect to Blue, Green Rear camera REAR_PWR REAR_DET CAN-B-L DO NOT use yellow CAN-B-H CAN-OUT-L CAN-OUT-H CAN-IN-L CAN-IN-H Monitor Head Unit(Command)
- Page 19 Install Manual 4. Installation CAN connection Pull out Check GREY connector original GREY (Carefully, Important) connector Connect carefully Connect carefully Check the connector 。 Check the connector。 ※ Check this point！...
- Page 20 Q & A 1. If Interface has a problem, Please check LED. - ACC on (12v), If Interface does not have a problem; GREEN LED is blinking every 1 sec.. LED is turn on (not blinking), Interface has a problem. LED is turn off every 1 sec, there is no input.
