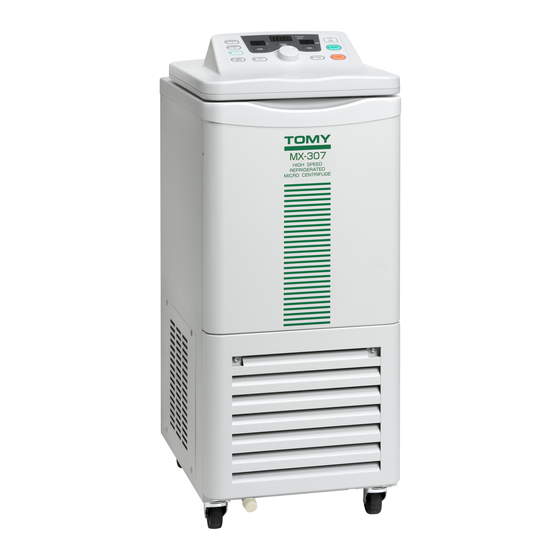

High speed refrigerated micro centrifuge
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL
HIGH SPEED REFRIGERATED MICRO CENTRIFUGE
Before starting operation, read this manual thoroughly for a complete
●
understanding of the centrifuge and its correct operation.
Carefully store this operation manual conveniently to hand so that the
●
operator can consult it at any time.
MX-307
MX-207
MX-107
FOR RESEARCH USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-307 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tomy MX-307

Summary of Contents for Tomy MX-307

  • Page 1 OPERATOR'S MANUAL HIGH SPEED REFRIGERATED MICRO CENTRIFUGE MX-307 MX-207 MX-107 Before starting operation, read this manual thoroughly for a complete ● understanding of the centrifuge and its correct operation. Carefully store this operation manual conveniently to hand so that the ●...

  • Page 2: Table Of Contents

    6.USEFUL FUNCTIONS･･･････････････ P.38 P.63 Applicable Tubes･･･････････････ 6-1.Checking Operating Conditions 11-5.Specifications of the during the Run･･･････････････ P.38 P.81 MX-307,MX-207 and MX-107･････ 6-2.Changing Operating Conditions during the Run･･･････････････ P.38 6-3.Short Centrifuge Run with "Flash" Key･･････････････････････････ P.39 6-4.Displaying the RCF･････････････ P.39 6-5.Memory Function･･････････････...

  • Page 3: Precaution For Use

    1. PRECAUTION FOR USE MX-307, 207 and 107 High Speed Refrigerated Micro Centrifuge employ a high speed rotating rotor. Improper installation or misuse may cause death or severe personal injuries against the user or people around and may result in serious damage to the instrument or other property.

  • Page 4: 1-2.Warnings And Cautions

    1-2. Warnings and Cautions WARNING Do not modify or alter the MX-307, Do not unplug the MX-307, 207 and 207 and 107 or any parts of the MX- 107 by pulling on the cord. 307, 207 and 107. Stress to the cord may cause a loose...
  • Page 5 WARNING Connect the MX-307, 207 and 107 to a When returning the MX-307, 207 and power outlet of the voltage specified 107 for refund or repair, please make as correct for the instrument. Do not sure that the following procedures be connect the instrument to a shared taken before shipping it.
  • Page 6 CAUTION Do not move the MX-307, 207 and 107 Do not exceed the actual maximum with a rotor being mounted. achieved sample capacity for the centrifuge tube. Otherwise, the motor shaft may bend, thereby causing the rotor to fall off during An excessive capacity may cause sample to spinning.
  • Page 7 Please refer to the table of “Rotor Rack Compatibility for Rack-in- Rotor” in this Operator's Manual for proper combination. Never run the MX-307, 207 and 107 with the rack sticking out the rotor. Otherwise, the rack may come off during spinning.

  • Page 8: 1-3.Expected Lifetime Of Rotors And Buckets In Years Or Cycles

    ● Failure to do so may result in the rotor or bucket breaking during spinning. The table below shows the expected lifetime of rotors and buckets for use in the MX-307, 207 and 107 in terms of years or cycles. When the rotor or bucket reaches the end of its expected lifetime in years or cycles, stop its operation immediately and contact your dealer or local TOMY representative.

  • Page 9: General Information

    2-1. Operating Principles When the MX-307, 207 or 107 starts operation, the motor begins to drive and accelerate the rotor, while the timer starts simultaneously. When the centrifuge reaches its set rotation speed, it maintains the speed until the set operation time ends.

  • Page 10: 2-2.Parts Identifications

    2-2. Parts Identifications MAIN BODY ①Control panel ②PUSH sticker ④Mounting hole for acrylic case ③Chamber lid ⑤Emergency lid lock release hole ⑥Front cover ⑦Inlet ⑧Drain hose/drain plug ⑨Caster ⑭Lid hook ⑩Motor shaft ⑪Chamber ⑫Chamber lid gasket ⑬Temperature sensor ⑮Main power switch ⑰Power plug ⑯Power cord —...
  • Page 11 Control panel Motor shaft ① ⑩ Operation of the instrument is controlled The rotor engages this motor shaft. on this panel. Chamber ⑪ PUSH sticker It is used for centrifugation. ② When opening or closing the lid, press Chamber lid gasket the position to which this sticker is ⑫...
  • Page 12 CONTROL PANEL Memory indicator rpm/G unit indicator lamps Lid open indicator lamp Temperature ① ⑥ ② ④ lamp display Time/Error code ⑤ display Speed/RCF display ③ 100rpm 100G DOOR MEMORY ℃ SPEED /RCF MEMORY TEMP TIME START ECO indicator ⑦ lamp SOFT STOP...
  • Page 13 Displays/Indicator Lamps Memory indicator lamp ECO indicator lamp ① ⑦ Lights up when the memory selected is Lights up when the power saving (ECO) retrieved. mode is selected. Temperature display Soft brake indicator lamp ② ⑧ Indicates temperature inside the Lights up when the soft brake is set.

  • Page 14: Installation

    CAUTION Do not move the MX-307, 207 and 107 with a rotor being mounted. ● Otherwise, the motor shaft may bend, thereby causing the rotor to fall off during spinning.
  • Page 15 < Moving and installing the device > Ensure that the rotor is not mounted in the ① chamber. Hold the upper side of the instrument firmly with ② both hands and move it slowly. Choose a site for the instrument ③...
  • Page 16 ※ Keep this Operator's Manual in the clear case for future reference. < Environmental Requirements > Install the MX-307, 207 and 107 where the following environmental requirements are met. Temperature range : 10 to 35℃ Relative humidity : 30 to 85 % (no dew condensation allowed) Atmospheric pressure : 700 to 1060hPa —...

  • Page 17: 3-2.Connecting To The Power Source And Grounding

    ● Such grounding may cause an explosion, electrical shock or malfunction. The MX-307, 207 and 107 should be properly grounded, thereby protecting the operator against electrical shock from the power outlet. If the necessary grounding is not provided in your facility, contact a qualified electrician for arrangement of a proper grounding.

  • Page 18: Operational Flow Chart

    4. OPERATIONAL FLOW CHART dengen dengen dengen dengen Turning on the main power switch P.19 dengen dengen Mounting the rotor P.21 dengen dengen Preparing sample tubes P.23 dengen dengen Loading sample tubes P.26 dengen dengen Setting the operational conditions P.33 dengen dengen Starting operation...
  • Page 19 MEMO — 18 —...

  • Page 20: Operation

    5. OPERATION 5-1. Turning On/Off the Power switch WARNING Do not touch the power switch with a wet hand. ● It may cause a serious or deadly electrical shock. < To turn the power switch on > Before turning the power on, check that the instrument it is properly connected to the power ①...

  • Page 21: 5-2.Opening/Closing The Chamber Lid

    5-2. Opening/Closing the Chamber Lid The MX-307, 207 and 107 employ a safety interlock system to prevent accidental opening of the chamber lid while the rotor is spinning or the power is turned off. < To open the lid >...

  • Page 22: 5-3.Mounting/Dismounting The Rotor

    5-3. Mounting/Dismounting the Rotor CAUTION Ensure that there is no damage or foreign material on the motor shaft. ● Otherwise, the rotor cannot be mounted properly on the motor shaft, thereby causing the rotor to fall off during spinning. Ensure that there is no damage, deformation or corrosion in rotors.
  • Page 23 < To mount the rotor > Check for any foreign material or water inside the ① chamber. ※ If any, remove or drain it away from the chamber referring to "8-1. Cleaning and Disinfecting the Main Unit". Place the rotor straight down onto the motor shaft ②...

  • Page 24: 5-4.Preparing Sample Tubes

    5-4. Preparing Sample Tubes WARNING Do not use the MX-307, 207 and 107 to centrifuge flammable or explosive samples. ● Failure to do so may damage the instrument, thereby resulting in death or serious injury to laboratory personnel. The MX-307, 207 and 107 are not an explosion-proof model.
  • Page 25 < To prepare sample tubes > Before using centrifuge tubes, check the specifications of the tubes, referring to“11-4. Rotor Specifications and List of Applicable Tubes”. When using commercially available tubes which are not included on the list referred to above, always consult us prior to use. Inspect centrifuge tubes carefully before each use.
  • Page 26 ♦ When using PCR plates, Load samples into the same position on each of the two PCR plates ensuring that the samples ① are placed symmetrically about a central point of the plate. (See "To load samples" below.) ※ Keep the load of samples and plates balanced when centrifuging samples of different relative densities. After loading samples, ensure that the two plates are loaded equally using a balancer.

  • Page 27: 5-5.Loading Samples

    5-5. Loading Samples CAUTION Load the rotor symmetrically around the motor shaft. opposing adapters, tubes and samples should be of the same type and tubes should be filled equally. ● Otherwise, it may cause an unbalanced load and apply excessive force to the rotor, thereby causing the rotor to fall off.

  • Page 28: 5-5-1.Rack-In-Rotor

    Please refer to the table of “Rotor Rack Compatibility for Rack-in-Rotor” in this Operator's Manual for proper combination. Never run the MX-307, 207 and 107 with the rack sticking out the rotor. ● Otherwise, the rack may come off during spinning.
  • Page 29 < Rotor rack adapter ARA-01 > The rotor rack adapter ARA-01 is designed for adjusting the level of a rack installed in the TMA- 300 Rotor so that it provides easy access to the rack. Compatible racks for the ARA-01 adapter : AR015-24, AR002-64, and AR005-24 Installing the rotor-rack adapter ARA-01 After setting the rotor-rack adapter ARA-01 in the rotor TMA-300.
  • Page 30 < Caution for use of the plate rotor rack PCR96-02 > Use the PCR96-02 at the set temperature of 4 ℃ or less. ● Centrifugation at high temperature may cause damage to the plate, and thereby lead to breakage of the instrument. Do not centrifuge the plate cover, N801-0550 by Applied Biosystems at high speed.

  • Page 31: 5-5-2.Angle Rotor

    5-5-2. Angle Rotor < To load samples > Before loading the rotor, ensure that no water drop or foreign material is inside the tube hole. ① Place sample tubes symmetrically about the rotor axis while balancing the volume of the tubes ②...

  • Page 32: 5-5-3.Swing Out Rotor

    5-5-3. Swing-Out Rotor CAUTION Ensure that the same type of buckets are correctly mounted into all four positions on the swing-out rotor. ● Otherwise, it may apply excessive force to the rotor, thereby causing damage to the rotor. Ensure that all buckets on the swing-out rotor are allowed to move freely after loading sample tubes.
  • Page 33 < To load samples > Check the correct rotor/bucket combination is set and install the bucket into all four places of ① the rotor. Ensure that no water drop or foreign material is inside the tube hole. ② Place sample tubes symmetrically about the rotor axis while balancing the volume of the tubes ③...

  • Page 34: 5-6.Setting Operating Parameters

    ※ The rpm/G unit lamps light up alternately by pressing the key. SPEED/RCF ※ Speed setting range MX-307/207 : 300 〜 16,000rpm MX-107 : 300 〜 15,000rpm After setting the speed, leave it for approximately two seconds to finalize the setting.
  • Page 35 < To set the spinning time > TIME Press the key. A single "pip" sounds. ① The time display begins to flash. Turn the Jog Dial to set a desired spinning time. ② ※ Time setting range : 1 to 99 minutes and continuous run operation Above 99 minutes, it becomes continuous run operation and the display indicates "F.-.".

  • Page 36: 5-7.Starting Operation

    5-7. Starting Operation Inspection before starting operation ① Before starting operation, check the following points again. Check the inside of the chamber for any foreign material or water drop. ・ Check rotors, buckets, racks and other accessories for any damage, ・...
  • Page 37 Operational status Start indicator lamp Stop indicator lamp Stop spinning Lights out Lights up Accelerating Flashing Lights out Spinning at the set speed Lights up Lights out Decelerating Lights out Flashing Error occurring Lights out Lights up/Flashing Speed/rpm Start indicator lamp lights up (during spinning at set speed). Set speed Stop indicator lamp flashes Start indicator lamp flashes...

  • Page 38: 5-8.Ending Operation

    5-8. Ending Operation When the set run time has elapsed, deceleration will start automatically. ① The stop indicator lamp begins to flash. ※ If the key is pressed during spinning, the remaining run time is forced to set "0" and STOP deceleration will start.

  • Page 39: Useful Functions

    6. USEFUL FUNCTIONS 6-1. Checking Operating Conditions during the Run Each set parameter of operating conditions can be checked at any time during the run. < To check the set temperature, speed and run time > Press the setting key of an operating parameter to be checked. The current set value will ①...
  • Page 40 6-4. Displaying the RCF The RCF can be displayed on the control panel instead of the speed. The MX-307, 207 and 107 calculate the RCF value from a rotational radius set by the FUNC key. Before calculating the RCF value, set the rotational radius properly in accordance with the rotor and tube in use referring to “11-4.

  • Page 41: Key

    < To set speed according to RCF value > The speed can be set by inputting the RCF value. ※ Please refer to "5. OPERATION" for setting of any parameters other than speed. CAUTION Do not exceed the maximum allowable RCF of the tube. ●...

  • Page 42: 6-5.Memory Function

    6-5. Memory Function The MX-307, 207 and 107 have a memory function which allows storing frequently used settings of operating parameters. Two sets of operating parameters including temperature, speed/RCF, run time and Soft Brake setting can be stored in memory.

  • Page 43: 6-6.Power Saving (Eco) Mode

    6-6. Power Saving (ECO) Mode When the centrifuge is not active use for a certain period while the power saving (ECO) mode has been selected, it will automatically turn to power saving mode to reduce the power consumption during the standby state. <...

  • Page 44: Function(Func) Key

    7. FUNCTION(FUNC) KEY FUNC The MX-307, 207 and 107 are designed that the key provides functions and settings which are not available on the control panel in the normal mode. While the indicator lamp on FUNC key is illuminating, each display on the control panel shows information in some special mode.

  • Page 45: 7-1.Setting The Rotational Radius(F0)

    The soft brake is applied at a speed less than or equal to the set speed. 5 〜 160 (MX-207, MX-307) ※ When turning on the unit again after turning off the power, the setting returns to “5”. 7-3. Selecting the Flash Mode Pattern(F2) This function allows selecting the Flash mode pattern.

  • Page 46: 7-5.Setting The Buzzer Type(F4)

    7-5. Setting the Buzzer Type(F4) This function allows setting the type of the buzzer which sounds at the end of a run. Set value Buzzer type “Beep” three times “Pip” four times Short “beep” three times Long “beep” three times “Pip-pip”...

  • Page 47: 7-8.Eco Mode Shift Time Setting (F7)

    7-8. ECO Mode Shift Time Setting (F7) This function allows setting the power saving (ECO) mode shift time. Set value [min] Description 1 〜 240 The ECO mode shift time can be set from 1 to 240 minutes. ※ Factory default value is “30”. 7-9.

  • Page 48: Routine Maintenance

    8. ROUTINE MAINTENANCE WARNING Be sure to unplug the MX-307, 207 and 107 before performing maintenance procedures. ● Failure to do so may cause a serious electrical shock. In case of a model with no power plug provided, turn off the power circuit breaker of the outlet to which the power cord is connected.
  • Page 49 < To disinfect the main unit > Disinfect the unit with ethanol. ① — 48 —...

  • Page 50: 8-2.Cleaning And Disinfecting The Rotor

    8-2. Cleaning and Disinfecting the Rotor If rotors, buckets or tube racks become stained or dirty, clean and disinfect them according to the following procedure: < To clean rotors, buckets and racks > Remove rotors, buckets and racks from the unit. ①...

  • Page 51: 8-3.Monthly Maintenance

    Avoid touching sharp edges on the heat exchanger. ● Otherwise, it may cause an injury. To keep the MX-307, 207 and 107 in good operating order, perform cleaning and inspection monthly according to the following procedure: < To clean the unit >...
  • Page 52 4.Heat exchanger Use a Phillips screwdriver provided to unscrew the ① four screws on the front cover. Open the cover to the front to remove it. Remove dust of the heat exchanger using a vacuum ② cleaner. After cleaning out dust, install the front cover onto ③...
  • Page 53 < To inspect the unit > 1.Rotors, buckets and racks Check for any damage, deformation or corrosion. ① 2.Chamber interior Check for any damage or corrosion. ① Check motor rubber cover for holes, tears or cuts. ② Check chamber lid gasket for any damage or deformation. ③...

  • Page 54: Troubleshooting

    9. TROUBLESHOOTING If any system malfunction in the MX-307, 207 or 107 is suspended, when it is operated properly according to this Operator's Manual, check the cause referring to the table in “9-1. Symptoms and Solutions” and take the corresponding action. If the symptoms of the malfunction is not identified or the actions described do not solve the problem, disconnect power cord from the electrical outlet immediately and contact your dealer or local TOMY representative.

  • Page 55: 9-2.Error Code Table

    C : Turn off the power. ※ 1 The MX-307, 207 and 107 check the operation of the lid open/close detection system to ensure its safe operation. Therefore, make sure to open and close the lid every time after turning on the power switch.

  • Page 56: 9-3.Contact Information

    9-3. Contact Information WARNING When returning the MX-307, 207 or 107 for refund or repair, please make sure that the following procedures be taken before shipping it. If the instrument or any parts of the instrument has been exposed to infectious...
  • Page 57 MEMO — 56 —...

  • Page 58: 9-4.Opening The Lid In Case Of Power Failure

    9-4. Opening the Lid in Case of Power Failure WARNING Never open the lid while the rotor is spinning. ● Accidental contact with the spinning rotor may cause a serious injury. During the run, in the event of a power failure or while turning the power off, the safety device is activated and does not allow the lid to be opened by conventional means.

  • Page 59: Disposal And Transfer

    In order to properly fulfill our warranty obligations, we keep complete records on all products sold to ensure that they should be marked and later identifiable. If transferring or disposing the MX-307, 207 or 107, please contact your dealer or local TOMY representative prior to disposal or transfer.

  • Page 60: Specifications

    11. SPECIFICATIONS 11-1. Acceleration and Deceleration Times < Acceleration and deceleration times for rotors > Max. Speed of each Rotor 500rpm Rotors Accel. time: a Decel. time: b Decel. time: c TMP-21 6sec. 10sec. 30sec. TMP-24 9sec. 12sec. 55sec. TMA-100 10sec.

  • Page 61: 11-2.Cooling Capacity

    11-2. Cooling Capacity < Rotor cooling capacity > The MX-307, 207 and 107 are designed to perform the cooling capacity shown in the table below at ambient temperatures of 25℃ or lower. ※ 1 : Speed at the Speed at the <MX-107>...
  • Page 62 11-3. Rotor Compatibility ◆ Rack-In-Rotor : Applicable × : Not applicable ○ Rotors MX-307 MX-207 MX-107 TMA-100 ○ ○ ○ TMA-200 × ○ ○ TMA-300 × × ○ ◆ Angle Rotor : Applicable × : Not applicable ○ Rotors MX-307...
  • Page 63 MEMO — 62 —...

  • Page 64: 11-4.Rotor Specifications And List Of Applicable Tubes

    11-4. Rotor Specifications and List of Applicable Tubes Before operating the MX-307, 207 and 107, check the compatibility of buckets, racks and adapters with each rotor, referring to the following tables and ensure that the correct combination is set. Do not exceed the maximum allowable speed of the tube in use. Failure to do so may cause damage to rotors, buckets, racks or tubes.
  • Page 65 TMA-100 Applicable models ： MX-307, MX-207, and MX-107 Rmin Rmin Rmax Rmax Radius ［ mm］ Max. speed Max. RCF Tube angle Rack Rack capacity ［rpm］ ［G］ （degree） Rmax Rmin AR015-24 15,000 20,380 24x2 ml microtube 18,120 (outer line) Outer:4xPCR 8-well tube strip...
  • Page 66 TMA-200 Rmax Applicable models ： MX-307 and MX-207 Rmin Rmin Rmin Rmin Rmax Rmax Rmax Radius ［ mm］ Max. speed Max. RCF Tube angle Rack Rack capacity ［rpm］ ［G］ （degree） Rmax Rmin AR015-24 15,000 20,380 24x2ml microtube 18,120 (outer line)
  • Page 67 List of Applicable Tubes Max. Tubes Max. Actual capacity Max.RCF allowable Max. Rack capacity Number of Nominal ［G］ Size allowable speed capacity Mfr. Model Name tubes × ［ml］ （radius:mm） ［φ×L mm］ ［rpm］ ［ml］ places ［G］ 11×42 − 15,000 20,380 （ 81） centrifuge tube AR015-24 1.5ml...
  • Page 68 MEMO — 67 —...
  • Page 69 Rmax TMA-300 Rmin Applicable models ： MX-307 Rmin Rmin Rmin Rmax Rmax Rmax Radius ［ mm］ Max. speed Max. RCF Tube angle Rack Rack capacity ［rpm］ ［G］ （degree） Rmax Rmin AR015-24 15,000 20,380 24x2ml microtube 18,120 (outer line) Outer:4xPCR 8-well tube strip...
  • Page 70 List of Applicable Tubes ① Max. Tubes Max. Max.RCF Actual capacity allowable Max. Rack capacity Number of Nominal ［G］ Size allowable speed capacity Mfr. Model Name tubes × ［ml］ （radius:mm） ［φ×L mm］ ［rpm］ ［ml］ places ［G］ 11×42 − 15,000 20,380 （ 81） centrifuge tube AR015-24 1.5ml...
  • Page 71 List of Applicable Tubes ② Max. Tubes Max. Max.RCF Actual capacity allowable Max. Rack capacity Number of Nominal ［G］ Size allowable speed capacity Mfr. Model Name tubes × ［ml］ （radius:mm） ［φ×L mm］ ［rpm］ ［ml］ places ［G］ 430291 15,500 15,000 20,380 （ 81） ※5 430304 29×116...
  • Page 72 TMP-21 Applicable models : MX-307 、 MX-207 、 MX-107 Max. speed : 15,000rpm Max. RCF : 17,860G Tube angle : 45deg Max. radius (Rmax) : 71mm Rmin Min. radius (Rmin) : 40mm Rmax Rotor capacity : 18×2ml tube Tube/Adapter Compatibility Table Radius[mm] Max.
  • Page 73 TMP-24 Applicable models : MX-307 、 MX-207 、 MX-107 Max. speed : 13,500rpm Max. RCF : 17,730G Tube angle : 45deg Max. radius (Rmax) : 87mm Rmin Min. radius (Rmin) : 55mm Rmax Rotor capacity : 24×2ml tube Tube/Adapter Compatibility Table Radius[mm] Max.
  • Page 74 TMA-22 Applicable models : MX-307 、 MX-207 Max. speed : 15,000rpm Max. RCF : 19,120G Tube angle : 45deg Max. radius (Rmax1) : 76mm Rmin2 Rmin1 Max. radius (Rmax2) : 61mm Rmax1 Rmax2 Min. radius (Rmin1) : 44mm Min. radius (Rmin2) : 35mm Rotor capacity : 18×2ml tube(outer ring)
  • Page 75 TMA-25BH Applicable models : MX-307 Max. speed : 15,000rpm Max. RCF : 19,120G Tube angle : 23deg Max. radius (Rmax) : 76mm Min. radius (Rmin) : 21mm Rotor capacity : 4×50ml tube Rmin Rmax Tube/Adapter Compatibility Table Max. Tubes Max.
  • Page 76 TMA-26 Applicable models : MX-307 、 MX-207 Max. speed : 16,000rpm Max. RCF : 18,320G Tube angle : 45deg Max. radius (Rmax) : 64mm Min. radius (Rmin) : 32mm Rmin Rotor capacity : 12×2ml tube Rmax Tube/Adapter Compatibility Table Radius[mm] Max.
  • Page 77 TMA-27 Applicable models : MX-307 Max. speed : 15,000rpm Max. RCF : 21,130G Tube angle : 25deg Max. radius (Rmax1) : 84mm Rmin2 Rmin1 Max. radius (Rmax2) : 81mm Rmax2 Rmax1 Min. radius (Rmin1) : 27mm Min. radius (Rmin2) : 34mm Rotor capacity : 4×50ml tube...
  • Page 78 TMA-29 Applicable models : MX-307 、 MX-207 Max. speed : 15,000rpm Max. RCF : 21,130G Tube angle : 44deg Max. radius (Rmax) : 84mm Rmin Min. radius (Rmin) : 52mm Rmax Rotor capacity : 24×2ml tube Tube/Adapter Compatibility Table Radius[mm] Max.
  • Page 79 TMA-30 Applicable models : MX-307 Max. speed : 15,000rpm Max. RCF : 21,130G Tube angle : 44deg Max. radius (Rmax1) : 84mm Rmin2 Rmin1 Max. radius (Rmax2) : 74mm Rmax1 Rmax2 Min. radius (Rmin1) : 52mm Min. radius (Rmin2) : 42mm Rotor capacity : 36×2ml tube...
  • Page 80 TMA-32 Applicable models : MX-307 、 MX-207 Max. speed : 15,000rpm Max. RCF : 20,630G Tube angle : 30deg Max. radius (Rmax) : 82mm Min. radius (Rmin) : 35mm Rmin Rotor capacity : 8×14ml tube Rmax Tube/Adapter Compatibility Table Max.
  • Page 81 TMS-21 Applicable models : MX-307 、 MX-207 Rotor capacity : 4 buckets Max. speed Bucket Code No. Bucket capacity ［rpm］ M0415-04 15,000 4×2ml microtube M0406-05 15,000 5×0.5ml microtube M0404-09 15,000 9×0.4ml microtube Tube/Adapter Compatibility Table Radius[mm] Max. RCF Max.capacity Bucket Tube (size:φ×L mm)
  • Page 82 11-5. Specifications of the MX-307,MX-207 and MX-107 MX-307 MX-207 MX-107 Model Maximum Speed 16,000rpm 15,000rpm Maximum RCF 21,130G 21,130G 20,380G Maximum Capacity 4×50ml 6×30ml 24×2ml Control System Microprocessor control (feedback system) Drive Motor Induction motor Drive System Direct drive with an automatic alignment function...
  • Page 83 MEMO — 82 —...
  • Page 84 (MX-307/MX-207/MX-107) Operator's Manual ID No.23043.04 Issued in May , 2016 TOMY SEIKO CO.,LTD. TOMY DIGITAL BIOLOGY CO.,LTD. 3-14-17 Tagara, Nerima-ku, Tokyo 179-0073, Japan e-mail : info@digital-biology.co.jp URL : http://www.digital-biology.co.jp Phone : +81-3-5971-8160 fax : +81-3-3970-6036 en indd3 0528C...
