Control 4 C4-KD120 Series Installation Manual page 4

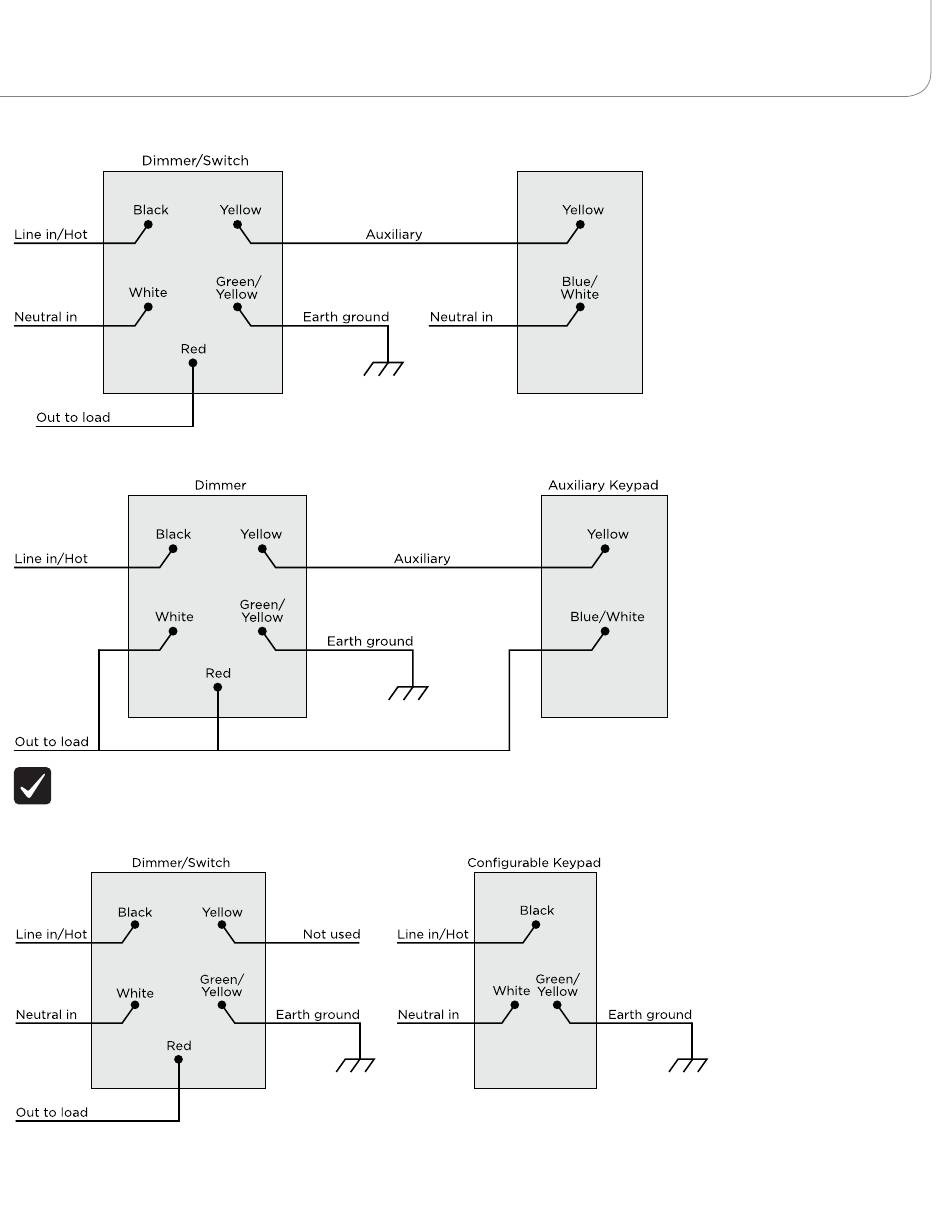

Figure 6. Multiple device location using Auxiliary Keypad, with neutral connection (recommended)
Figure 7. Multiple device location with Auxiliary Keypad, without neutral connection
IMPORTANT! When used in conjunction with an Auxiliary Keypad (C4-KA-xx), the wire
connecting the Auxiliary Keypad to the dimmer must not exceed 150 feet (45 m) at 120VAC,
and 100 feet (30 m) at 277VAC.
Figure 8. Multiple device location using Configurable Keypad, neutral required
Copyright ©2014 Control4. All rights reserved. Control4, the Control4 logo, the Control4 iQ logo and the Control4 certified logo are registered trademarks or trademarks of Control4 Corporation in
the United States and/or other countries. All other names and brands may be claimed as the property of their respective owners Pricing and specifications are subject to change without notice
Maximum length:
120VAC 150 ft (45 m)
277VAC 100 ft (30 m)
Maximum length:
120VAC 150 ft (45 m)
277VAC 100 ft (30 m)
Auxiliary Keypad
