Control 4 C4-TV120277 Installation Manual

0-10V Dimmer
Installation Guide
Supported Model

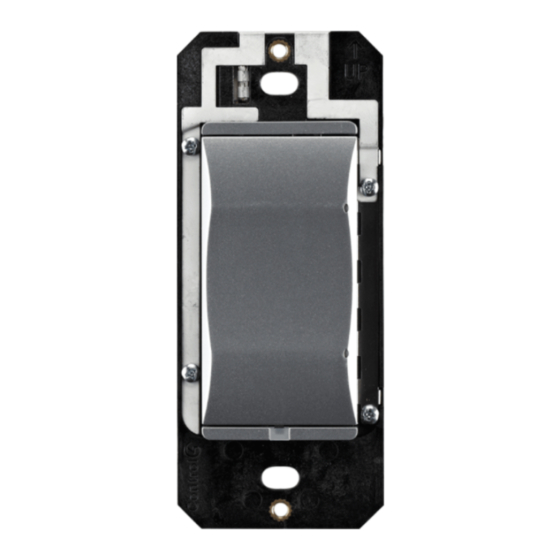

• C4-TV120277 0-10V Dimmer
Introduction
The Control4® 0-10V Dimmer operates independently or as part of a Control4
home automation system. It installs in a standard back box using typical wiring
standards and communicates to the Control4 system using a wireless connection.
Box contents
• 0-10V Dimmer
• Wire nuts
• Warranty card
0-10V Dimmer Installation Guide (this document)
•
Specifications and supported load types
The specifications are described below.
Model number
Power requirements
Power consumption
Load types and ratings
Supported load types
Maximum load (switched hot)
Maximum load (0-10V
Control)
Operational temperature
Humidity
Storage
Control communications
Wallbox volume
Weight
Shipping weight
™
C4-TV120277-xx
120-277VAC +/-10%, 50/60Hz
This device requires a neutral AC connection.
See "Sample Wiring Configurations" later in this
guide.
120V: 485 mW
277V: 1.18 W
Four-wire 0-10V and 1-10V dimmable
fluorescent ballasts and LEDs, sink or source.
120V: 15A
277V: 8A
100mA sink or source
Environmental
32˚ F - 104˚ F (0˚ C - 40˚ C)
All load ratings are based on an ambient
temperature of 25˚ C
5% to 95% non-condensing
-4˚F ~ 158˚F (-20˚C ~ 70˚C)
Miscellaneous
ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel
spread spectrum radio
5.75 cubic inches
0.12 lb. (0.05 kg)
0.18 lb. (0.08 kg)
Warnings and considerations
WARNING! Turn OFF electrical power before installing or servicing this
product. Improper use or installation can cause SERIOUS INJURY, DEATH
or LOSS/DAMAGE OF PROPERTY.
ATTENTION! ATTENTION! Coupez l'alimentation électrique avant
d'installer ou de réparer ce produit. Une mauvaise installation ou utilisation
peut entraîner des blessures graves, décès ou perte / dommages à la
propriété.
WARNING! This device must be protected by a circuit breaker (20A max).
ATTENTION! Cet appareil doit être protégé par un disjoncteur (20A max.)
WARNING! Ground this device in accordance with the National Electric
Code (NEC) requirements. DO NOT rely solely upon the yoke plate's
contact with a metal wallbox for adequate grounding. Use the device's
ground wire to make a secure connection to the safety ground of the
electrical system.
ATTENTION! Cet appareil doit être en conformité avec le Code national
de l'électricité (NEC). Ne comptez pas uniquement au contact de la
plaque avant avec un boîtier mural métallique pour la mise à la terre
adéquate. Utilisez cet appareil à la terre de l'appareil pour établir une
connexion sécurisée au système électrique.
IMPORTANT! This device must be installed by a licensed electrician in
accordance with all national and local electrical codes.
If you are unsure about any part of these instructions,
IMPORTANT!
consult a qualified electrician.
IMPORTANT! Use this device only with copper or copper-clad wire. Do
not use aluminum wiring. This product has not been approved for use with
aluminum wiring.
IMPORTANT! To reduce the risk of overheating and possible damage
to other equipment, do not install to control a receptacle or a motor-
operated appliance.
Using this product in a manner other than outlined in this
IMPORTANT!
document voids your warranty. Further, Control4 is NOT liable for any
damage incurred with the misuse of this product. See "Troubleshooting."
IMPORTANT! Do NOT use a power screwdriver to install this device. If you
do, you may overtighten the screws and strip them. Also, overtightening
the screws may interfere with proper button operation.
IMPORTANT! This is an electronic device with intricate components.
Handle and install with care!
When used in conjunction with an Auxiliary Keypad
IMPORTANT!
(C4-KA-xx), the wire connecting the Auxiliary Keypad to the dimmer must
not exceed 150 feet (45 m) at 120VAC, and 100 feet (30 m) at 277VAC.
Installation instructions
1 Ensure that the location and intended use meet the following criteria:
• Do not exceed the load capacity requirements of the dimmer. Refer to the
load ratings in the specifications above for details.
• Install in accordance with all applicable national and local electrical codes.
• The range and performance of the wireless control system is highly
dependent on the following: (1) distance between devices; (2) layout
of the home; (3) walls separating devices; and (4) electrical equipment
located near devices.
2 Turn off the local electrical power by either switching off the circuit breaker or
removing the fuse from the fuse box. To ensure the wires do NOT have power
running to them, use an inductive voltage detector.
