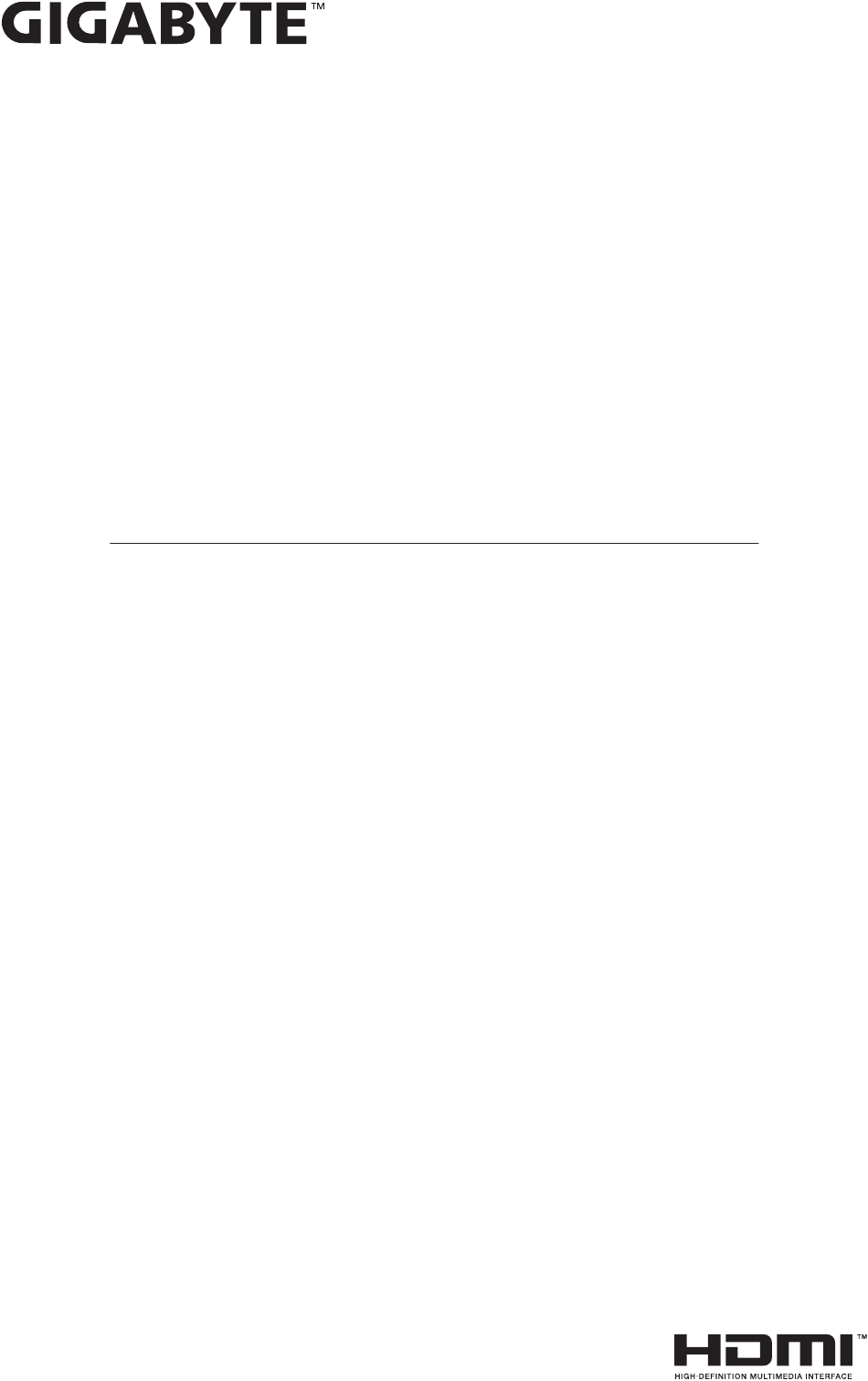

  • Page 1 GAMING MONITOR U SE R GUI DE M27UA...
  • Page 2 Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE’s prior written permission. •...

  • Page 3: Table Of Contents

    GIGABYTE Service Information . . . . . . . . . . . . . . . . . . .

  • Page 4: Introduction

    INTRODUCTION Package Contents The following items come with your packaging box. If any of them is missing, please contact your local dealer. Monitor Monitor Base Stand Power Cable HDMI Cable DP Cable USB Cable Quick Start Guide Warranty Card Note: Please keep the packaging box and packing materials for possible transportation of the monitor.

  • Page 5: Product Overview

    Product Overview Front View Power LED Rear View HDMI-1 HDMI-2 TYPE-C USB 3.2 HDMI-1 HDMI-2 TYPE-C USB 3.2 Control button KVM button Kensington lock AC IN jack Headphone jack HDMI ports (x2) DisplayPort USB Type-C port USB upstream port USB 3.2 ports (x3) - 5 -...

  • Page 6: Preparing Your Monitor For Wall-Mounting

    Preparing your Monitor for Wall-Mounting Note: Use only a 100 x 100 mm VESA compatible wall mount kit to mount the monitor on the wall. Refer to the installation guide included in the wall-mount bracket kit. VESA mounting screw quantity and size: 4 x M4 x 10mm minimum. USING THE DEVICE Turning the Power On/Off Power On...

  • Page 7: Selecting The Input Source

    Selecting the Input Source Input Control Move the button right ( ) to enter the Input menu. Control Move the button up/down ( ) HDMI 1 to select the desired input source. Then Control press the button to confirm. HDMI 2 DisplayPort Type-C Select Exit OPERATIONS...
  • Page 8 • Control button down ( ) to enter the Picture Mode menu. Move the Control Move the button up/down ( ) to select the desired option and press Picture Mode Control button to confirm. Standard MOBA Racing Movie Select Exit • Control button left ( ) to enter the Volume menu.

  • Page 9: Function Key Guide

    Function Key Guide • Control Press the button to display the Main menu. Settings Game Assist (Multi Task) Exit Power Off Control Then use the button (up/down/left/right) to select a function page and configure the related settings. - 9 -...
  • Page 10 • When the Main menu appears on the screen, move the Control button left ( ) to enter the KVM menu. Status KVM Switch Control 1 Control 2 KVM Wizard KVM ON HDMI 1 Type-C KVM Reset Select Exit • KVM Switch: Switch the input source that has been assigned to USB-B or Type-C connection in the KVM Wizard settings.
  • Page 11 Note: If you set the USB-B Display setting to Type-C, the TYPE-C Display menu option will automatically be disabled. You will then see the KVM status in the KVM Wizard page as below. Status KVM Switch Control 1 Control 2 KVM Wizard KVM ON Type-C Type-C KVM Reset...
  • Page 12 Game Assist • When the Main menu appears on the screen, move the Control button right ( ) to enter the Game Assist menu. Game Assist GAME INFO Gaming Timer Crosshair Gaming Counter Eagle Eye Refresh Rate Night Vision Info Location Dashboard Select Exit •...
  • Page 13 Configure the Device Settings When the Main menu appears on the screen, move the Control button up ( ) to enter the Settings menu. Exit Move/Adjust Enter/Confirm Button Guide - 13 -...
  • Page 14 Gaming Configure the game related settings. Resolution Black Equalizer 2.0 Aim Stabilizer Overdrive Refresh Rate AMD FreeSync Premium 2560x1440 Smart OD 60 HZ Picture Mode: Standard Picture Mode Standard Gaming Aim Stabilizer Sync Picture Black Equalizer 2.0 Display Super Resolution PIP/PBP Display Mode System...
  • Page 15 Picture Configure the image related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode: Standard Picture Mode Standard Gaming Standard Brightness Picture Contrast Display MOBA 6 axis Color PIP/PBP Color Vibrance System Racing Sharpness Language Movie Gamma Reset all Reader Color Temperature Exit...
  • Page 16 Display Configure the display screen related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode: Standard Picture Mode Standard Gaming Input HDMI 1 Picture RGB Range HDMI 2 Display Apply Picture Mode DisplayPort PIP/PBP Type-C System Language Reset all Exit Move/Adjust Enter/Confirm...
  • Page 17 PIP/PBP Configure the Picture-In-Picture and Picture-By-Picture related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode: Standard Picture Mode Standard Gaming Picture Display PIP/PBP System Language Reset all Exit Move/Adjust Enter/Confirm Note: PIP/PBP function cannot be enabled when receiving HDR and FreeSync signals.
  • Page 18 System Configure the system related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode: Standard Picture Mode Standard Gaming Audio Volume Picture OSD Setting Mute Display Quick Switch PIP/PBP Other Settings System Language Reset all Exit Move/Adjust Enter/Confirm Item Description Audio Configure the audio related settings.
  • Page 19 Language Select the desired language for the OSD menu. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode: Standard Picture Mode Standard Gaming Picture Display PIP/PBP System Language Reset all Exit Move/Adjust Enter/Confirm Reset All Restore the monitor to its factory default settings. Brightness Contrast Sharpness...

  • Page 20: Appendices

    APPENDICES Specifications Item Specifications Panel Size 27-inch Aspect Ratio 16:9 Resolution UHD (3840 x 2160) LED Life 30,000 hours (min.) Pixel Pitch 0.15525 (H) x 0.15525 (V) Brightness SDR 350 nits (typ.) / HDR 400 nits Contrast Ratio 1000:1 Color Depth 1.07B (8Bit+FRC) Active Display Area 596.16 (H) x 335.34 (V)

  • Page 21: Supported Timing List

    Supported Timing List Timing List HDMI 1 HDMI 2 DP (Type-C) 640 x 480 / 60Hz 640 x 480 / 67Hz 640 x 480 / 72Hz 640 x 480 / 75Hz 720 x 400 / 70Hz 720 x 400 / 88Hz 720 x 480 / 60Hz 800 x 600 / 56Hz 800 x 600 / 60Hz 800 x 600 / 72Hz...
  • Page 22 Timing List HDMI 1 HDMI 2 DP (Type-C) 3840 x 2160 / 24Hz 3840 x 2160 / 25Hz 3840 x 2160 / 30Hz 3840 x 2160 / 50Hz 3840 x 2160 / 60Hz 3840 x 2160 / 100Hz 3840 x 2160 / 120Hz 3840 x 2160 / 144Hz 3840 x 2160 / 160Hz 1280 x 1440 / 60Hz(PBP)

  • Page 23: Supported Timing List (Pbp)

    Supported Timing List (PBP) Timing List HDMI 1 HDMI 2 DP (Type-C) 640 x 480 / 60Hz 640 x 480 / 67Hz 640 x 480 / 72Hz 640 x 480 / 75Hz 720 x 400 / 70Hz 720 x 400 / 88Hz 720 x 480 / 60Hz 800 x 600 / 56Hz 800 x 600 / 60Hz 800 x 600 / 72Hz...

  • Page 24: Troubleshooting

    • Make sure that the cloth is damp, but not wet. • When wiping, avoid applying excessive pressure on the screen. • Acidic or abrasive cleaners can damage the screen. GIGABYTE Service Information More service information, please visit GIGABYTE official website. https://www.gigabyte.com/ - 24 -...

  • Page 25: Safety Information

    SAFETY INFORMATION Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 26: Stability Hazard Precautions

    • Eye exercise can help reduce eye strain. Repeat these exercises frequently: (1) look up and down (2) slowly roll your eye (3) move your eyes diagonally. This model has passed Flicker Free and Low Blue Light verification by TÜV Rheinland. To learn more: https://www.gigabyte.com/tw/Support/FAQ/4310 - 26 -...

  • Page 27: Regulatory Information

    European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
  • Page 28 European Union (EU) Community Waste Electrical & Electronic Equipment (WEEE) Directive Statement GIGABYTE will fulfill the national laws as interpreted from the 2012/19/EU WEEE (Waste Electrical and Electronic Equipment) (recast) directive. The WEEE Directive specifies the treatment, collection, recycling and disposal of electric and electronic devices and their components. Under the Directive, used equipment must be marked, collected separately, and disposed of properly.
  • Page 29 CE declaração de conformidade Este produto estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/UE; Diretiva CEM 2014/30/UE; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/CE e a Diretiva (UE) 2015/863 que altera o Anexo II. A conformidade com estas diretivas é verificada utilizando as normas europeias harmonizadas.
  • Page 30 CE Declaraţie de conformitate Acest aparat este conform cu: Compatibilitatea electromagnetică Directiva 2014/30/ UE, Directiva privind echipamentele de joasă tensiune 2014/35/UE, Directiva privind proiectarea ecologică 2009/125/CE, Directiva RoHS 2011/65/UE & Directiva (UE) 2015/863 de modificare a Anexei II. Conformitatea cu aceste directive este evaluatăutilizând Standardele europene armonizate aplicabile.
  • Page 31 CE Vyhlásenie o zhode Toto zariadenie vyhovuje nasledujúcim smerniciam: Smernica elektromagnetickej kompatibility 2014/30/EÚ, Smernica o nízkom napätí 2014/35/EÚ, Smernica o výrobkoch týkajúcich sa energie 2009/125/ES, Smernica RoHS 2011/65/EÚ & Smernica (EÚ) 2015/863 ktorou sa mení príloha II. Zhoda s týmito smernicami sa hodnotí použitím príslušných európskych harmonizovaných štandardov.
  • Page 32 China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球 ， 当用户不再需要此产品或产品寿命终止时 ， 请遵守国家废弃电 器电子产品回收处理相关法律法规， 将其交给当地具有国家认可的回收处理资质的厂商进 行回收处理。 环保使用期限 Environment-friendly use period 此标识指期限（十年），电子电气产品中含有的有害物质不会发生外泄或突 变、电子电气产品用户正常使用该电子电气产品不会对环境造成严重污染或 对其人身、财产造成严重损害的期限。 产品中有害物质的名称及含量: 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 印刷电路板及其电子组件 × ○ ○ ○ ○ ○ 液晶面板 × ○ ○ ○...
