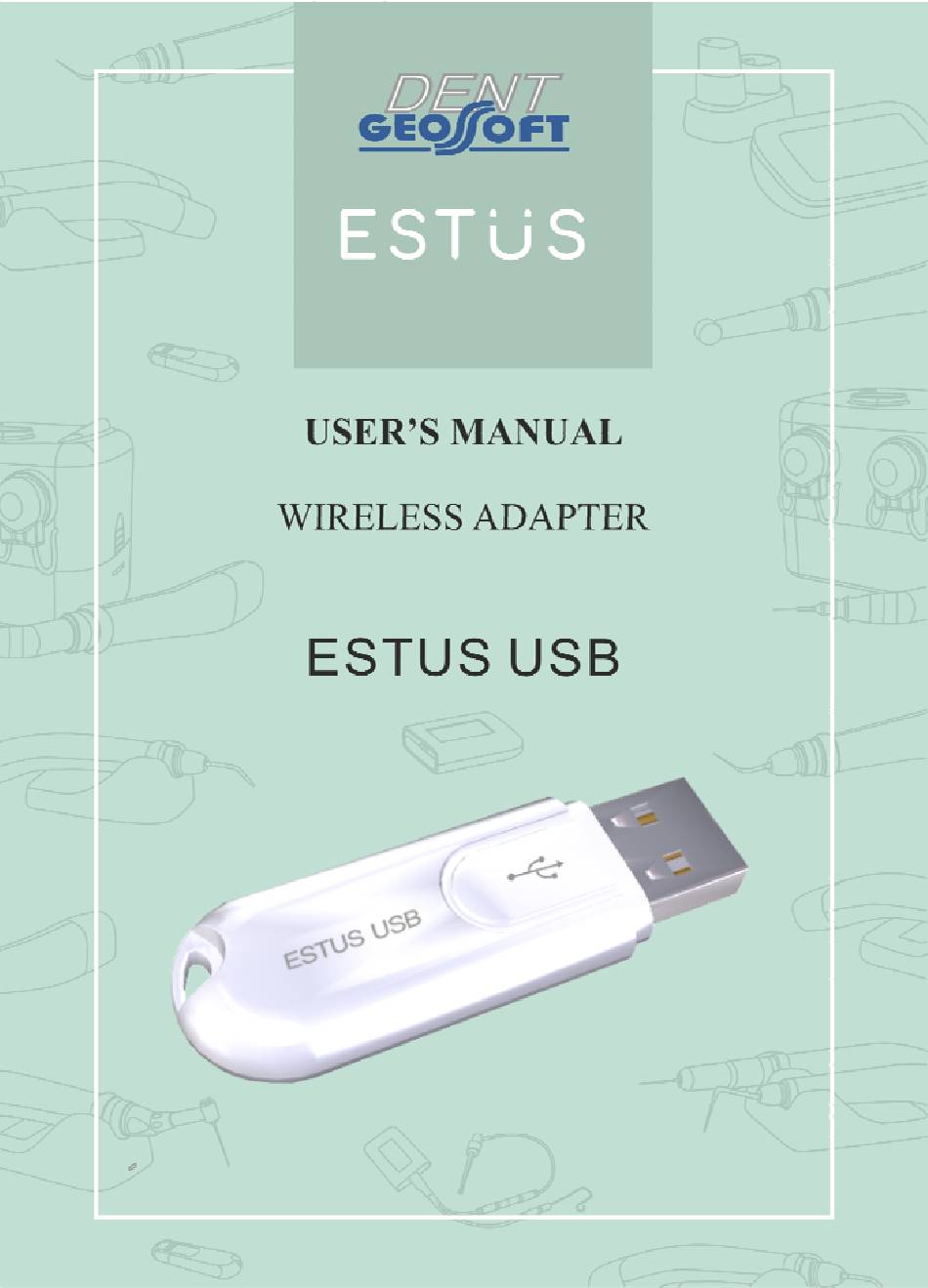

GEOSOFT DENT Estus USB User Manual

Hide thumbs Also See for Estus USB:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Estus USB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEOSOFT DENT Estus USB

Summary of Contents for GEOSOFT DENT Estus USB

  • Page 2 ! Please, thoroughly read the user’s guide before using the device. Keep the User’s guide for future use. ! Please, address to the manufacturer if you have some questions when using the device. Tel.: +7(495)663-22-11 (extension 109), E-mail: geosoftdent@geosoft.ru JSC GEOSOFT DENT (Russia) www.geosoft.ru/en...

  • Page 3: Table Of Contents

    ESTUS USB CONTENT 1. General information.........………………... 2. Delivery set………........……………………. 3. Technical specifications ……......……………….. 4. Preparatory stage and working procedure... …………………... 5. Storage, transportation and use ………………………….…… 6. Information on utilization……………………………………... 7. Symbol descriptions ………………………………………….. www.geosoft.ru/en...

  • Page 4: General Information

    USER’S MANUAL 1. GENERAL INFORMATION 1.1. Intended use: Wireless adapter “Estus USB” is intended for changing the working parameters of the “Estus Drive” endodontic motor. 1.2. Precautions and Warnings ! Do not disassemble or modify the product. Violation of the device integrity cancels the warranty.

  • Page 5: Delivery Set

    ESTUS USB 2. DELIVERY SET  Wireless adapter “Estus USB” - 1 pc  User’s Manual - 1 pc  Warranty Card - 1 pc  Package - 1 pc 3. TECHNICAL SPECIFICATIONS  Power supply - USB-plug (5V, 500 mА);...

  • Page 6: Preparatory Stage And Working Procedure

    1 hour. < +5 °С 1 hour at +25 °С Step 1. Connecting “Estus USB” Insert the “Estus USB” wireless adapter into the USB socket in your The adapter indicator lights up WHITE white indicator www.geosoft.ru/en...
  • Page 7 The adapter white indicator starts blinking and the computer screen displays the adapter “Estus USB” autorun White BLINKING indicator GREEN indicator The pair is created. Now with the help of the paired “Estus USB” adapter it is possible to change all basic endomotor settings. www.geosoft.ru/en...
  • Page 8 USER’S MANUAL The “Estus USB” wireless adapter is identified in the computer as the usual removable flash-drive, which includes only one file DATA.bin Step 3. “ENDOMOTOR ESTUS DRIVE” program start On the website http://geosoft.ru/en/, click icon “Endodontic system Estus” and then click the link “ENDOMOTOR ESTUS DRIVE”...
  • Page 9 ESTUS USB DATA.bin The current settings (factory settings - by default) and a serial number of an endomotor are loaded into the program boxes. Now it is possible to change the required “Estus Drive” settings. www.geosoft.ru/en...
  • Page 10 USER’S MANUAL Step 4. Editing the working sequence of files А) To change the current file type and/ or its working parameters (for ex. file # 1) click on the icon LIBRARY on the right from the file. B) In the drop-down FILES LIBRARY, select required file, moving along...
  • Page 11 ESTUS USB > > system name (for ex., PROTAPER NEXT) > file designation (for ex., PТ Next X2) with - any Rotary file, rotating clockwise - any Rotary file, rotating counterclockwise - any Reciprocation file After clicking on the line with the file designation, the parameters...
  • Page 12 USER’S MANUAL An example of changing the working sequence of files: Step 5. Speed rotation adjusting (only for ROTARY files) To increase/ decrease the preset speed value for the chosen file click on the button +/- in the box accordingly. SPEED (RPM) Speed value could be changed in the range 200-1200 rpm (with a step 50/100 rpm)
  • Page 13 ESTUS USB The maximum allowable file rotation speed depends on the specified limit torque (see Step 6). The maximum speed values at a preset torque are presented in the table below: Preset torque , <=3,0   3,1‐ 3,3‐ 3,6‐ 3,8‐ 4,1‐...
  • Page 14 USER’S MANUAL Preset speed,     <=400  1000 1100 1200 Max. torque,     5,1  4,8  4,5  4,2  4,0  3,7  3,5  3,2  For safe root canal preparation, at the torque gets higher than the maximum allowable value, the set speed value automatically lowers. Recommended by the manufacturer (factory) speed and limit torque values for the chosen file are colored LILAC, the values changed by a user are colored...
  • Page 15 ESTUS USB Step 8. SAF-file rotation speed adjusting To increase/ decrease the preset speed value for a SAF-file, click on the button + / - in the box accordingly. SPEED(RPM) Speed value could be changed in the range 3500 - 9500 rpm (with a step 500 rpm) Step 9.
  • Page 16 USER’S MANUAL To switch the function on move the cursor to the right, for switching off - to the left. Attention! If this function is switched off, the file may go beyond the canal apical constriction. Step 11. APICAL STOP POINT function APICAL STOP POINT–...
  • Page 17 ESTUS USB Step 12. Control panel The program control panel includes 5 buttons: 1. Open button– opening the DATA.bin file to load the current “Estus Drive” endomotor settings (see Step 3). 2. Save button- saving the user settings - creating the NEW DATA.bin file (see Step 13).
  • Page 18 In this case, the successful update of the settings will be confirmed by an audible signal on the endomotor "Estus Drive" D) The setting is complete. Disconnect “Estus USB” flash-drive from the PC. I) If necessary, print and save the new “Estus Drive” settings sheet.

  • Page 19: Storage, Transportation And Use

    Dispose of the product in accordance with the disposal regulations of the country in which this product is used. The device ESTUS USB belongs to the medical waste hazard category of class A (non-hazardous waste of medical institutions).

  • Page 20: Symbol Descriptions

    USER’S MANUAL 7. SYMBOL DESCRIPTIONS Symbol Description Warning: Address to supporting documentation Do not throw away the device into system of daily rubbish Non-ionizing radiation sign - the product contains a radio frequency transmitter IP41 Ingress Protection Rating dust and moisture Consult the USER’S MANUAL Conformity mark of the device to Russian GOST Mark of conformity to product quality and safety...
  • Page 21 ESTUS USB Notes www.geosoft.ru/en...
  • Page 22 USER’S MANUAL Notes www.geosoft.ru/en...
  • Page 23 ESTUS USB Manufactured by JSC GEOSOFT DENT 129090, Russia, Moscow, Vasnetsov pereulok, 7 TEL./ FAX: +7(495) 663-22-11 (ext.109), E-mail: geosoftdent@geosoft.ru Web: www.geosoft.ru/en Representative in Europe: DENTAL WORLD SRL Via Antichi Pastifici, 15-70056 Molfetta (BA). Italy Tel +39 080 3381004; Fax+39 080 3386617 Version 10.01.22...
