7.7 AIRPORT DEPARTURE PAGE

The Airport Departure Page (Figure 7-27) shows the
available Airport Standard Instrument Departure (SID)
procedures for the selected airport. Where multiple
runways or transitions are associated with the departure
procedure, that information may also be displayed. A
map image provides a layout diagram for each departure,
runway, and transition.
Airport Identifier, Map Image
Symbol, and Type
Position of Current Page Current
within Current Page Group Page Group

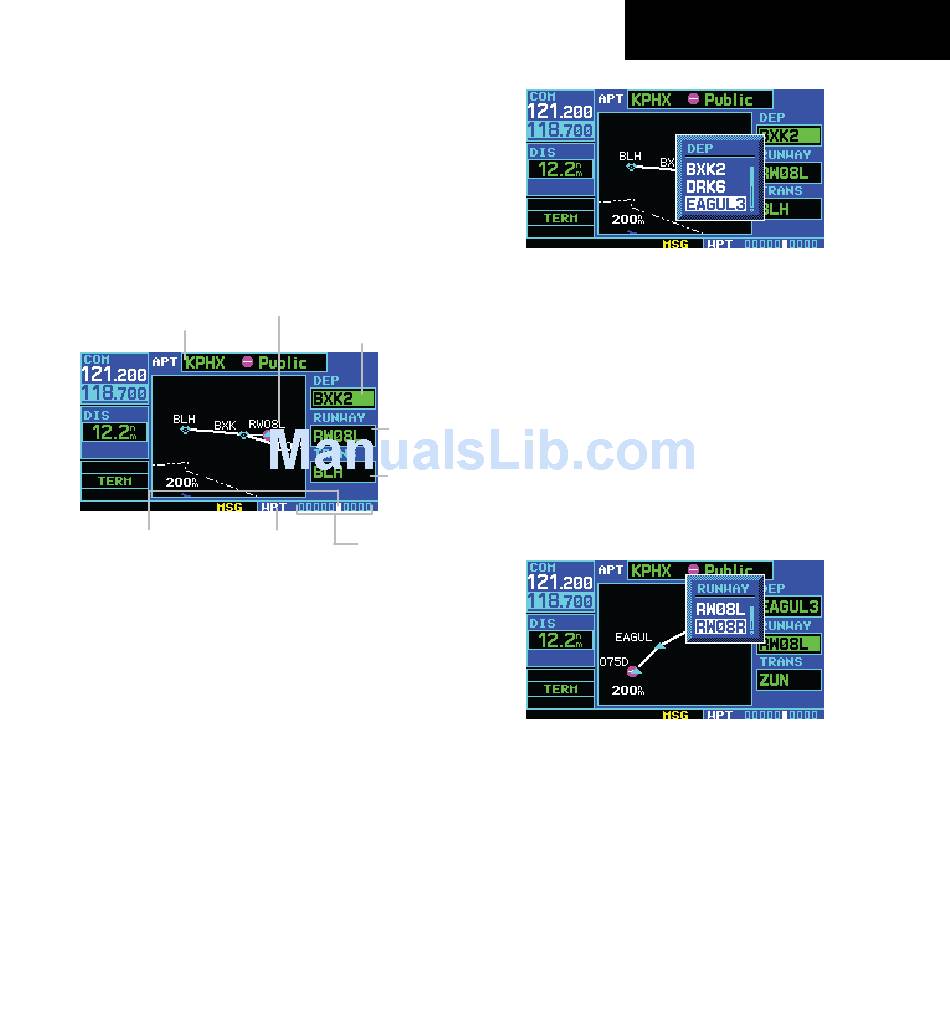

Figure 7-27 Airport Departure Page
Scrolling through the available departures:
1) Press the small right knob to activate the
cursor.
Turn the large right knob to place the cursor
2)
on the departure (DEP) procedure name field
(Figure 7-27).
3) Turn the small right knob to display a window
of available departures for the selected airport
(Figure 7-28). Continue turning the small right
knob to select the desired departure.
190-00140-20 Rev. K
4)
Departure
Procedure
Name
5)
Runways
associated with
Departure
Transitions
Number of Pages in
Current Page Group
6)
7)
8)
GNC 420(A) Pilot's Guide and Reference
Figure 7-28 Departure Window
Press the ENT Key. The cursor moves to the
runway field.
Turn the small right knob to display a window
of available runways (Figure 7-29). Continue
turning the small right knob to select the
desired runway. 'ALL' may appear in the
runway field, indicating the departure procedure
applies to all runways. For airports with parallel
runways, 'B' may appear at the end of the
runway designation to indicate the departure
procedure applies to both runways.
Figure 7-29 Runway Window
Press the ENT Key. The cursor moves to the
transitions (TRANS) field.
Turn the small right knob to display a window
of available transitions. Continue turning
the small right knob to select the desired
transition.
Press the ENT Key. To remove the flashing
cursor, press the small right knob.
