COLOR SECTOR SCANNING SONAR
CH-37
MODEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-37 and is the answer not in the manual?

Questions and answers

Related Manuals for Furuno CH-37

Summary of Contents for Furuno CH-37

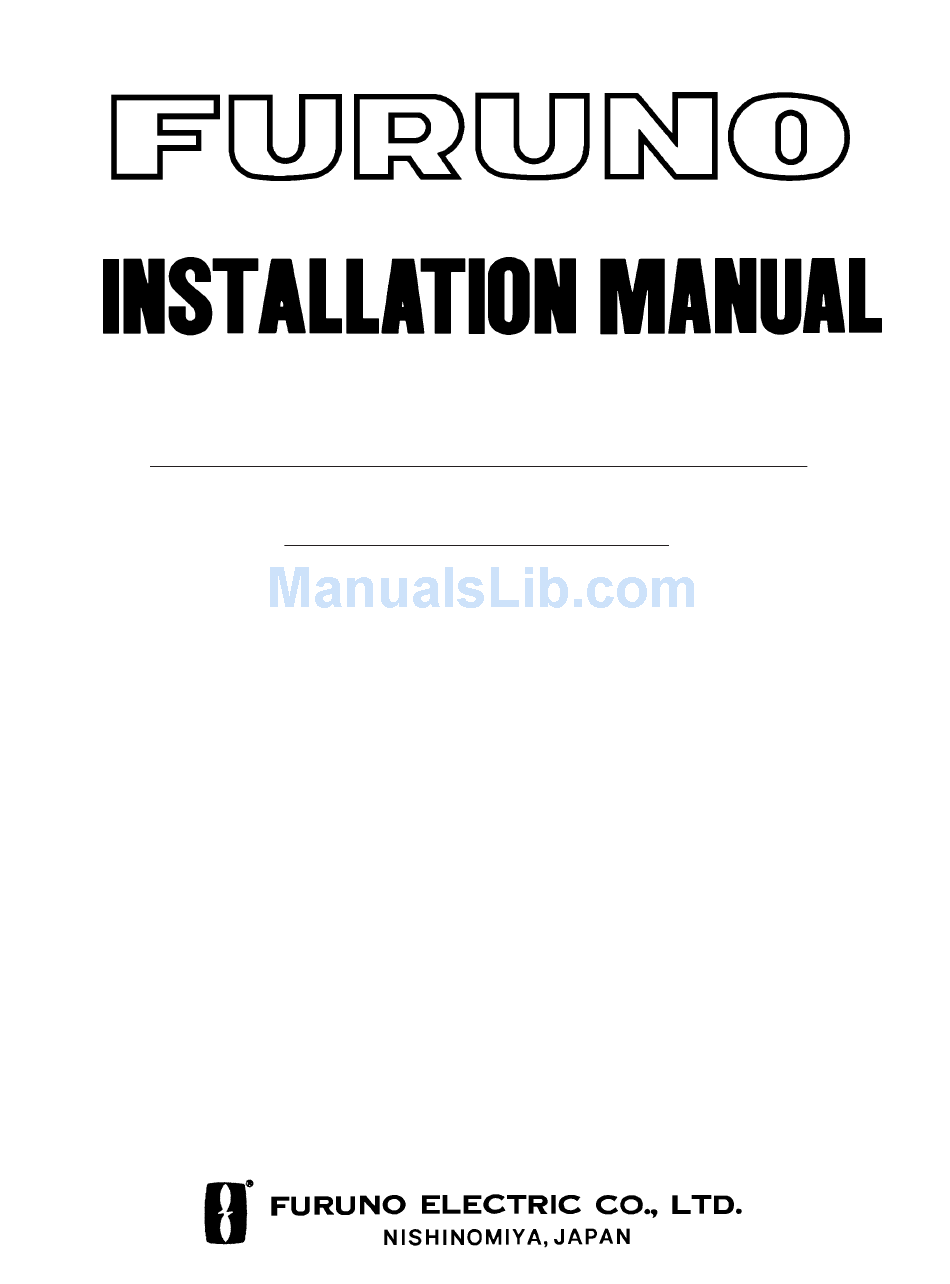

  • Page 1 COLOR SECTOR SCANNING SONAR CH-37 MODEL...
  • Page 2 All rights reserved. Printed in Japan Printed in Japan Pub. No. IME-13030-E2 Pub. No. IME-13030-E2 ( ( HIMA HIMA ) ) CH-37 CH-37 The paper used in this manual is elemental chlorine free. FURUNO Authorized Distributor/Dealer FURUNO Authorized Distributor/Dealer FIRST EDITION : FIRST EDITION : JUL.
  • Page 3 The installer of the equipment is solely responsible for the proper installation of the equipment. FURUNO will assume no responsibility for any damage associated with improper installation. WARNING Install the specified transducer tank in accordance with the installation instructions.
  • Page 4 Display 2.2 m 1.6 m unit WORKING WITH THE SONAR OIL Precautions Keep oil away from eyes. Wear protective gloves when working with the oil. The oil can cause inflammation of the eyes. Do not touch the oil. Wear protective gloves when working with the oil.

  • Page 5: Table Of Contents

    Logarithm Amplifier Video Sounder ... 1-17 1.8 Clinometer BS-704 (option) ... 1-19 WIRING 2.1 Wiring Among Units ... 2-1 2.2 Synchronizing Transmission with Echo Sounder or Other Sonar ... 2-4 ADJUSTMENTS 3.1 General Checks ... 3-1 3.2 Adjustment of Transceiver Unit ... 3-2 3.3 Heading Alignment ...

  • Page 6: Equipment Lists

    EQUIPMENT LISTS Standard Supply l l u l l a – – –...
  • Page 7 Optional Equipment o i t n i l o i t o i t o i t o i t o i t o i t i f i t t l i o t i h t i . t s t i n y f i , t i...

  • Page 8: System Configuration

    SYSTEM CONFIGURATION OPTIONAL SUPPLY LOUDSPEAKER SC-05WR REMOTE CONTROL BOX CH-343 02S8040 6M External EXTERNAL Interface MONITOR OP06-14 (Built-in) Clinormeter MOTION BS-704 SENSOR MS-100 250V-DPYCYS-2 250V-DPYCYS-2 STANDARD SUPPLY DISPLAY UNIT CH-370 External Interface OP06-13 (Built-in) 24-32V DC : Connector to fitted at installation : Connector fitted at factory : Crimp-on lug to be fitted at installation NOTE 1: Two sets of rectifiers are necessary for AC mains.
  • Page 9 Hull unit assembly combination Standard Type Code No. 2.7 m cable Power Freq. Type Mat. Type Steel Alum. Type Code No. 3.7 m cable Code No. Power Freq. Type Code No. Mat. Type Code No. Steel Power Freq. Type Code No. 113kHz 113kHz Option...
  • Page 10 This page is intentionally left blank.

  • Page 11: Mounting

    • An obstacle in the fore direction not only causes a shadow zone but also aer- ated water, resulting in poor sonar performance. Be sure to locate the trans- ducer well away from any obstacle in the fore direction.
  • Page 12 Mounting method A typical mounting method is shown in the outline drawing at the back of this manual. Consult ship’s owner, dockyard and user to determine appropriate mount- ing method. Pay attention to safety (strength, watertighness) first, followed by ease of maintenance and inspection. Tank length Shorten the transducer tank so the trans- ducer is lowered into water as deep as pos-...
  • Page 13 Assembling and mounting of hull unit The hull unit is shipped disassembled as the parts shown in the hull unit kit on pages 1-10 and 1-11. Assemble the hull unit as shown in the procedure below. Necessary tools l l a 1.
  • Page 14 2. Fill the soundome with sonar oil 6 cm below the top of the dome. (Use only the specified sonar oil. Use of other sonar oils may affect performance.) Reat- tach the soundome. Ball wrench Sonar oil 5 cm Use packing material to support soundome.
  • Page 15 4. Fasten the main shaft to the soundome assembly as follows: a) Attach screw lock nut to main shaft. b) Fully screw main shaft into the soundome neck, and then unscrew by four turns. Coat threads with adhesive (HIGH SUPER). c) Screw in main shaft completely and tighten the lock nut with spanner.
  • Page 16 5. Clean the main shaft and pass it through the main body flange. Check that O-ring is in position. Figure 1-7 Passing main shaft through the main body flange 6. Set the grease cotton to the main body flange and tighten the grease cotton retainer temporarily.
  • Page 17 Figure 1-10 Passing pipe clamp, gasket, flat washer and cable gland on main shaft 9. Fasten the hull unit to the transducer tank, orienting it so the ship’s fore-aft line crosses the front panel of the raise/lower drive block at an angle of ap- proximately 45 degrees.
  • Page 18 10.Install the raise/lower drive block as follows: a) Rotate the main shaft so the bow mark faces ship’s bow. b) Install the raise/lower drive block onto the main body flange. c) Fix the main shaft with the shaft retainer. d) Loosen the fastening band, slide it up to the shaft retainer and fasten it. e) Check that the distance from the top of the main shaft to the top of the shaft retainer is as follows: 1.17 m main shaft: 75 mm...
  • Page 19 7 to 9 mm Figure 1-13 Tightening the grease cotton retainer Checking manual raise/lower of transducer with hand crank Perform this check after all wiring has been completed. Ship’s mains power must applied to the hull unit, otherwise the magnetic brake of the raise/lower motor activates, disabling the manual raise/lower gears.
  • Page 20 Hull unit installation materials 1-10...
  • Page 21 60 kHz SUPER SONAR OIL 4L (000-804-568) 000-824-033 1-11...
  • Page 22 1-12 T ’...

  • Page 23: Transceiver Unit

    Transceiver Unit Mounting considerations • The mounting location should be well ventilated and dry. • The unit can be mounted on a bulkhead or the deck. The unit weighs 8.5 kg so reinforce the mounting location if necessary. • Secure the maintenance space shown in drawing below for ease of mainte- nance and service.

  • Page 24: Display Unit

    Display Unit Mounting considerations Select the mounting location considering the following conditions: • Select a location where the display unit can easily be operated while observing the fishing ground or area surrounding the vessel. • Locate the unit at least 1 meter away from equipment which contains mag- nets (radar magnetron, loudspeaker).

  • Page 25: Motion Sensor Ms-100 (Option)

    Motion Sensor MS-100 (Option) The MS-100 measures ship’s pitching and rolling angles with sensors using the principles of the gyroscope. The MS-100 is free from error caused by ship’s ver- tical and horizontal motion. Therefore, it can be installed at any convenient loca- tion.
  • Page 26 External E/S interface installation kit 1. Remove the display unit cover. 2. Remove the dummy plate at the rear of the display unit. Remove this dummy plate and fasten External Inter- face module here. Figure 1-19 Display unit, rear view 3.

  • Page 27: Logarithm Amplifier Video Sounder

    6. Bind cables with the cable tie (supplied). FRONT MAIN Board 06P0227 Figure 1-20 Display unit, cover removed, right side view 7. Close the cover. Logarithm Amplifier Video Sounder For connecting external video souder (logarithm amplifier:FCV-291,292,1000), modify ESIF board of OP06-13 (as below) and the INTERFACE UNIT VI-1100A. For INTERFACE UNIT VI-1100A modification, refer to installation manual of INTERFACE UNIT VI-1100A.
  • Page 28 Note 1: Set “RES.COLOR” field in the E/S menu to “LOG”. Note 2: Adjust “GAIN ” and “N.L.” of E/S memu. 1-18...

  • Page 29: Clinometer Bs-704 (Option)

    1.8 Clinometer BS-704 (Option) The clinometer detects ship’s inclination caused by ship’s rolling and pitching and its output is used to stabilize the sonar beam against rolling and pitching. The clinometer is, in principle, a pendulum. It measures the inclination of the ship by sensing the direction of gravity acted on it and therefore when installed on a ship, it should be placed on or near the rotation axes of the ship’s rolling and...
  • Page 30 Cautions: (1) The vicinity of the hull unit (on the ship’s bottom) is too low and should be avoided, since the polarity of the measured value is reversed. (2) When it is impossible to install the clinometer on the intersecting point of both rolling and pitching rotational axes, a special effort should be made to install it at place where the vertical distance to the intersecting point is minimum.

  • Page 31: Wiring

    = 15.2 mm Figure 2-1 Power cable DPYCYS-1.25, DPYCYS-2 • Install the main switch for the sonar where it can be easily accessed. Turn off this switch when the sonar is not being used, to reduce power consumption and to prevent the transducer from slipping by vibration.
  • Page 33 Pass three cables thru proper cable entry holes. Rear side Ground Terminal Note) Ground armor by metal clamp. Note) Front side...

  • Page 34: Synchronizing Transmission With Echo Sounder Or Other Sonar

    Synchronizing Transmission with Echo Sounder or Other Sonar To synchronize transmission of the CH-37 with an echo sounder or other type of sonar, connect it as shown below. Connections for synchronizing Tx with other E/S, sonar DISPLAY UNIT 06P0228 KP1 > 3 >...
  • Page 35 PRESS MENU KEY Figure 2-5 SONAR menu 3. Set TX EXT SYNC to ON. 4. Press the MENU key. Note: Outputting KP of CH-37 to other sonar, echo sounder DISPLAY UNIT 06P0228 KPO > 2 > GND > 8 >...
  • Page 36 This page is intentionally left blank.

  • Page 37: Adjustments

    General Checks ADJUSTMENTS Table 3-1 General checks On-keel Installation Off-keel Installation Within 1 m (Continued on next page) Flush with keel Above keel 1 cm Minimum 30 cm...

  • Page 38: Adjustment Of Transceiver Unit

    g i l Adjustment of Transceiver Unit Selecting audio frequency Select audio frequency of 1000 Hz or 900 Hz by jumper connector JP2 on pcb 06P0192 in the transceiver unit. The default setting is 1000 Hz. Refer to Figure 3-1 for the location of JP2. Signal offset adjustment When noise appears on the screen, adjust R61 (offset) on pcb 06P0192.

  • Page 39: Heading Alignment

    Horizontal beamwidth When the user wishes echoes to be displayed in high resolution, turn R40 on pcb 06P0192 clockwise to sharpen horizontal beamwidth. Do not turn it excessively clockwise, or an echo which should be displayed as a single solid mass may become hollow or split into smaller, fewer masses.

  • Page 40: Adjustment Of Motion Sensor, Clinometer

    2. When the heading alignment is incorrect, loosen four bolts on the shaft retainer and then rotate the main shaft to align head- ing. 3. Tighten bolts. Adjustment of Motion Sensor, Clinometer When the ship has a semi-permanent inclination, offset it as follows. Inclination of up to 10 can be corrected.

  • Page 41: Soundome Painting

    4. By using a clinometer or other means, measure ship’s semi-permanent incli- nation angle. Take the polarity of the angle as follows: ROLL: Starboard up: +, Starboard down: - PITCH: Stern up: +, Stern down: - Figure 3-5 Measuring ship’s semi-permanent inclination angle 5.

  • Page 42: Led Status

    LED Status Display unit Settings Range: 400 m Tx output power: C (max) Tilt: 0 Tx Rate: 10 PWR Board 06P0229 Display unit, top view, cover removed Figure 3-6 Location of printed circuit boards in the display unit MAIN Board 06P0227 Display unit, side view, cover removed Table 3-2 LEDs in the display unit...
  • Page 43 Table 3-2 LEDs in the display unit (con’t) ¡ e l i e l i y l i y l i y l i ¡ y l i ¡ e l i ¡ y l i ¡ n i l y l i ¡...
  • Page 44 Transceiver unit MAIN Board (06P0192) Photo No. 2058 Table 3-3 LEDs in the transceiver unit Photo No. 2057 Figure 3-7 Transceiver unit : f f " " " " " " " " " " " " " " " "...
  • Page 45 Table 3-3 LEDs in the transceiver unit (con’t) ¡ : f f...
  • Page 46 Hull unit DRIVE Board (06P0193) Figure 3-8 Hull unit Table 3-4 LEDs in the hull unit y l i y l i y l i ¡ ¡ y l i e l i ¡ 3-10 Photo No. 2056 ¡ : f f l i t l i t...

  • Page 47: Changing Specifications

    CHANGING SPECIFICATIONS System Menu 1. Turn on the power while pressing the MENU key. Release the key when you hear a beep. 2. Select SYSTEM SETTING. 3D DISPLAY SHIP’S POSITION CURRENT DATA DEPTH DATA HEADING INDICATION NORTH MARK TRACK HDG/SPD DATA NAV DATA DATA FORMAT FOR NAV2 CIF BAUD RATE...
  • Page 48 Table 4-1 System setting menu description . f f t i s . f f . f f . f f n i l . ) r t i s c i t l l u t i s s t i n i l l l u c i t...
  • Page 53 ｺﾈｸﾀ CONNECTOR ﾋｭｰｽﾞ FUSE MFR'S NAME FURUNO ELECTRIC CO.,LTD. （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） 型式/ｺｰﾄﾞ番号が２段の場合、下段より上段に代わる過渡期品であり、どちらかが入っています。 なお、品質は 変わりません。 TWO TYPES AND CODES MAY BE LISTED FOR AN ITEM. THE LOWER PRODUCT MAY BE SHIPPED IN PLACE OF THE UPPER PRODUCT. QUALITY IS THE SAME.

  • Page 71: Interconnection Diagram

    LCLK H LCLK C SCAN BEAM PWR 1 PWR 2 DPYCYS-1.5 *2 ｼﾛ WHT +V(24/32VDC) ｸﾛ BLK -V(OV) DRAWN TYPE CH-37 Maki Jul. 27 '06 CHECKED 名称 カラーセクタースキャニングソナー TAKAHASHI.T APPROVED 相互結線図 Y.Hatai NAME COLOR SECTOR SCANNING SONAR DWG.No. C1303-C01- D...
