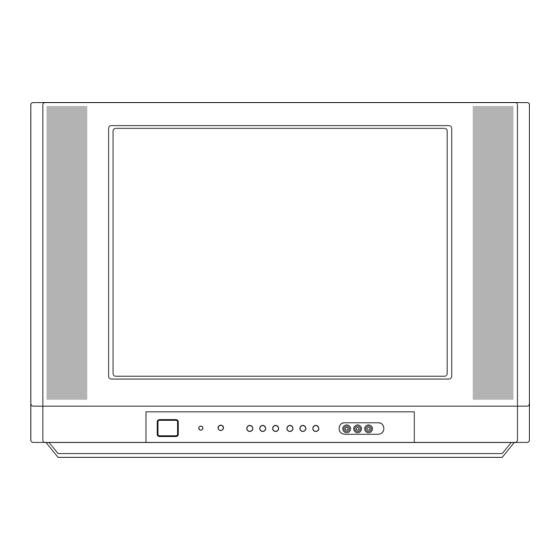

- Page 1 All manuals and user guides at all-guides.com website:http://biz.LGservice.com e-mail:http://www.LGEservice.com/techsup.html COLOR TV SERVICE MANUAL CHASSIS : MC-036A MODEL:RE/RL-29FB51RQ MODEL:RZ-29FB51RQ/RX CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com CONTENTS CONTENTS ....................2 SAFETY PRECAUTIONS .................3 SERVICING PRECAUTIONS ..............4 SPECIFICATION ..................6 ADJUSTMENT INSTRUCTION ..............8 TROUBLE SHOOTING ................16 BLOCK DIAGRAM...................20 PRINTED CIRCUIT BOARD ..............22 EXPLODED VIEW .................. 28 EXPLODED VIEW PARTS LIST ..............29 REPLACEMENT PARTS LIST ............... -
Page 3: Safety Precautions
All manuals and user guides at all-guides.com SAFETY PRECAUTIONS IMPORT ANT SAFETY NOTICE Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. -
Page 4: Servicing Precautions
All manuals and user guides at all-guides.com SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service transistors and semiconductor "chip" components. The manual and its supplements and addenda, read and follow the following techniques should be used to help reduce the SAFETY PRECAUTIONS on page 3 of this publication. - Page 5 All manuals and user guides at all-guides.com c. Quickly move the soldering iron tip to the junction of the Fuse and Conventional Resistor component lead and the printed circuit foil, and hold it Removal/Replacement there only until the solder flows onto and around both the 1.
-
Page 6: Specification
P/N of B.O.M RE/RL-29FB51RQ 5) Warm up TV set for more than 20min. before the measurement. RE-28FZ30RQ Test and Inspection Method 1) performance:Follow the Standard of LG TV test 2) Standards of Etc requirement Model Name Market Compiance RE-32FZ30RX... - Page 7 All manuals and user guides at all-guides.com Feature and Function Specification Remark Item Teletext Option TOP, FLOF, LIST 8page Remocon NEC code AV input Side or, Front: 1, Rear: 2 Component input PERI TV connector Full SCART:1 RGB input 2 Carrier stereo BG,DK NICAM stereo BG,I...
-
Page 8: Adjustment Instruction
All manuals and user guides at all-guides.com ADJUSTMENT INSTRUCTION 1. Application Object (RF: PG50Ch or A/V input: RED pattern) (4) Loosen fixed screw of DY and closely to CPT funnel part. These instructions are applied to all of the color TV, MC-036A. (5) Check the center of screen that purity magnet of CPT by crossing adjustment. - Page 9 All manuals and user guides at all-guides.com 2. Preliminary steps g.Repeat adjusting until the color coordinate of High and Low Light is satisfied. (1) Tune the TV set to receive an 100% white pattern. h.Check the color coordinate of adjusted condition with (2) This adjustment should be perfomed after screen voltage white balance meter.
- Page 10 All manuals and user guides at all-guides.com bottom ,right-bottom of screen to the best straight line. 6.Deflection & POP position setting data adjustment. (15) OSD P (OSD POSITION) adjustment. Adjust so that the character “2” of “EHTP2” is in accord with 6.1 Adjustment preparation right of Screen Center Vertical line after finished (1)~ (14) (1) Deflection setting data adjustment is operate by SVC...
- Page 11 All manuals and user guides at all-guides.com SERVICE 3 standard DATA Screen OSD FONT status and adjustment in H-Shift ARC SVC adjustment. Item PHILIPS ARC MODE SVC OSD FONT(50Hz,PAL) H-SHIFT 32”FLAT 29” FLAT 28” FLAT 16:9 Adjustment IBRM 14:9 50 149 Adjustment WDRM ZOOM1...
- Page 12 All manuals and user guides at all-guides.com 3.POP POSITION adjustment. (For PIP MODEL) (4) POS 60 adjustment (1) Press the YELLOW key of SVC remocon to change POP - Change the main input to NTSC signal and then adjust mode. POS60 to identity of vertical location.
- Page 13 All manuals and user guides at all-guides.com Table. 3 OPTION 3 Function Table 1. OPTION 1 Function Option Function Remark Option Function Remark Code Code 100 PROGRAM SAVE 4:3 TV WIDE 200PR 16:9 TV 200 PROGRAM SAVE WITHOUT TURBO SEARCH FUNCTION WITHOUT TEXT WL/CL model TSEAR...
- Page 14 All manuals and user guides at all-guides.com Table 4. OPTION 4 Function State Language Function Default English 0:ENG Only 1:EU 5EA English/German/French/Italy/Spanish 2:EU ETC Pol./Hungary/Czecho/Russia/Eng 3:PARSI English/Parsi LANG 4:ARAB URDU English/French/Arab+Urdu 5:English+Hindi English/Hindi 6:English+I+M+V English/Indonesian/Malaysian/Vietnamese 7:English+THAI English/Thai 8:English+China English/China 0:West Europe English/French/Swedish/Czech/German/Spanish/Italian 1:East Europe1 Polish/French/Swedish/Czech/German/Slovenian/Italian/Rumanian...
- Page 15 All manuals and user guides at all-guides.com 6. Sound Prescaler * MSP3410 Pre-scaler setting value. Don’t adjust mass-production. Because this value of SVC Item Description DATA setting is set to come up to standard. Only This standard is for reference. FM Pre-scaler Nicam Pre-scaler In case of Phone jack is over 1EA in AV1 &...
-
Page 16: Trouble Shooting
All manuals and user guides at all-guides.com TROUBLE SHOOTING - 16 -... - Page 17 All manuals and user guides at all-guides.com - 17 -...
- Page 18 All manuals and user guides at all-guides.com - 18 -...
- Page 19 All manuals and user guides at all-guides.com - 19 -...
-
Page 20: Block Diagram
All manuals and user guides at all-guides.com BLOCK DIAGRAM 1.MAIN - 20 -... - Page 21 All manuals and user guides at all-guides.com 2.SMPS - 21 -...
-
Page 22: Printed Circuit Board
All manuals and user guides at all-guides.com PRINTED CIRCUIT BOARD MAIN - 22 -... - Page 23 All manuals and user guides at all-guides.com COMPONENT LOCATION GUIDE(MAIN) G74 ..D5 J12 ..A2 J70 ..B4 J132 ..E4 C101..A2 C338..E4 C622 ..C5 C862 ..D1 E16 ..F4 G16..F2 J71 ..B2 J133 ..E1 C623 ..C5 C863 ..D2 E17..E5 G17 ..G2 G75 ..C5 J13 ..A2 C102..A2 C339..F4...
- Page 24 All manuals and user guides at all-guides.com COMPONENT LOCATION GUIDE(MAIN) L102 ..B5 Q167 ..C1 R164 ..C1 R425..F4 R833..B3 TP29 ..C4 R165 ..C1 R426..E4 R851 ..D1 TP30 ..C4 L204 ..D5 Q168 ..C1 R852 ..C2 TP32 ..C4 L205 ..C5 Q200 ..A4 R166 ..C1 R427 ..C3 TP33 ..C4 L206 ..D5...
- Page 25 All manuals and user guides at all-guides.com 100Hz(TOP) 100Hz(BOTTOM) - 25 -...
- Page 26 All manuals and user guides at all-guides.com REACTOR FRONT CONTROL - 26 -...
- Page 27 All manuals and user guides at all-guides.com MEMO - 27 -...
-
Page 28: Exploded View
All manuals and user guides at all-guides.com EXPLODED VIEW - 28 -... -
Page 29: Exploded View Parts List
PWB(PCB) ASSEMBLY,SUB MC036A RE-29FB51RQ.LPSLMI8 ITALYA 6871VSMZ43G PWB(PCB) ASSEMBLY,SUB MC036A RZ-29FB51RQ.LPSLMN8 6871VSMZ43L PWB(PCB) ASSEMBLY,SUB MC036A RZ-29FB51RX (EU, W/O TOP) 6871VSMX41B PWB(PCB) ASSEMBLY,SUB POWER MC036A FB51 CTRL/SIDE A/V 0IGL120104A IC,LG SEMICONDUCTOR,<None>CDS SENSOR MODULE(P1201-04) 332-229H SCREW,DRAWING,NON - NON HEXAGON HEAD 1PTF0403116 SCREW,TAP TITE(P)[TRUSS HEAD - 29 -... -
Page 30: Replacement Parts List
All manuals and user guides at all-guides.com REPLACEMENT PARTS LIST LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION DIODE, RU2M V(1) TP SANKEN D339 0DD200009AF D349 0DD200009AF DIODE, RU2M V(1) TP SANKEN D850 0ISK100300A IC, BK DIODE MODULE(RU4AM+FMLG12S) LF816 D351 0DD414809ED DIODE, 1N4148 TP GRANDE - - - - - -... - Page 31 All manuals and user guides at all-guides.com For Capacitor & Resistors, CC, CX, CK, CN : Ceramic RD : Carbon Film the charactors at 2nd and 3rd CQ : Polyestor RS : Metal Oxide Film digit in the P/No. means as CE : Electrolytic RN : Metal Film follows;...
- Page 32 All manuals and user guides at all-guides.com For Capacitor & Resistors, CC, CX, CK, CN : Ceramic RD : Carbon Film the charactors at 2nd and 3rd CQ : Polyestor RS : Metal Oxide Film digit in the P/No. means as CE : Electrolytic RN : Metal Film follows;...
- Page 33 All manuals and user guides at all-guides.com For Capacitor & Resistors, CC, CX, CK, CN : Ceramic RD : Carbon Film the charactors at 2nd and 3rd CQ : Polyestor RS : Metal Oxide Film digit in the P/No. means as CE : Electrolytic RN : Metal Film follows;...
- Page 34 0LA0102K119 INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP P401 366-043K CONNECTOR, PLUG(4P) 0LA0102K119 INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP 366-932C CONNECTOR, 2.5MM 4P GIL-G LG CABLE S L205 P650 L206 0LA0102K119 INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP P651 366-932B CONNECTOR, 2.5MM 3P GIL-G LG CABLE S...
- Page 35 All manuals and user guides at all-guides.com For Capacitor & Resistors, CC, CX, CK, CN : Ceramic RD : Carbon Film the charactors at 2nd and 3rd CQ : Polyestor RS : Metal Oxide Film digit in the P/No. means as CE : Electrolytic RN : Metal Film follows;...
- Page 36 300 OHM 1/2 W(7.0) 5.00% TA52 R803 0RD0201A609 2 OHM 1/2 W(7.0) 5.00% TA52 SW01 140-315A SWITCH, TACT SKHV17910B LG C&D NON 12V R804 0RD4701F609 SW02 140-315A 4.7K OHM 1/6 W 5% TA52 SWITCH, TACT SKHV17910B LG C&D NON 12V...
- Page 37 X501 6202VDB007A RESONATOR,CRYSTAL 5.000MHZ 30PPM 16PF BK X601 156-A02M RESONATOR,CRYSTAL 18.432MHZ 30PPM 10PF BK ACCESSORIES 3828VA0421F MANUAL,OWNERS MC036A IS/REG LG IT 112DE TX 3828VD0151B MANUAL,SERVICE MC036A RE-29FB51RQ LG 6710V00112E REMOTE CONTROLLER,MC036A W/O PIP W/TXT MISCELLANEOUS F1101 0FS4001B53C FUSE,SLOW BLOW4000MA 250 V 5.2X20 CY/CE...
- Page 38 All manuals and user guides at all-guides.com P/N: 3854VA0121A-S1 DATE: 2003.07.15...
-
