Summary of Contents for FocalPoint F820936

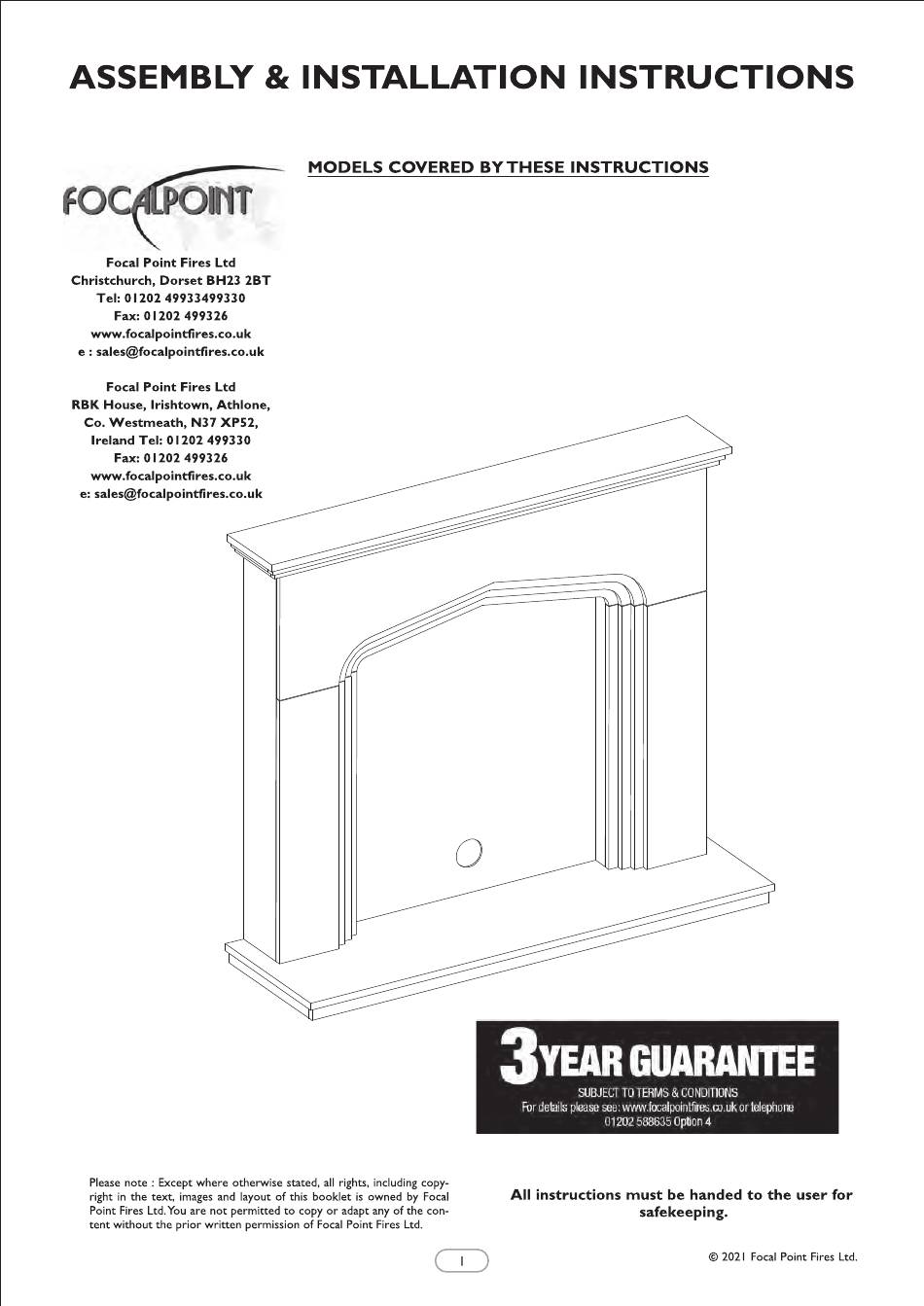

- Page 1 F820936 INNSWORTH FIRE SURROUND Revision A 07/21...
- Page 2 NAME CODE FIGURE QUANTITY CODE NAME FIGURE QUANTITY WOOD ALLEN 1PCS DOWELS 26PCS (8x 30mm) 19PCS 1PCS LOCKS PANEL (15x 9mm) FRONT 1PCS BOLTS 19PCS PANEL (6x 40mm) LEFT WOOD SIDE 1PCS 17PCS SCREWS RIGHT WOOD SIDE SCREWS 1PCS 9PCS (3.5x 16mm) LEFT WALL...
- Page 3 STEP 1 Fixings Parts A x 4 PCS D x 8 PCS Gently lay both legs you have prepared onto a suitable protected surface. Be extremely careful not to scratch the front edges of the legs. DO NOT DRAG THE LEGS! Make sure that the legs are lifted every time they are moved to avoid them from being damaged.
- Page 4 STEP 3 Parts Fixings A x 4 PCS B x 6 PCS C x 6 PCS Use the glue (J) in the dowel holes before inserting 2x dowels (A) into the left and right hand panels (3)(4). Position the cam bolts (C) in to left and right side panels (3)(4).
- Page 5 Firstly insert 6x wooden dowels (A) with glue into the top of the hearth (8). With a cross headed screw driver insert 8xsingle headed cam bolts (C) into the top of the hearth (8). For the next step we recommend to use two people. Carefully lift the surround over the hearth (8) ensuring that all 8x single headed cam bolts (C) and 6 x wooden dowels (A) insert the bottom edges of the surround.
- Page 6 STEP 6 Fixings Parts E x 9 PCS Offer the back panel (9) into position. Line the screw holes in the back panel (9) up with the screw holes of the back of the rebates (7). Once aligned, screw the 9x screws (E) with a cross headed screwdriver into position. Fixings F x 2 PCS G x 4 PCS...
- Page 7 With a pencil mark out the desired height where you would like the mirror brackets(I) to be situated on the rear of the legs. To avoid splitting the leg, pre drill the bracket holes with a 2mm drill bit, Now attach the brackets to the legs using the 3x12mm screws (G).
