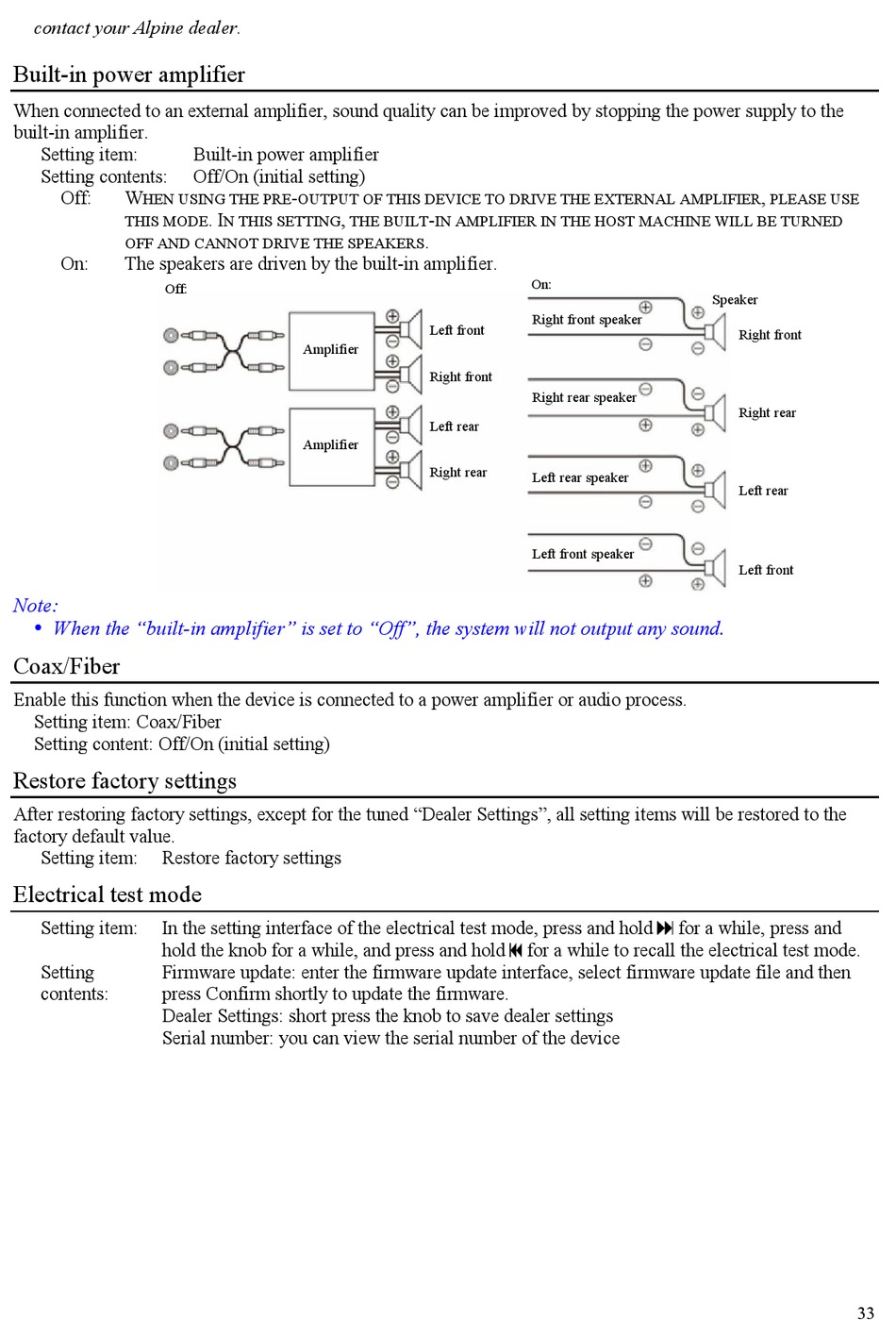

Alpine UTX-M08S Product Manual page 35

contact your Alpine dealer.
Built-in power amplifier
When connected to an external amplifier, sound quality can be improved by stopping the power supply to the
built-in amplifier.
Setting item:
Setting contents:
Off: W
HEN USING THE PRE
THIS MODE
OFF AND CANNOT DRIVE THE SPEAKERS
On: The speakers are driven by the built-in amplifier.
Off:
Note:
 When the "built-in amplifier" is set to "Off", the system will not output any sound.
Coax/Fiber
Enable this function when the device is connected to a power amplifier or audio process.
Setting item: Coax/Fiber
Setting content: Off/On (initial setting)
Restore factory settings
After restoring factory settings, except for the tuned "Dealer Settings", all setting items will be restored to the
factory default value.
Setting item: Restore factory settings
Electrical test mode
Setting item: In the setting interface of the electrical test mode, press and hold
hold the knob for a while, and press and hold
Setting Firmware update: enter the firmware update interface, select firmware update file and then
contents: press Confirm shortly to update the firmware.
Dealer Settings: short press the knob to save dealer settings
Serial number: you can view the serial number of the device
Built-in power amplifier
Off/On (initial setting)
-
OUTPUT OF THIS DEVICE TO DRIVE THE EXTERNAL AMPLIFIER
. I ,
N THIS SETTING THE BUILT
Amplifier
Amplifier
-
IN AMPLIFIER IN THE HOST MACHINE WILL BE TURNED
.
On:
Right front speaker
Left front
Right front
Right rear speaker
Left rear
Right rear
Left rear speaker
Left front speaker
for a while to recall the electrical test mode.
,
PLEASE USE
Speaker
Right front
Right rear
Left rear
Left front
for a while, press and
33
