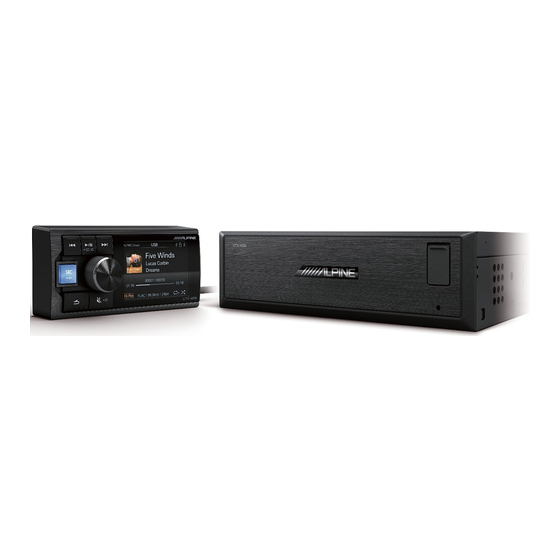

- Page 1 UTX-M06 High Sound Quality DSP Media Player For iPhone users, please search "UTX-M06 Tuning APP" in APP Store to download and install it; for Android users, please scan the QR code on the right to download and install it directly.
-
Page 2: Table Of Contents
Table of Contents Operating Instructions Description of APP Type of precautions ........1 Description of mobile APP - Homepage 15 Description of mobile APP - Preset EQ . 16 Copyright notice Description of mobile APP - Music ..17 Description of mobile APP - Delay ..18 Copyright notice ........ -
Page 3: Operating Instructions
Copyright notice The text mark and logo of Bluetooth® are the registered trademarks that Bluetooth SIG, Inc. Alpine Electronics has been authorized to use these text marks and logos. Other trademarks and names all belong to their holders. -
Page 4: Use Of Usb Storage
Use of USB storage Under no circumstances shall Alpine be liable for any loss of data, even if those occur during the use of this product. · To prevent failure or damage, please pay attention to the points below. Please read through the user manual of the USB storage. -
Page 5: Tools That May Be Required (Depending On The Vehicle)
Tools that may be required (depending on the vehicle) Panel removing tool Socket Electric drill Torx screwdriver Phillips screwdriver Sleeve wrench Wrench Wire cutter Wire crimper Wire stripper Spectrum analyzer Oscilloscope Accessory list Power cord High level input line USB extension cable (1.5 m) Controller extension cable (2.5 m) Complex line Mounting bracket ×... -
Page 6: Diagram Of Controller
Diagram of controller Short press the button to select the master audio source: USB, Bluetooth music, high level or AUX (USB by default); press and hold the button for more than 2 button seconds to turn on/off the mixing mode. USB: short press the button to select the previous track;... -
Page 7: Diagram Of Host Machine
1 group of 3.5 mm socket audio input interface, 3 groups of RCA audio Complex line output interface, USB 2.0 interface, steering wheel controller interface, and Alpine system matching interface (for connection with DSP product). Vehicle battery Connect the vehicle battery. -
Page 8: Diagram Of Complex Line Connection
Decoding type steering wheel controller interface (not supported for now, will be DECODING SWC updated in the near future). It can be connected to Alpine on-vehicle DSP and only supports products with ALPINE SYSTEM matching controller interfaces. USB 2.0... -
Page 9: Diagram Of Steering Wheel Controller Connection
*Connect the green and white wires with the button wires of the steering wheel and connect the black wire with the grounding wire. Please connect the wires based on the actual vehicle model. For details, please contact your Alpine dealer. -
Page 10: About Mp3/Wma/Wav/Flac/Ape
About MP3/WMA/WAV/FLAC/APE Except for personal use, it is strictly forbidden by copyright laws and international conventions to copy, distribute, or transmit any audio data (including MP3/WMA/WAV/FLAC/APE data), whether for free or for a charge, without the consent of the copyright owner. MP3, with the formal name of “MPEG Audio Layer 3”, is a compression standard defined by MPEG, a joint executing agency under ISO (Organization for Standardization) and IEC. - Page 11 Supported play sampling frequency and bit rate: Sampling frequency: 48kHz 、 44.1kHz 、 32kHz 、 24kHz 、 22.05kHz 、 16kHz 、 12kHz 、 11.025kHz、8kHz Bit rate: 8-320kbps Sampling frequency: 48kHz、44.1kHz、32kHz、22.05kHz、16kHz、11.025kHz、8kHz Bit rate: 12-192 kbps (stereo) 0-128 kbps (mono channel) Sampling frequency: 192kHz、176.4kHz、96kHz、88.2kHz、48kHz、44.1kHz、32kHz、 24kHz、22.05kHz、16kHz Digitalizing bit: 8bit、16bit、24bit...
-
Page 12: Sound Setting
Sound setting Knob You can set this device flexibly based on your preference and purpose. You can change audio settings in the sound setting menu. Use steps 1 to 5 to choose any setting mode to change the setting. Press and hold the knob for at least 2 seconds to enter the settings interface. Turn the knob to select “Sound Effect Setting”... - Page 13 For a detailed description of the selected setting items, please refer to the applicable sections below. A total of 10 typical equalizer settings will be preset in the factory for a variety of audio source materials. Standard (initial setting) ↔ Popular ↔ Rock ↔ News ↔ Jazz ↔ Electronic ↔ Hip-hop Preset equalizer ↔...
-
Page 14: General Setting
Preset Equalizer ↔ Sound Effect Setting ↔ General ↔ Bluetooth Turn the knob to select General, and then press the knob: Auxiliary audio source ↔ Built-in power amplifier ↔ Steering wheel controller learning ↔ Alpine system matching ↔ Dimmer control ↔ Language setting ↔ Restore factory settings ↔ About... - Page 15 Alpine system It can be connected to Alpine on-vehicle DSP and only supports products with matching matching controller interfaces. For details, please contact your Alpine dealer.
-
Page 16: Bluetooth Setting
Bluetooth, you need to wait for the mobile phone to pair and connect it. Search “UTX- M06-XXXXXX” directly on the mobile phone background and connect to it. “” is a 6-digit random code, for example: UTX-M06-A00414. For detailed operation, please refer to the below: 1. -
Page 17: Description Of Mobile App - Homepage
Description of mobile APP - Homepage 1 Mute button Mute the master volume 2 Master volume Pull the fader up and down to adjust the master volume. 3 Master audio source Select the master audio source (USB, Bluetooth, High level and AUX). When the Bluetooth icon is red, the mobile phone Bluetooth is not connected;... -
Page 18: Description Of Mobile App - Preset Eq
Description of mobile APP - Preset EQ You can select the preset EQ based on your personal preference. There are 10 options to Preset EQ choose from. -
Page 19: Description Of Mobile App - Music
Description of mobile APP - Music 1 Previous track button Switch to and play the previous track. 2 Play button Switch between Pause and Play. Track information Display information about the track being played. display 4 Track album Display the album of the track being played. 5 Audio source display Display the master audio source and auxiliary audio source selected. -
Page 20: Description Of Mobile App - Delay
Description of mobile APP - Delay Select the corresponding speaker, push the fader left and right on the pop-up window to Speaker adjust the delay, or click "+" and "-" to adjust the delay. Delay group There are 3 delay groups to choose from for each channel. Unit of delay Units of delay to choose from include ms, cm, and inch. -
Page 21: Description Of Mobile App - Channel
Description of mobile APP - Channel The debugging modes to choose from include “Copy channel EQ / volume from left to Debugging right” or “Copy channel EQ / volume from right to left”. Select the divider slope (-6dB/Oct, -12dB/Oct, -18dB/Oct -24dB/Oct -30dB/Oct, - Slope 36dB/Oct, -42dB/Oct, -48dB/Oct or OFF). -
Page 22: Description Of Mobile App - Eq
Description of mobile APP - EQ 1 Reset EQ Reset EQ setting. Switch the tuned EQ data to direct state, click it again to restore the EQ data before Direct 2 Restore EQ, Direct EQ EQ setting. Slide left and right to select the output channel for EQ adjustment. There are 6 channels 3 Output channel to choose from. -
Page 23: Description Of Mobile App - Sound Mixing
Description of mobile APP - Sound Mixing Slide left and right to select the output channel for EQ adjustment. There are 6 channels to Output channel choose from. Active or passive Keep the default setting as "Passive output". Warning: if changed, you will lose the sound output mixer setting of this channel. -
Page 24: Description Of Mobile App - Setting
Description of mobile APP - Setting About Check information such as device version. Sound setting storage It can call or save dealer settings and custom settings. Adjust the volume of audio sources including USB, Bluetooth music, High level and Input source volume AUX. -
Page 25: Interface Of Pc Software
Interface of PC software... -
Page 26: Description Of Pc Software
Interface of PC software File Load or save scene files on PC, load or save all scene files. Firmware update, restore factory settings, switch between English and Chinese, check Options the version number. Encryption Enter a 6-digit password to encrypt the tuned sound effect data. Push the fader left and right to adjust the master volume. -
Page 27: Specifications
Specification parameters Interface USB 2.0/MICRO SD Capacity Supports a maximum of 128G each Maximum power consumption 1.5A File system FAT16/32 Maximum number of playable 5000 tracks tracks PCM encoding 192kHz，16~24bit MP3 decoding MPEG Audio Layer-3 WMA decoding Windows Media™ audio WAV decoding waveform audio file FLAC decoding... -
Page 28: Performance Parameters
Functional parameters Dynamic range ≥110dB Signal to noise ratio AUX≥100dB Background noise High level≤-75dBu; AUX≤-95dBu Channel resolution ≥80dB ≤0.01% Input voltage High level: 26Vpp; AUX: 8Vpp Output voltage 12Vpp Rated power 4CH×25W (4Ω，14.4V，1kHz，10%THD) Maximum power 4CH×50W (4Ω，14.4V，1kHz，10%THD) Input / output sensitivity AUX≥1:1.5 20Hz~40kHz Frequency response... -
Page 29: Operating Instructions For Installation
Operating instructions for installation Before installing or connecting this device, please read the following instructions and refer to “Operating Instructions” to ensure correct use. Incorrect connection may result in fire or damage to this product. Professional Please make correct connections expertise and experience are required to wire and install the device. -
Page 30: Precautions For Installation
Please do not use these wires to supply power for this device. · When connecting UTX-M06 to the fuse box, please make sure that the amperage of the circuit fuse used for UTX-M06 is appropriate. If not, it may result in damage to this device and/or the vehicle. For any questions, please consult your Alpine dealer. -
Page 31: When A Problem Occurs
If the device fails, this manual will help you solve the problem. Otherwise, please confirm that your system is connected correctly or consult your Alpine authorized dealer. Function cannot be used or displayed. -
Page 32: Radio Law On Bluetooth
Radio law on Bluetooth Regulatory requirements of radio law on Bluetooth: 1. Technical indicators of this product: · Use frequency: 2.4-2.4835 GHz · Equivalent isotropically radiated power (EIRP): Antenna gain < 10dBi: ≤100mW or ≤20dBm · Maximum power spectral density: Antenna gain <... -
Page 33: Hazardous Substances
Ground floor, Fengyuan Jiahui Chaoyangju, No. 98 330029 0791-865 66758 maintenance station Xinzhou Road, Nanchang Chengdu No. 1333 Zone B1, Dongli International Square, 610051 028-843 97796 maintenance station Simaqiao, Chenghua District, Chengdu For the latest and most detailed information of maintenance stations, please visit www.alpine.com.cn.
